PLC | Siemens | 6ES7 307-1KA01-0AA0 6ES7307-1KA01-0AA0 Power Supply Module

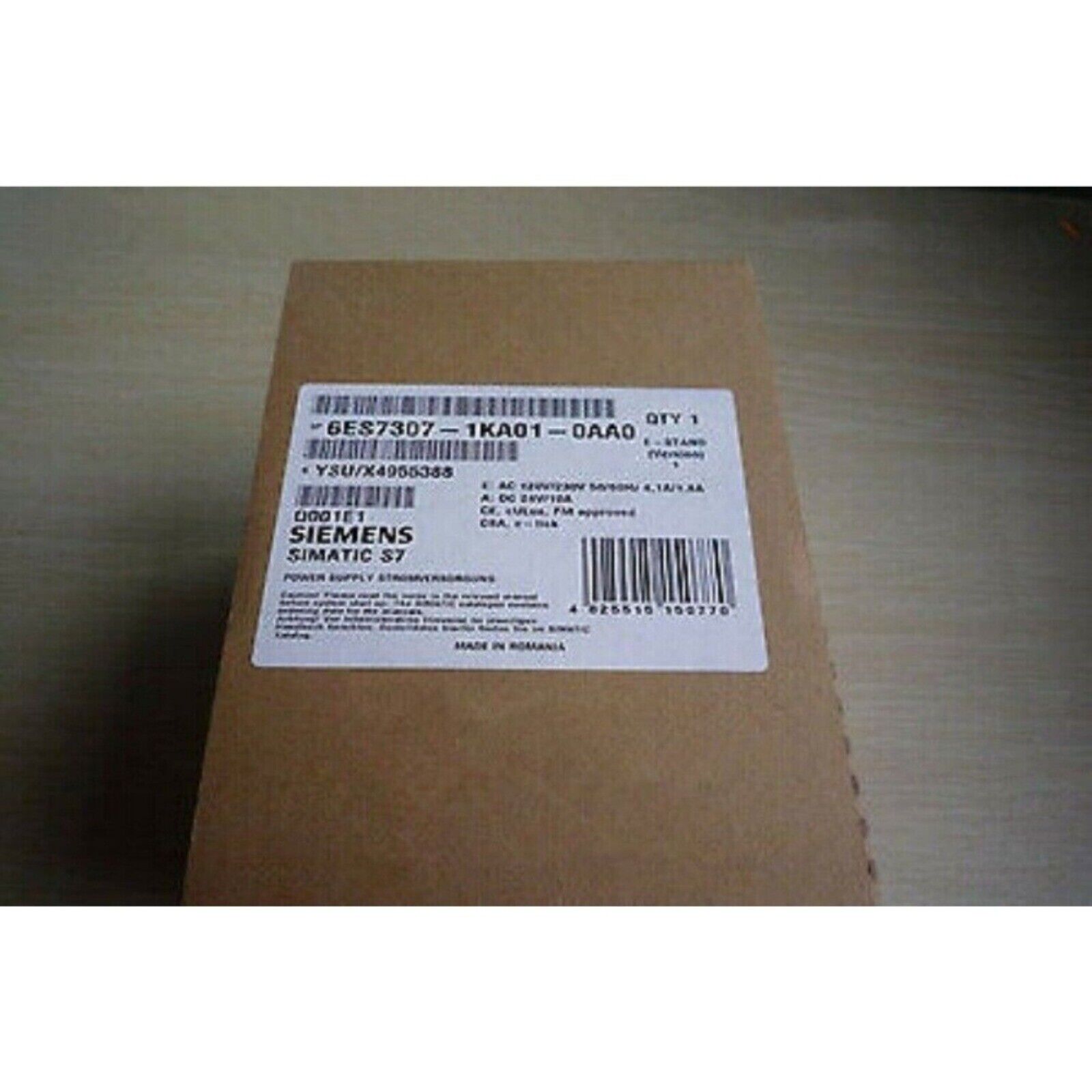

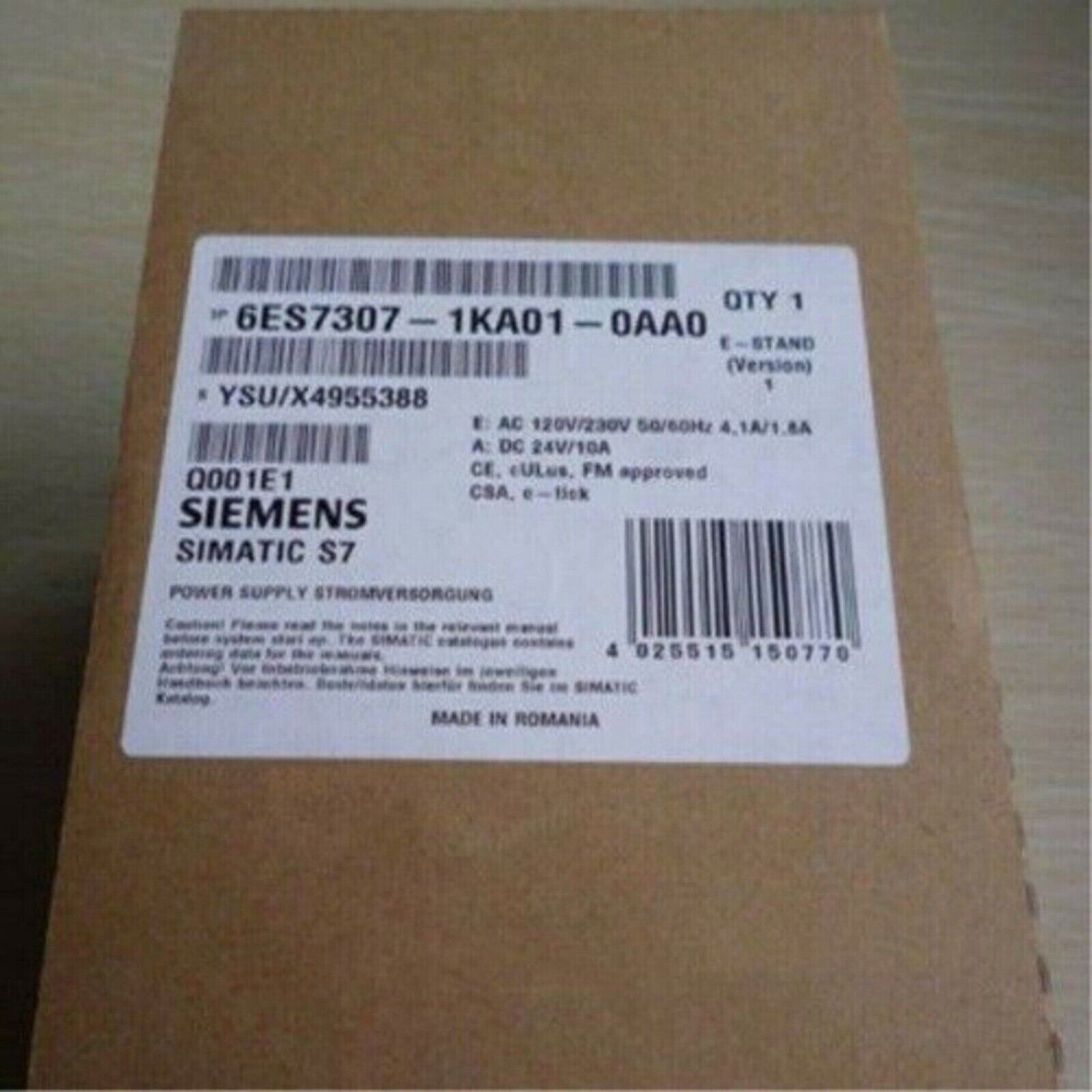

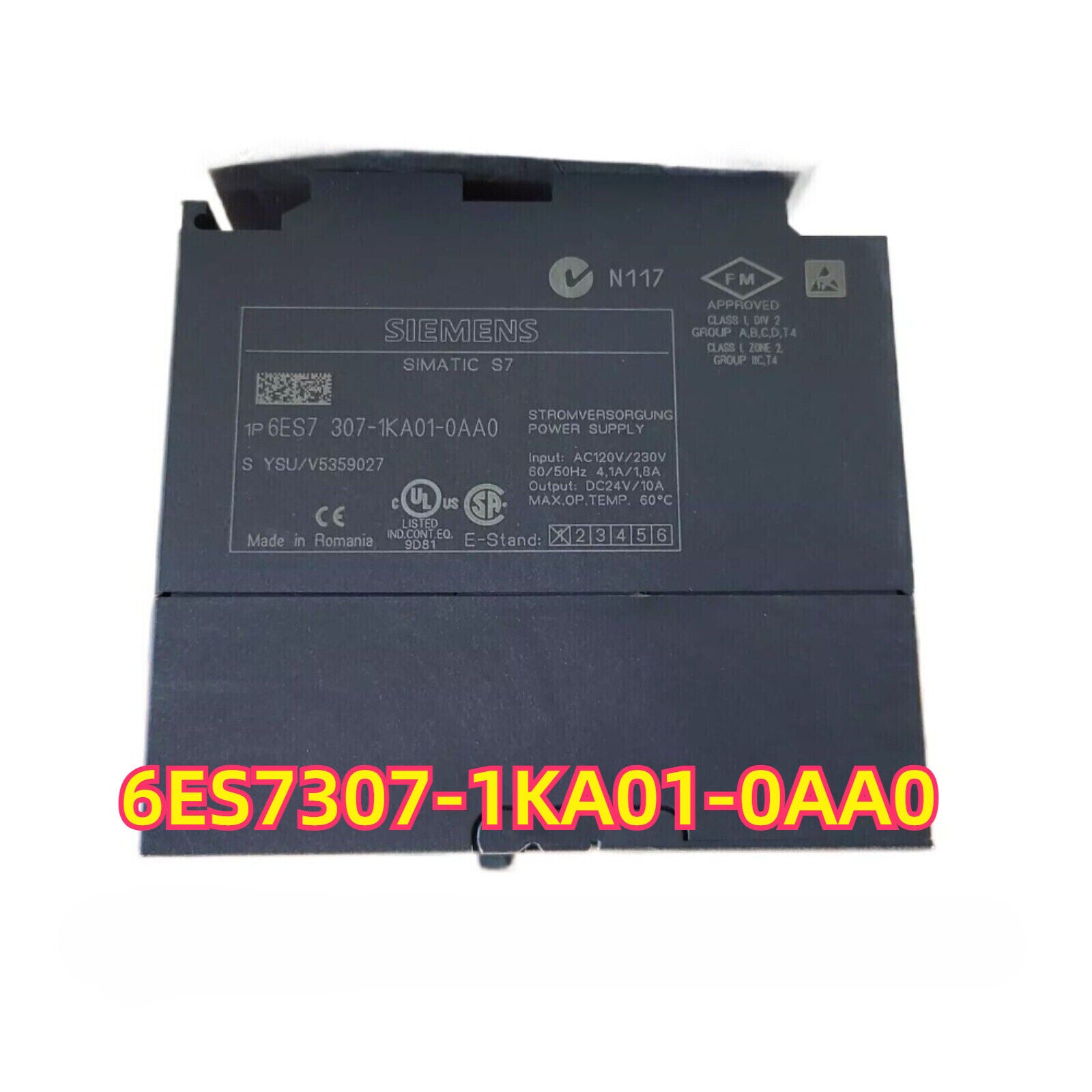

Product Description: Siemens 6ES7307-1KA01-0AA0

The Siemens 6ES7307-1KA01-0AA0 is a power supply module from the SIMATIC S7-300 series, classified as PS 307 with an output current of 1.2 A. It is designed to provide a stable and reliable 24 V DC power source for S7-300 PLC systems and connected modules. This unit ensures high operational reliability in a compact form factor, making it suitable for small to medium automation systems in industrial and commercial environments. The PS 307 1.2 A module is equipped with overload and short-circuit protection and is optimized for integration into standard DIN rail-mounted S7-300 racks. It features easy wiring, plug-in terminals, and efficient thermal management.

Key Features

• 24 V DC Output: Supplies regulated 24 V DC power to the S7-300 CPU and I/O modules.
• Current Output: Provides 1.2 A of continuous current, suitable for basic automation needs.
• Short-Circuit Protection: Ensures safe operation by protecting downstream modules.
• Compact Size: Slim design ideal for limited space in control cabinets.
• DIN Rail Mounting: Seamlessly integrates into S7-300 PLC racks.

Technical Specifications

• Product Type: Power Supply Module
• Part Number: 6ES7307-1KA01-0AA0
• Series: SIMATIC S7-300
• Model: PS 307 1.2 A
• Input Voltage: 120/230 V AC (85–264 V AC)
• Output Voltage: 24 V DC
• Output Current: 1.2 A
• Protection: Overload and short-circuit protection
• Mounting: DIN rail
• Operating Temperature: 0°C to +60°C
• Weight: Approx. 400 g
• Dimensions (W x H x D): 40 × 125 × 120 mm

Application Areas

• PLC System Power Supply: Powers S7-300 CPUs, signal modules, and communication modules.
• Panel Power Distribution: Suitable for small automation panels and control boxes.
• Machine Automation: Supports low-power control systems and machine interfaces.
• Building Automation: Provides power to central control systems and distributed components.

Advantages

• Reliable 24 V DC Output: Ensures stable voltage for sensitive automation electronics.
• Integrated Protection: Protects equipment from overloads and faults.
• Compact & Efficient: Space-saving design with efficient power conversion.
• Easy Installation: Plug-in terminal connections and DIN rail compatibility streamline setup.
• Long-Term Durability: Engineered for continuous industrial operation with extended service life.
