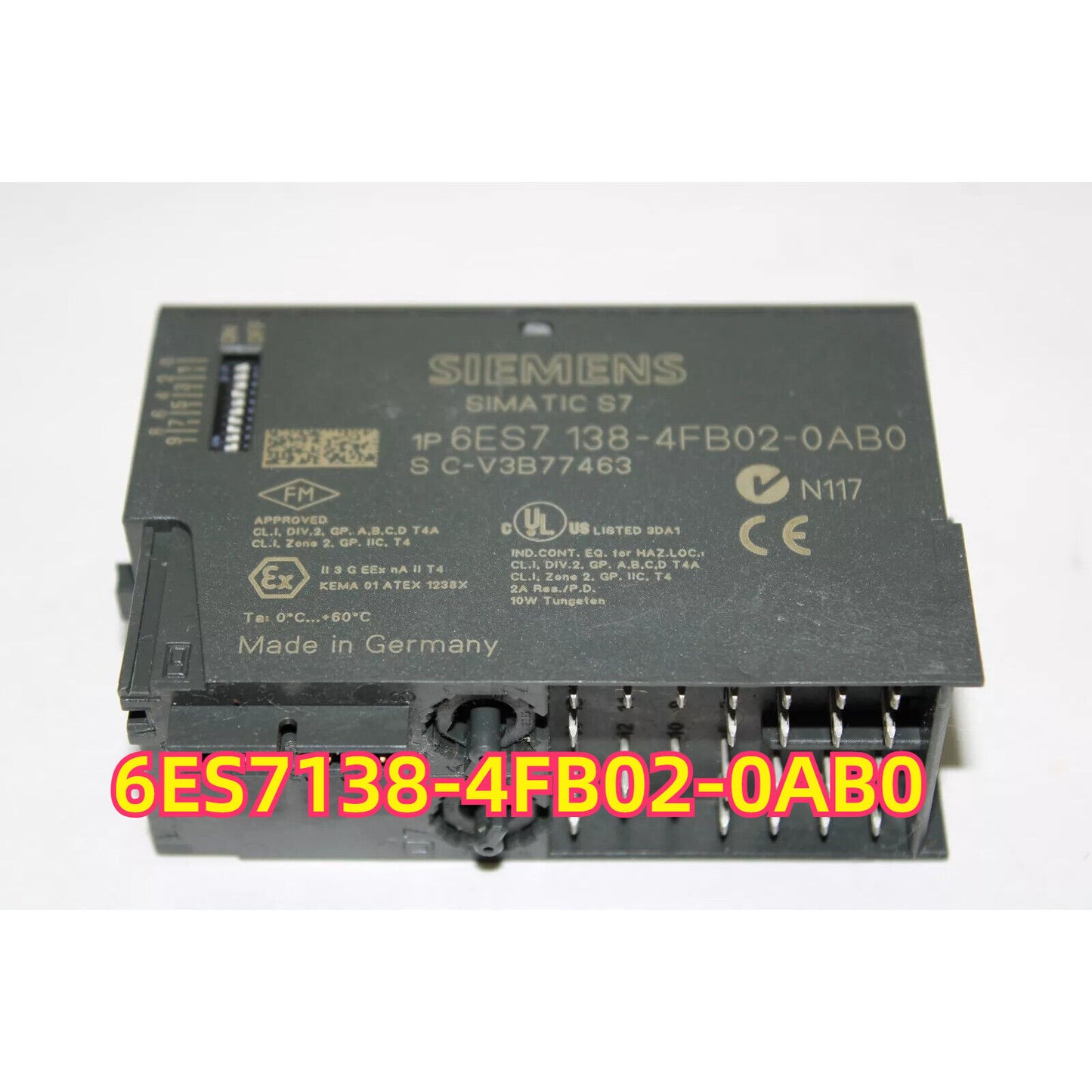

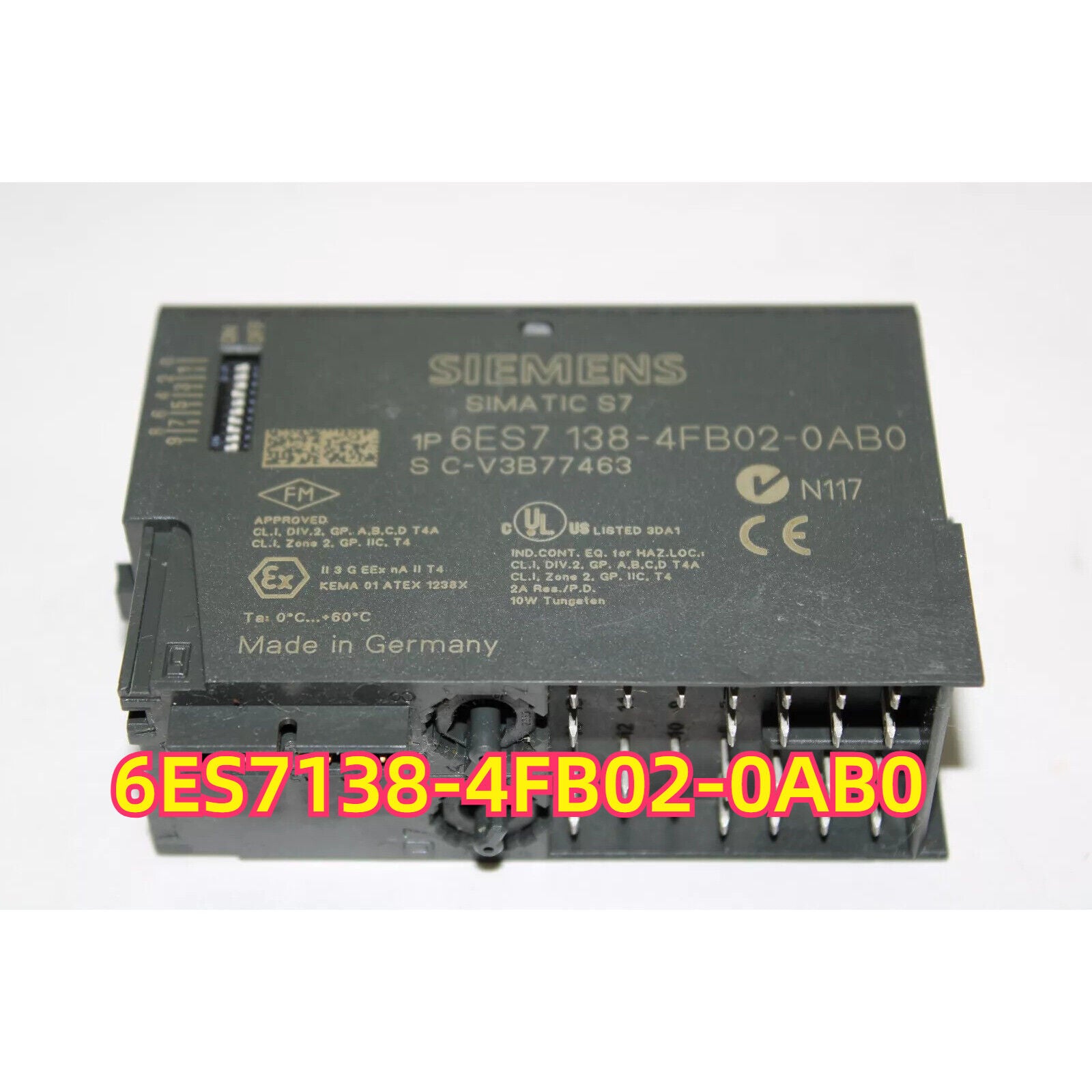

Product Description: Siemens 6ES7138-4FB02-0AB0

The Siemens 6ES7138-4FB02-0AB0 is a digital output module from the SIMATIC S7-1200 series, providing 8 channels for controlling 24 V DC signals. The module is designed for industrial automation systems, enabling precise control of actuators, relays, and other digital devices. It features high-density output configurations, with each channel capable of handling a maximum of 0.5 A. The module can be easily integrated into the S7-1200 PLC system, offering reliable and efficient digital signal output for a wide range of industrial applications.

Key Features

• Digital Outputs: 8 channels, 24 V DC
• Output Current: 0.5 A per channel
• Signal Type: Sinking or sourcing (PNP or NPN)
• Mounting: DIN rail within the SIMATIC S7-1200 system rack
• Configuration: Configured via TIA Portal or STEP 7
• Diagnostics: Integrated diagnostic functions for wire break and short circuit detection

Technical Specifications

• System Series: SIMATIC S7-1200
• Module Type: Digital Output Module (DO)
• Number of Outputs: 8
• Output Voltage: 24 V DC
• Output Current: 0.5 A per channel
• Output Type: Sinking or Sourcing (PNP or NPN)
• Power Supply: Via backplane bus
• Mounting: DIN rail
• Dimensions (W × H × D): Approx. 40 mm × 125 mm × 129 mm
• Operating Temperature Range: 0 °C to +60 °C
• Protection Class: IP20
• Certifications: CE, UL, cULus

Application Areas

• Control of digital actuators, relays, and other field devices
• Integration into SIMATIC S7-1200 PLC systems for modular I/O expansion
• Industrial automation applications requiring high-density digital output
• Suitable for a variety of applications in manufacturing and process control

Advantages

• High-density 8-channel output module for space-saving installations
• Reliable and precise control of 24 V DC digital devices
• Diagnostic capabilities for easy troubleshooting and maintenance
• Seamless integration with SIMATIC S7-1200 PLC via TIA Portal for configuration
