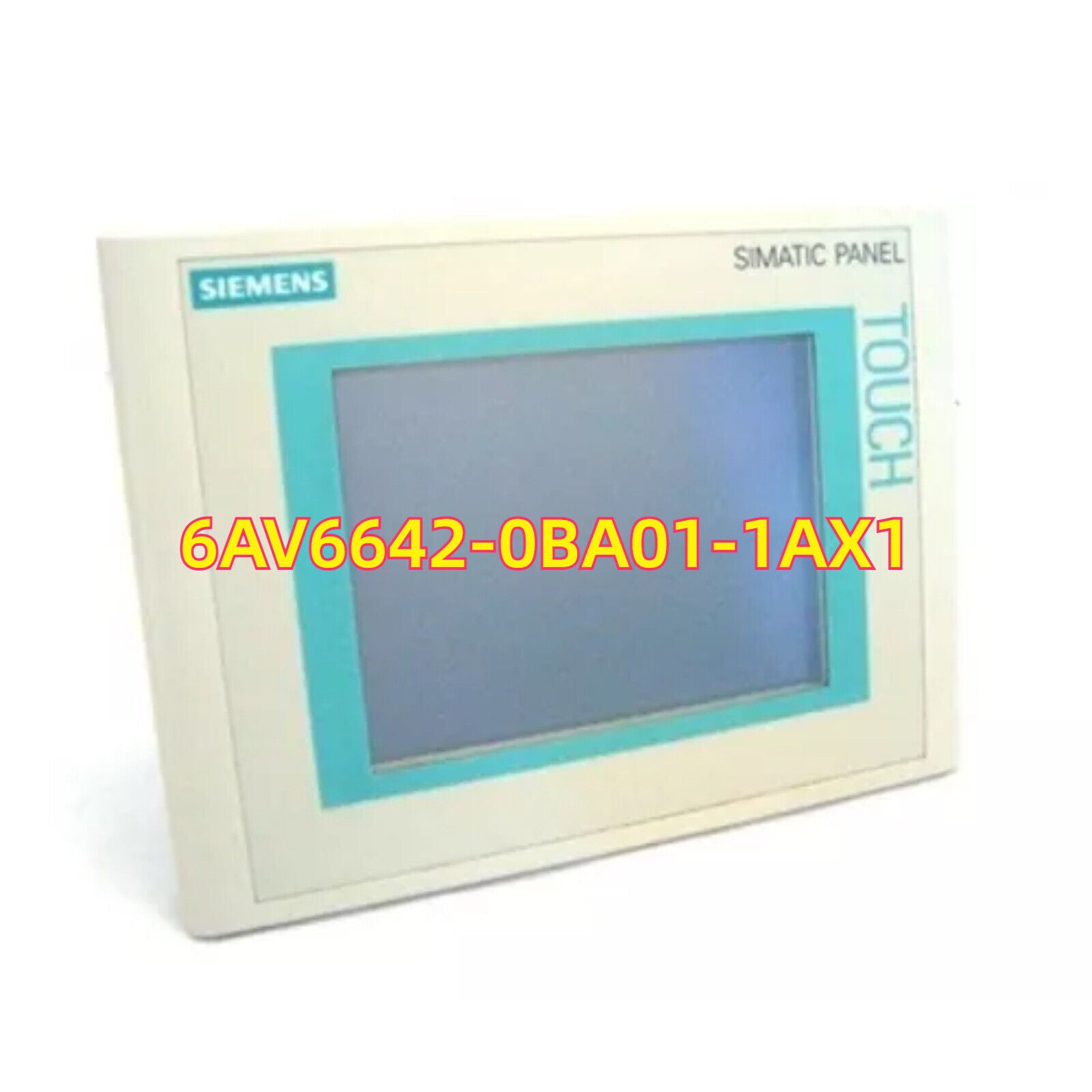

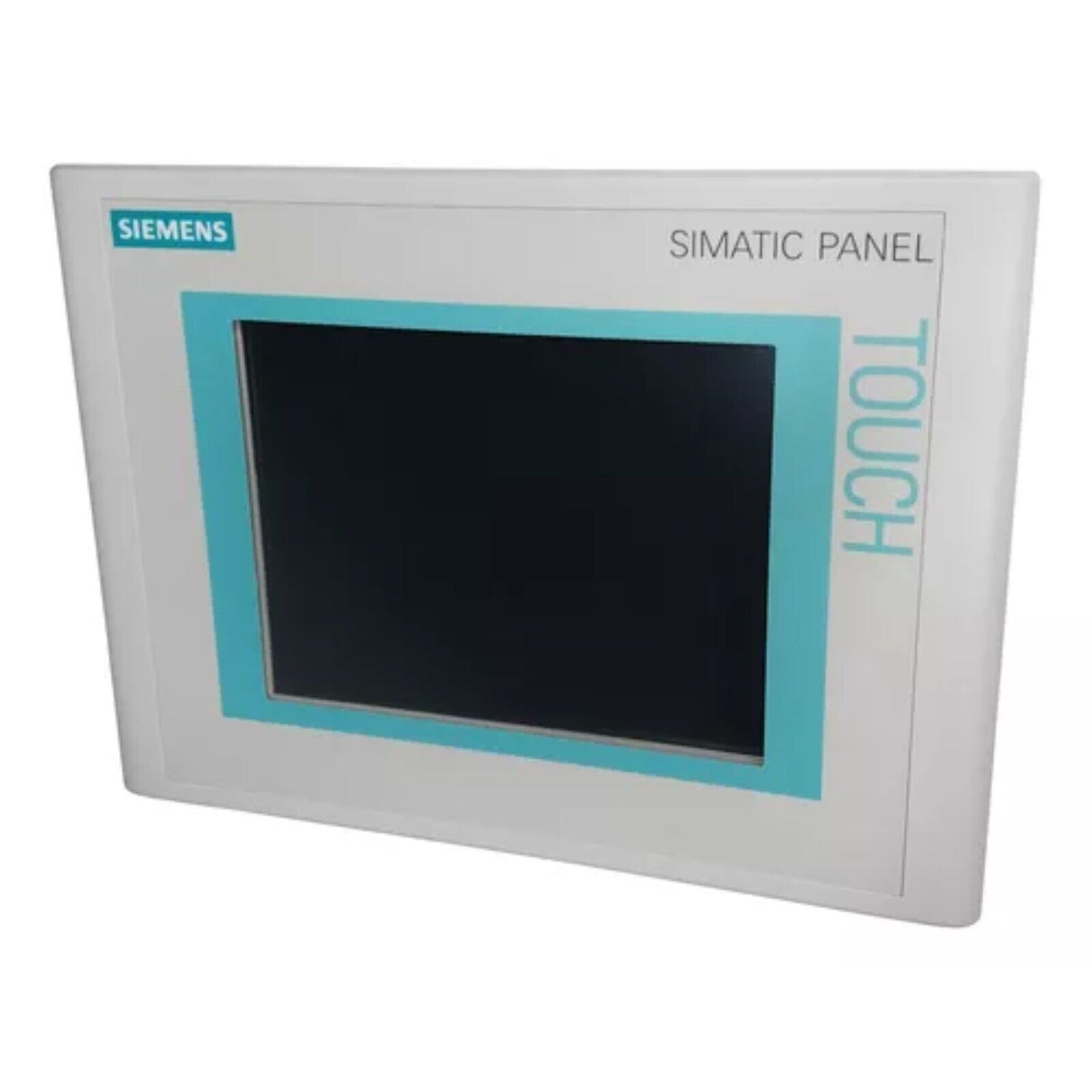

Product Description: Siemens 6AV6642-0BA01-1AX1 KTP600 Basic Panel

The Siemens 6AV6642-0BA01-1AX1 is a KTP600 Basic Panel from the SIMATIC HMI Basic family, offering an ideal solution for simple and cost-effective human- machine interfaces (HMI) in automation systems. It features a 5.7-inch color TFT display, providing a clear, vibrant display for monitoring and controlling industrial processes. The panel combines touchscreen functionality with 6 keypad buttons, offering flexibility in user interaction for different operational environments. This HMI panel is equipped with a PROFIBUS DP interface, allowing seamless communication with Siemens PLC systems (such as S7-1200, S7-300, and S7-400). It is designed to operate in industrial environments, offering robust functionality for equipment control and process visualization. With the KTP600 Basic Panel, users can efficiently create interactive user interfaces to monitor system performance, adjust settings, and visualize real- time data. This panel is an excellent choice for projects that require high- quality human-machine interaction but need to keep costs low.

Key Features

• Display Size: 5.7-inch color TFT screen
• Resolution: 320 × 240 pixels (QVGA)
• User Input: Touchscreen + 6 physical function keys for enhanced control
• Communication: PROFIBUS DP interface for integration with Siemens PLC systems
• Power Supply: 24 V DC, powered by the PLC system
• Protection Class: IP65 for the front panel, suitable for industrial use
• Software Support: Compatible with WinCC flexible and TIA Portal for easy configuration and project management
• Storage: 1MB of user memory for project storage
• Mounting: Panel mount installation, easy to integrate into control systems

Application Areas

• Machine Automation: Ideal for small to medium-sized machine control systems, such as packaging machines, conveyors, and assembly lines.
• Energy Management: Used for monitoring and controlling HVAC systems, water treatment facilities, and energy-efficient automation systems.
• Factory and Building Automation: Provides user-friendly control and monitoring interfaces for process industries and building systems.
• Control Stations: Works well as a local control panel for various industrial processes, ensuring ease of use and clear visualization.

Advantages

• Cost-Effective Solution: A highly affordable option for industrial automation projects requiring basic yet reliable HMI functionality.
• Flexible User Interface: Offers both touch and physical button controls for easy operation in diverse work environments.
• Seamless Integration: Supports PROFIBUS DP, making it easy to integrate into existing Siemens PLC systems.
• Durability: With an IP65 rated front panel, it can withstand harsh industrial conditions like dust and water exposure.
• Easy Configuration: Easily configured with WinCC flexible or TIA Portal for efficient project setup and management.
