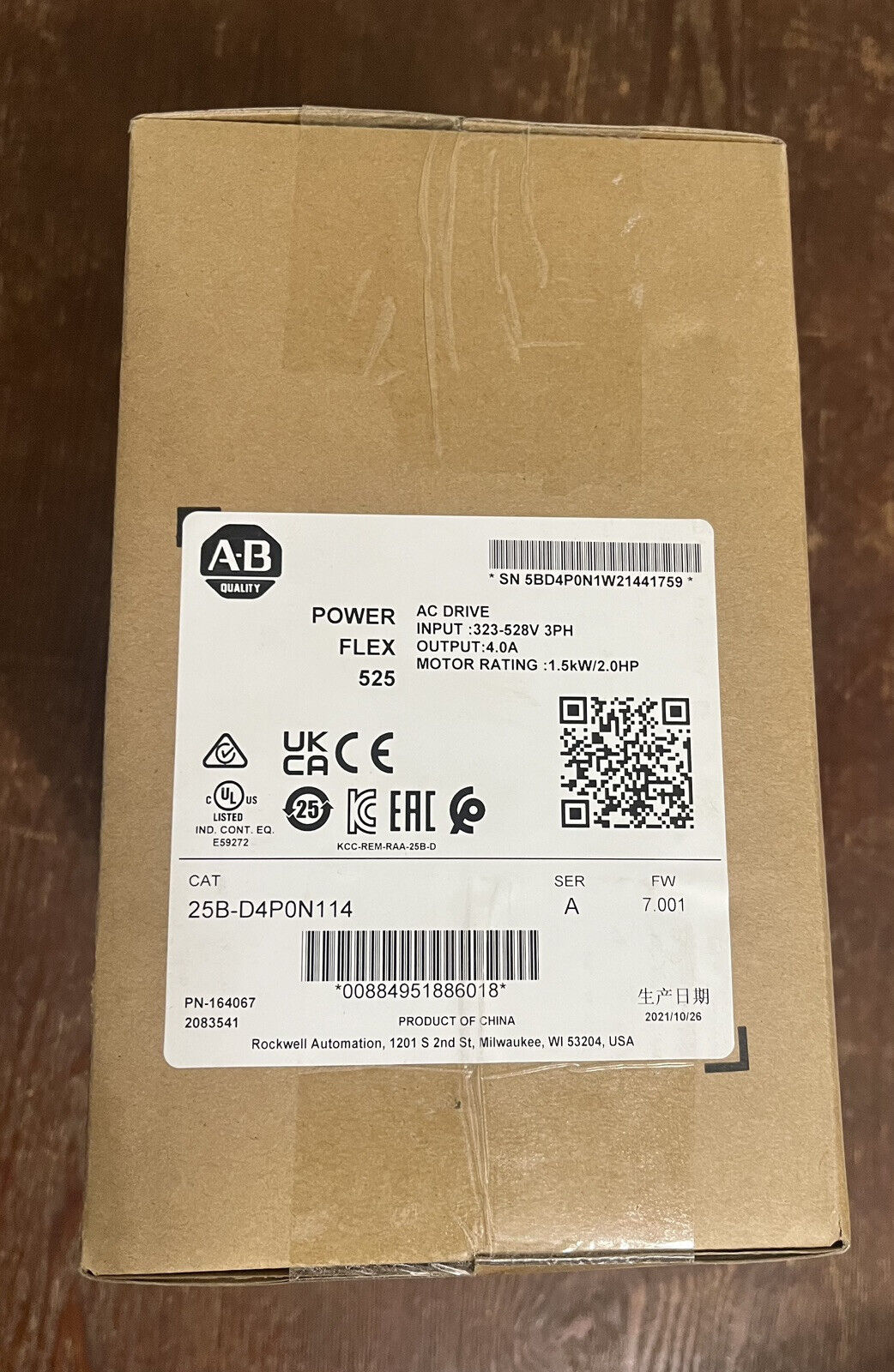

PowerFlex 525 | Allen-Bradley | 25B-D4P0N114 PowerFlex 525 1.5kW 2Hp AC Drive

Product Description: Allen-Bradley 25B-D4P0N114

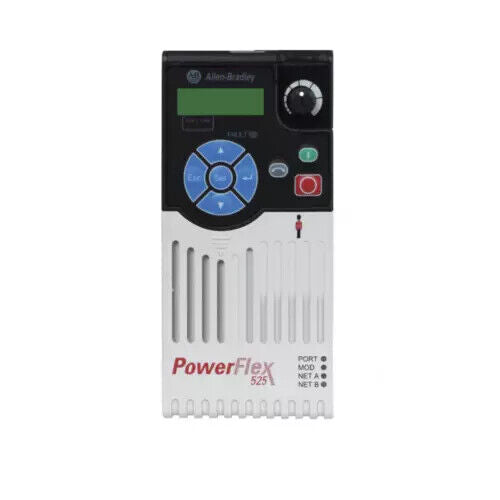

The Allen-Bradley 25B-D4P0N114 is a compact and versatile AC drive from the PowerFlex 525 series, designed for a wide range of industrial applications. It offers advanced motor control capabilities, embedded EtherNet/IP communication, and integrated safety features, making it suitable for both standard and safety-critical applications.

Key Features

• Power Rating: 1.5 kW (2 HP) for both Normal Duty and Heavy Duty applications
• Input Voltage: 380–480V AC, 3-phase
• Output Current: 4.0 A
• Control Modes: Supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), and Closed Loop Velocity Vector Control
• Embedded Communications: Built-in EtherNet/IP and DeviceNet ports for seamless integration
• Safety Features: Integrated Safe Torque-Off (STO) functionality certified to SIL2/PLd Cat 3 standards
• User Interface: Integral keypad with potentiometer and LED display for easy configuration and monitoring
• Enclosure Type: IP20 NEMA / Open Type suitable for panel mounting
• EMC Filtering: Integrated EMC filter for reduced electrical noise
• Brake IGBT: Included for dynamic braking applications
• Frame Size: Frame A for compact installations

Technical Specifications

• Frequency Rating: 50–60 Hz
• Power Factor: 0.98
• Operating Temperature: -20°C to +50°C (up to +70°C with derating)
• Dimensions (H x W x D): 152 mm x 72 mm x 172 mm (6.0 in x 2.8 in x 6.8 in)
• Weight: Approximately 1.5 kg (3.3 lbs)
• Certifications: CE, UL, cUL, TUV, and others

Application Areas

• Conveyors and material handling systems
• Pumps and fans
• Packaging machinery
• HVAC systems
• Industrial automation requiring precise motor control

Advantages

• Compact design saves panel space
• Flexible motor control options for various applications
• Integrated communications reduce the need for additional modules
• Built-in safety features enhance machine safety
• Easy to configure and commission with intuitive user interface
