Allen-Bradley | 25B-B8P0N1044 | PowerFlex 525

Product Description: Allen-Bradley 25B-B8P0N104

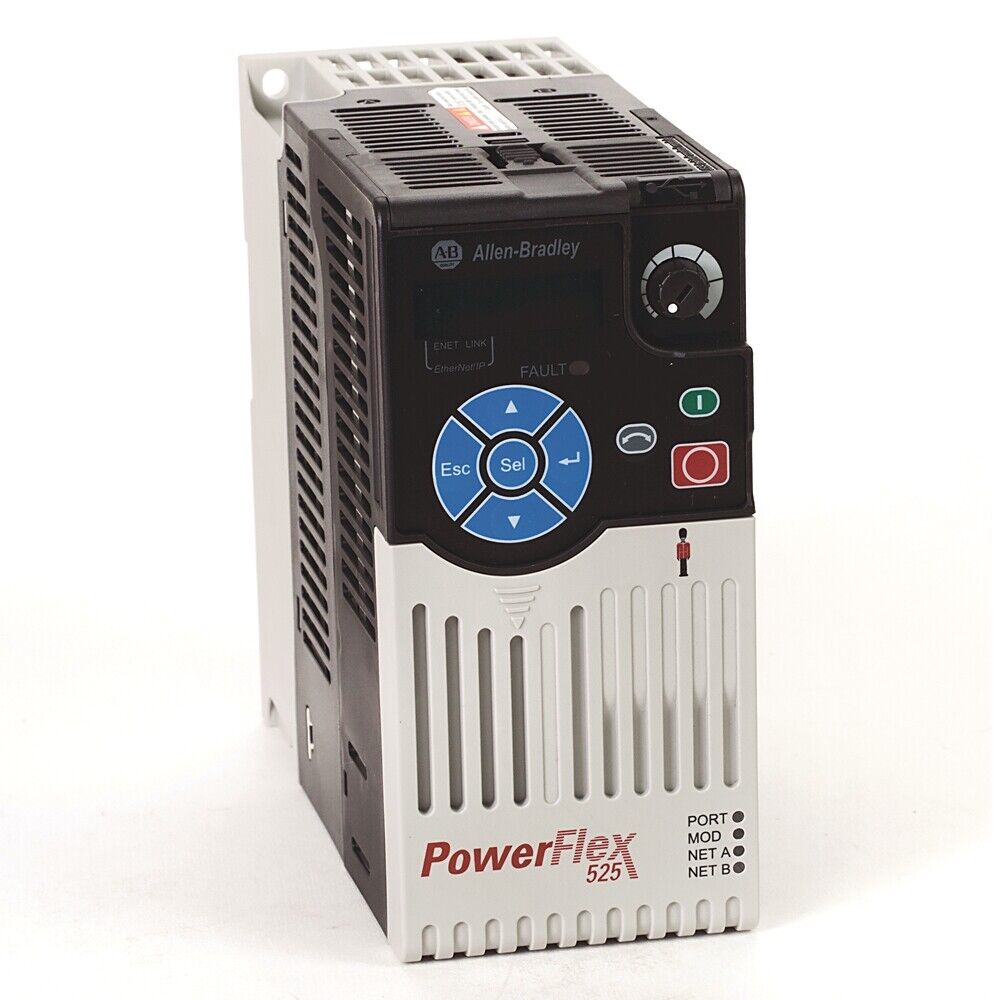

The Allen-Bradley 25B-B8P0N104 is a PowerFlex 525 AC drive designed for controlling 3-phase motors with a rated power of 2.2 kW (3 HP) at 380–480V AC input. This drive features integrated EtherNet/IP and DSI communication interfaces, making it easy to implement into networked automation systems. With support for V/Hz and Sensorless Vector control modes, as well as a compact, modular design, the unit delivers high performance and efficiency in small to medium-scale industrial applications.

Key Features

• 2.2 kW (3 HP) power rating
• 3-phase input voltage: 380–480V AC
• Output current: 8.0 A
• Built-in EtherNet/IP and DSI communication
• USB Type-B configuration port
• Supports V/Hz, Sensorless Vector, and Economizer control
• Integrated Safe Torque-Off (STO) functionality
• Compact IP20 open-type design for flexible mounting
• Removable control core for simplified servicing and backup

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 8.0 A
• Frequency Range: 0–500 Hz
• Enclosure Rating: IP20 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Closed-Loop PID
• Communication Ports:
  • 2 x EtherNet/IP
• Programming Tool: Connected Components Workbench (CCW)
• Operating Temperature: -20°C to +50°C (without derating)

Application Areas

• Small pumps and fans
• Light-duty conveyor systems
• Packaging machines and OEM equipment
• HVAC and fluid handling
• Machine tools and small industrial machinery

Advantages

• Compact and economical solution for low-to-mid power applications
• Integrated communications simplify wiring and commissioning
• Flexible control options support various load types
• Built-in STO enhances machine safety and simplifies system design
• Seamless integration with Studio 5000 and Logix controllers
