Allen-Bradley | 25B-D010N114 | PowerFlex 525

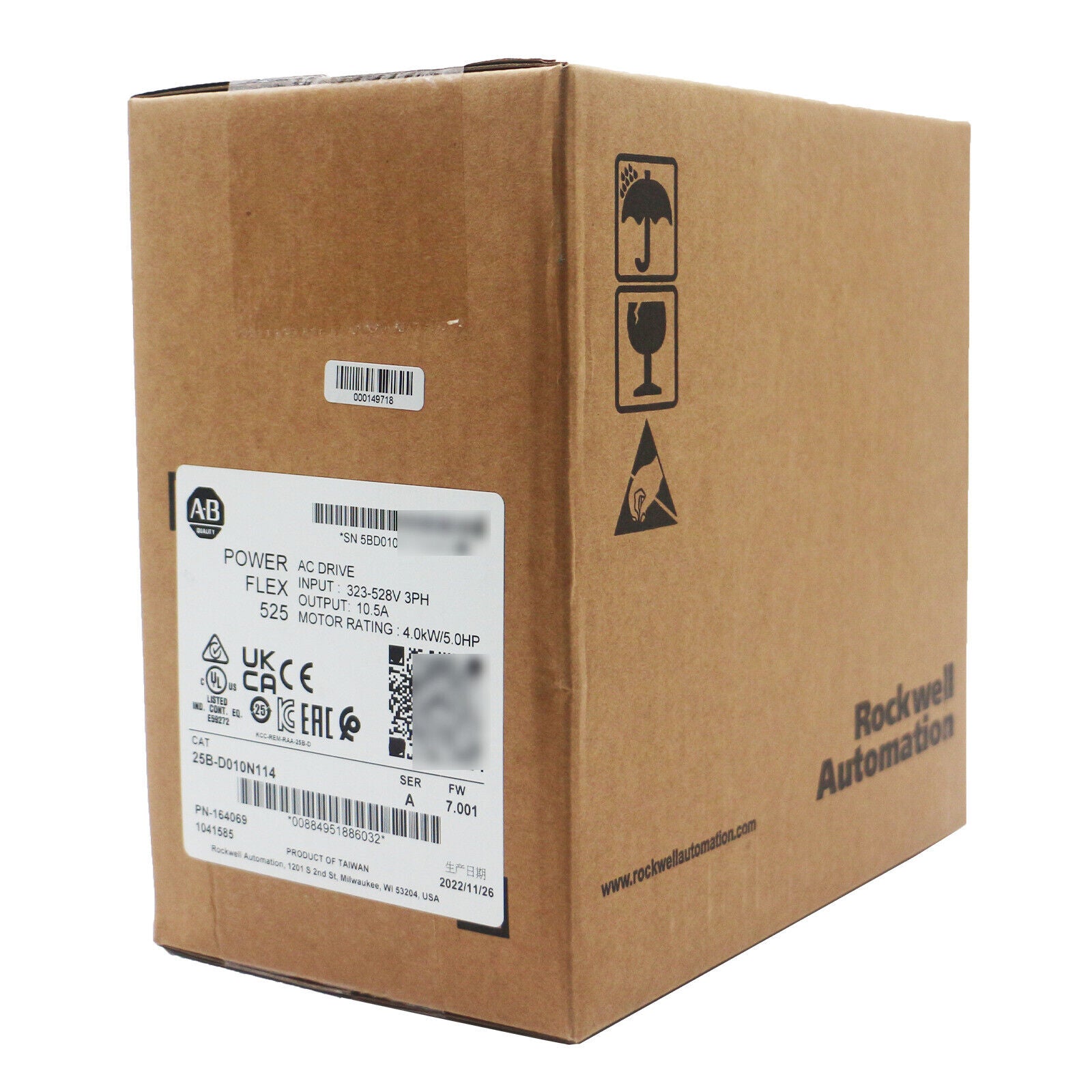

Product Description: Allen-Bradley 25B-D010N114

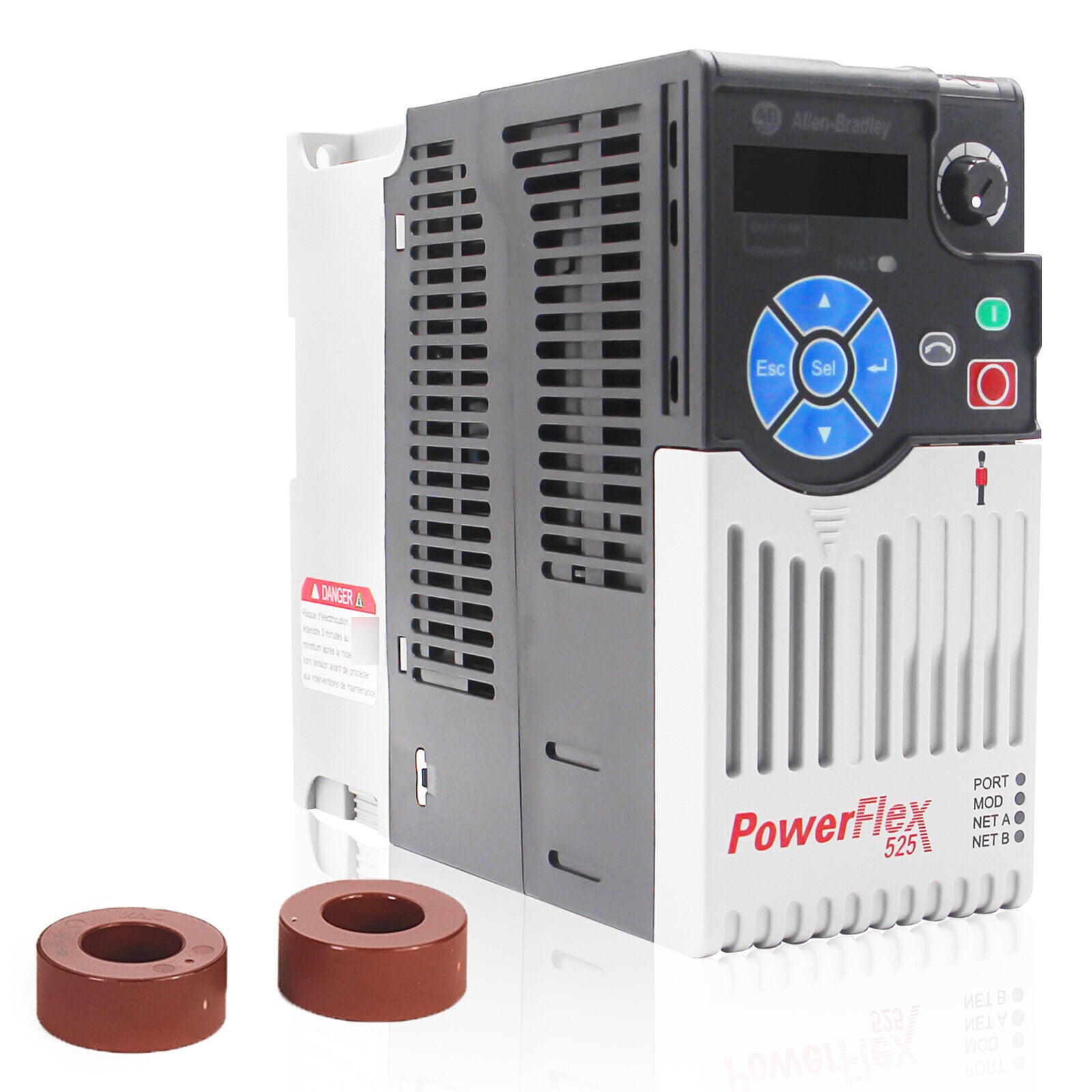

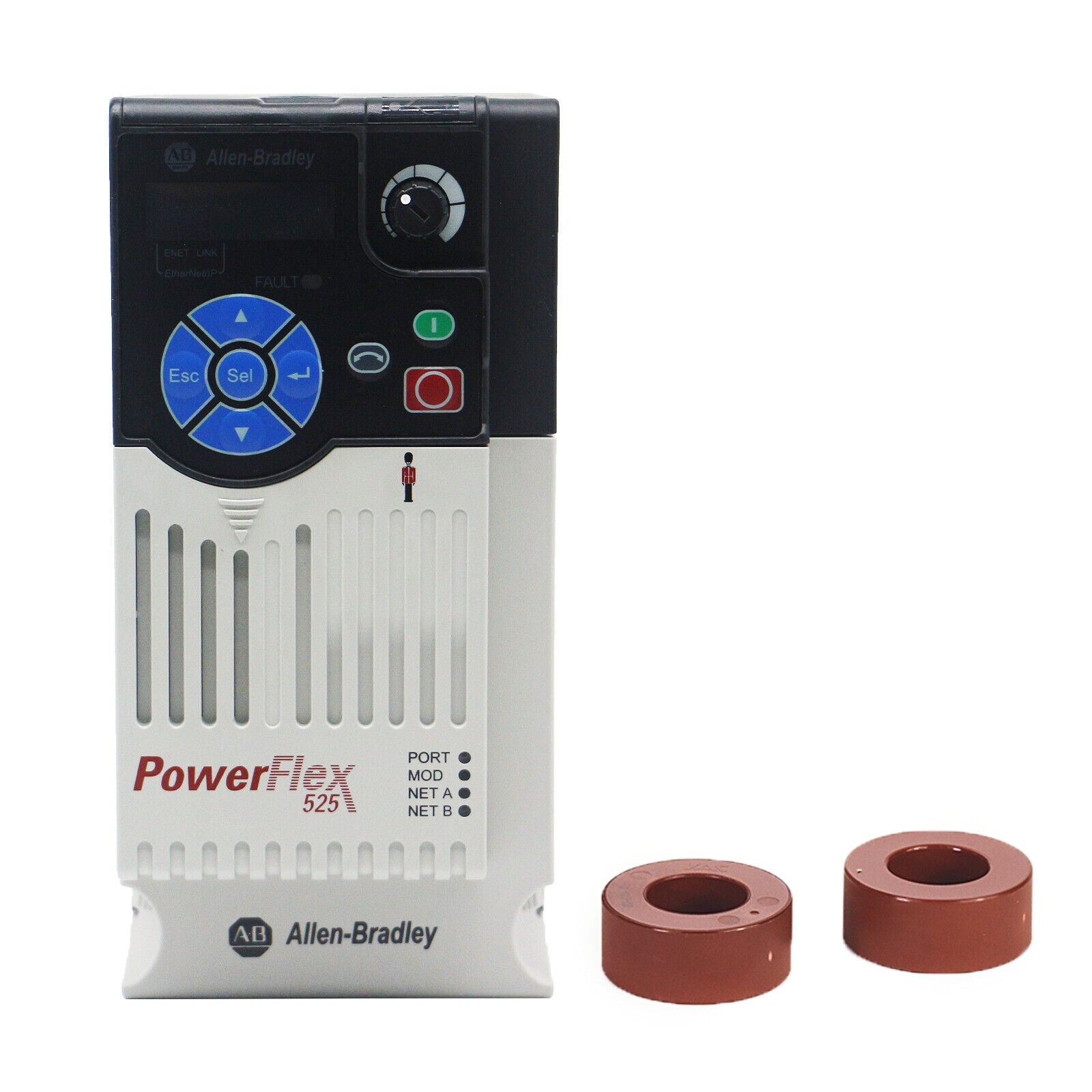

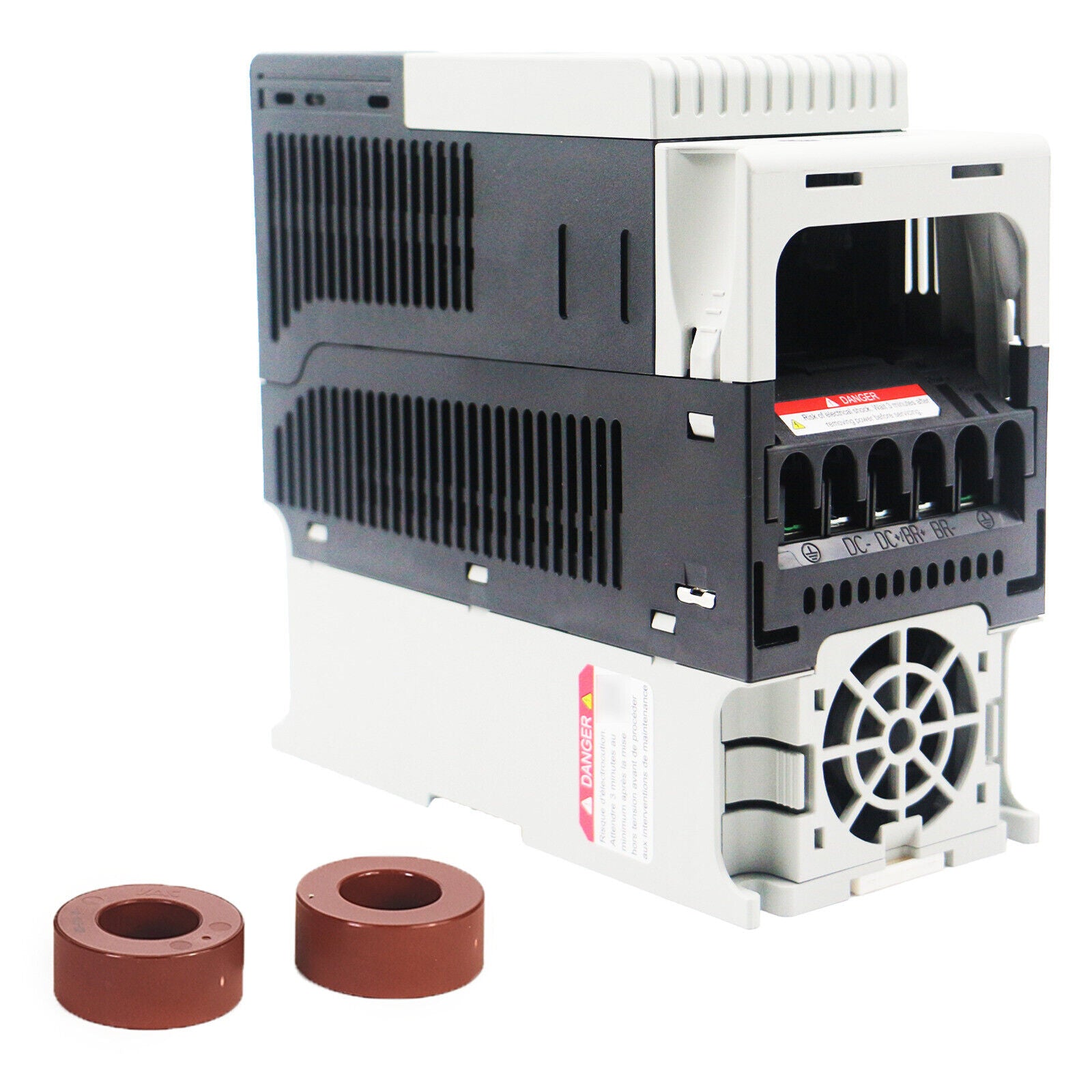

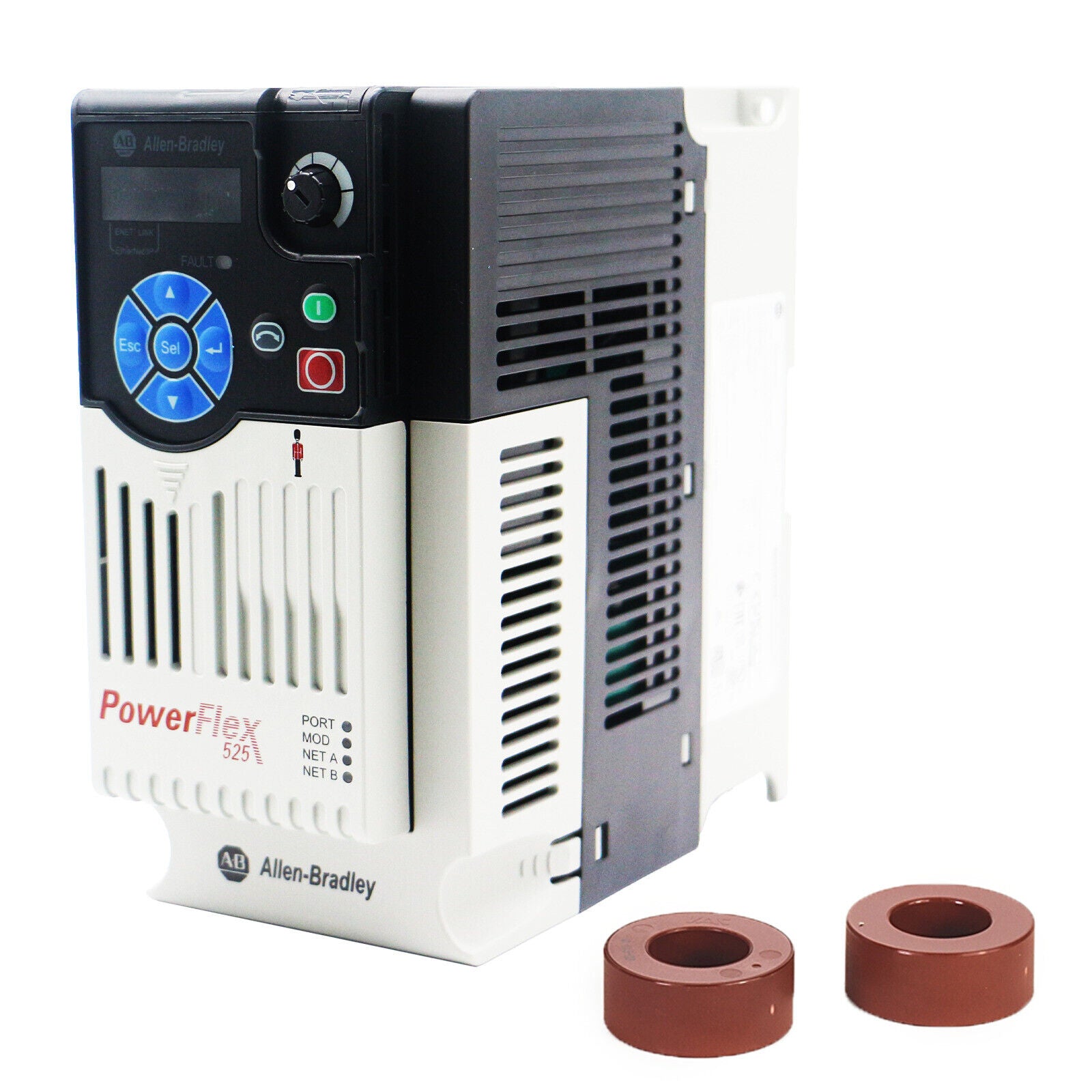

The Allen-Bradley 25B-D010N114 is a PowerFlex 525 AC drive designed for variable speed control of three-phase induction and permanent magnet motors. It operates on a 380–480V AC, 3-phase power input and delivers a rated output current of 10.5 A, suitable for motors up to 4.0 kW (5 HP). This model features an IP20 open-type enclosure and includes integrated EtherNet/IP communication and Safe Torque-Off (STO) functionality for flexible, safe, and connected motor control.

Key Features

• 4.0 kW (5 HP) motor support
• 10.5 A output current
• 380–480V AC, 3-phase input
• Embedded EtherNet/IP and Modbus-TCP support
• Safe Torque-Off (STO) safety function
• Supports V/Hz, Sensorless Vector, Closed Loop Velocity, and Permanent Magnet Motor Control
• Frame B size for higher power handling
• IP20 open-type enclosure
• Built-in keypad with LED display and potentiometer
• DIN rail and panel mounting options

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Frequency Range: 0–500 Hz
• Rated Output Current: 10.5 A
• Power Factor: ≥ 0.98
• Operating Temperature: -20°C to +50°C (without derating)
• Enclosure Type: IP20 (Open Type)
• Frame Size: B
• Communication Interfaces: EtherNet/IP, Modbus-TCP
• Safety Function: Safe Torque-Off (SIL2, PLd)
• EMC Filtering: Integrated
• User Interface: Keypad with LED display and potentiometer

Application Areas

• Conveyor and material handling systems
• Pumps and process fans
• Packaging and bottling machinery
• Mixing and blending equipment
• Industrial ventilation systems
• OEM machines and automated production lines

Advantages

• Provides high-performance motor control for mid-power applications
• Built-in communication and safety features reduce installation cost
• Flexible mounting and configuration options
• Compact form factor for efficient use of panel space
• Reliable operation in demanding industrial environments
