Allen-Bradley | 25B-D024N104 | PowerFlex 525

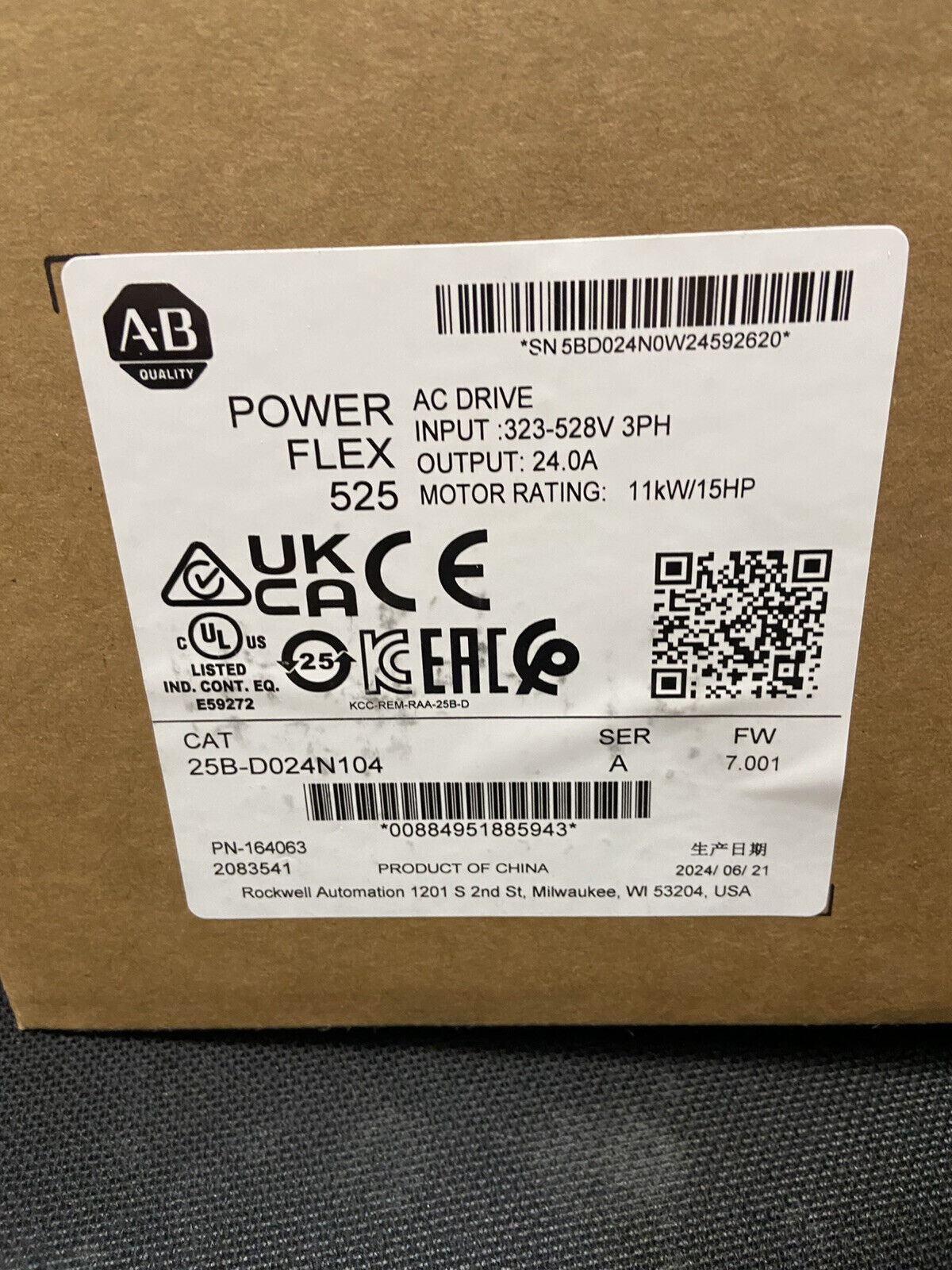

Product Description: Allen-Bradley 25B-D024N104

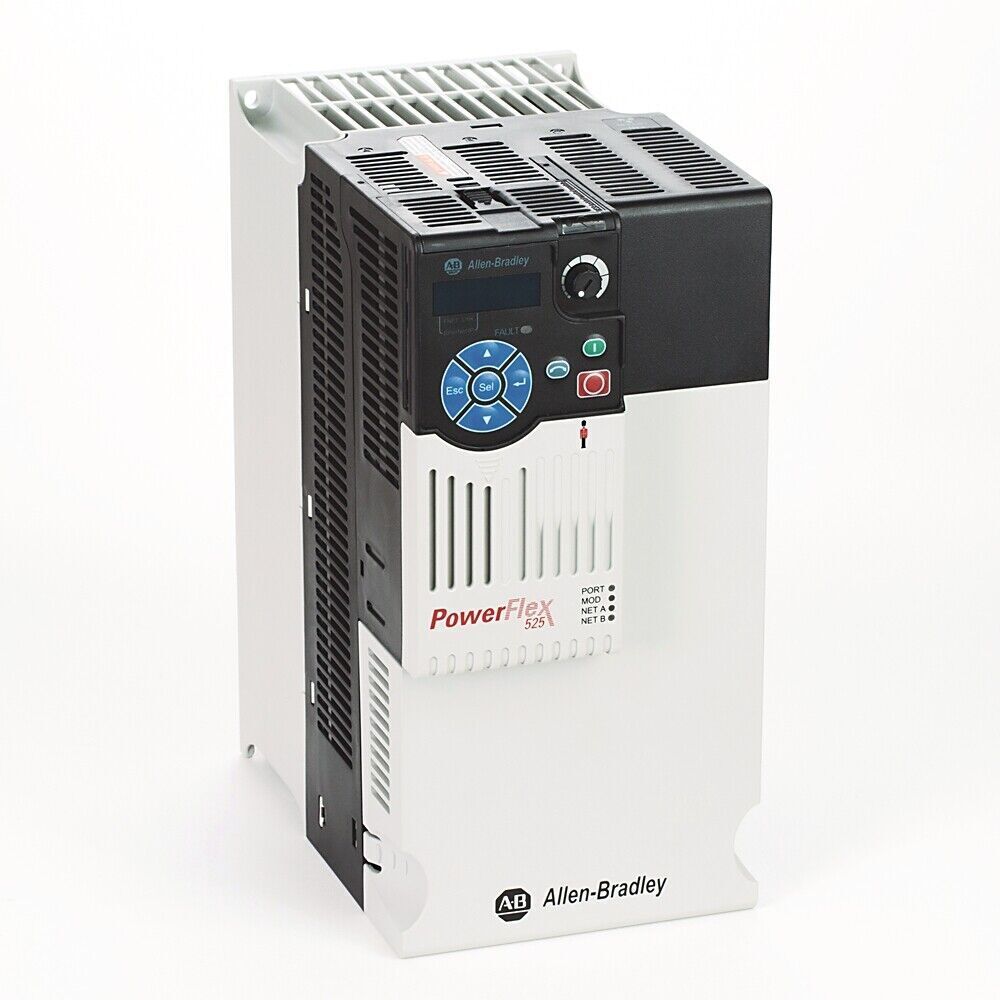

The Allen-Bradley 25B-D024N104 is a PowerFlex 525 variable frequency AC drive rated for 11 kW (15 HP) motors operating on a 3-phase 380–480V AC input. It features compact dimensions, advanced motor control capabilities, and embedded EtherNet/IP and DSI communication ports. This drive is ideal for controlling fan, pump, and conveyor applications, providing efficient and flexible motor control.

Key Features

• 11 kW (15 HP) motor rating
• 3-phase input, 380–480V AC
• Built-in EtherNet/IP and DSI communication
• USB configuration port for easy setup
• V/Hz and Sensorless Vector control modes
• Integrated Safe Torque-Off (STO) for safety compliance
• Detachable control core and NEMA Open Type enclosure
• Programmable with Connected Components Workbench (CCW)

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Current: 24 A
• Motor Power: 11 kW / 15 HP
• Frequency Range: 0–500 Hz
• Enclosure: IP20 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Closed-Loop PID
• Safety: Built-in Safe Torque-Off (STO)
• Communication Ports:
  • 2 x EtherNet/IP
• Operating Temperature: -20°C to +50°C (no derating)
• Mounting: DIN rail or panel mount

Application Areas

• Fans and pumps
• Industrial conveyors and mixers
• General-purpose machinery
• HVAC systems
• Packaging and bottling lines

Advantages

• Versatile and compact design for space-limited panels
• Seamless integration into EtherNet/IP networks
• Simplified commissioning and diagnostics via USB
• High efficiency and safety built-in
• Modular design for easy maintenance and flexibility
