Allen-Bradley | 193-ECM-ETR | E300 Electronic Overload Relay

Product Description: Allen-Bradley 193-ECM-ETR

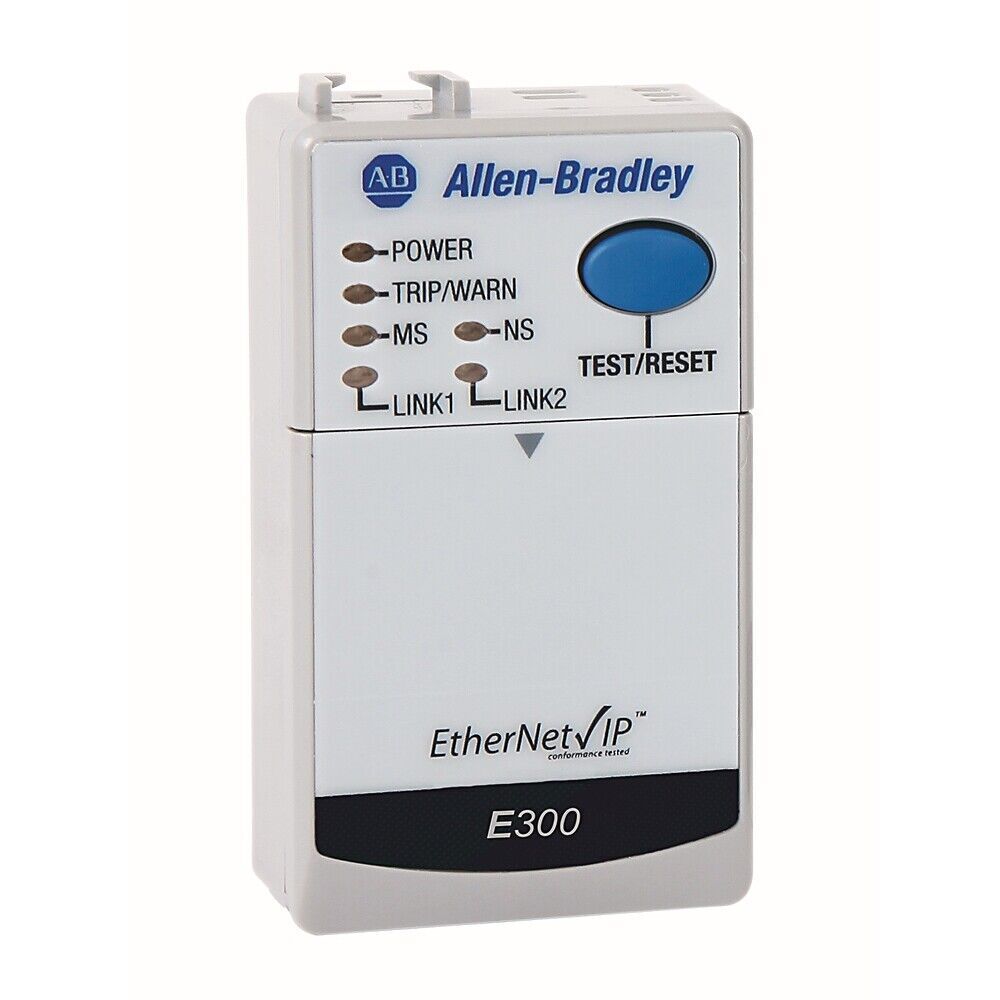

The Allen-Bradley 193-ECM-ETR is an EtherNet/IP communication module used with the E300 modular electronic overload relay system. It allows seamless integration of motor protection functions into EtherNet/IP industrial networks, enabling real-time data access, advanced diagnostics, and remote configuration capabilities. This module enhances the relay’s ability to interface directly with Logix-based controllers.

Key Features

• Enables EtherNet/IP communication for E300 overload relays
• Supports Add-On Profiles (AOP) in Studio 5000 for simplified configuration
• Provides real-time access to current, voltage, power, and trip diagnostics
• Dual Ethernet ports support Device Level Ring (DLR) and Linear topologies
• Integrated web server for local configuration and monitoring
• Facilitates remote trip reset and relay parameter adjustments
• Designed for use with 193-ECB and 193-EIO base and I/O modules

Technical Specifications

• Protocol: EtherNet/IP
• Ethernet Ports: 2 x RJ45 (10/100 Mbps, DLR capable)
• Power Supply: Provided through base module
• Configuration Tool: Studio 5000 Logix Designer
• Diagnostic Capabilities: Current, voltage, power, phase loss, unbalance, and trip history
• Mounting: Direct plug-in to E300 base unit
• Operating Temperature: -20°C to +60°C
• Enclosure Type: Open-style
• Certifications: UL, cULus, CE, RoHS

Application Areas

• Motor control centers (MCCs)
• Process automation systems
• Manufacturing lines with centralized control
• Intelligent motor protection systems
• EtherNet/IP-based control environments

Advantages

• Real-time diagnostics reduce unplanned downtime
• Full integration with Rockwell Logix architecture
• Easy commissioning through Add-On Profiles
• Supports modern network topologies like DLR
• Enhances motor protection with advanced data visibility
