SINAMICS S120 | Siemens | 6SL3130-7TE28-0AA3 6SL3 130-7TE28-0AA3 S120 ACTIVE LINE MODULE

Product Description:

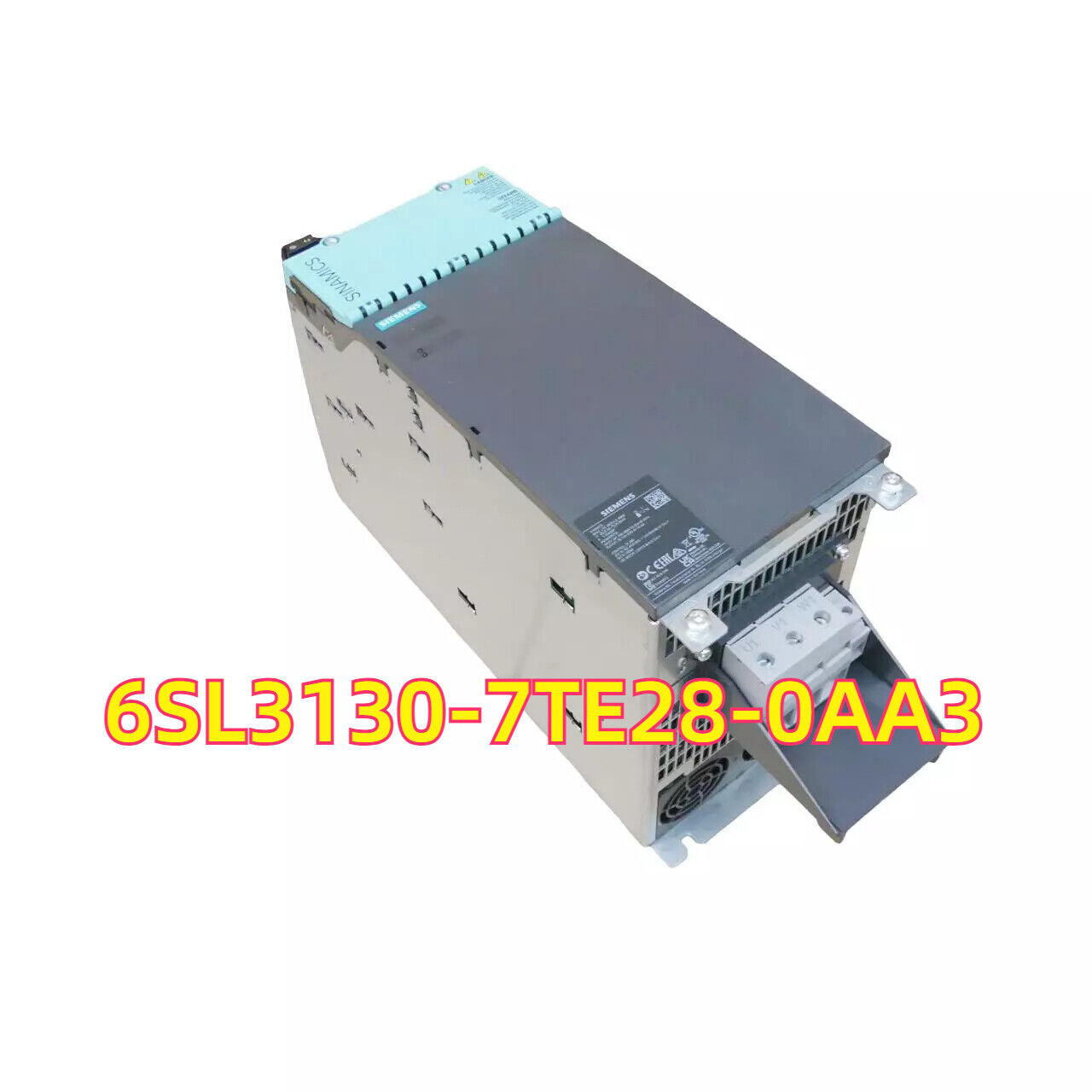

The Siemens 6SL3130-7TE28-0AA3 is a Smart Line Module from the SINAMICS S120 drive system family, designed to supply energy to the DC link of one or more motor modules. This unit is rated for 80 kW of input power and operates with a 3-phase supply voltage of 380–480 V AC (±10%) at 50/60 Hz. Unlike active line modules, this Smart Line Module is not capable of regenerative energy feedback into the supply network. It is built in a compact booksize housing, frame size E, and cooled using internal air cooling. This module is ideal for non-regenerative multi-axis drive systems where simple and stable DC supply is required.

Technical Specifications:

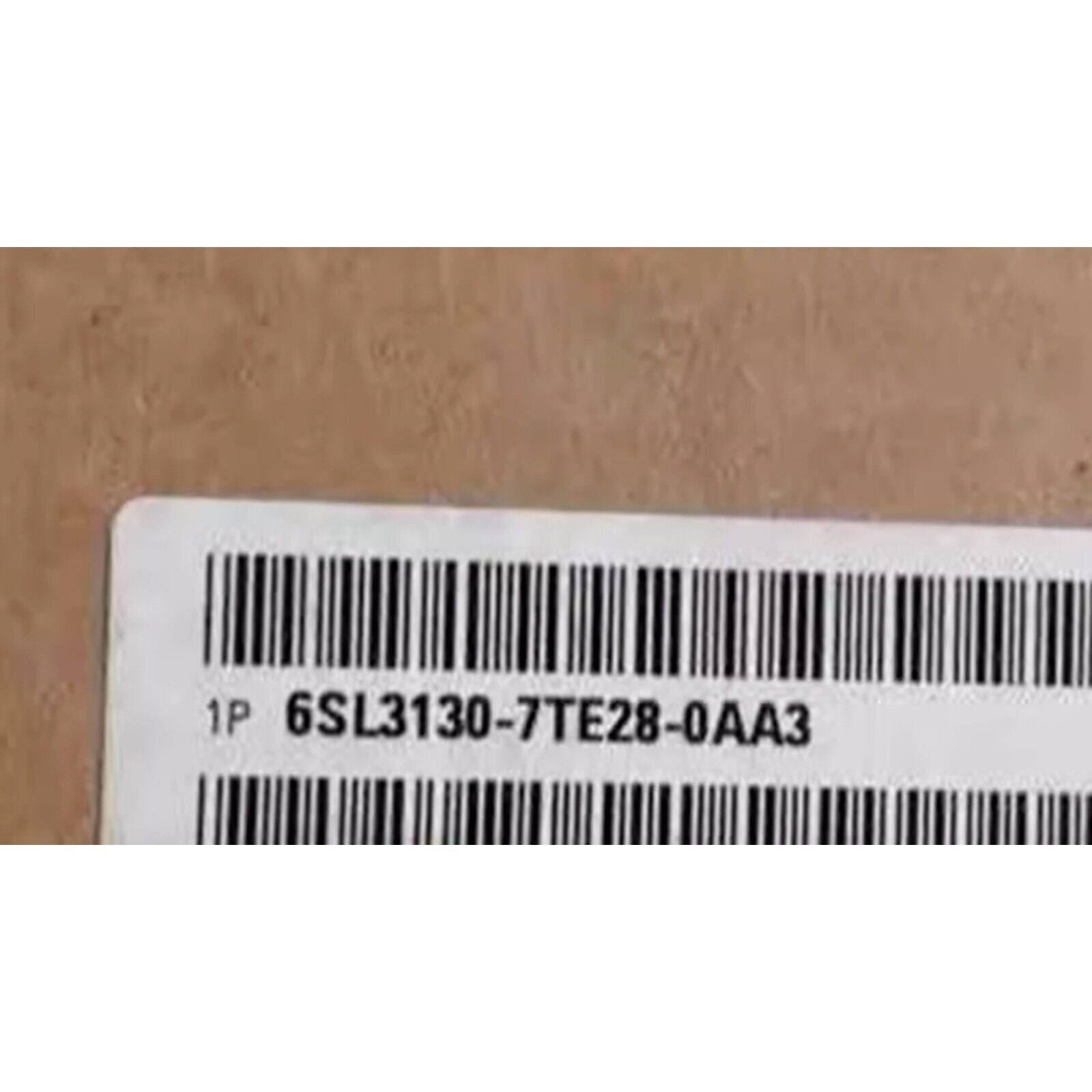

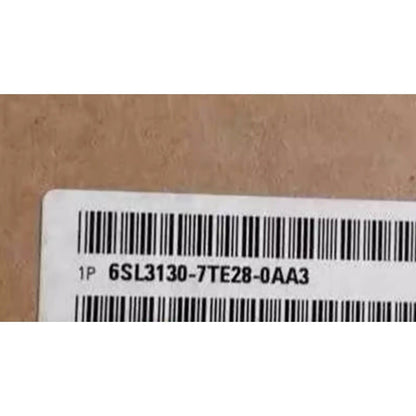

Part Number: 6SL3130-7TE28-0AA3

Product Type: Smart Line Module

Input Voltage: 3AC 380–480 V ±10%, 50/60 Hz

Rated Power: 80 kW

DC Link Voltage: Approx. 600 V DC (typical)

Power Flow Direction: Unidirectional (no energy feedback)

Frame Size: Booksize Frame E

Cooling Method: Internal air cooling

Regenerative Capability: No

Compliance: RoHS compliant

Product Lifecycle Status: Active

Net Weight: Approx. 12.5 kg

Country of Origin: Germany

EAN: 4019169456946

UPC: 887621270942

Applications:

Multi-axis systems using SINAMICS S120 motor modules

Packaging machinery, material handling, and conveyor systems

Applications without need for regenerative energy feedback

Advantages:

Reliable DC power supply for coordinated drive systems

Compact booksize design enables space-saving cabinet layout

Easy integration with SINAMICS S120 architecture

Cost-effective solution for systems not requiring energy recovery
