Servo Drive | Siemens | 6SL3130-7TE21-6AA4 ACTIVE LINE Module Brand New

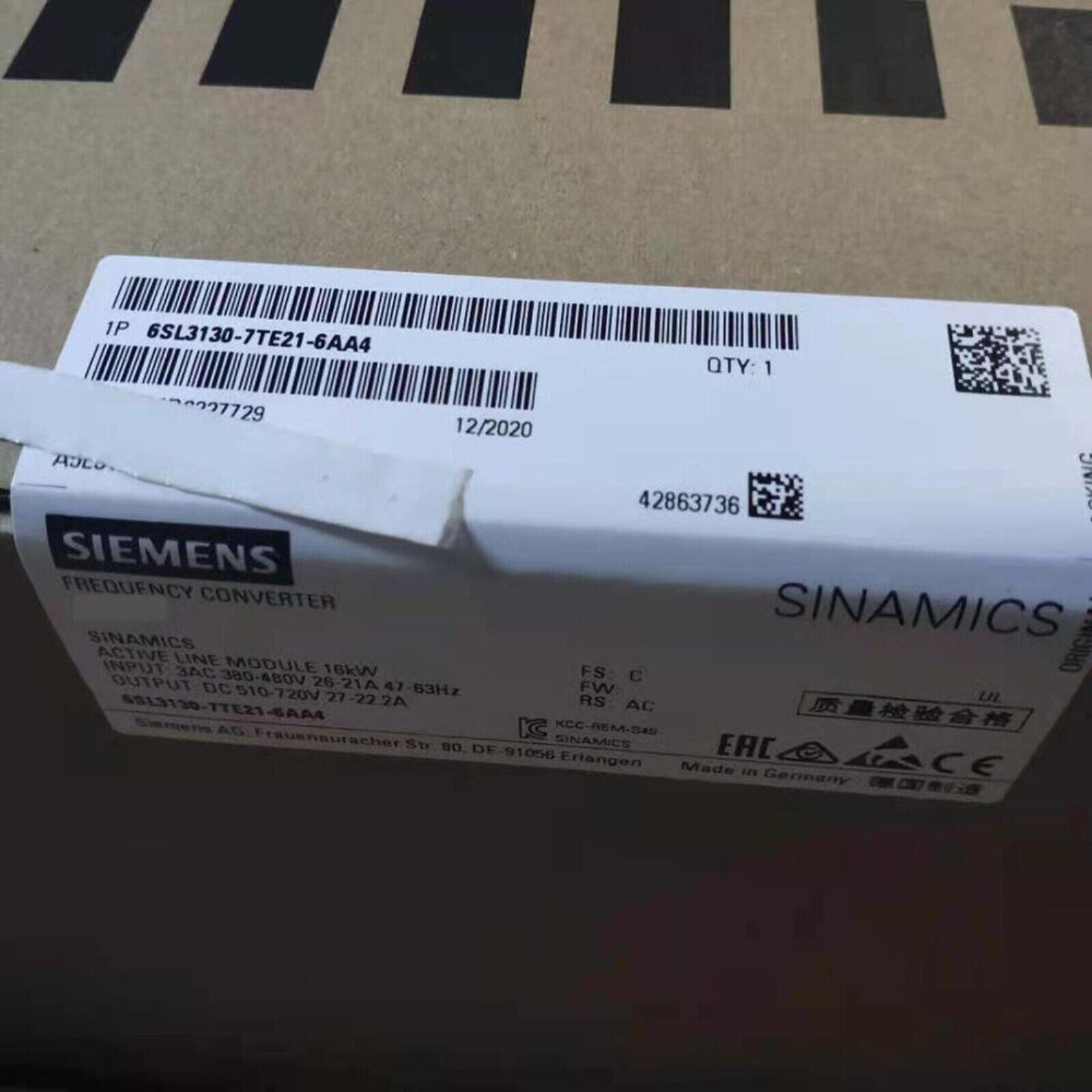

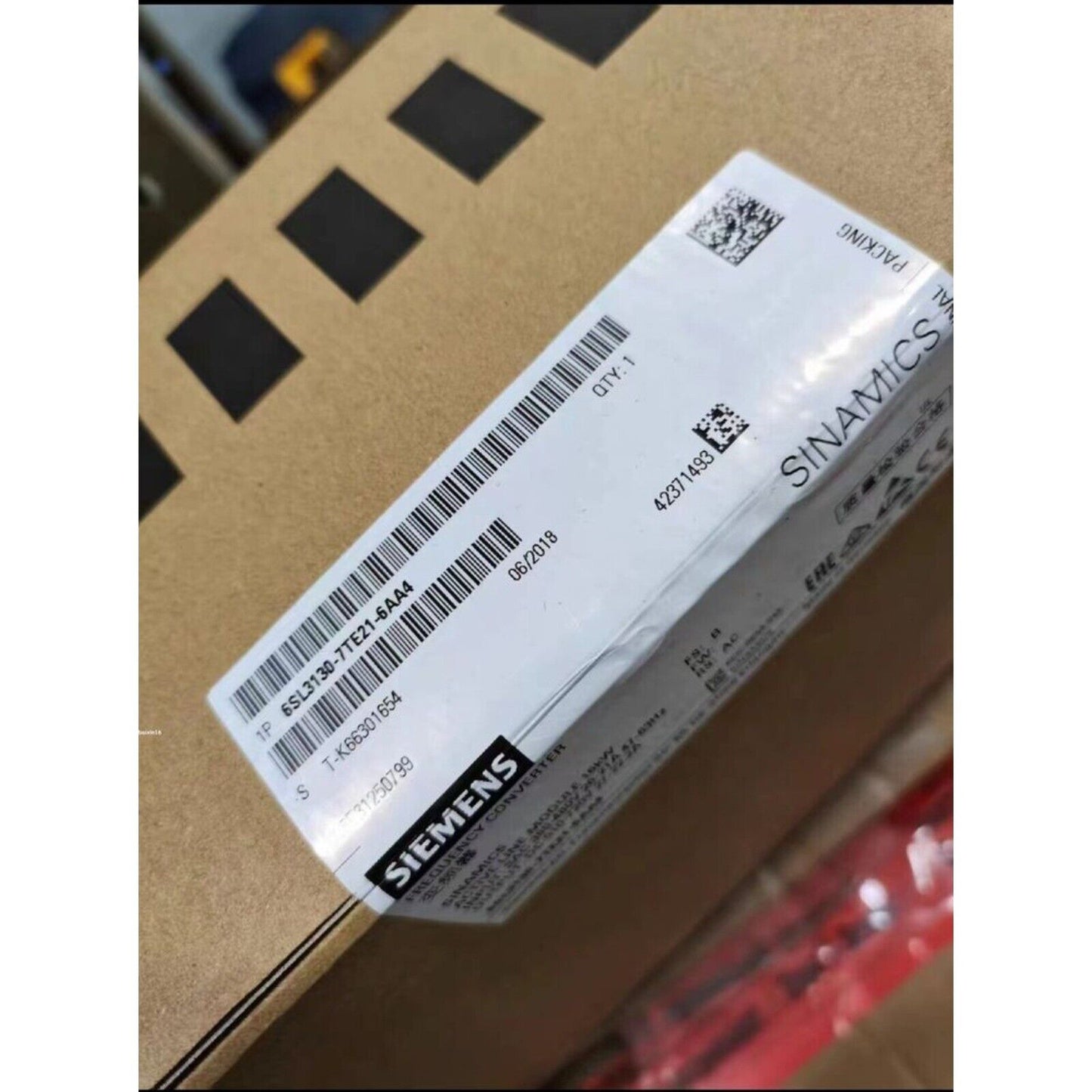

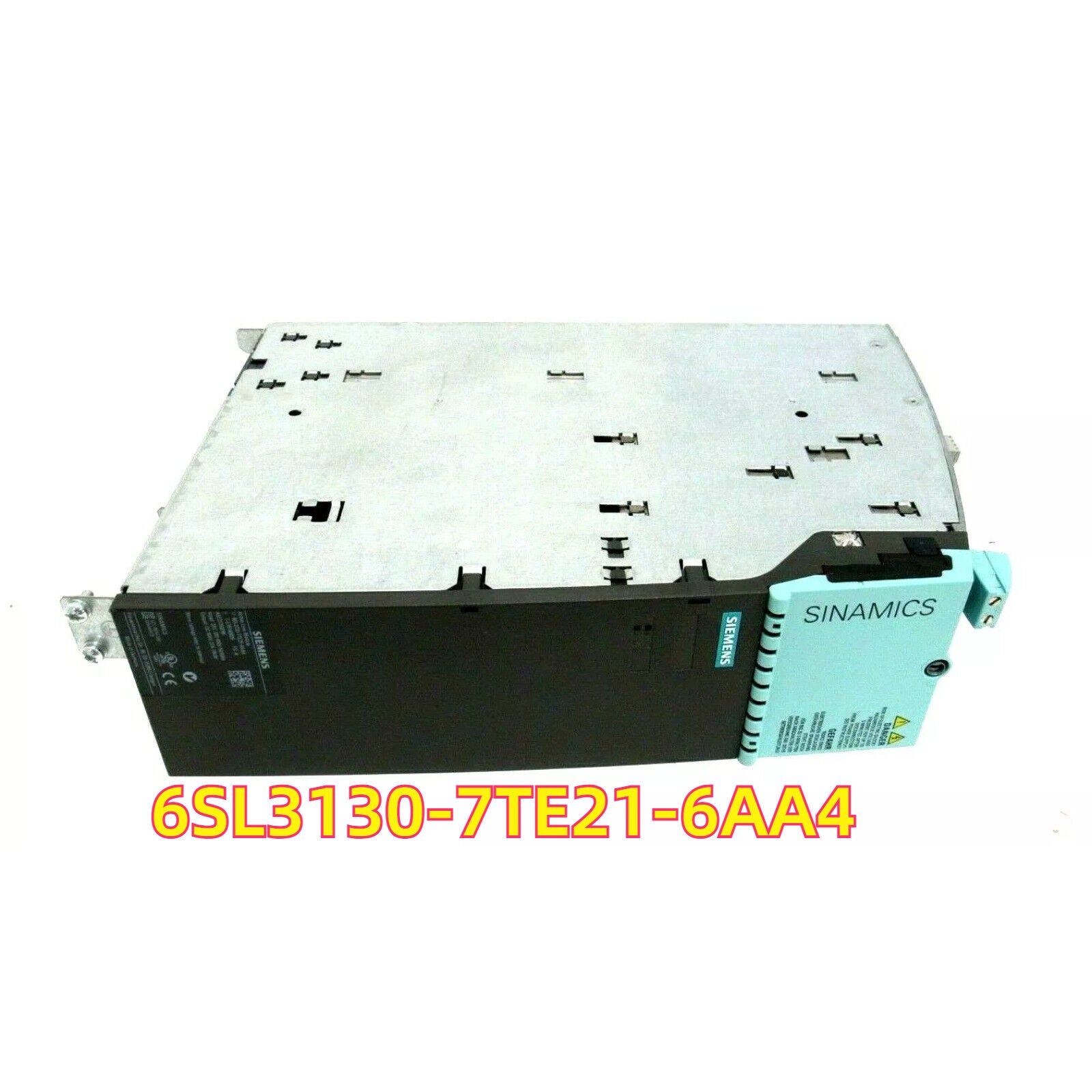

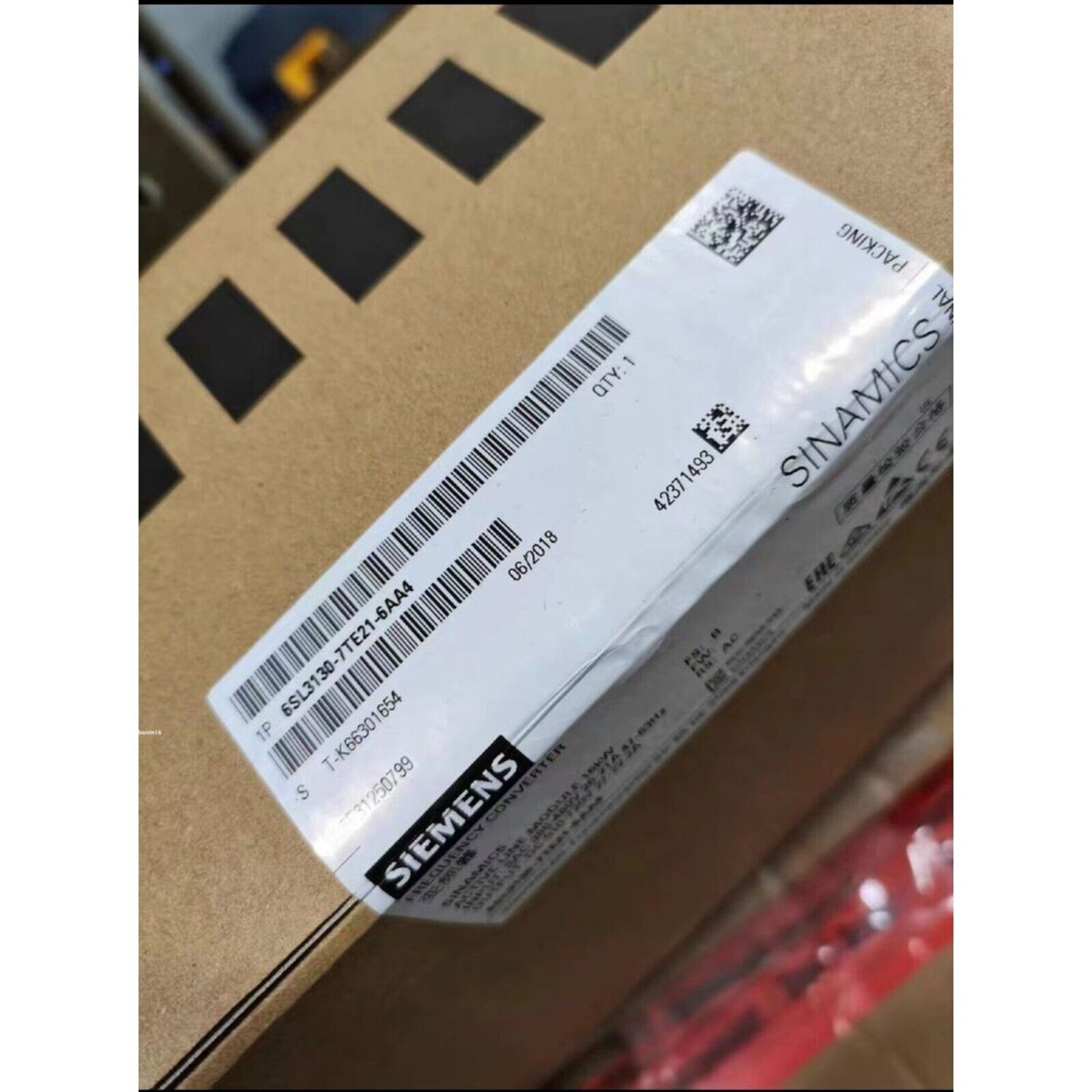

Product Description: Siemens 6SL3130-7TE21-6AA4

The Siemens 6SL3130-7TE21-6AA4 is an Active Line Module from the SINAMICS S120 drive system, rated at 16 kW and designed for regenerative energy feedback and supply of the DC link in modular multi-axis systems. This line module enables bidirectional energy flow, feeding braking energy back into the power supply with low harmonic distortion and high efficiency. It is optimized for use with SINAMICS S120 motor modules and supports high-performance motion control applications across industries. The unit is suitable for installation in standard control cabinets and provides internal air cooling, enabling compact and reliable integration. It complies with energy efficiency and power quality standards, offering advanced features such as power factor correction and regenerative braking.

Key Features

• Active Infeed Technology: Enables power supply and regenerative energy feedback.
• High Efficiency: Reduces energy consumption and heat loss.
• Low Harmonic Distortion: Complies with IEEE 519 and EN 61000-3-12 standards.
• Compact Design: Frame size A, suitable for space-limited control cabinets.
• Modular Integration: Seamlessly connects with SINAMICS S120 motor and control modules.
• Built-in Monitoring: Supports diagnostics for voltage, current, and temperature.

Technical Specifications

• Product Type: Active Line Module
• Part Number: 6SL3130-7TE21-6AA4
• Series: SINAMICS S120
• Rated Power: 16 kW
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• DC Link Voltage: Approx. 600 V DC
• Infeed Type: Active (regenerative-capable)
• Cooling Method: Internal air cooling
• Frame Size: A
• Protection Class: IP20 (for cabinet installation)
• Mounting Orientation: Vertical (panel-mounted)
• Communication: Via DRIVE-CLiQ interface
• Operating Temperature: 0°C to +40°C (derating up to +55°C)
• Dimensions (W × H × D): Approx. 100 × 270 × 250 mm
• Weight: Approx. 6.5 kg

Application Areas

• Machine Tools: Powers multi-axis servo systems with regenerative braking.
• Packaging & Converting Machines: Enables dynamic acceleration and braking cycles.
• Energy-Efficient Systems: Reduces energy consumption in industrial environments.
• Printing, Textile, and Handling Systems: Ideal for high-speed and coordinated motion control.
• Regenerative Installations: Suitable for systems with frequent braking energy recovery needs.

Advantages

• Energy-Saving Operation: Converts braking energy back to usable power on the mains.
• Clean Power Quality: Power factor correction and low harmonic feedback ensure grid compliance.
• Space-Saving: Compact form factor with efficient thermal design.
• Modular and Scalable: Compatible with a wide range of SINAMICS S120 components.
• Long-Term Reliability: Built to Siemens industrial standards for continuous use.
