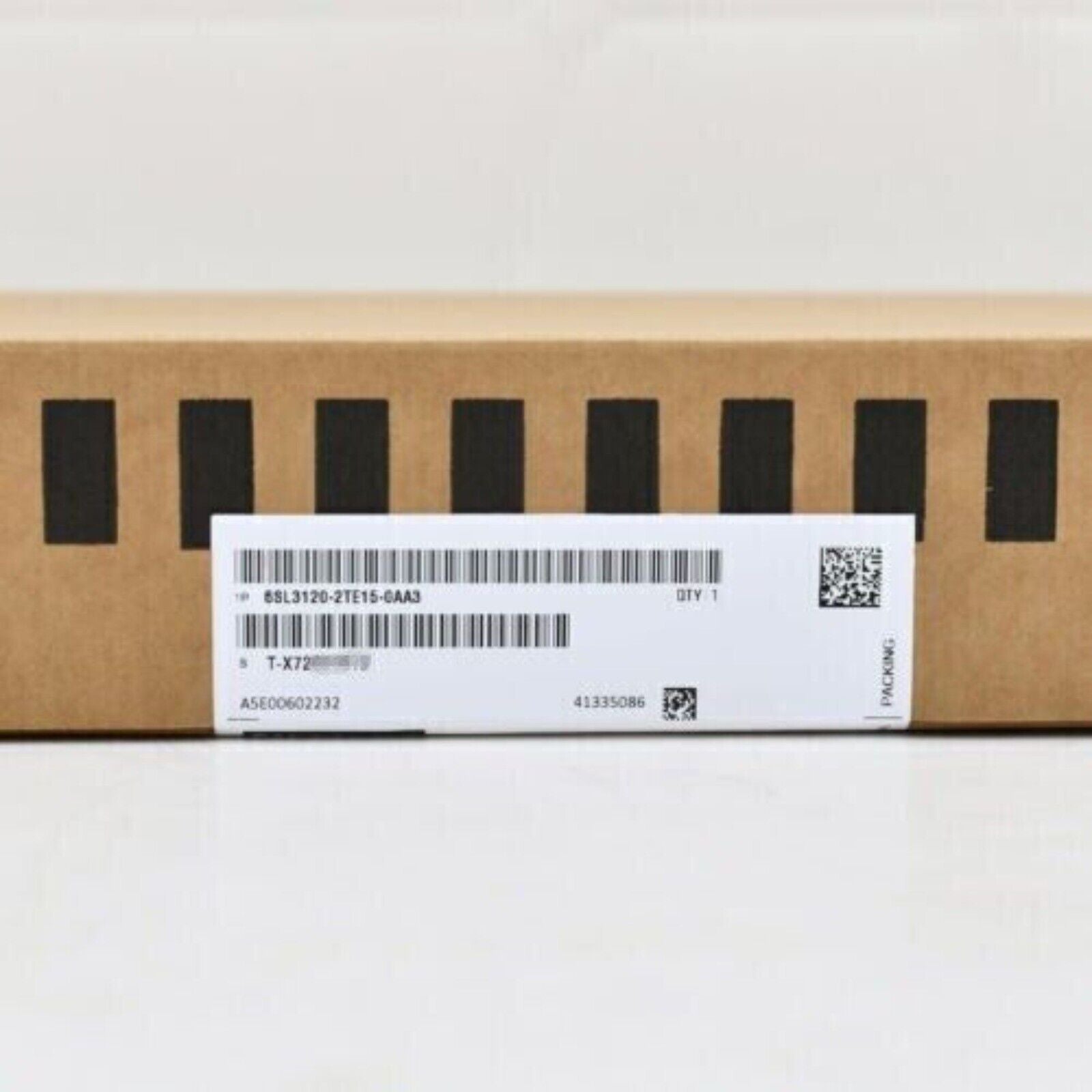

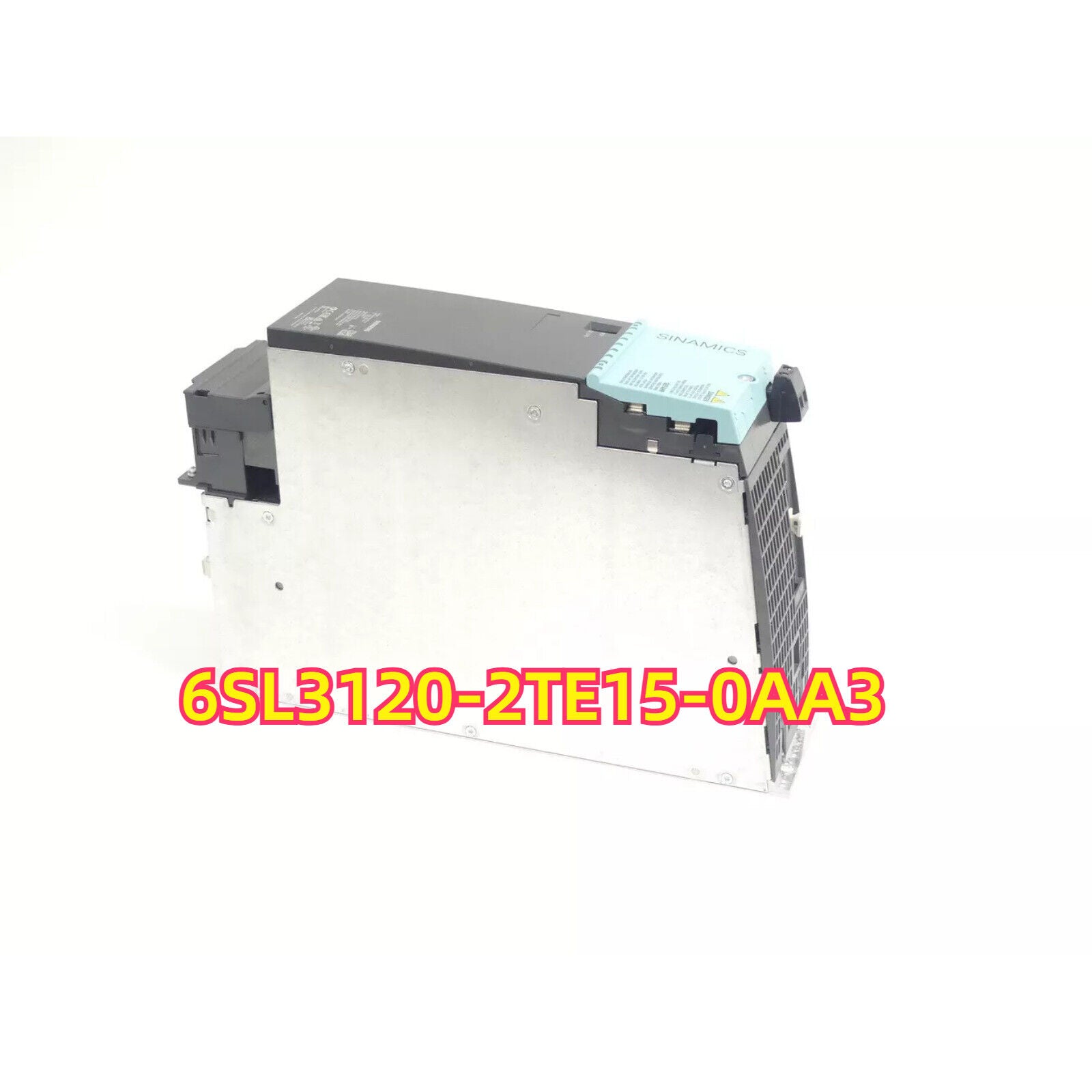

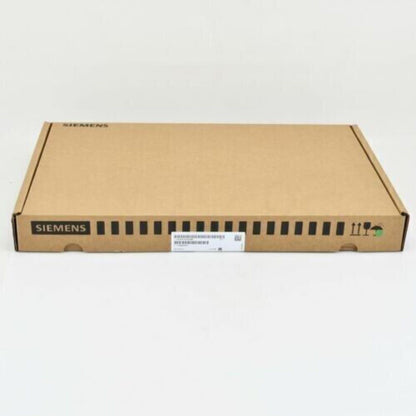

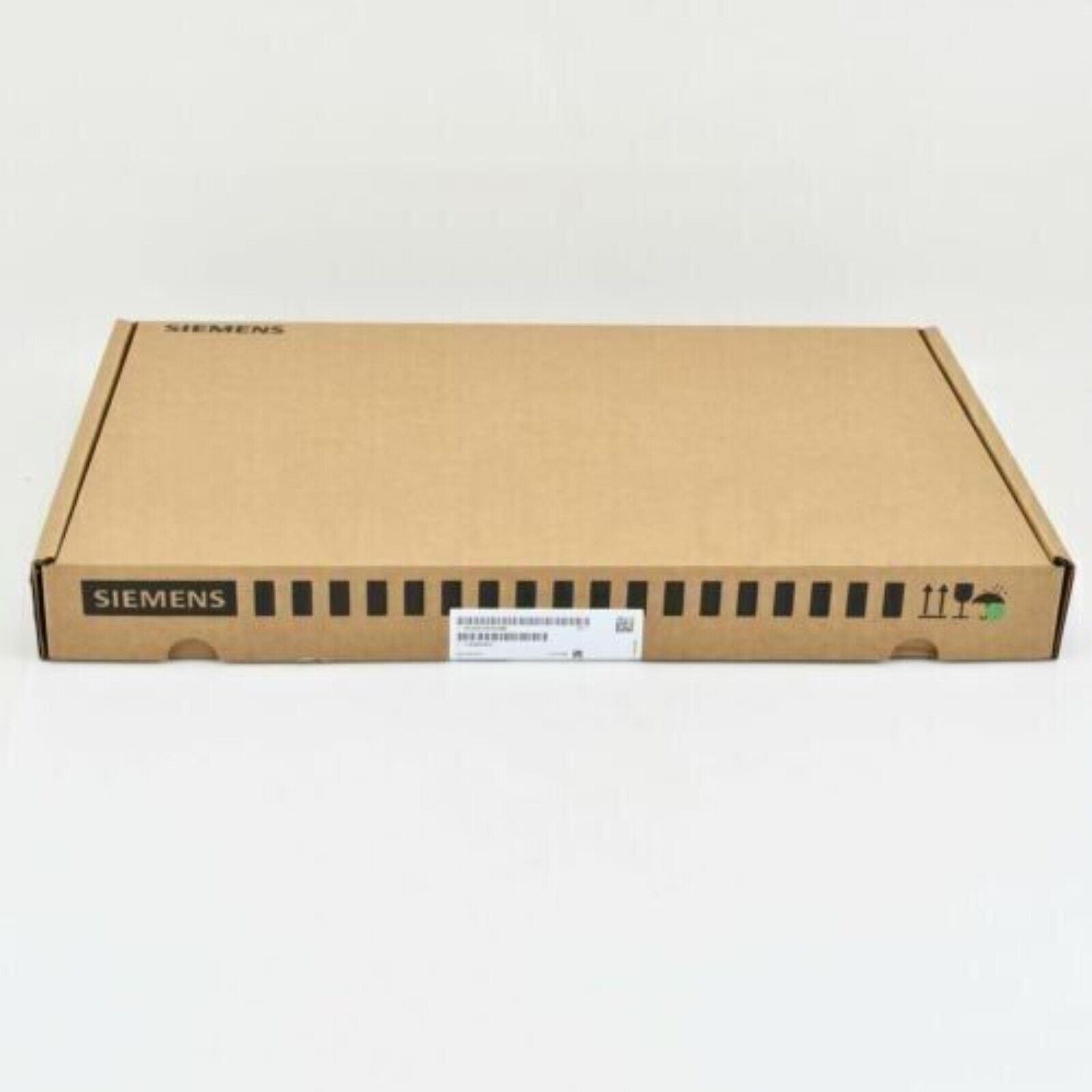

Product Description: Siemens 6SL3120-2TE15-0AA3 PM240-2 Power Module

The Siemens 6SL3120-2TE15-0AA3 is a PM240-2 Power Module from the SINAMICS G120 drive system. This module is designed for controlling the operation of electric motors in industrial automation applications. It provides precise control of motor speed and torque while integrating seamlessly with Siemens SINAMICS G120 drive components. With an integrated brake chopper, the 6SL3120-2TE15-0AA3 is ideal for applications requiring dynamic braking or energy recovery. This power module supports up to 18.5 kW motor power output and ensures smooth motor operation even in complex automation systems. It features a compact design, is easy to install, and integrates efficiently into both new and existing drive systems.

Key Features

• Rated Output Power: Suitable for motors up to 18.5 kW.
• Input Voltage: 3-phase 380-480 V, 50/60 Hz.
• Integrated Brake Chopper: Provides energy feedback to the system during dynamic braking, reducing reliance on mechanical brakes.
• Modular Design: Can be combined with other SINAMICS G120 components such as control units (CU), making it highly flexible for a variety of industrial applications.
• High Overload Capability: Can withstand up to 150% overload for 60 seconds every 300 seconds.
• Protection Class: IP20, suitable for installation in control cabinets.
• Communication: Supports a variety of communication protocols for system integration, including PROFIBUS and PROFINET (with the appropriate control unit).

Technical Specifications

• Power Rating: Up to 18.5 kW
• Input Voltage: 380-480 V, 3-phase, 50/60 Hz
• Overload Capability: 150% for 60 seconds every 300 seconds
• Brake Chopper: Integrated for dynamic braking
• Communication: Compatible with PROFIBUS and PROFINET
• Protection Class: IP20
• Mounting: Booksize mounting for easy integration
• Cooling: Internal fan for efficient heat dissipation

Application Areas

• Industrial Automation: Used for controlling motors in automated systems, including conveyors, pumps, fans, and compressors.
• Machine Control: Ideal for CNC machines, robotics, and packaging systems requiring dynamic motor control.
• Energy Recovery: Suitable for systems where dynamic braking and energy feedback are necessary to improve energy efficiency.
• Motion Control: Provides precise motor control in applications requiring quick starts, stops, and speed regulation.

Advantages

• Energy Efficient: The integrated brake chopper allows for energy recovery during braking, reducing overall energy consumption.
• Versatile Communication: Supports integration into diverse industrial networks via PROFIBUS and PROFINET.
• Compact and Modular: Space-saving design and easy integration with other SINAMICS G120 components for scalable solutions.
• High Overload Capability: Provides reliable performance in demanding applications that require fast acceleration and deceleration.
• Simple Installation: Easy to mount and configure with Siemens TIA Portal for quick system setup.
