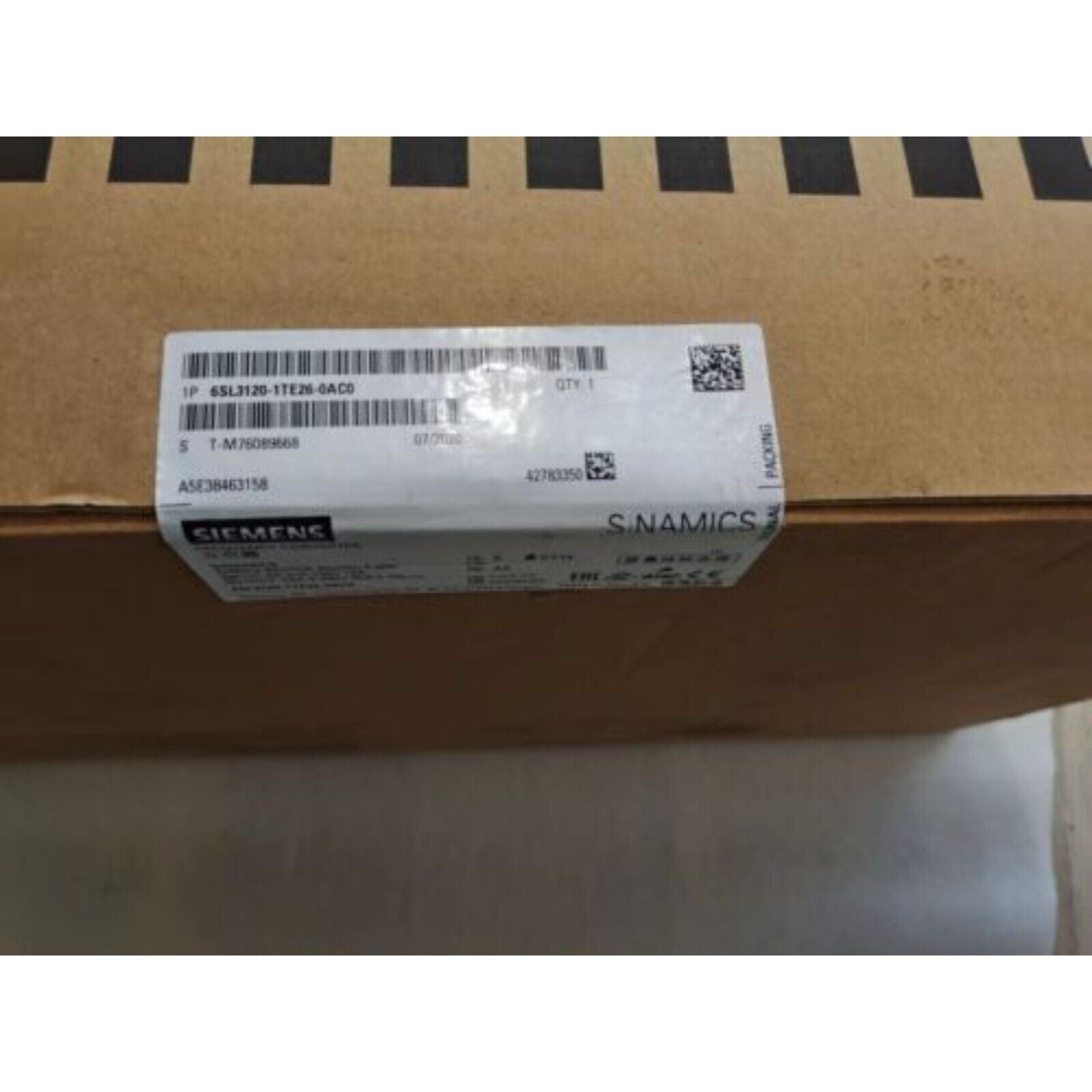

Servo Controller | Siemens | 6SL3120-1TE26-0AC0 6SL3 120-1TE26-0AC0 S120 SINGLE MOTOR MODULE

Product Description

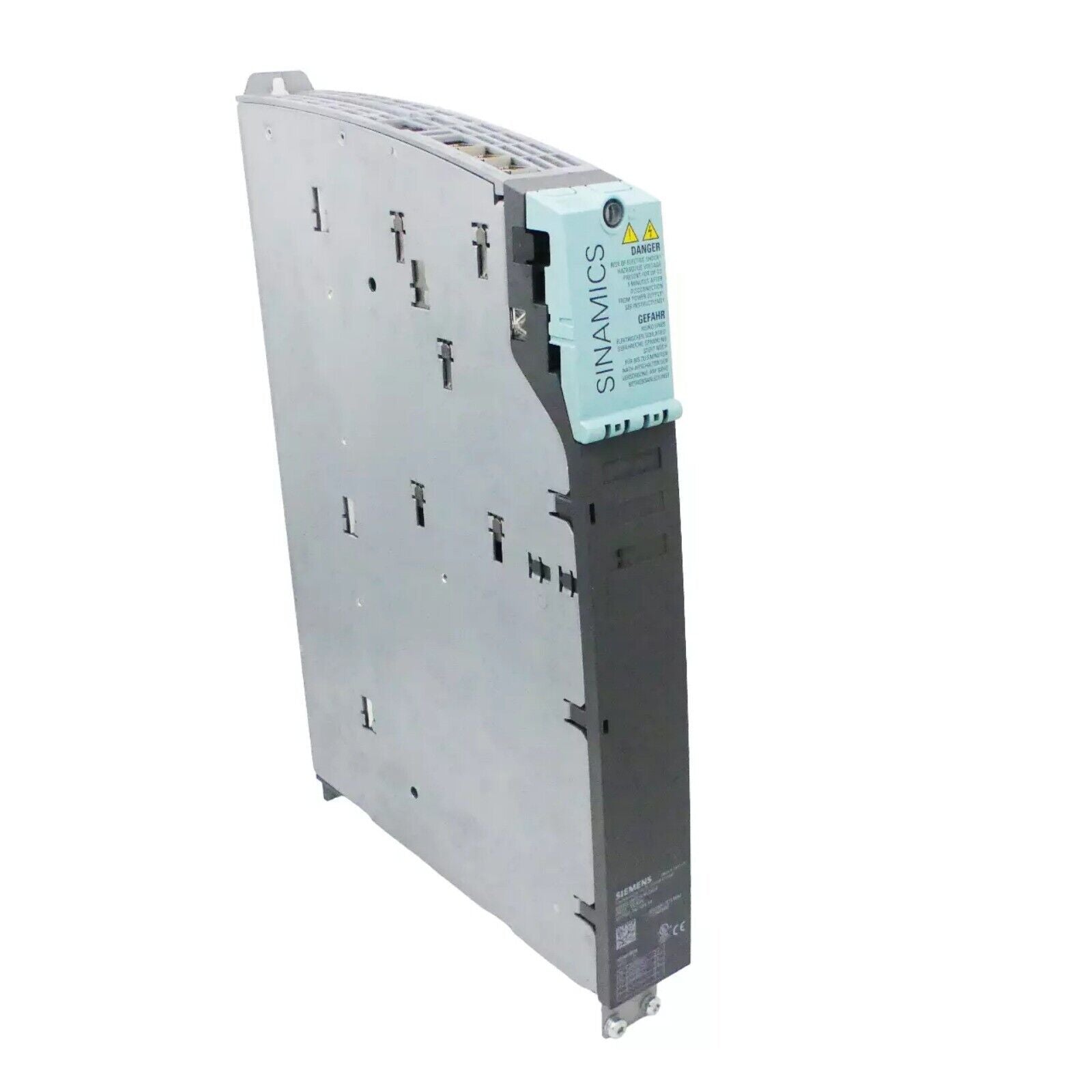

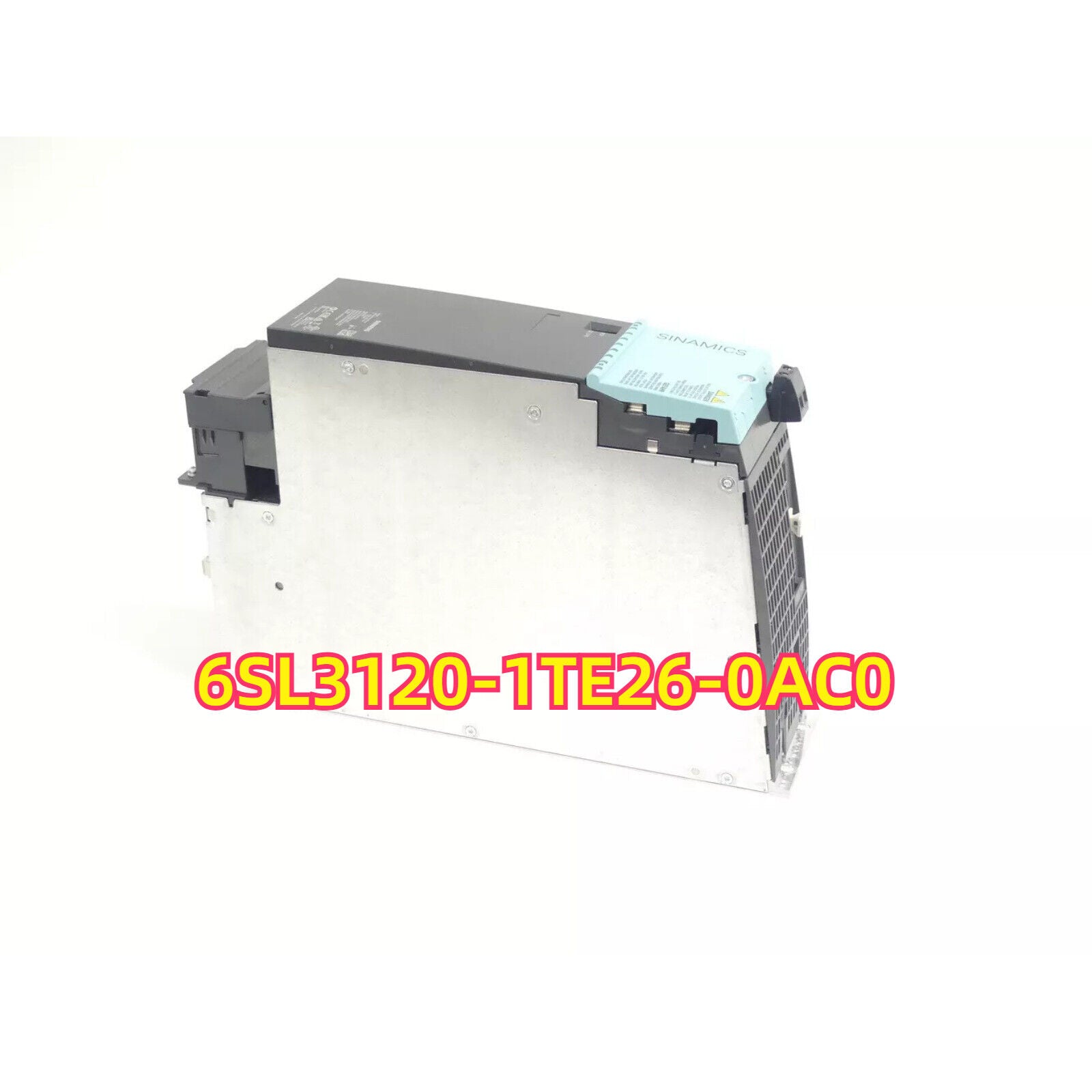

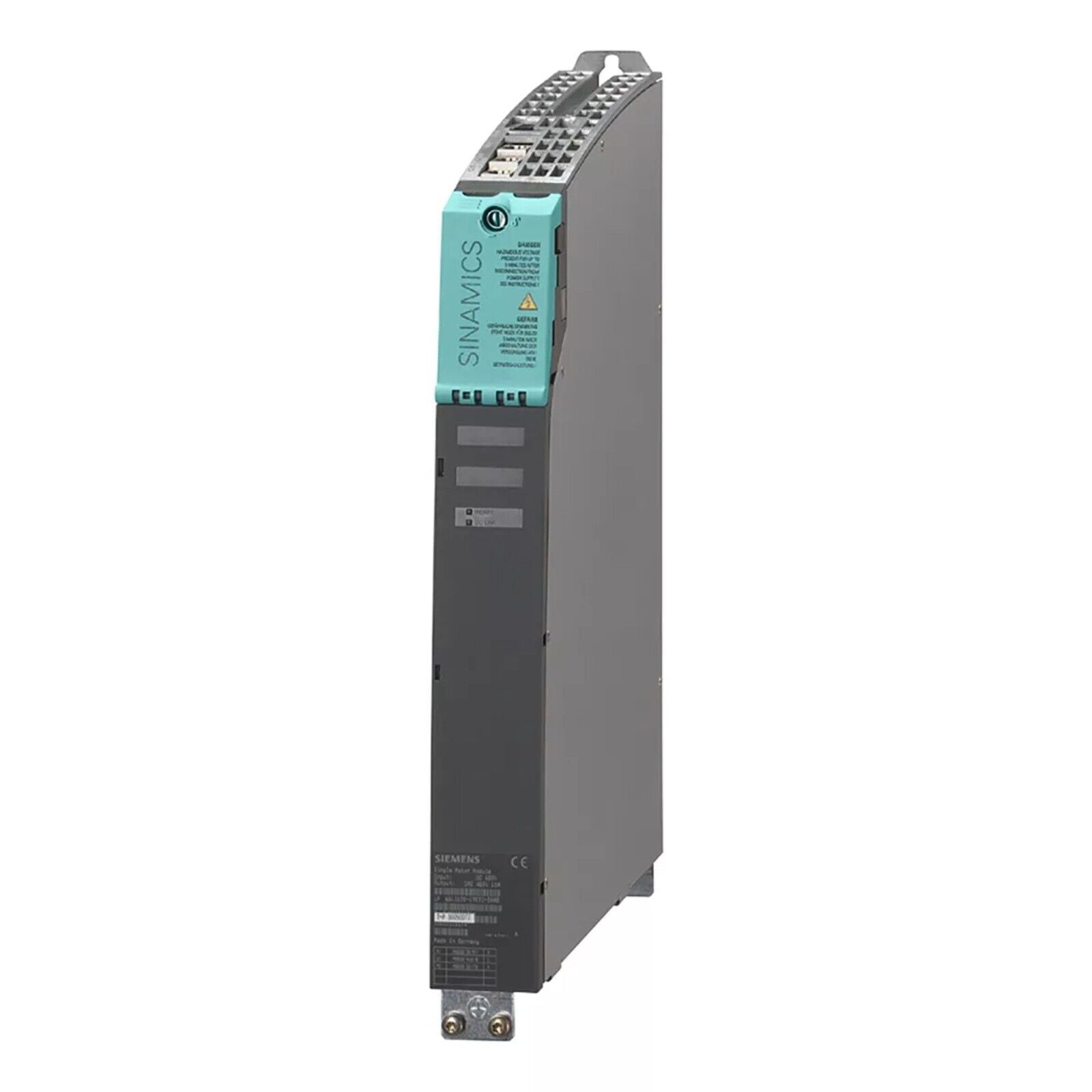

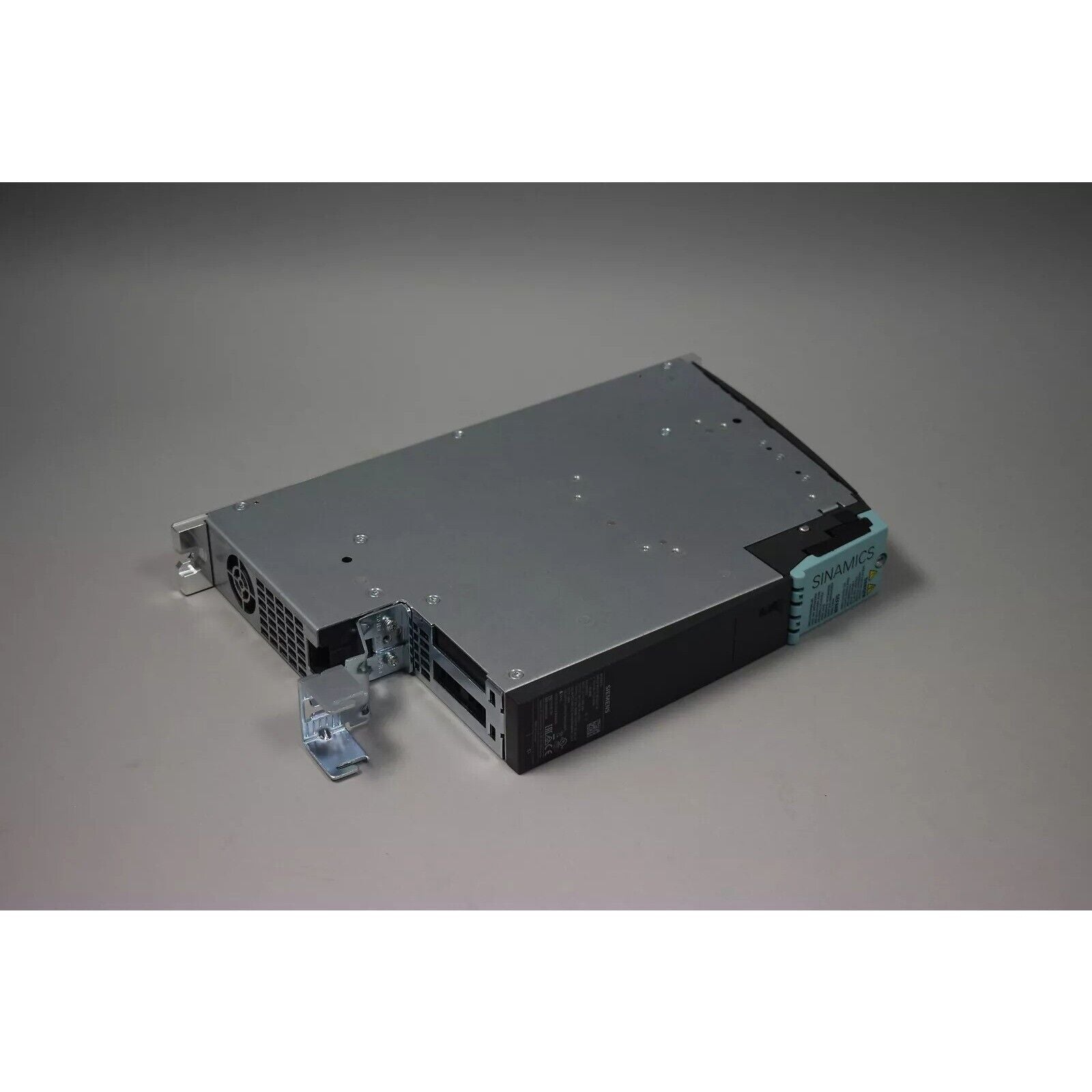

The Siemens 6SL3120‑1TE26‑0AC0 is a book‑size Single Motor Module for the modular SINAMICS S120 drive family. Supplied from a 600 V DC bus, it delivers three‑phase 400 V AC to the motor with a continuous output current of 60 A. Integrated pulse‑pattern optimisation, sensor‑less vector control and full support for the SINAMICS “Safety Integrated” functions make it suitable for both standard and safety‑relevant motion tasks in machinery, handling systems and production lines. Designed for compact cabinet installation, the module uses forced‑air internal cooling and features the DRIVE‑CLiQ interface for seamless connection to CU‑320/310 control units.

Key Features
Continuous Output Current: 60 A (base‑load)
us.wiautomation.com

Input / Output: 600 V DC input bus, 3‑phase 400 V AC motor output

Frame Size: Booksize C, 100 mm wide – ideal for high‑power density cabinets
us.wiautomation.com

Cooling: Internal air cooling with integrated fan (sound level ≤ 71 dB(A))
eBay

Safety Functions: Supports Safe Torque Off (STO), SS1, SS2, SLS when operated with appropriate CU safety firmware

Diagnostics: Extensive fault, warning and maintenance data via DRIVE‑CLiQ

Mounting: Snap‑on booksize rail; pluggable power and motor terminals for quick replacement

Protection Class: IP20 / UL open type for cabinet mounting
eBay

Technical Specifications
Parameter Value
DC Bus Voltage 600 V DC (540–670 V DC)
Rated Output Voltage 3AC 400 V (0–480 V)
Continuous Output Current 60 A
Base‑Load Current 51 A nominal
eBay
Switching Frequency (default) 4 kHz (selectable up to 8 kHz)
Frame Size / Housing Booksize C
Dimensions (W × H × D) 100 mm × 270 mm × 380 mm
eBay
Weight ≈ 8.6 kg
eBay
Cooling Method Internal forced air
Protection Class IP20 (cabinet)
Ambient Operating Temperature 0 °C … +40 °C (derating to +50 °C)
Safety Integrated STO, SS1, SS2, SLS (with CU)
Communication DRIVE‑CLiQ to CU320‑2 / CU310‑2

Applications
High‑performance servo and induction motor drives in packaging, printing, textile and machine‑tool sectors

Axes in multi‑motor coordinated motion systems (gantries, robotics, handling)

Safety‑related drives requiring integrated STO / SSx functions

Advantages
High Power Density: 60 A output in a 100 mm‑wide booksize module optimises cabinet space.

Integrated Safety: Built‑in hardware supports advanced safety functions without external contactors.

Easy System Integration: DRIVE‑CLiQ autoconfiguration with SINAMICS control units shortens commissioning time.

Robust Operation: Wide temperature range, comprehensive diagnostics and overload protection ensure maximum uptime.
