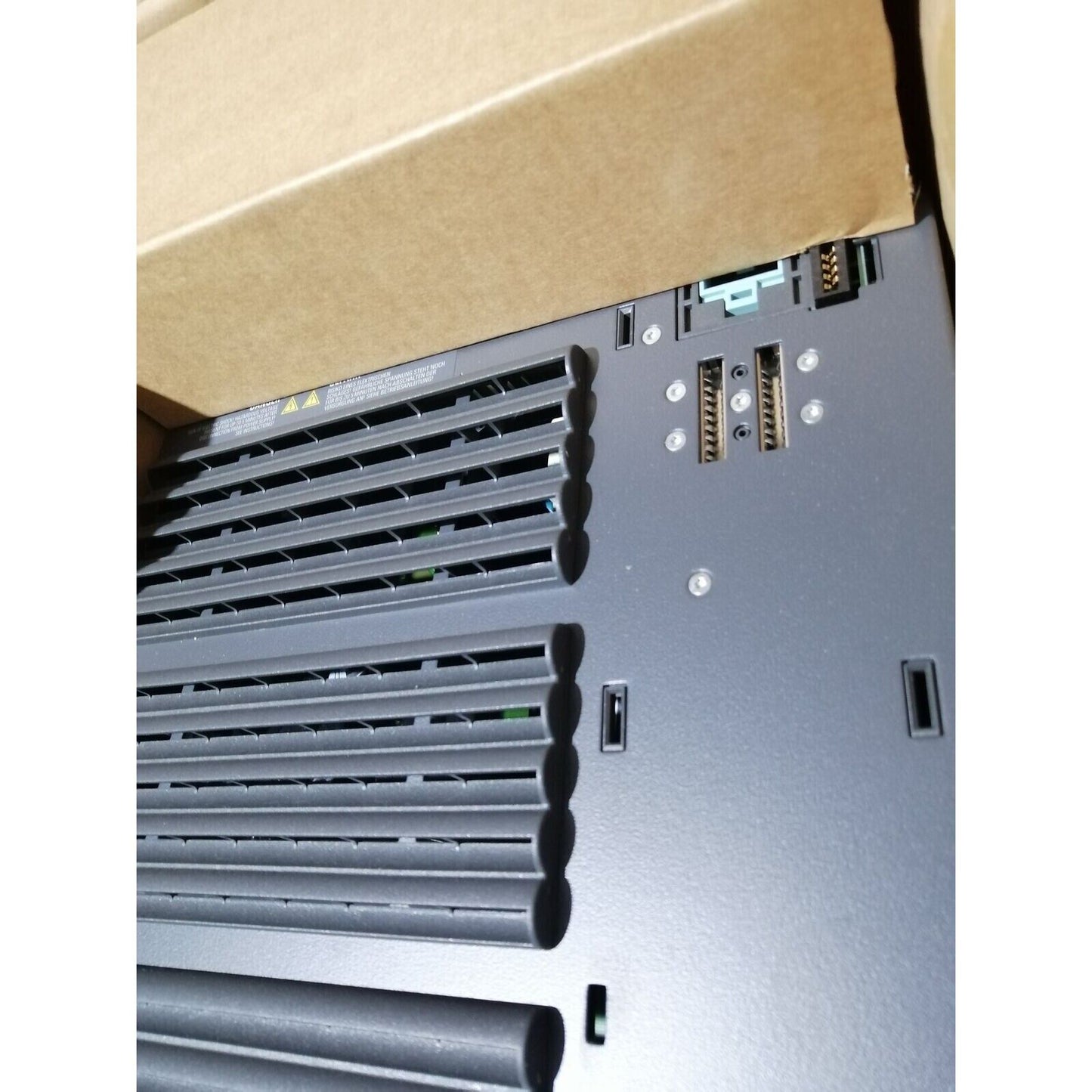

Servo Drive | Siemens | 6SL3 224-0BE31-8AA0 6SL3224-0BE31-8AA0 G120 PM240 Power Module

Product Description:
The Siemens 6SL3224-0BE31-8AA0 is a single motor module from the SINAMICS S120 drive system series, designed to deliver high-performance motor control in demanding industrial applications. This module provides a continuous output current of 18 A and operates on a DC link voltage of 510–720 V DC. With a compact booksize frame (Frame Size D), it allows efficient side-by-side mounting to save control cabinet space. It utilizes internal air cooling and is designed to be integrated into multi-axis drive systems via a common DC bus, making it ideal for modular and scalable automation architectures.

Technical Specifications:

Part Number: 6SL3224-0BE31-8AA0

Module Type: Single Motor Module

Output Current: 18 A

DC Link Voltage: 510–720 V DC

Cooling Method: Internal air cooling

Frame Size: Booksize Frame D

Power Supply: Via shared DC bus (no direct AC input)

Compliance: RoHS compliant

Product Lifecycle Status: Active

Net Weight: Approx. 5.5 kg

Country of Origin: Germany

EAN: 4019169457189

UPC: 662643462356

Applications:

Single-axis or multi-axis motion control systems

Machine tools, handling systems, and printing machinery

Industrial environments requiring precise speed and torque control

Advantages:

Compact booksize design optimizes panel layout

High output current capacity supports demanding motor loads

Easily integrated into DC bus-based multi-drive configurations

Internal air cooling reduces the need for external ventilation
