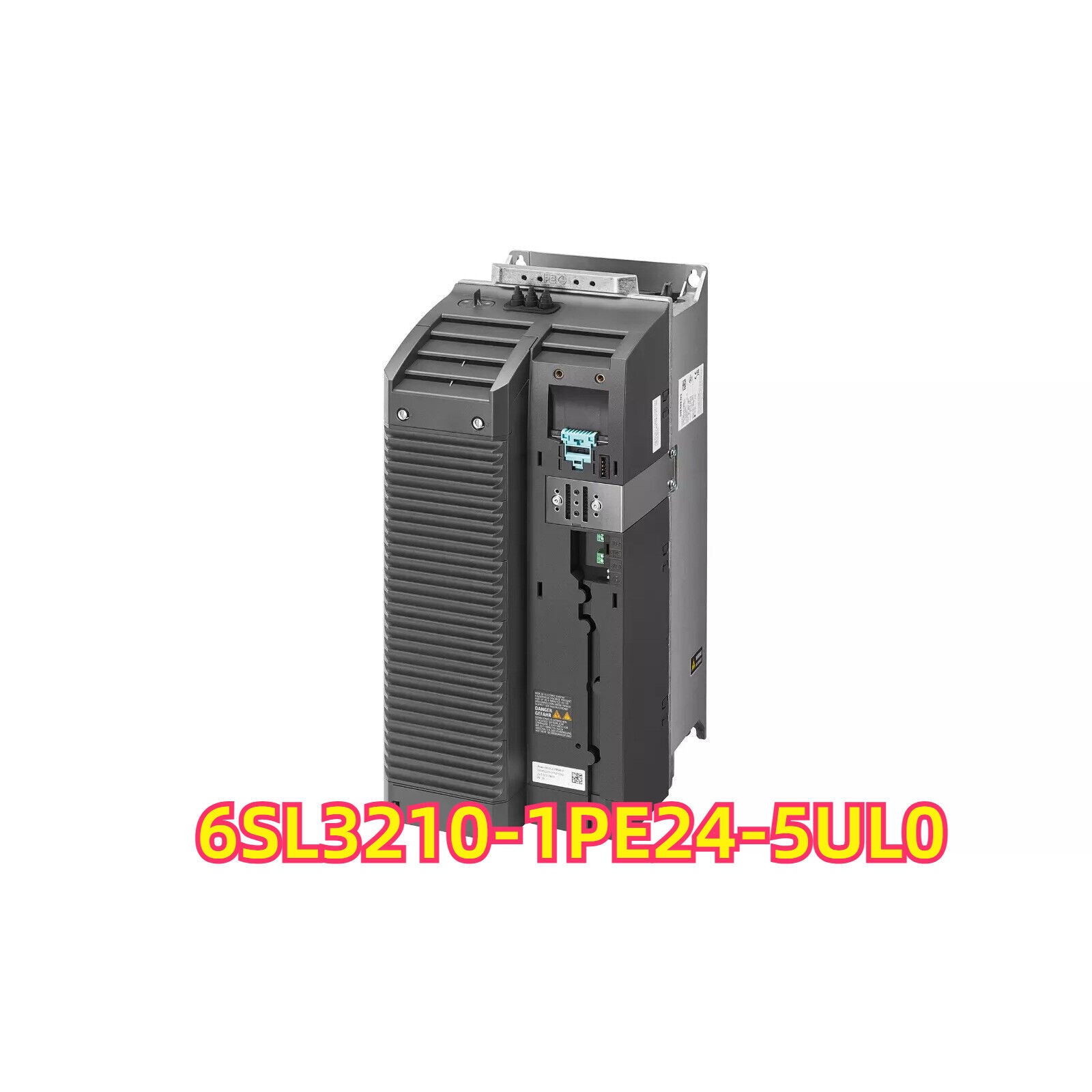

SINAMICS G120| Siemens | 6SL3 210-1PE24-5UL0 6SL3210-1PE24-5UL0 SINAMICS G120 POWER MODULE

Product Description:
The Siemens 6SL3210-1PE24-5UL0 is a PM240-2 Power Module from the SINAMICS G120 modular drive system, engineered for energy-efficient and dynamic motor control in industrial applications. This module offers a rated power output of 22 kW and a continuous output current of 45 A. It operates on a 3-phase input voltage of 380–480 V AC (±10%) at 47–63 Hz. Housed in frame size FSD, the unit is equipped with internal air cooling and an integrated Class A EMC line filter for reliable electromagnetic compatibility in industrial environments. Designed for compatibility with G120 Control Units, this module supports scalable and modular drive architectures.

Technical Specifications:

Part Number: 6SL3210-1PE24-5UL0

Product Type: Power Module (PM240-2)

Output Power: 22 kW

Output Current: 45 A

Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz

Frame Size: FSD

Cooling Method: Internal air cooling

Integrated Line Filter: Yes (Class A)

Compliance: RoHS compliant

Product Lifecycle Status: Active

Net Weight: Approx. 13.5 kg

Country of Origin: Germany

EAN: 4019169456182

UPC: 887621270447

Applications:

Variable-speed motor control in automated production lines

Conveyor systems, pumps, fans, and processing machinery

Systems requiring built-in EMC filtering and compact power modules

Advantages:

Integrated Class A filter ensures EMC compliance without external components

High power density in a compact frame size

Internal cooling design minimizes cabinet complexity

Fully compatible with SINAMICS G120 Control Units for flexible drive configurations
