Variable Frequency Drive | Siemens | 6SE6440-2UD17-5AA1 6SE6 440-2UD17-5AA1 MICROMASTER440 without filter

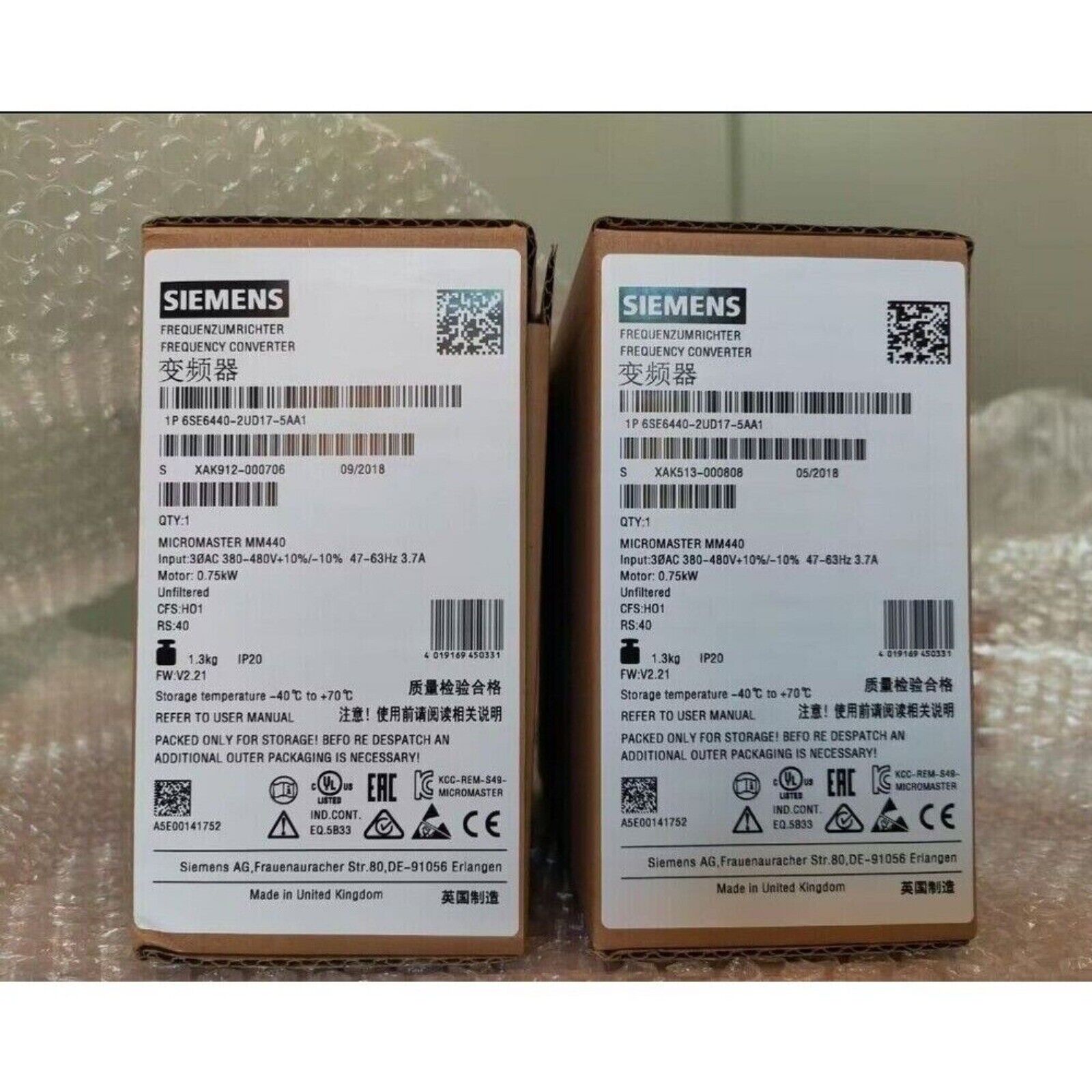

Product Description: 6SE6440-2UD17-5AA1

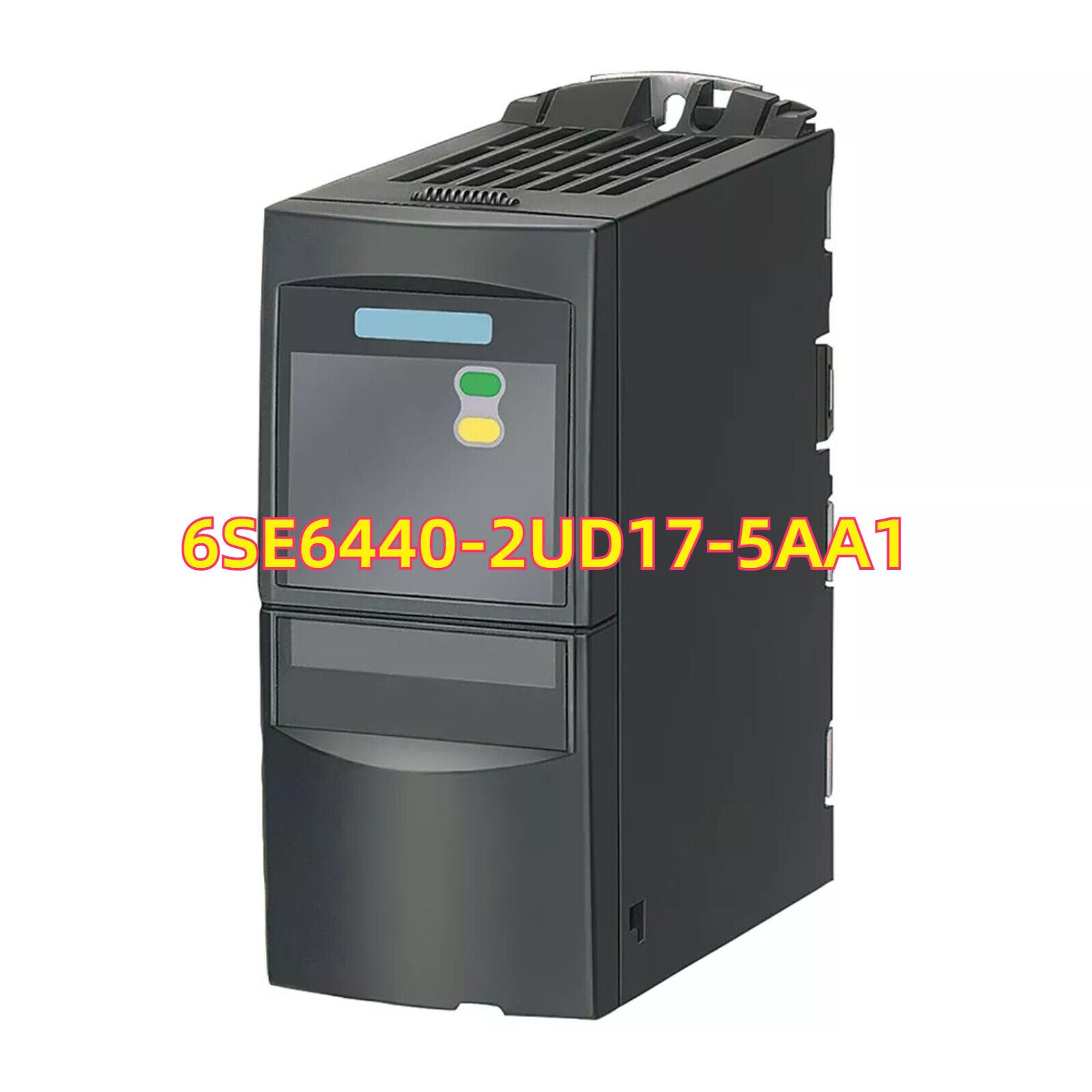

The 6SE6440-2UD17-5AA1 is a MICROMASTER 440 series VFD providing robust speed and torque control for three-phase AC motors up to 7.5 kW (10 HP). It accepts a 380–480 V AC input, features sensor-less vector control and an integrated braking chopper. Delivered without an internal EMC filter, it allows users to add a site-specific filter. Housed in an IP20 panel-mount enclosure, it’s ideal for demanding applications such as pumps, fans, mixers, and conveyors.

Key Features

• Sensor-less Vector Control: Fast dynamic response and precise speed regulation
• Integrated Braking Chopper: Ready for external braking resistor to handle rapid deceleration
• Advanced I/O: 6 programmable digital inputs; 2 analog inputs (0–10 V / 0–20 mA); 2 analog outputs; 2 relay outputs
• Communication Options: Optional PROFIBUS-DP, CANopen, DeviceNet, Ethernet/IP, USS/Modbus RTU
• Built-In PID: Closed-loop control of pressure, flow, or temperature without external PLC
• Easy Commissioning: Parameter macros and Basic Operator Panel (BOP) or STARTER PC software

Technical Specifications

• Rated Output Power 7.5 kW (10 HP)
• Input Voltage 3AC 380–480 V AC ±10 %, 47–63 Hz
• Output Current ≈ 16 A continuous
• Control Modes V/f, sensor-less vector, flux-current control
• Integrated Filter None (external optional)
• Braking Chopper Integrated
• Protection Class IP20 (panel-mount)
• Cooling Internal fan
• Dimensions (W×H×D) ≈ 175 × 295 × 195 mm
• Weight ≈ 9.5 kg

Application Areas

• HVAC pumps and fans
• Conveyor and material-handling systems
• Mixers, extruders, compressors
• OEM machinery requiring compact, powerful drives

Advantages

• Flexible EMC filtering to meet plant standards
• Proven reliability of MICROMASTER 440 platform
• Rich built-in control functions reduce external hardware
• Modular communications simplify network integration
• Compact design optimizes control-cabinet space
