PLC | Siemens | 6ES72315PF320XB0 S7-1200 Analog input SM 1231 6ES7231-5PF32-0XB0

Product Description: Siemens 6ES7231-5PF32-0XB0

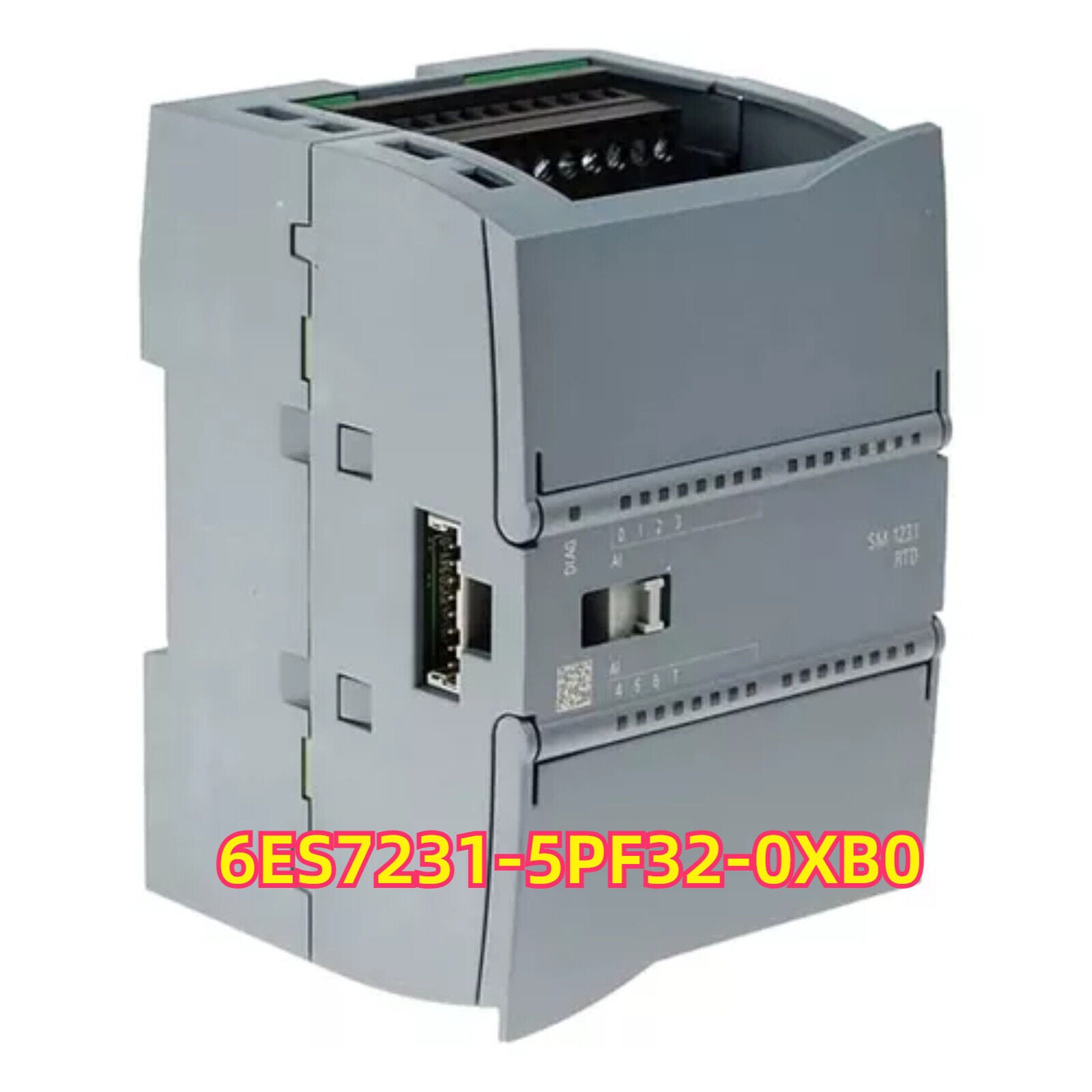

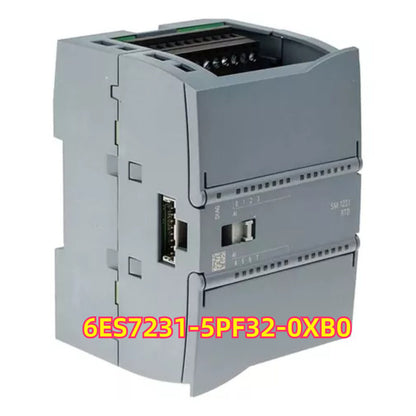

The Siemens 6ES7231-5PF32-0XB0 is an analog input module from the SIMATIC S7-1200 series, specifically designed to handle RTD (Resistance Temperature Detector) sensors, such as Pt100 and Pt1000, for precise temperature measurement. This module offers 8 input channels and supports 2, 3, or 4-wire connection configurations, making it suitable for temperature measurement applications in HVAC systems, process control, and equipment monitoring. With advanced features like noise suppression and high accuracy, the 6ES7231-5PF32-0XB0 is ideal for industrial automation systems requiring reliable and accurate temperature data acquisition.

Key Features

• 8 Analog Input Channels: Supports RTD sensors for accurate temperature measurements.
• Input Type: RTD (Resistance Temperature Detector) and resistance inputs.
• Noise Suppression: 85 dB noise suppression with selectable frequencies (10 Hz, 50 Hz, 60 Hz, or 400 Hz) to ensure stable measurements in industrial environments.
• Common Mode Rejection: >120 dB common-mode rejection to eliminate electrical interference.
• High Input Impedance: ≥ 10 MΩ to support high-accuracy measurements.
• Max Input Voltage: ±35 V for robust protection.
• Isolation: Field-side isolation from logic and 24 V DC isolation, tested for 707 V DC.
• Repeatability: ±0.05% of full scale for consistent, reliable results.
• Power Consumption: Low power consumption at 1.5 W.
• Maximum Cable Length: 100 meters for flexible installation in industrial systems.

Technical Specifications

• Product Type: Analog Input Module
• Part Number: 6ES7231-5PF32-0XB0
• Input Channels: 8 RTD inputs
• Input Type: RTD and resistance inputs
• Noise Suppression: 85 dB (selectable: 10 Hz, 50 Hz, 60 Hz, 400 Hz)
• Common Mode Rejection: >120 dB
• Input Impedance: ≥ 10 MΩ
• Max Input Voltage: ±35 V
• Isolation: 707 V DC (field-to-logic, field-to-24V DC)
• Repeatability: ±0.05% of full scale
• Power Consumption: 1.5 W
• Max Cable Length: 100 meters
• Dimensions (W x H x D): 70 x 100 x 75 mm
• Weight: 283 g

Application Areas

• Temperature Monitoring & Control: Ideal for HVAC systems, process control, and industrial temperature monitoring.
• Industrial Automation: Suitable for applications requiring precise temperature measurement and monitoring.
• Energy Management: Used in energy management systems for temperature data acquisition and analysis.
• Laboratory Equipment: Applicable for laboratory setups requiring high- precision temperature measurement.

Advantages

• High Accuracy: Provides precise temperature measurements with high repeatability for critical processes.
• Flexible Configuration: Supports 2, 3, or 4-wire RTD sensor connections for versatile system integration.
• Robust Noise Immunity: 85 dB noise suppression and high common-mode rejection ensure stable measurements in noisy industrial environments.
• Durable and Reliable: Built to withstand industrial conditions, with high isolation protection and low power consumption for long-term reliability.
• Easy Integration: Simple installation and integration into the SIMATIC S7-1200 system, making it ideal for scalable automation solutions.
