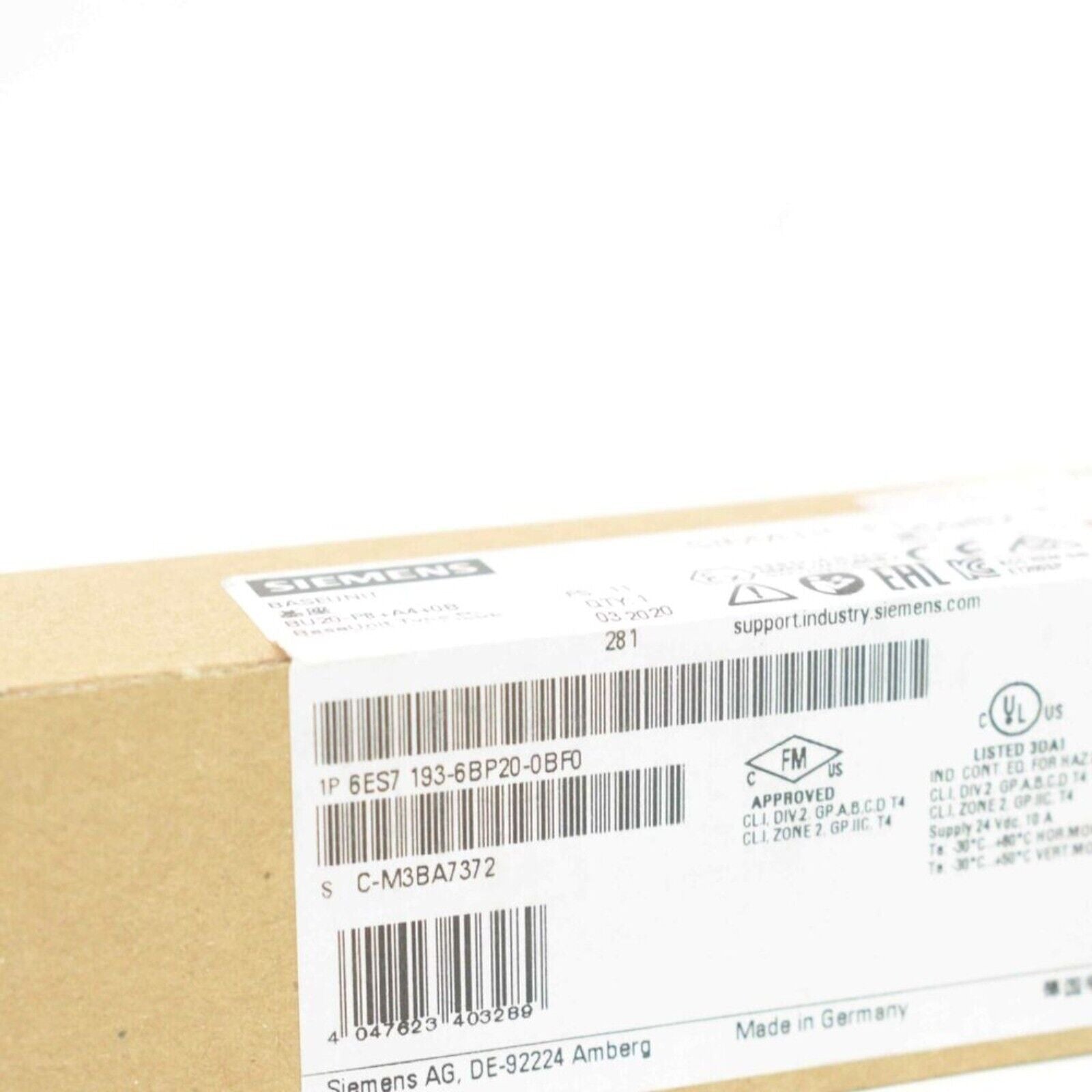

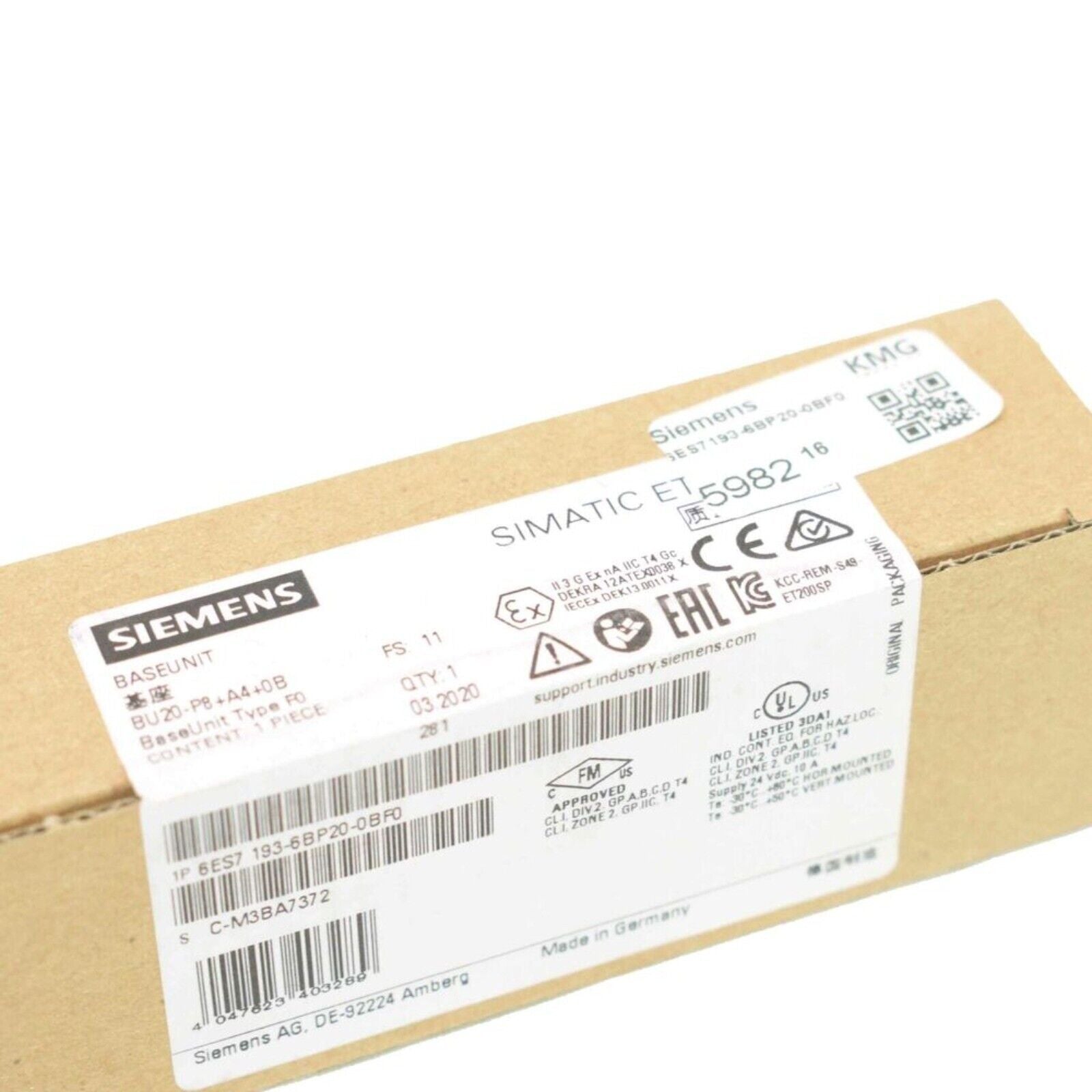

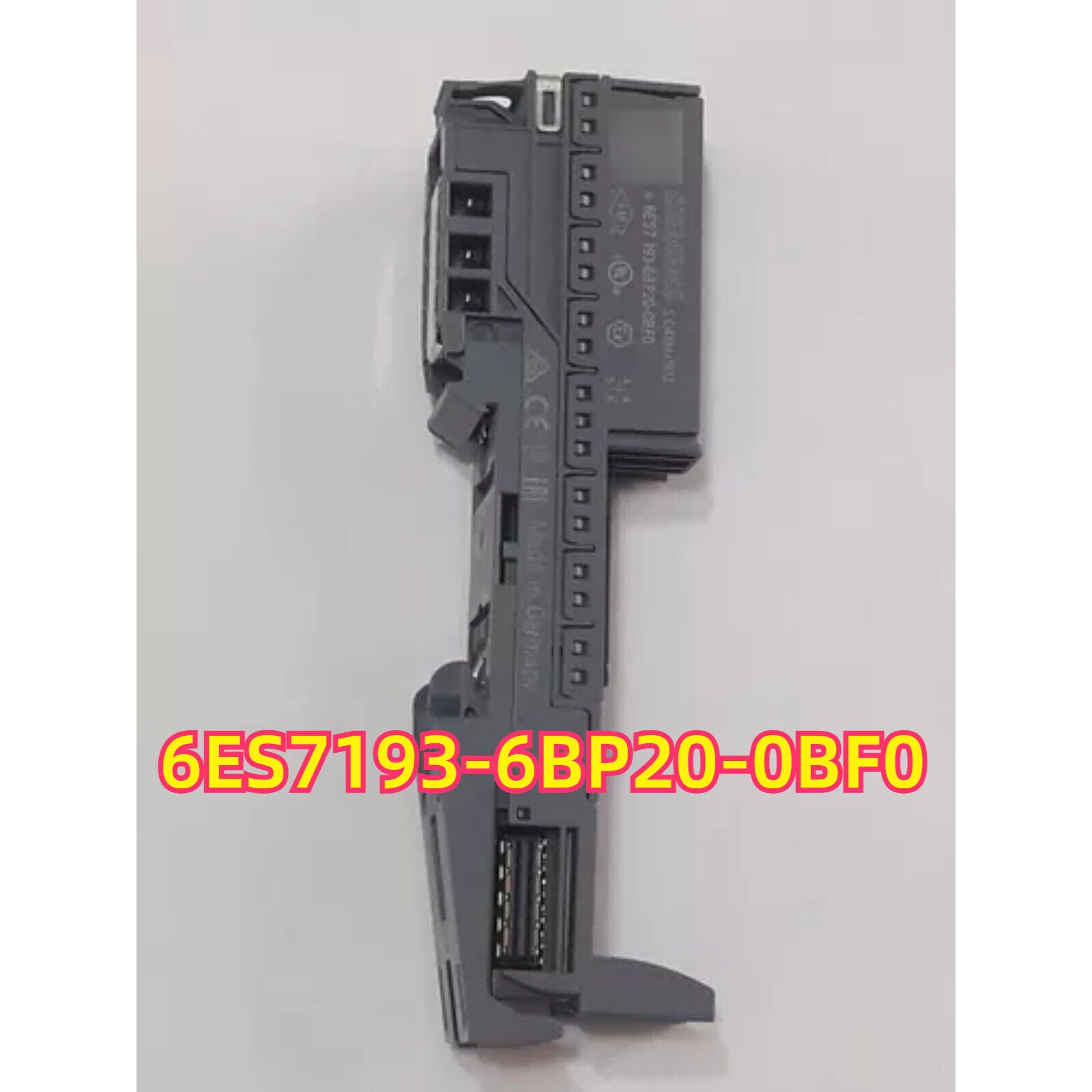

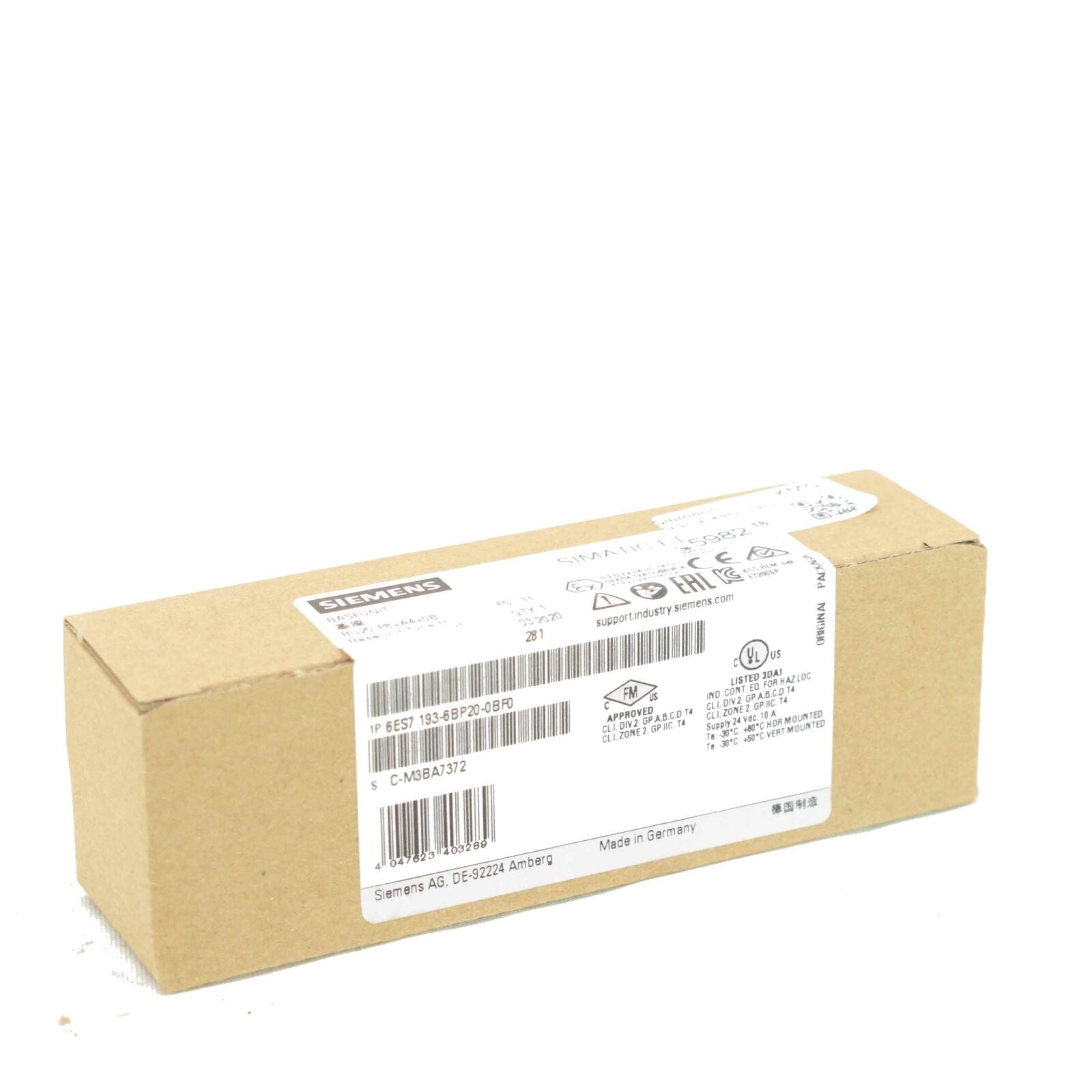

Product Description: Siemens 6ES7193-6BP20-0BF0

The Siemens 6ES7193-6BP20-0BF0 is a high-availability BaseUnit (BU) designed for the SIMATIC ET 200SP HA (High Availability) distributed I/O system. This module enables hot-swapping of electronic modules and supports system redundancy through its dual RJ45 ports. As part of the ET 200SP HA system, it is intended for process automation applications requiring maximum reliability, including power generation, chemical, and oil & gas sectors. The BU type P2-HF supports high-feature modules and ensures safe, tool-free mounting and replacement during plant operation. It also offers status LEDs, mechanical coding, and secure backplane connectivity, making it ideal for redundant and fail-safe architectures.

Key Features

• Hot-Swap Capability: Allows electronic modules to be exchanged during operation without system shutdown.
• Dual Communication Ports: Integrated 2 × RJ45 for redundant PROFINET ring or line topology.
• High Availability Design: Suitable for redundant, safety-critical systems.
• Tool-Free Mounting: Enables easy and fast installation and replacement.
• Module Coding: Mechanical coding to prevent incorrect insertion of I/O modules.
• Integrated Backplane Bus: Ensures consistent communication and power delivery.

Technical Specifications

• Product Type: BaseUnit (BU) for ET 200SP HA
• Part Number: 6ES7193-6BP20-0BF0
• Series: SIMATIC ET 200SP HA
• BU Type: P2-HF (High Feature)
• Communication Ports: 2 × RJ45 (PROFINET)
• Hot Swapping: Supported
• Module Compatibility: HA I/O modules, redundancy-capable
• Mounting: DIN rail with backplane connection
• Operating Temperature: -25°C to +60°C
• Protection: Integrated mechanical coding
• Dimensions: Compact footprint for high-density installation
• Weight: Approx. 150 g

Application Areas

• Process Automation: Ideal for high-availability control systems in energy, oil & gas, and chemical plants.
• Redundant I/O Systems: Used in dual-channel PROFINET environments requiring uninterrupted operations.
• Mission-Critical Operations: Supports applications that demand 24/7 uptime and continuous diagnostics.
• Safety Integrated Systems: Suitable for integrating with fail-safe and safety-rated I/O modules.

Advantages

• Uninterrupted Operation: Hot-swappable design ensures minimal downtime and high system availability.
• Redundant Communication: Dual RJ45 ports support PROFINET S2 redundancy and ring topologies.
• Future-Proof: Compatible with high-feature modules and scalable for complex installations.
• Secure Installation: Mechanical coding and LED indicators help ensure proper module configuration.
• Robust and Compact: Industrial-grade design fits demanding environments with limited space.
