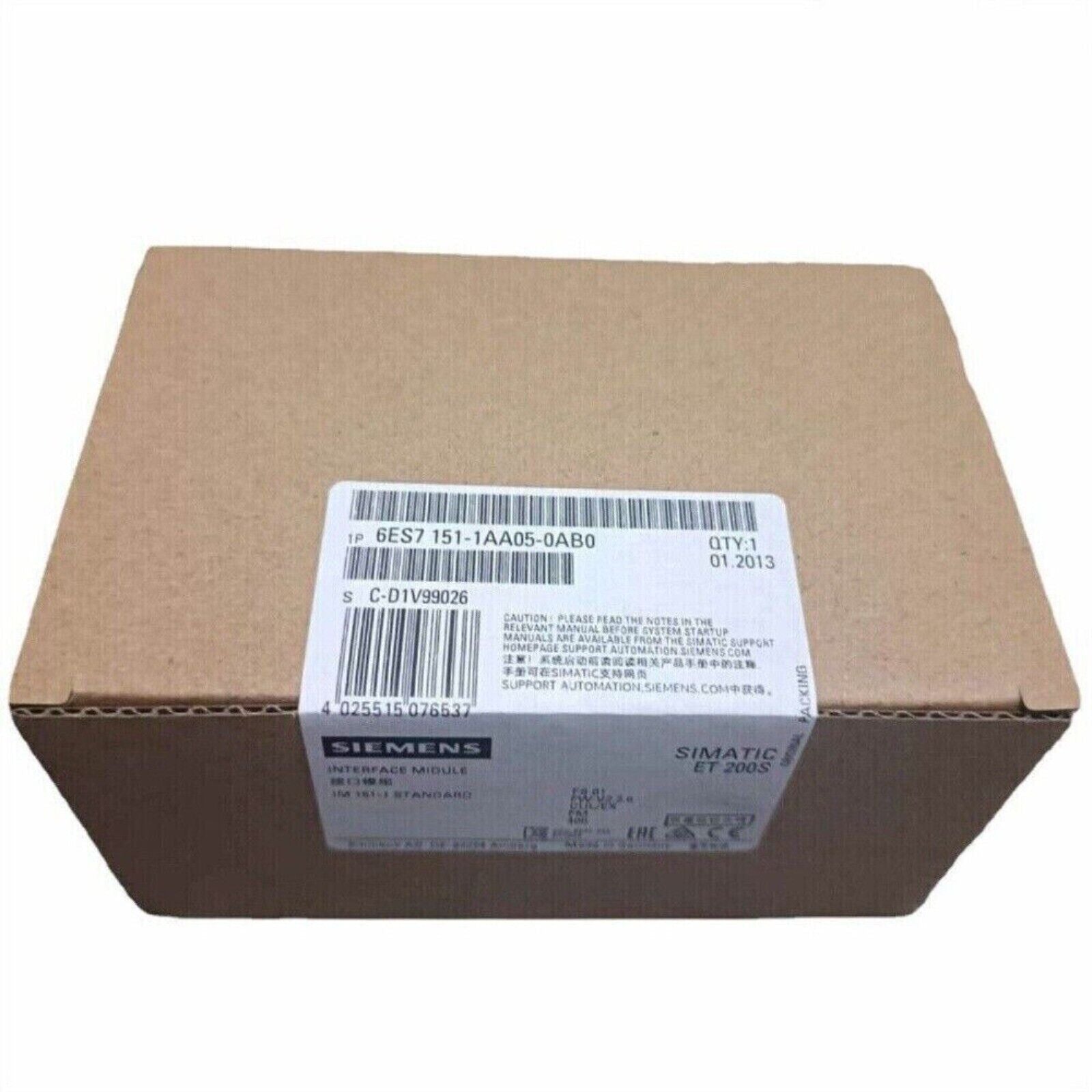

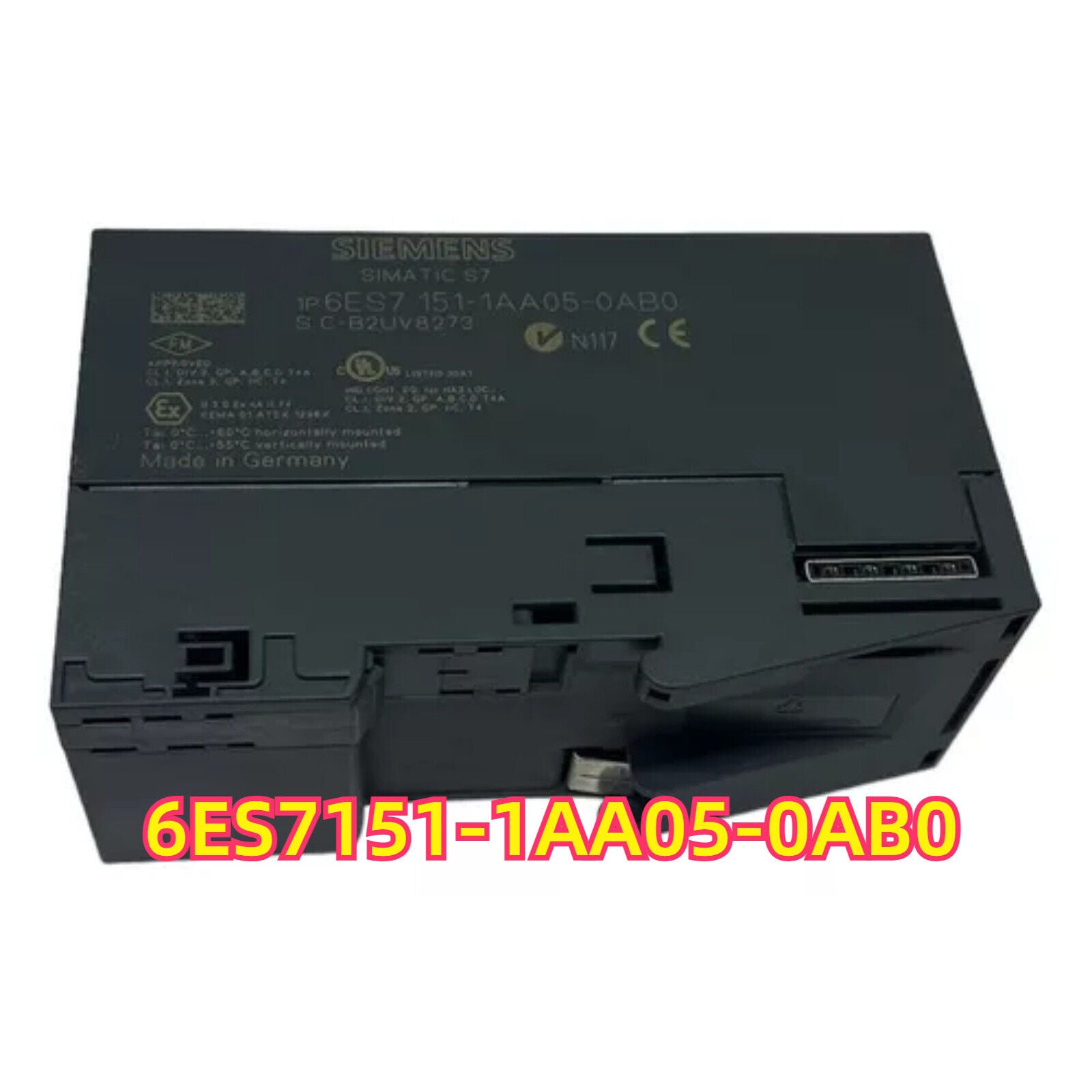

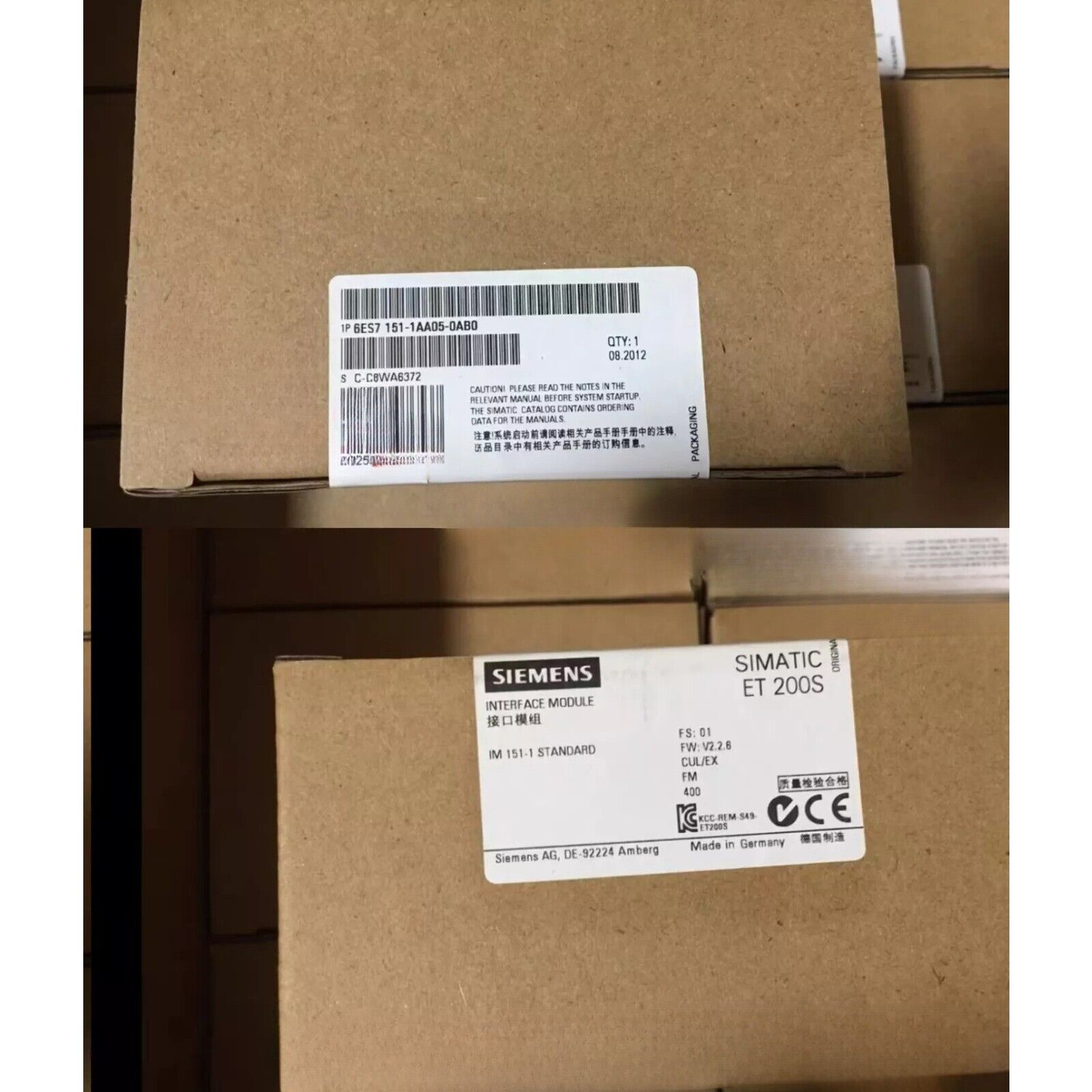

Industrial Communication | Siemens | 6ES7151-1AA05-0AB0 6ES7151-1AA05-0AB0 DP INTERFACE MODULE IM151-1

Product Description: Siemens 6ES7151-1AA05-0AB0

The Siemens 6ES7151-1AA05-0AB0 is an interface module from the SIMATIC ET 200S distributed I/O system. It serves as the central connection point between the ET 200S I/O station and a PROFIBUS DP network. Operating as a DP slave, the IM151-1 Standard supports basic data exchange functions and is ideal for standard automation tasks. The module allows seamless integration of up to 63 ET 200S I/O modules, making it a scalable and flexible solution for distributed control architectures.

Key Features

• Function: Connects ET 200S to PROFIBUS DP as a slave
• Addressing: Configurable via rotary switch or software
• Supported Modules: Up to 63 I/O modules in one station
• Data Transmission Rate: Up to 12 Mbps (PROFIBUS)
• Diagnostics: System diagnostics and status LEDs
• Mounting: DIN rail mounting within ET 200S station
• Configuration: Through STEP 7 or TIA Portal

Technical Specifications

• System Series: SIMATIC ET 200S
• Module Type: Interface Module (IM151-1 Standard)
• Bus Interface: PROFIBUS DP Slave
• Max. Modules Supported: 63 per station
• Transmission Rate: Up to 12 Mbps
• Power Supply Voltage: 24 V DC (19.2 – 28.8 V DC)
• Mounting Type: DIN rail
• Dimensions (W × H × D): 45 mm × 119.5 mm × 75 mm
• Protection Class: IP20
• Operating Temperature Range: 0 °C to +60 °C
• Certifications: CE, cULus, FM, ATEX Zone 2

Application Areas

• PROFIBUS-based distributed I/O systems
• Modular machine and plant automation
• Integration of field I/O into Siemens S7-300/400 control systems
• Cost-effective signal acquisition in decentralized architectures

Advantages

• Enables modular and scalable I/O stations
• Reliable PROFIBUS communication for harsh environments
• Seamless integration into STEP 7 or TIA Portal
• Compact form factor simplifies panel layout
