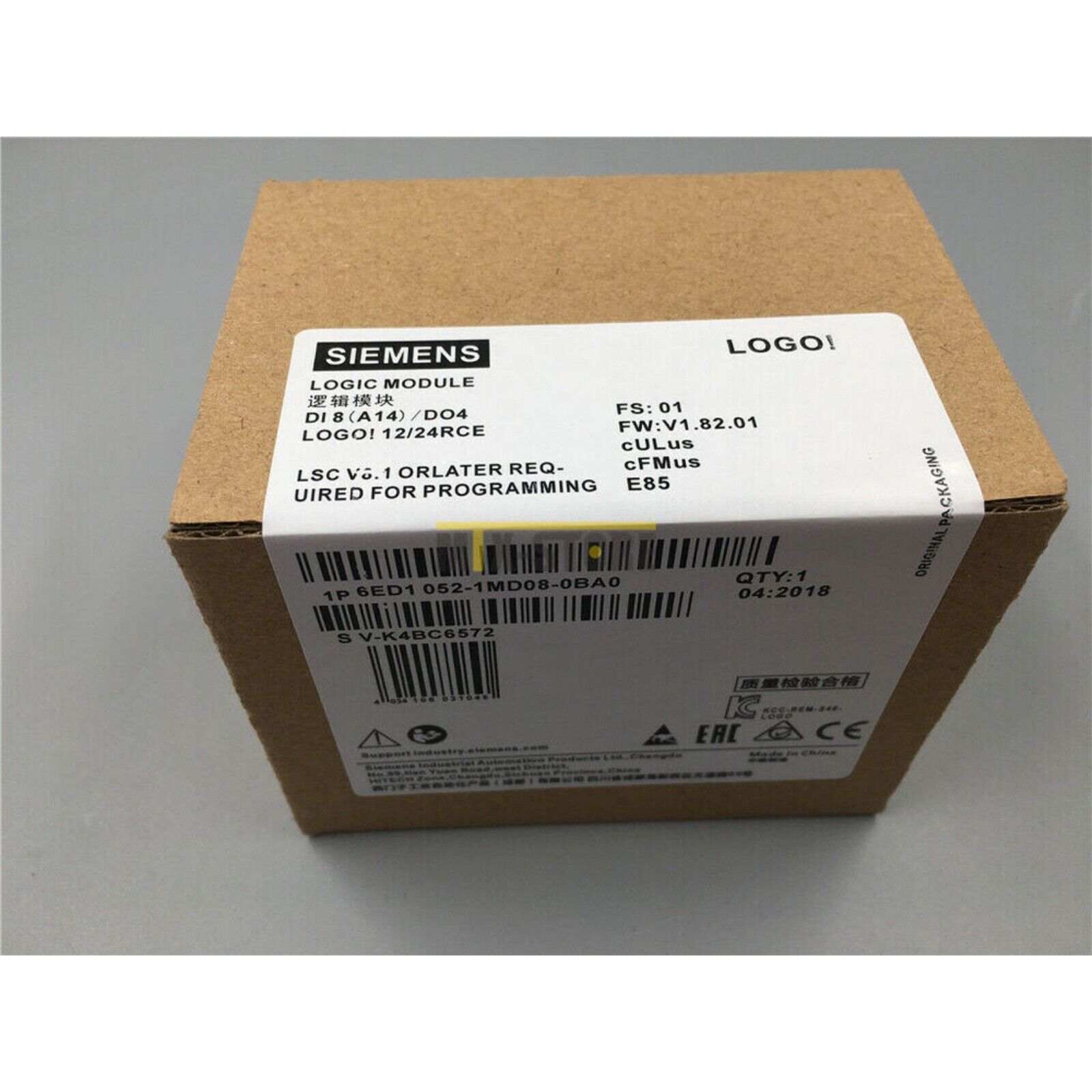

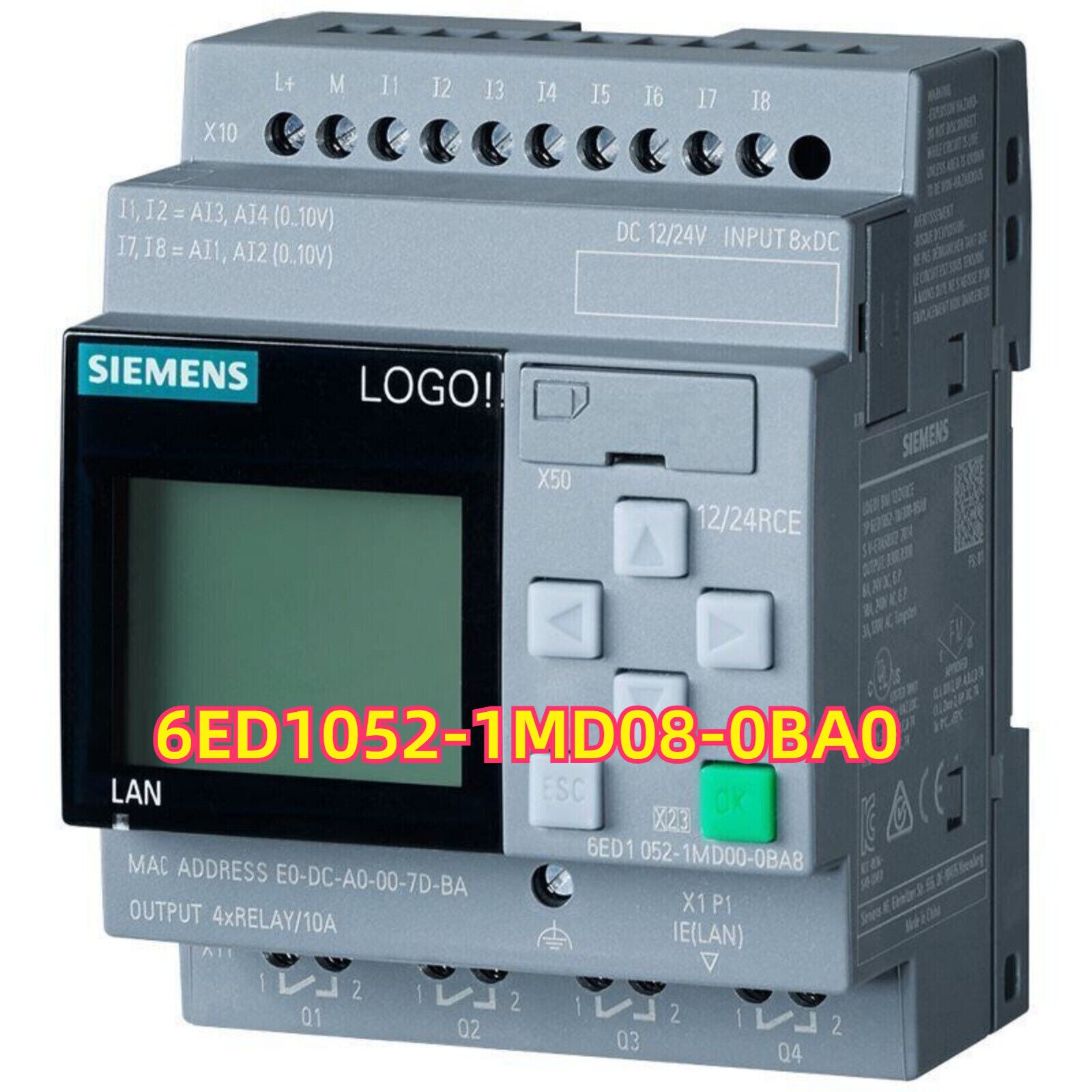

PLC | Siemens | 6ED1052-1MD08-0BA0 6ED1 052-1MD08-0BA0 LOGO 12/24RCE logic module

Product Description: Siemens 6ED1052-1MD08-0BA0

The Siemens 6ED1052-1MD08-0BA0 is an analog input expansion module from the LOGO! 8 logic controller series. It provides two analog input channels that support both voltage (0–10 V) and current (0/4–20 mA) signals. Designed for compact and modular automation systems, this module enables the acquisition of analog process values such as temperature, pressure, or flow, and transmits them to a LOGO! 8 controller. It is ideal for small-scale control tasks in building automation, HVAC, and water systems.

Key Features

• Analog Inputs: 2 channels, configurable for voltage or current
• Signal Types: 0–10 V, 0–20 mA, 4–20 mA
• Resolution: 10 bits
• Connection: Spring- type terminals
• Mounting: DIN rail installation adjacent to LOGO! base module
• Compatibility: LOGO! 8 and later versions
• Configuration: Via LOGO! Soft Comfort engineering software

Technical Specifications

• System Series: LOGO! 8
• Module Type: Analog Expansion Module (AM2)
• Number of Analog Inputs: 2
• Input Signal Range: 0–10 V / 0–20 mA / 4–20 mA
• Resolution: 10 bits
• Power Supply: Supplied via LOGO! base module
• Mounting Type: DIN rail
• Dimensions (W × H × D): 35.5 mm × 90 mm × 58 mm
• Operating Temperature Range: 0 °C to +55 °C
• Protection Class: IP20
• Certifications: CE, cULus, EAC

Application Areas

• Small-scale analog signal processing in automation projects
• Monitoring of environmental or process values (temperature, pressure, etc.)
• Extension of LOGO! logic controllers in building and industrial automation
• Energy management and water level monitoring systems

Advantages

• Compact expansion of LOGO! logic controllers
• Supports both voltage and current signal inputs
• Easy integration and configuration using LOGO! Soft Comfort
• Ideal for flexible and modular low- end automation solutions
