PLC | Siemens | 6ED1052-1FB00-0BA6 6ED1 052-1FB00-0BA6 LOGO 230 RC logic module

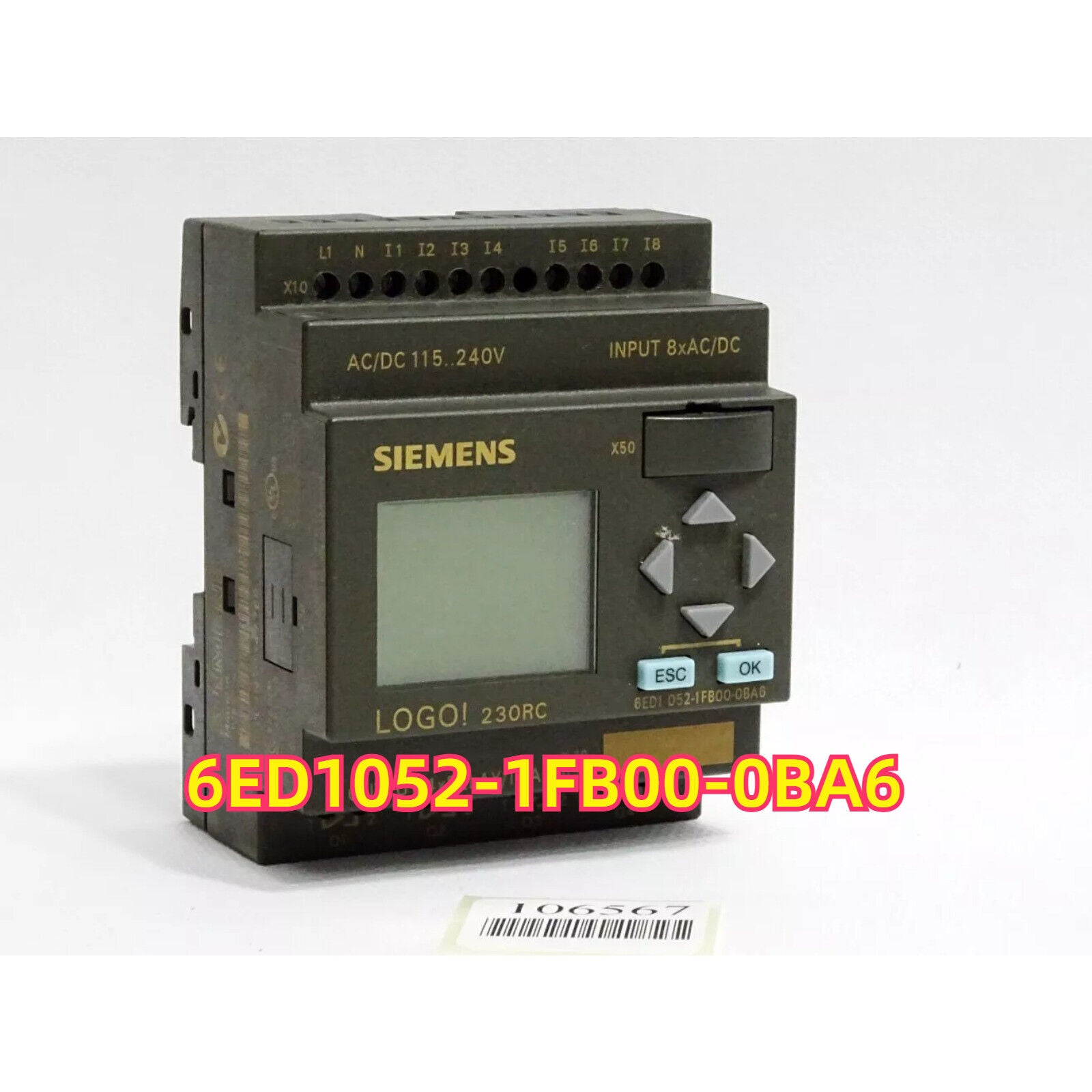

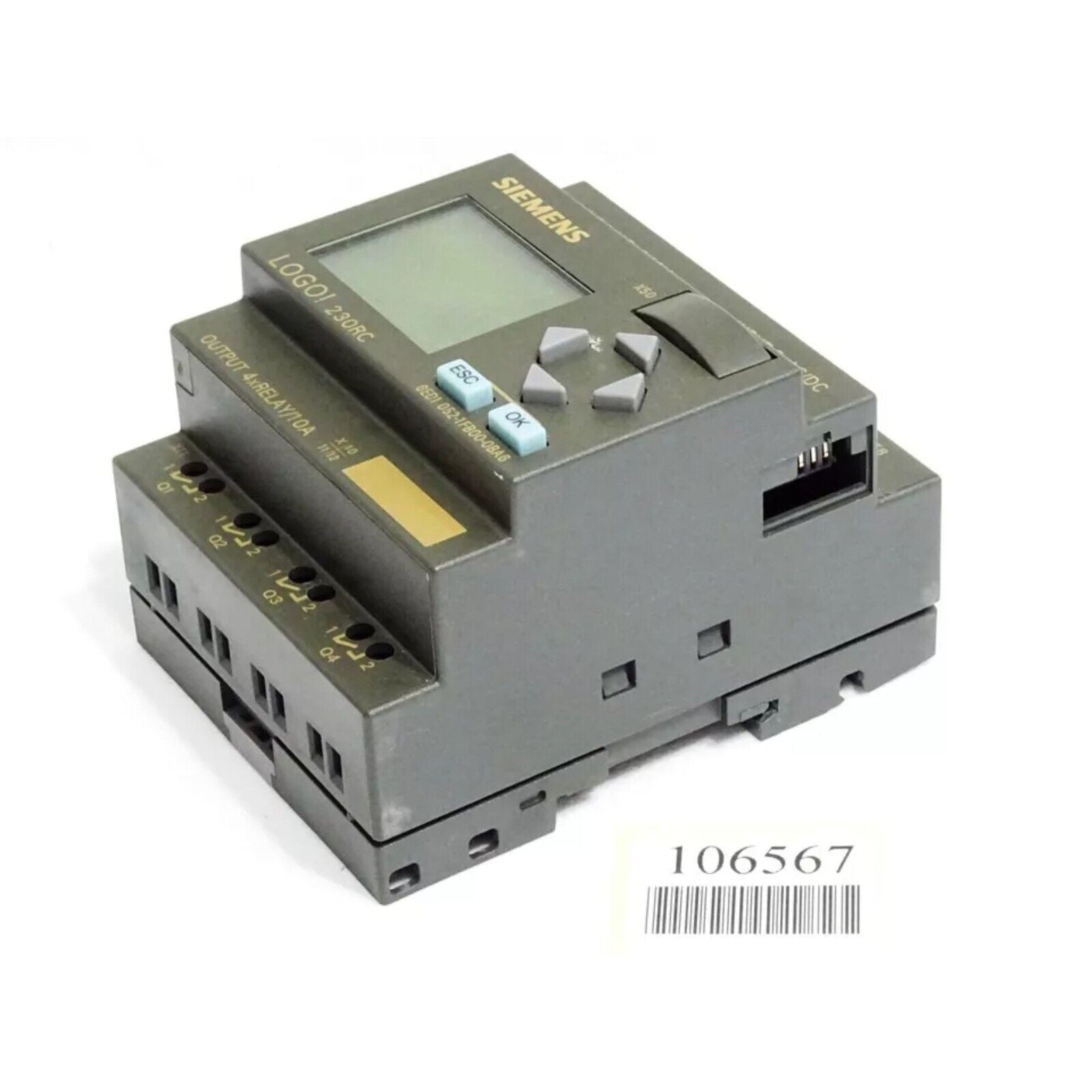

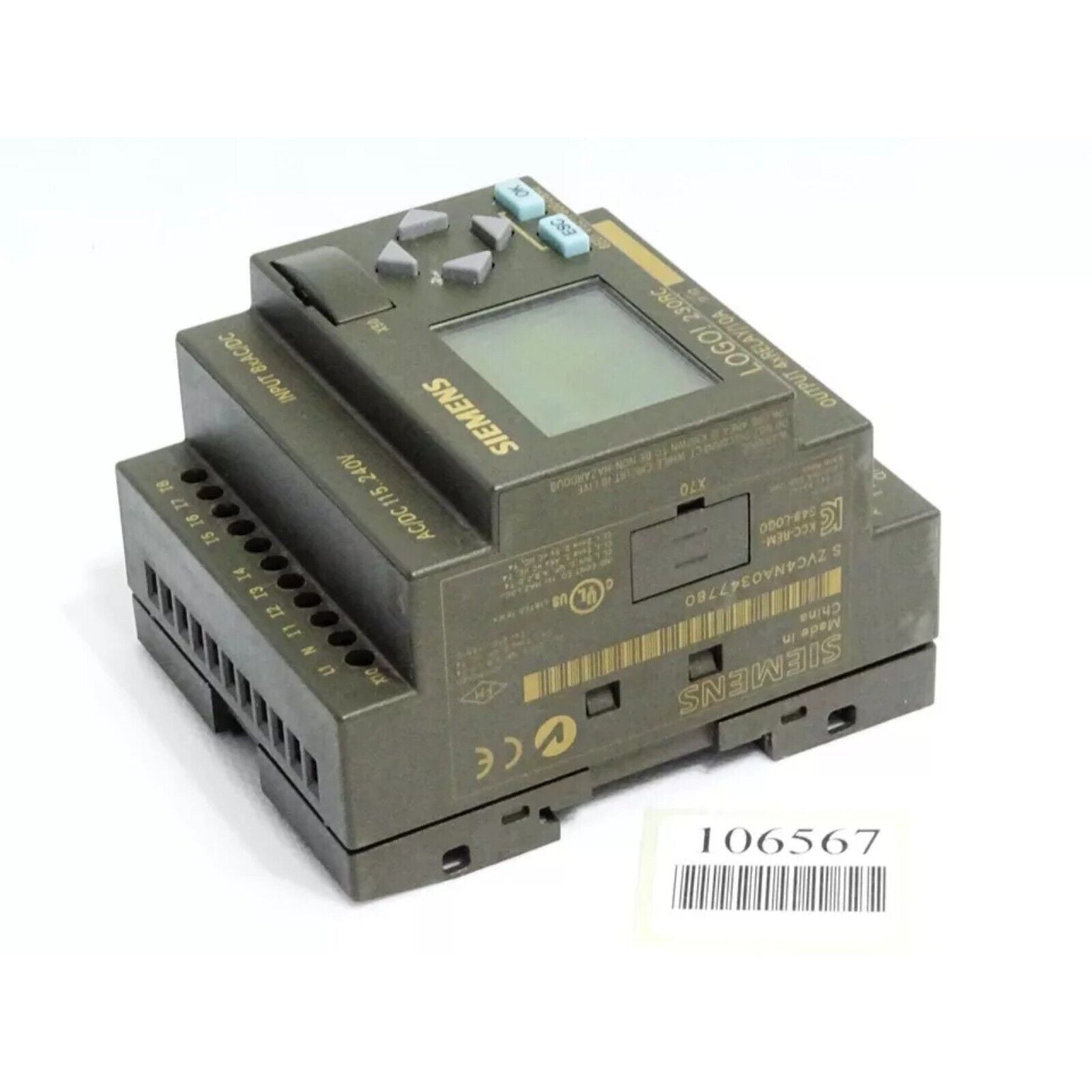

Product Description: Siemens 6ED1052-1FB00-0BA6

The Siemens 6ED1052-1FB00-0BA6 is a LOGO! 12/24 RCE logic module from the LOGO! 8 series, offering compact, integrated control for small automation tasks. It features 8 digital inputs , 4 relay outputs , and an integrated Ethernet interface. Equipped with a built- in display and keypad , this module allows for local operation and monitoring. It is ideal for standalone automation in buildings, equipment, or simple industrial control systems.

Key Features

• 8 digital inputs (4 of which can be used as analog 0–10 V)
• 4 relay digital outputs (up to 10 A switching capacity)
• Integrated Ethernet interface for communication and remote access

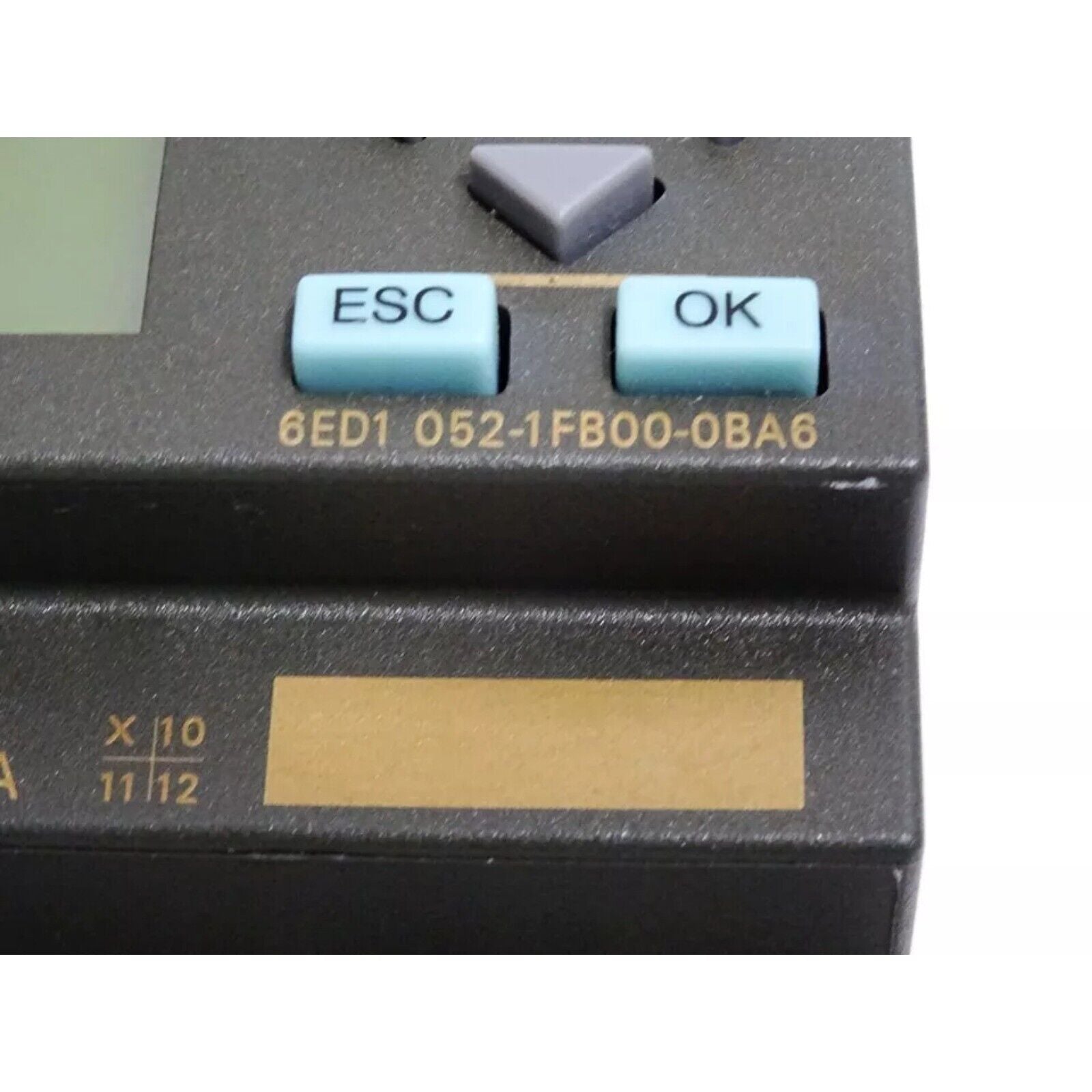

• Built-in display with 6-line text and 3 navigation keys
• Expandable via additional LOGO! modules
• User-friendly programming with LOGO! Soft Comfort software
• Real-time clock and password protection

Technical Specifications

• Part Number: 6ED1052-1FB00-0BA6
• Power Supply: 12 V DC / 24 V DC
• Digital Inputs: 8 (24 V DC, 4 can be analog 0–10 V)
• Digital Outputs: 4 relay outputs (max. 10 A per channel)
• Ethernet Port: 1 x RJ45 (10/100 Mbps)
• Program Memory: 400 function blocks
• Display: 6-line backlit LCD with function keys
• Real-Time Clock: Integrated with backup

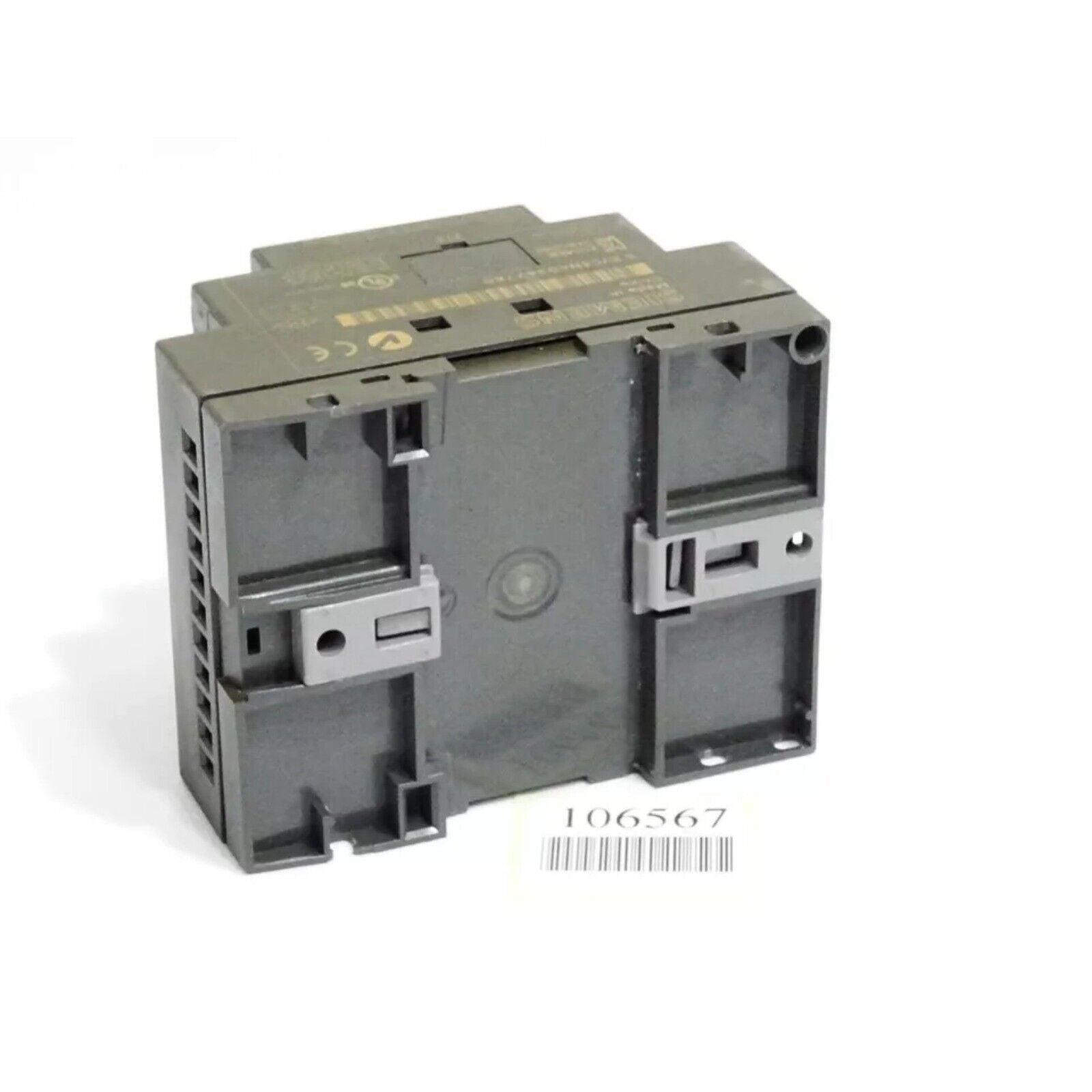

• Mounting: DIN rail
• Dimensions (W × H × D): 72 mm × 90 mm × 60 mm
• Protection Class: IP20
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• Building automation (lighting, shading, HVAC)
• Pump and ventilation control
• Equipment control and monitoring
• Small industrial machines
• Educational and training environments

Advantages

• Integrated display and Ethernet communication for full control and monitoring
• Compact and all-in-one design ideal for small-scale applications
• Easy programming with intuitive software and logic blocks
• Expandable I/O and communication flexibility
• Proven reliability and efficiency in decentralized automation
