Allen-Bradley | 25B-D6P0N104 | PowerFlex 525

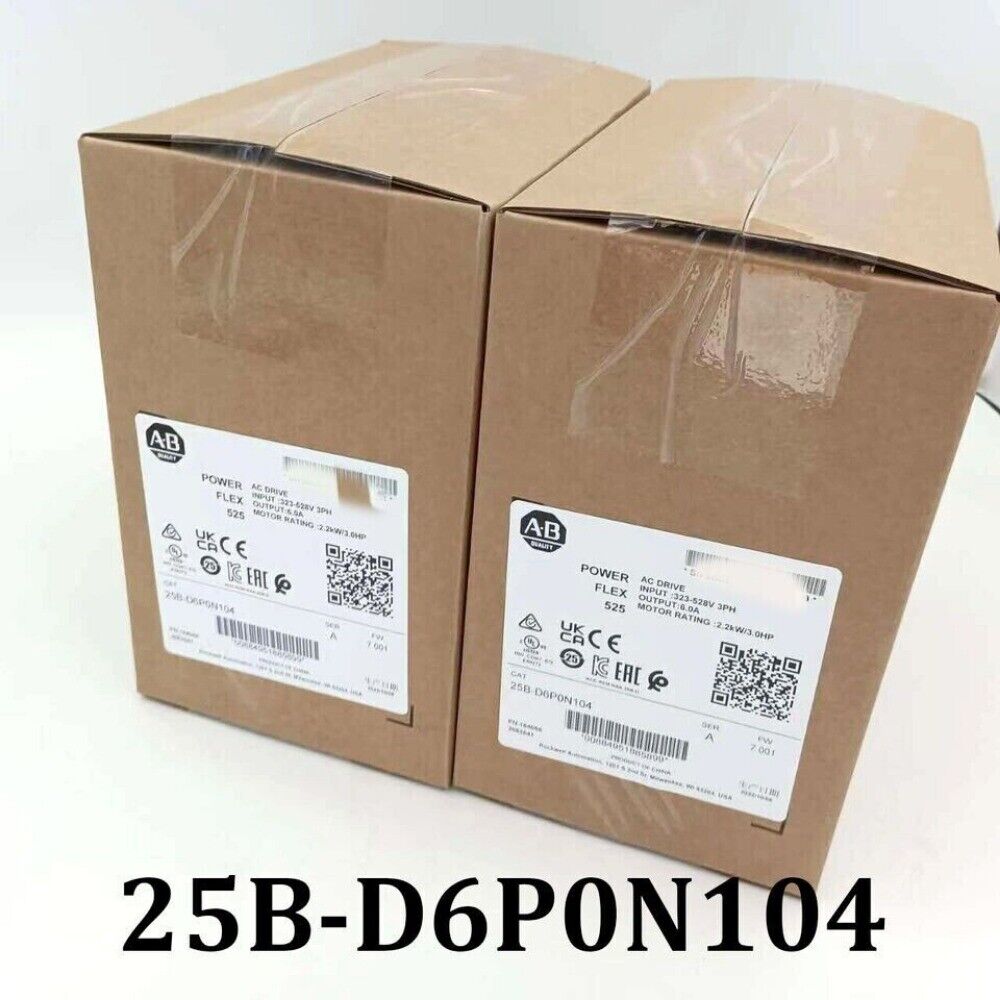

Product Description: Allen-Bradley 25B-D6P0N104

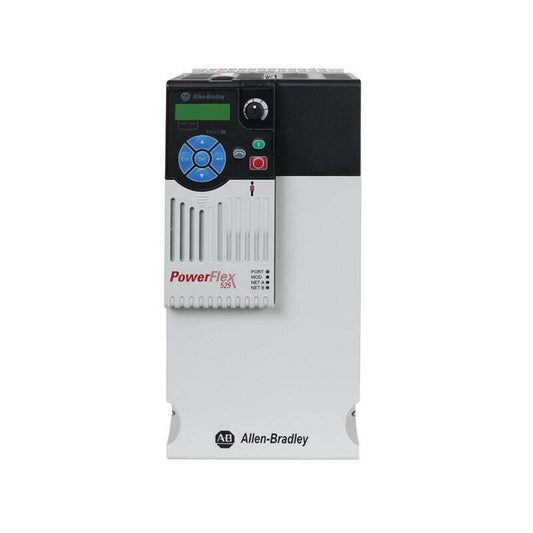

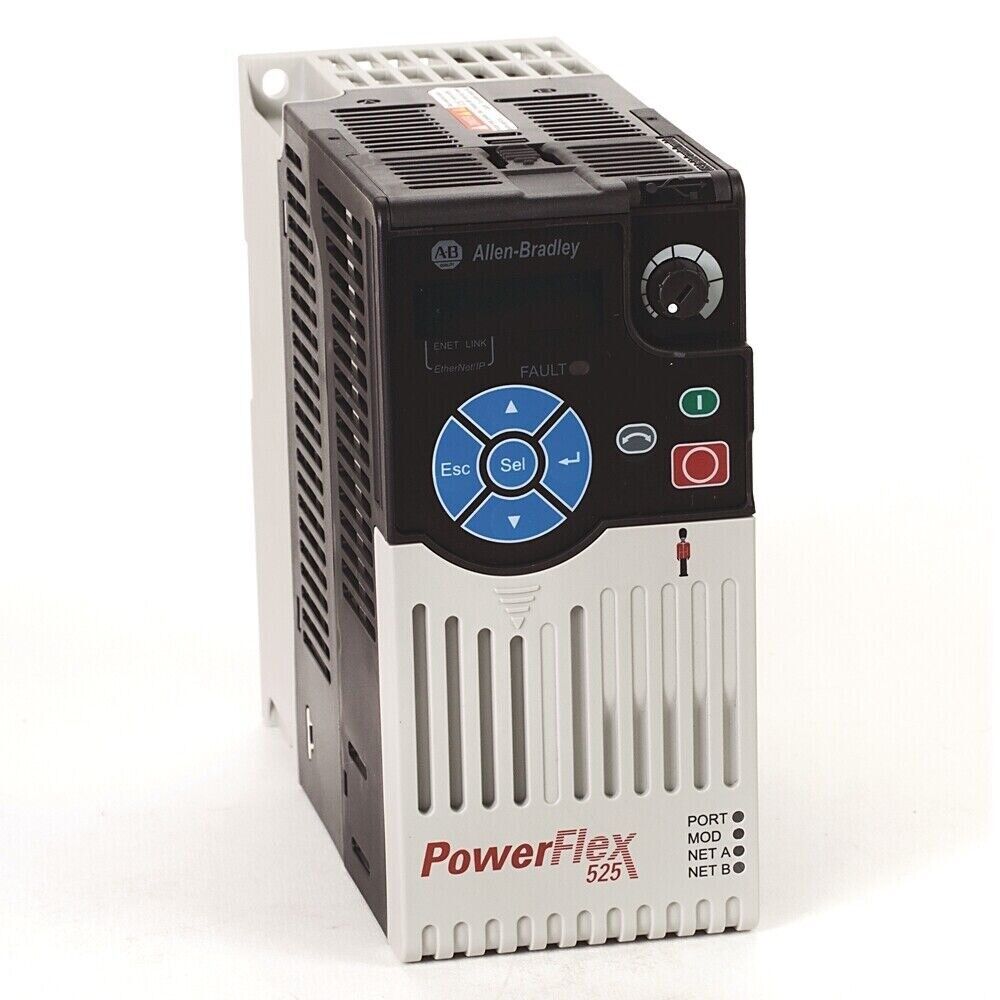

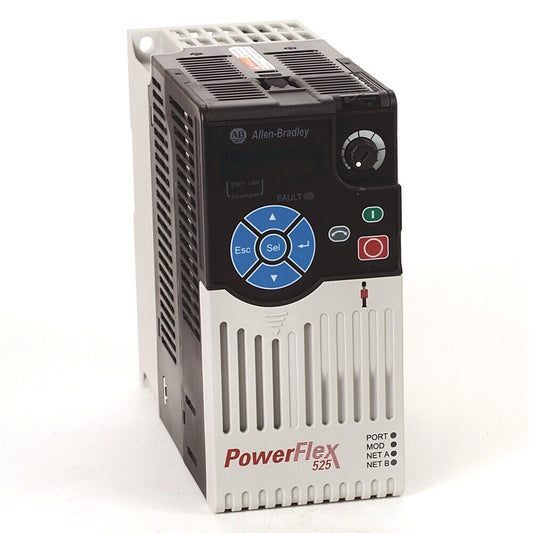

The Allen-Bradley 25B-D6P0N104 is a PowerFlex 525 AC drive designed for speed and torque control of three-phase induction and permanent magnet motors. It operates on a 380–480V AC, 3-phase power supply and provides a rated output current of 6.0 A, suitable for motors up to 2.2 kW (3 HP). This model supports integrated EtherNet/IP communication and Safe Torque-Off (STO), combining flexible performance with built-in safety and connectivity features.

Key Features

• 2.2 kW (3 HP) motor control capability
• 6.0 A output current
• 380–480V AC, 3-phase input voltage
• Built-in EtherNet/IP and Modbus-TCP communication
• Integrated Safe Torque-Off (STO) safety function
• Control methods: V/Hz, Sensorless Vector, Closed Loop Velocity, Permanent Magnet Motor Control
• Compact Frame A size
• IP20 open- type enclosure
• Integral keypad with LED display and potentiometer
• DIN rail or panel mounting support

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Frequency Range: 0–500 Hz
• Rated Output Current: 6.0 A
• Power Factor: ≥ 0.98
• Ambient Temperature: -20°C to +50°C (no derating)
• Enclosure Type: IP20 (Open Type)
• Frame Size: A
• Communication Interfaces: EtherNet/IP, Modbus-TCP
• EMC Filter: Integrated
• Safety Function: Safe Torque-Off (SIL2, PLd compliant)
• Interface: Integral keypad and potentiometer

Application Areas

• Conveyors and transport systems
• Pumps and industrial fans
• Mixing and agitation equipment
• Packaging machinery
• HVAC and ventilation control
• General industrial automation

Advantages

• High-performance motor control in a compact design
• Built-in safety and communication reduce external component needs
• Easy configuration and monitoring with user-friendly interface
• High energy efficiency and power factor
• Suitable for a wide range of industrial applications
