Allen-Bradley | 25B-D030N104 |PowerFlex 525

Product Description: Allen-Bradley 25B-D030N104

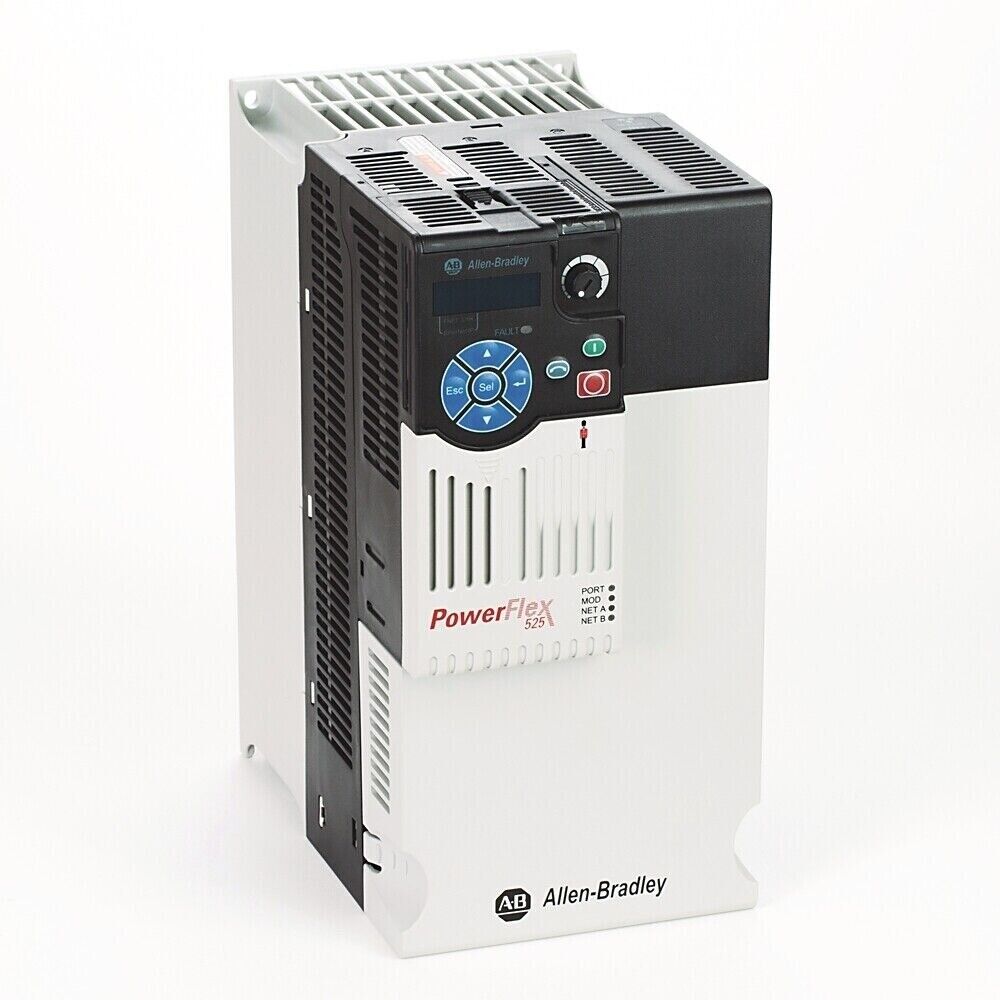

The Allen-Bradley 25B-D030N104 is a PowerFlex 525 AC drive designed for controlling three-phase induction motors in a wide range of industrial applications. Rated for 15 kW (20 HP) and operating at 480V AC, this drive supports multiple control modes including V/Hz and Sensorless Vector Control. With embedded EtherNet/IP and DSI, it simplifies integration into modern networked control systems.

Key Features

• Rated power: 15 kW (20 HP)
• 3-phase input, 380–480V AC, 50/60 Hz
• Embedded EtherNet/IP and DSI ports
• USB Type-B port for easy configuration
• Supports V/Hz, Sensorless Vector, Economizer control
• Built-in Safe Torque-Off (STO)
• Detachable control module for easy maintenance
• IP20, NEMA Open Type enclosure

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Current: 30 A
• Motor Power: 15 kW / 20 HP
• Frequency Range: 0–500 Hz
• Enclosure Type: IP20 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Closed-Loop PID
• Safety: Integrated Safe Torque-Off (STO)
• Interfaces:
  • Dual-port EtherNet/IP
• Programming Tool: Connected Components Workbench (CCW)
• Operating Temperature: -20°C to +50°C (no derating)

Application Areas

• Fans, pumps, and compressors
• Material handling systems
• Process equipment
• HVAC applications
• Industrial machinery requiring speed control

Advantages

• Space-saving compact design
• Integrated communications reduce wiring and cost
• Fast installation and configuration
• High efficiency and advanced diagnostics
• Safety compliance with built-in STO
