Allen-Bradley | 25B-D017N114 | PowerFlex 525

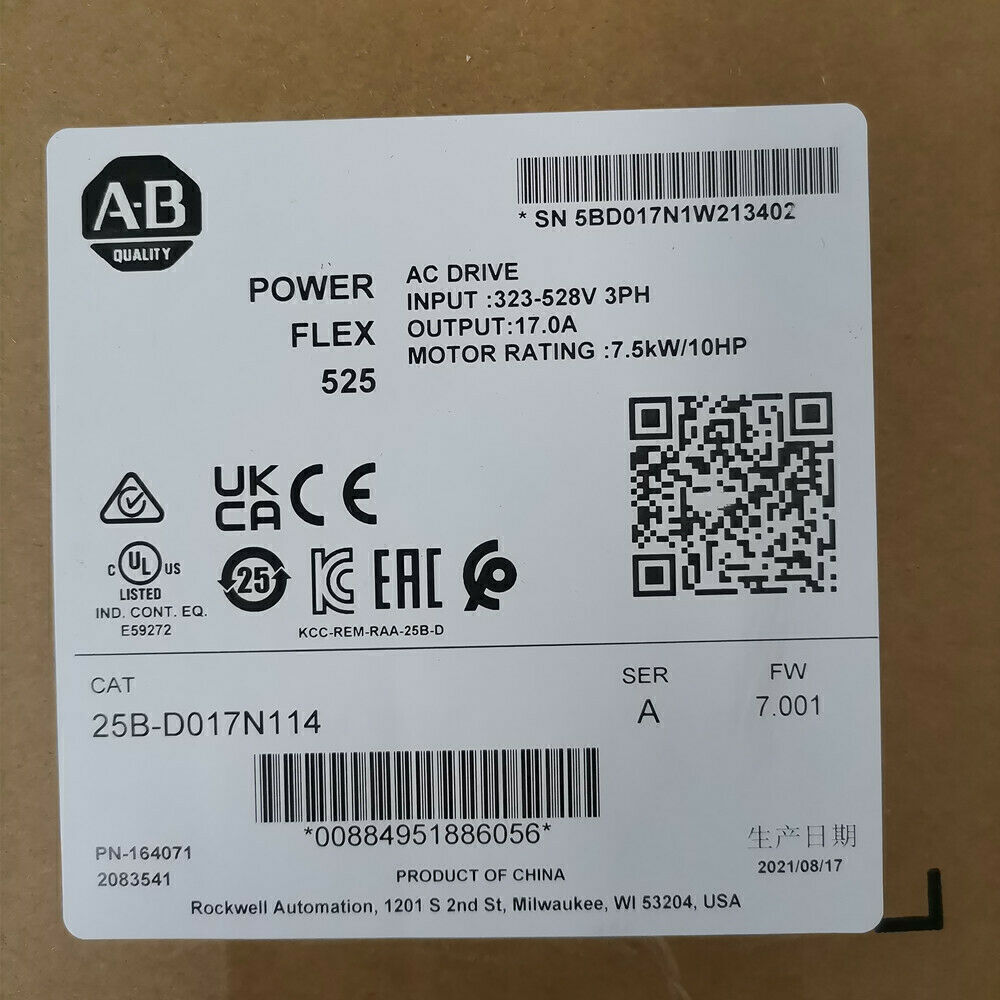

Product Description: Allen-Bradley 25B-D017N114

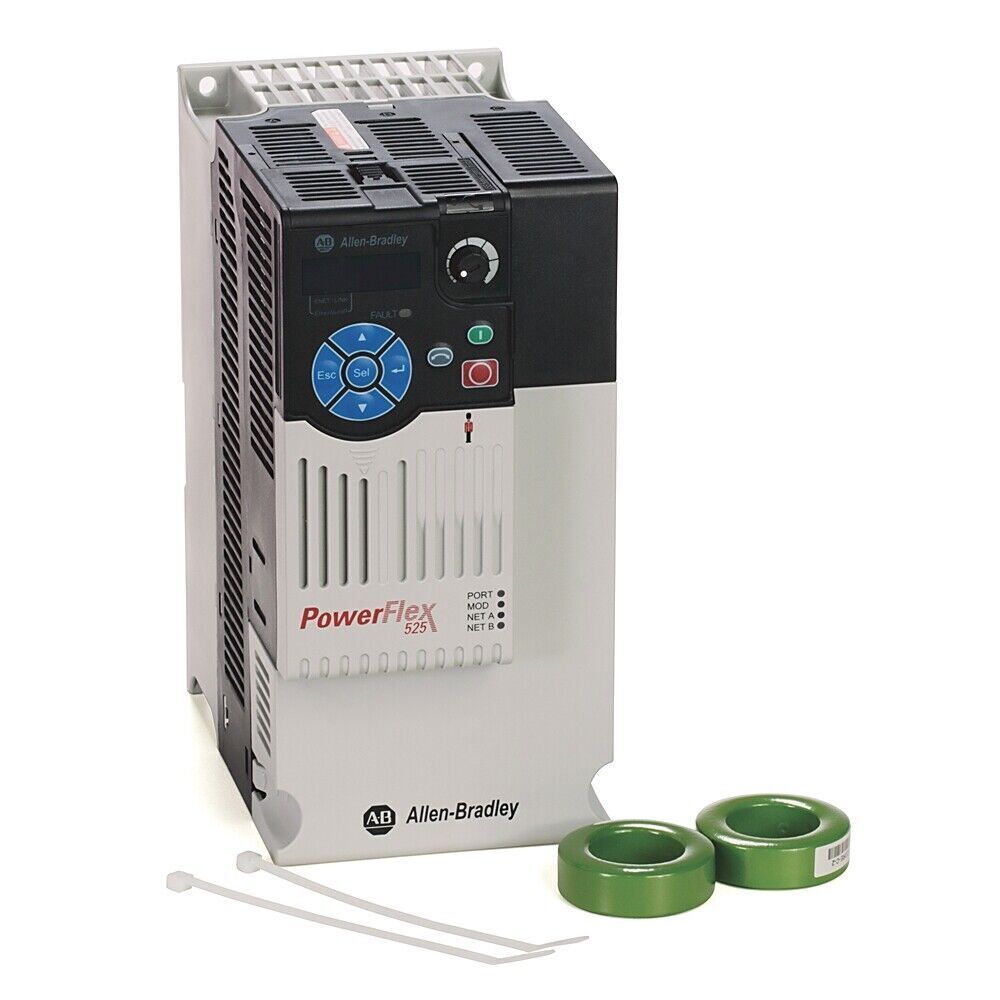

The Allen-Bradley 25B-D017N114 is a PowerFlex 525 AC drive engineered for controlling 3-phase motors in industrial automation environments. Rated at 7.5 kW (10 HP), this drive supports 380–480V input and provides reliable, efficient motor control with built-in safety and communication features. Ideal for a variety of light-to-medium duty applications, it offers modular design, embedded EtherNet/IP, and Safe Torque- Off functionality for enhanced performance and compliance.

Key Features

• Power rating: 7.5 kW (10 HP)
• 3-phase input voltage: 380–480V AC
• Output current: 17.5 A
• Embedded EtherNet/IP and DSI ports
• USB port for simplified configuration
• Control modes: V/Hz, Sensorless Vector, Economizer
• Integrated Safe Torque-Off (STO) safety function
• Removable control core for easy replacement and storage
• Compact footprint and DIN rail/panel mountable
• Conformal coated circuit boards, IP20 open-type enclosure

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 17.5 A
• Frequency Range: 0–500 Hz
• Enclosure: IP20 / NEMA Open Type
• Memory: Removable control module with onboard configuration
• Control Methods: V/Hz, Sensorless Vector, Closed-Loop PID
• Interfaces:
  • Dual-port EtherNet/IP
• Programming Software: Connected Components Workbench (CCW)
• Operating Temperature: -20°C to +50°C without derating

Application Areas

• Industrial fans, pumps, and compressors
• Conveying and material handling systems
• Packaging and bottling equipment
• HVAC and building automation
• General-purpose machine control

Advantages

• All-in-one design with integrated safety and communication
• Energy-efficient control for a wide range of motor types
• Modular and serviceable for faster maintenance
• Simplified installation and commissioning process
• Fully compatible with Rockwell Automation's Logix platform
