Allen-Bradley | 20F1AND156JN0NNNNN | PowerFlex 753

Product Description: Allen-Bradley 20F1AND156JN0NNNNN

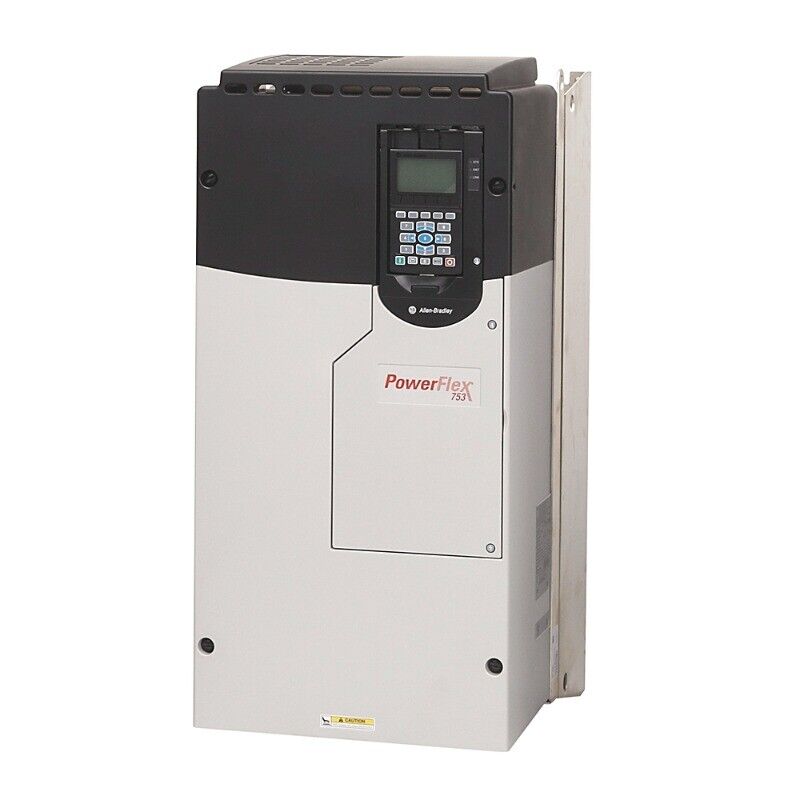

The Allen-Bradley 20F1AND156JN0NNNNN is a PowerFlex 753 AC drive designed to deliver high performance and versatility for controlling 3-phase induction motors in demanding industrial applications. Rated at 90 kW (125 HP) with 3-phase 480V AC input and 156 A output current, this drive offers standard features such as advanced diagnostics, integrated Safe Torque-Off (STO), and modular design. The PowerFlex 753 supports extensive customization through user-selectable option modules for communications, I/O, feedback, and safety.

Key Features

• 90 kW (125 HP) motor power rating
• 3-phase, 380–480V AC input
• Output current: 156 A
• V/Hz, Sensorless Vector, and Flux Vector control
• Integrated Safe Torque-Off (STO) safety feature
• Modular slot-based design for communication and feedback options
• Built-in DeviceLogix for localized logic control
• IP00 open chassis for panel mounting
• HIM (Human Interface Module) support for easy local programming and diagnostics

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 156 A
• Power Rating: 90 kW / 125 HP
• Frequency Range: 0–599 Hz
• Enclosure Type: IP00 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Flux Vector
• Safety: Integrated Safe Torque-Off (STO), SIL2 / PLd
• Communication (Modular): Supports EtherNet/IP, DeviceNet, ControlNet, Profibus, etc. via option cards
• Programming Tools: Studio 5000, Connected Components Workbench (CCW), DriveExecutive
• Mounting: Chassis / panel mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Application Areas

• High- horsepower industrial pumping systems
• Large-scale conveyors and compressors
• Fans and blowers in processing industries
• Heavy-duty manufacturing and mechanical presses
• Integrated process systems in water, mining, and energy sectors

Advantages

• Scalable, customizable platform with modular expandability
• Integrated diagnostics and safety functions enhance system reliability
• Seamless integration with Rockwell Automation’s Logix platform
• Designed for high-performance motor control in demanding conditions
• Flexible communications and feedback options for broad system compatibility
