Allen-Bradley | 1769-PA4 |Compact I/O

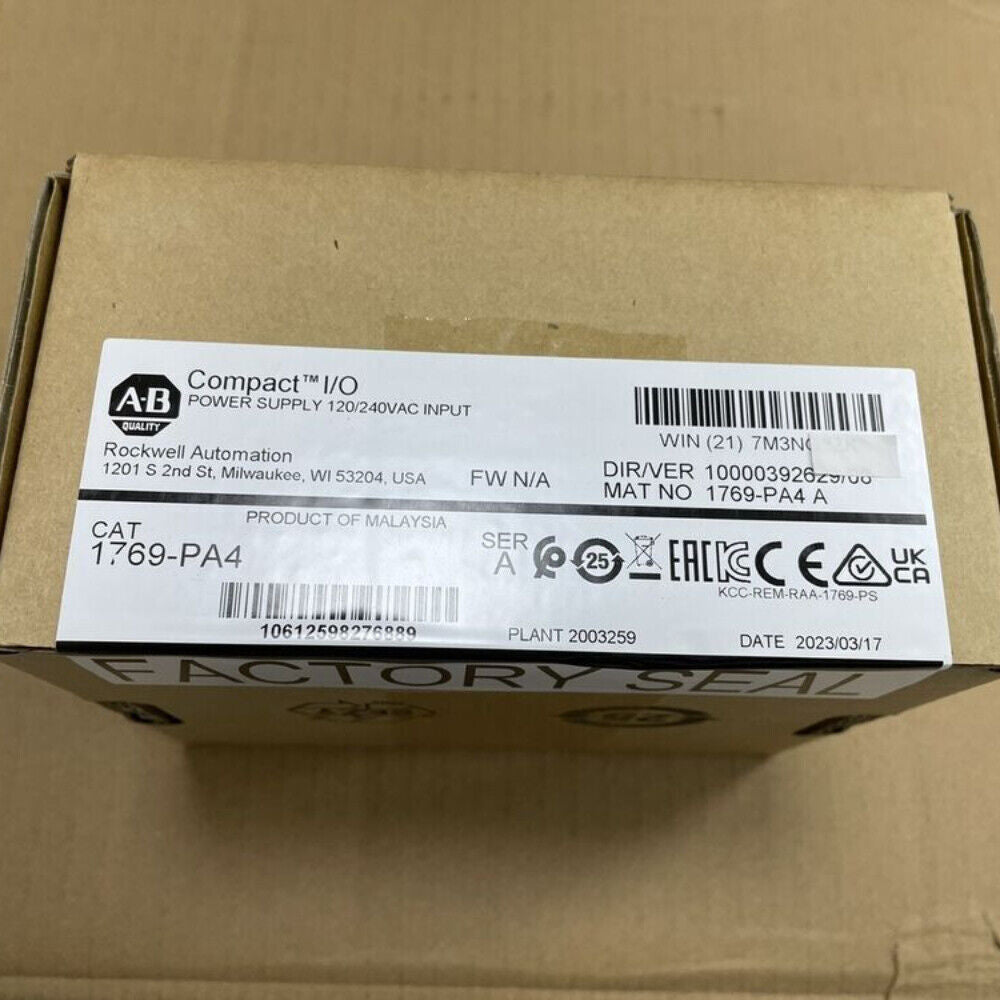

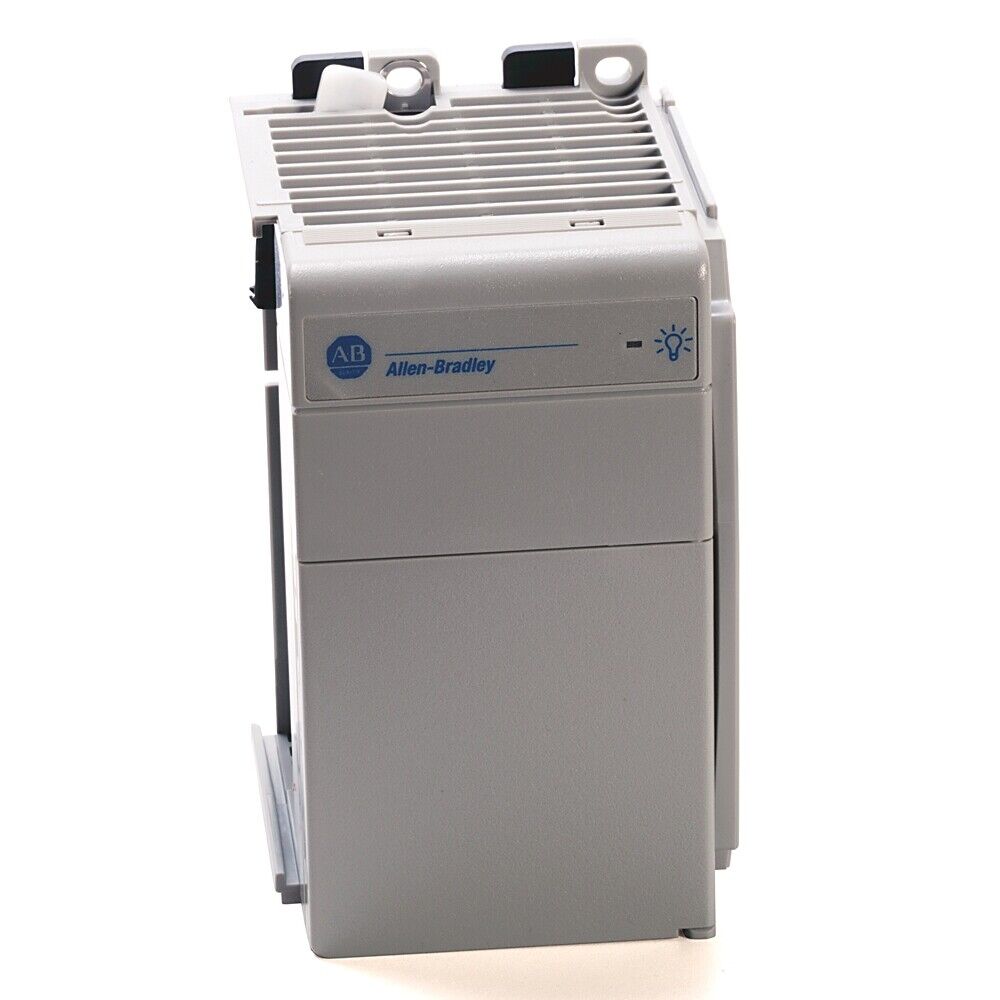

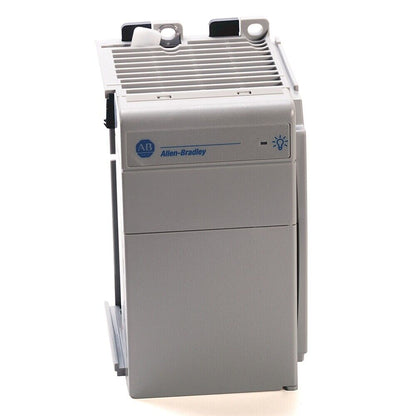

Product Description: Allen-Bradley 1769-PA4

The Allen-Bradley 1769-PA4 is a CompactLogix and Compact I/O series power supply module designed to provide regulated 24V DC power to 1769 system components. This module is suitable for systems requiring a higher current output, supporting multiple I/O modules in a DIN rail or panel-mounted configuration.

Key Features

• Supports both left and right-side module connections
• Supplies power to up to eight 1769 I/O modules
• Integrated fuse protection
• Removable terminal block for easy wiring
• Overvoltage and overload protection

Technical Specifications

• Input Voltage: 85 to 265V AC
• Input Frequency: 47 to 63 Hz
• Output Voltage: 24V DC
• Output Current: 4.0 A at 5V DC; 2.8 A at 24V DC
• Power Dissipation: 8.5 Watts
• Mounting Type: DIN rail or panel mount
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Dimensions: 118 x 70 x 75 mm (4.65 x 2.76 x 2.95 in)

Application Areas

• Small to medium automation systems
• Standalone machine control
• Industrial control panels
• Distributed I/O architectures

Advantages

• Compact design optimizes panel space
• Simplifies installation and maintenance with pluggable connectors
• Compatible with MicroLogix 1500 and CompactLogix controllers
• High efficiency and reliable power distribution within the 1769 platform
