Allen-Bradley | 1769-OB32 | Compact I/O

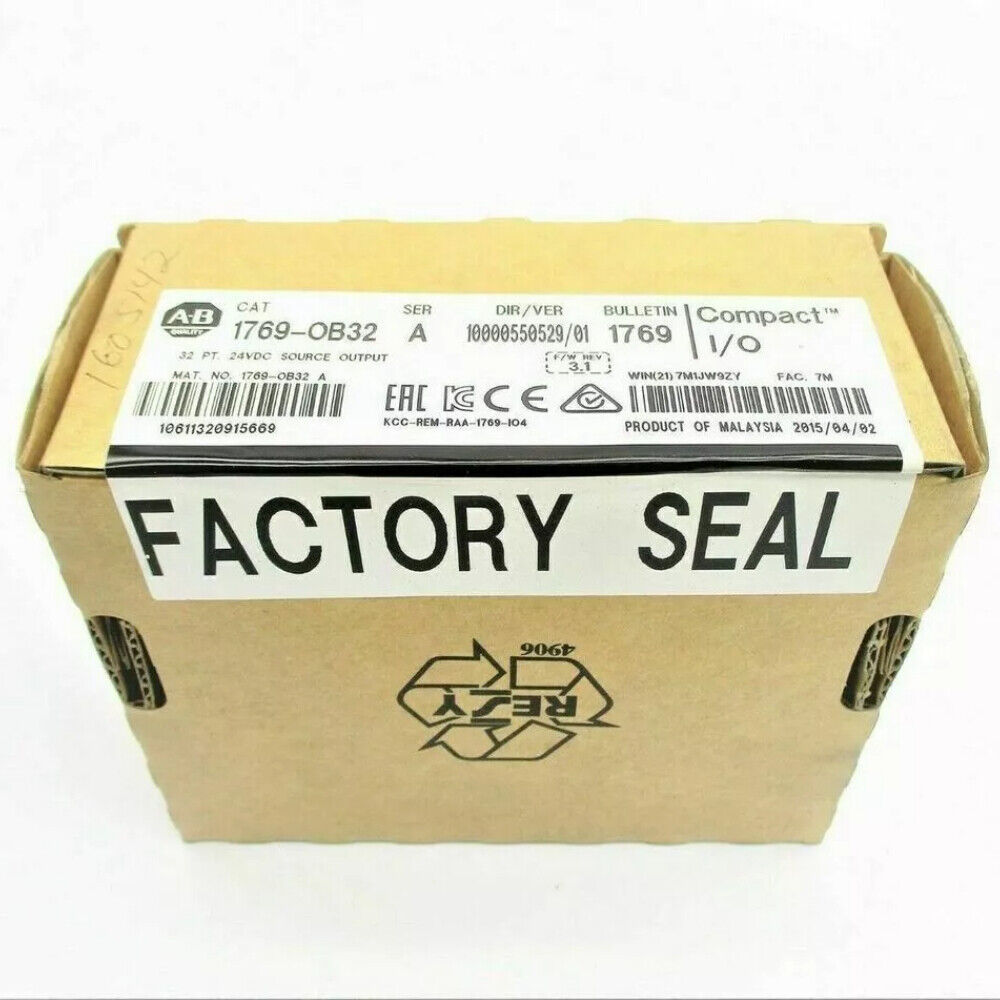

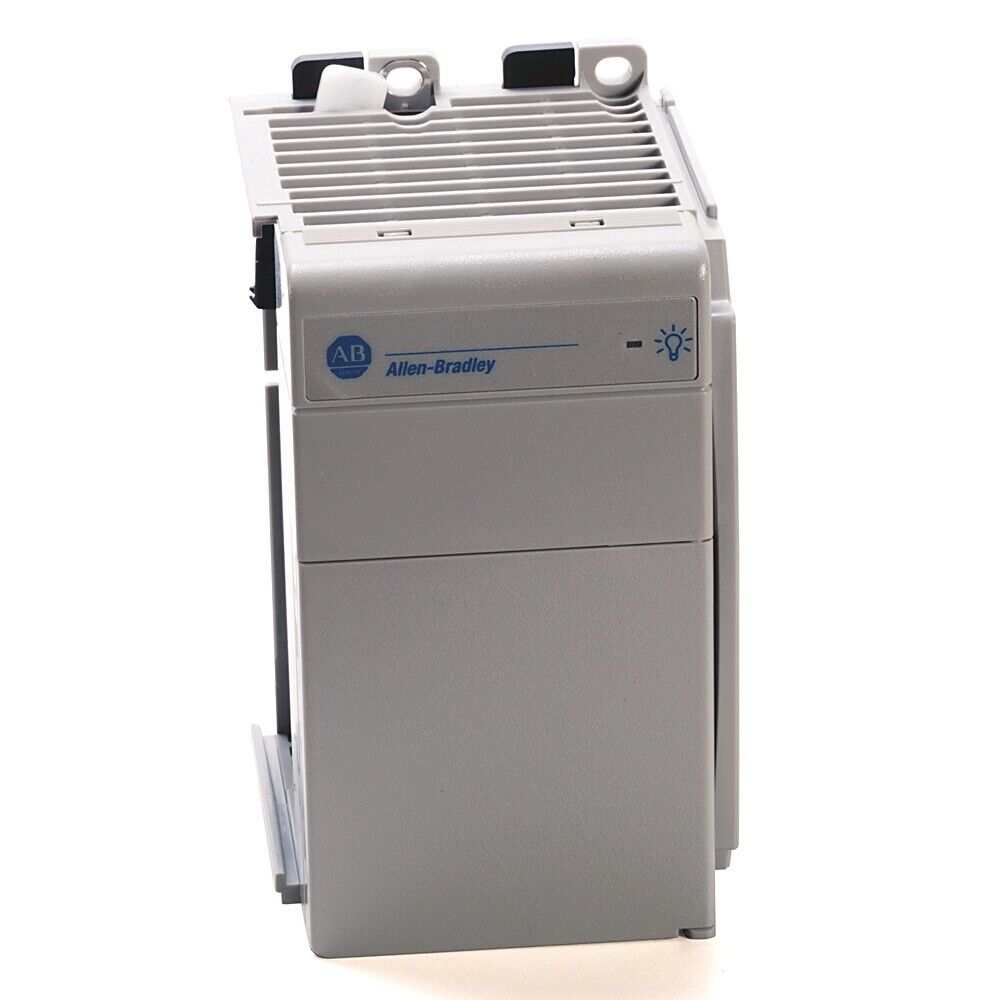

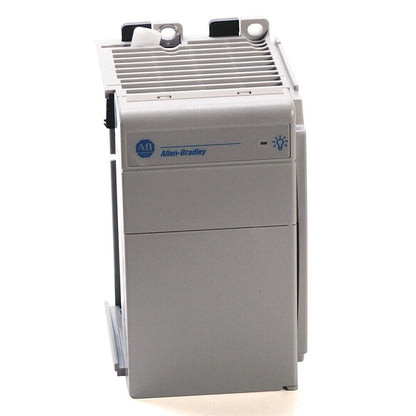

Product Description: Allen-Bradley 1769-OB32

The Allen-Bradley 1769-OB32 is a high-density digital output module designed for use with CompactLogix and MicroLogix 1500 systems. It provides 32 sourcing (positive logic) 24V DC output channels in a compact format, offering efficient control for large numbers of discrete field devices. Ideal for automation environments that demand space-saving, high- speed output performance.

Key Features

• 32 sourcing (24V DC) outputs
• High-density configuration to reduce panel space
• Integrated status LEDs for each channel
• Electronically protected outputs
• Removable terminal block for fast installation

Technical Specifications

• Number of Outputs: 32 sourcing outputs
• Operating Voltage: 10 to 30V DC
• Output Current: 0.5 A per point, 8 A max per module
• Output Delay (on/off): 1.0 ms
• Voltage Drop: 1.0V max at rated current
• Isolation Voltage: 75V DC (channel-to-system)
• Power Dissipation: 4.0 Watts
• Mounting Type: DIN rail or panel
• Operating Temperature: 0 to 60°C (32 to 140°F)

Application Areas

• High-speed sorting and packaging systems
• Machine control and automation
• 24V DC indicator lights and signal devices
• Distributed I/O control systems requiring many outputs

Advantages

• Saves space with high output density
• Streamlined wiring and faster installation
• Reliable DC switching with electronic protection
• Seamless integration with Allen-Bradley CompactLogix and MicroLogix 1500
• Built-in diagnostics reduce maintenance time
