Allen-Bradley | 1769-L36ERM | CompactLogix 5370

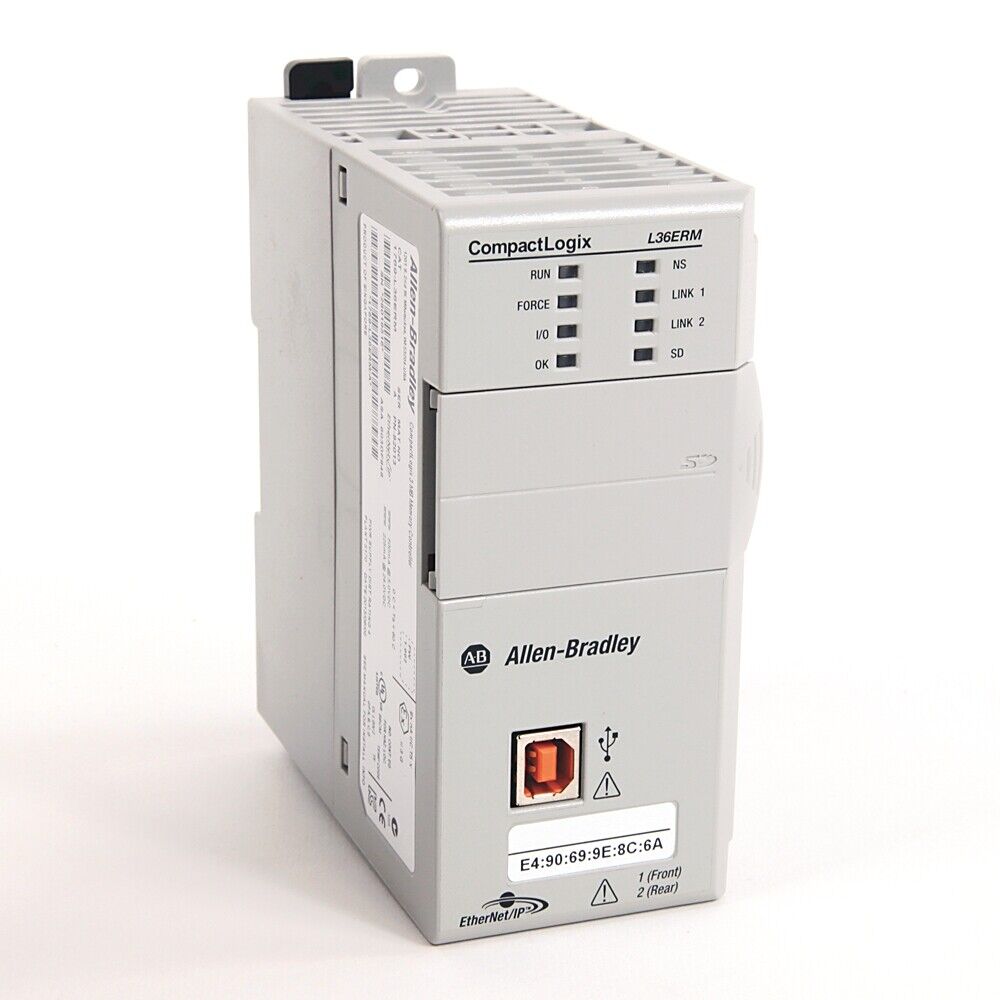

Product Description: Allen-Bradley 1769-L36ERM

The Allen-Bradley 1769-L36ERM is a CompactLogix 5370 controller designed for mid-sized control systems requiring integrated motion and network communication. It offers 2 MB of user memory, supports up to 16 Ethernet nodes, and allows control of up to 16 integrated EtherNet/IP motion axes. With embedded dual Ethernet ports and support for Device Level Ring (DLR), the 1769-L36ERM provides high-speed communication and flexible network design.

Key Features

• 2 MB user memory for program and data storage
• Dual EtherNet/IP ports supporting star, linear, and DLR topologies
• Supports up to 16 EtherNet/IP nodes
• Supports up to 16 motion axes over EtherNet/IP
• Integrated USB programming port
• Mounts with 1769 I/O modules (up to 30 local modules)
• Compatible with Studio 5000 Logix Designer software
• Ideal for applications requiring motion, safety (via remote modules), and high-speed I/O

Technical Specifications

• User Memory: 2 MB
• Communication:
  • 2 x embedded EtherNet/IP ports (10/100 Mbps)
• Motion Control: Up to 16 integrated axes via EtherNet/IP
• Local I/O Capacity: Up to 30 1769 I/O modules
• Remote I/O: Supports Compact I/O expansion via EtherNet/IP adapters
• Network Nodes: Up to 16
• Programming Software: Studio 5000 Logix Designer
• Mounting: DIN rail
• Enclosure Type: Open (IP20)
• Operating Temperature: 0°C to +60°C
• Dimensions: Approx. 118 mm H x 70 mm W x 87 mm D
• Certifications: UL, CE, cULus, RoHS

Application Areas

• Multi-axis packaging and labeling machines
• Material handling systems
• Food and beverage processing
• High-speed assembly lines
• OEM automation solutions requiring integrated motion

Advantages

• Built-in motion control without additional modules
• Dual Ethernet ports for network flexibility and resilience
• Scalable within Rockwell's Integrated Architecture
• Compact size with powerful processing capability
• Ideal balance of performance, I/O, and motion for mid-range systems
