Product Description: Allen-Bradley 1734-EP24DC

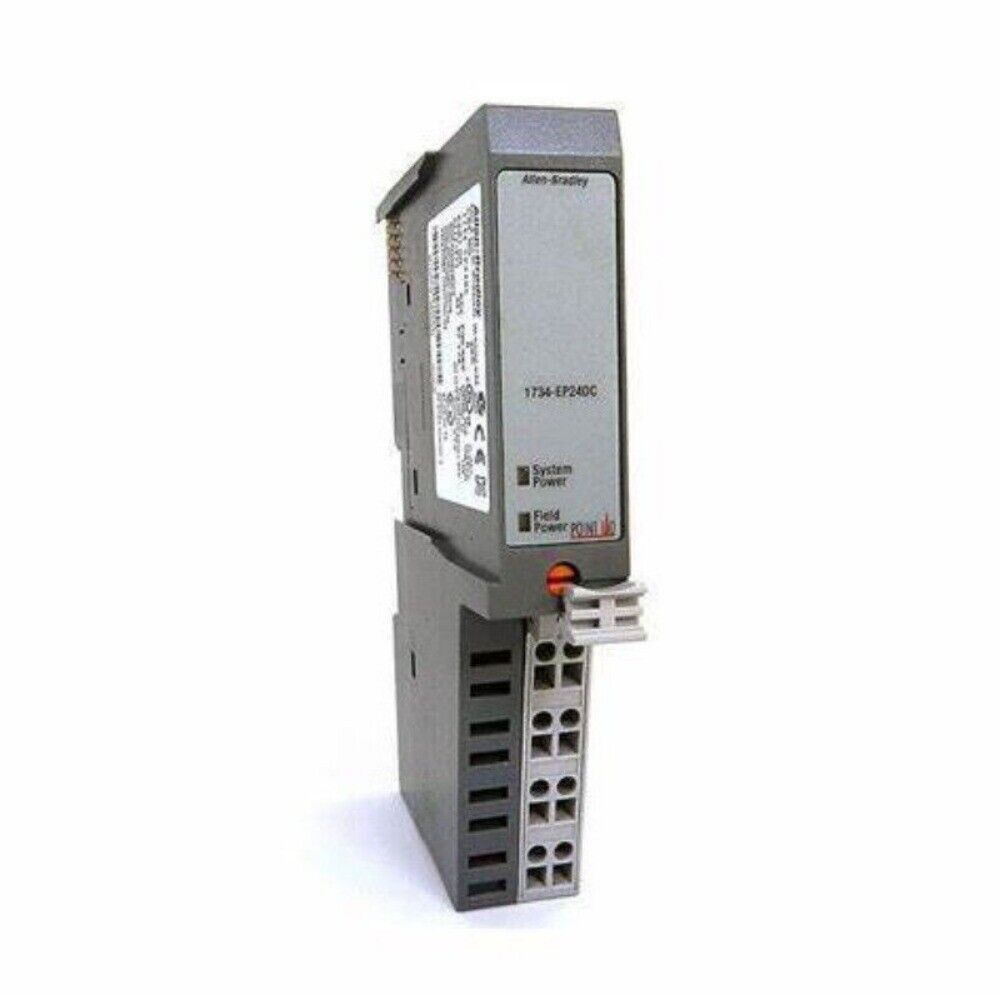

The Allen-Bradley 1734-EP24DC is a 24V DC expansion power supply module designed for the POINT I/O system. It extends the backplane bus power and creates a new field voltage partition for I/O modules to the right of the unit. This module is essential for applications requiring separation of field power between input and output modules or between analog and digital modules, providing functional and logical partitioning within the I/O system.

Key Features

• Supplies power to up to 17 I/O modules to the right of the unit
• Supports field power separation for modular design flexibility
• Reverse polarity protection for input power
• Compact, DIN rail mountable design
• Visual indicators for system and field power status

Technical Specifications

• Input Voltage: 24V DC nominal (range: 10–28.8V DC)
• Field Side Power Requirements: 24V DC @ 400 mA max
• Inrush Current: 6 A for 10 ms
• POINTBus Output Current:
  • Horizontal mounting: 1 A @ 10–19.2V input; 1.3 A @ 19.2–28.8V input
• Isolation Voltage: 50V continuous (tested to withstand 2600V DC for 60 s)
• Power Consumption: 9.8 W max @ 28.8V DC
• Power Dissipation: 3.0 W max @ 28.8V DC
• Thermal Dissipation: 10.0 BTU/hr max @ 28.8V DC
• Operating Temperature: -20 to 55°C (-4 to 131°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5 to 95% non-condensing
• Dimensions (H x W x D): 76.2 x 25.4 x 133.4 mm (3.0 x 1.0 x 5.25 in)
• Weight: Approximately 120 g (4.3 oz)
• Mounting: DIN Rail
• Terminal Base Screw Torque: 0.6 N•m (7 lb•in)

Application Areas

• Industrial automation systems requiring modular I/O configurations
• Applications needing separation of field power between different module types
• Systems expanding beyond the capacity of a single power supply module
• Environments where compact and flexible I/O solutions are essential

Advantages

• Enables scalable expansion of POINT I/O systems
• Provides clear separation of field power for system integrity
• Compact design conserves panel space
• Simplifies wiring and system configuration
• Enhances system reliability with built-in protection features
