Allen-Bradley | 1769-L30ER | CompactLogix 5370

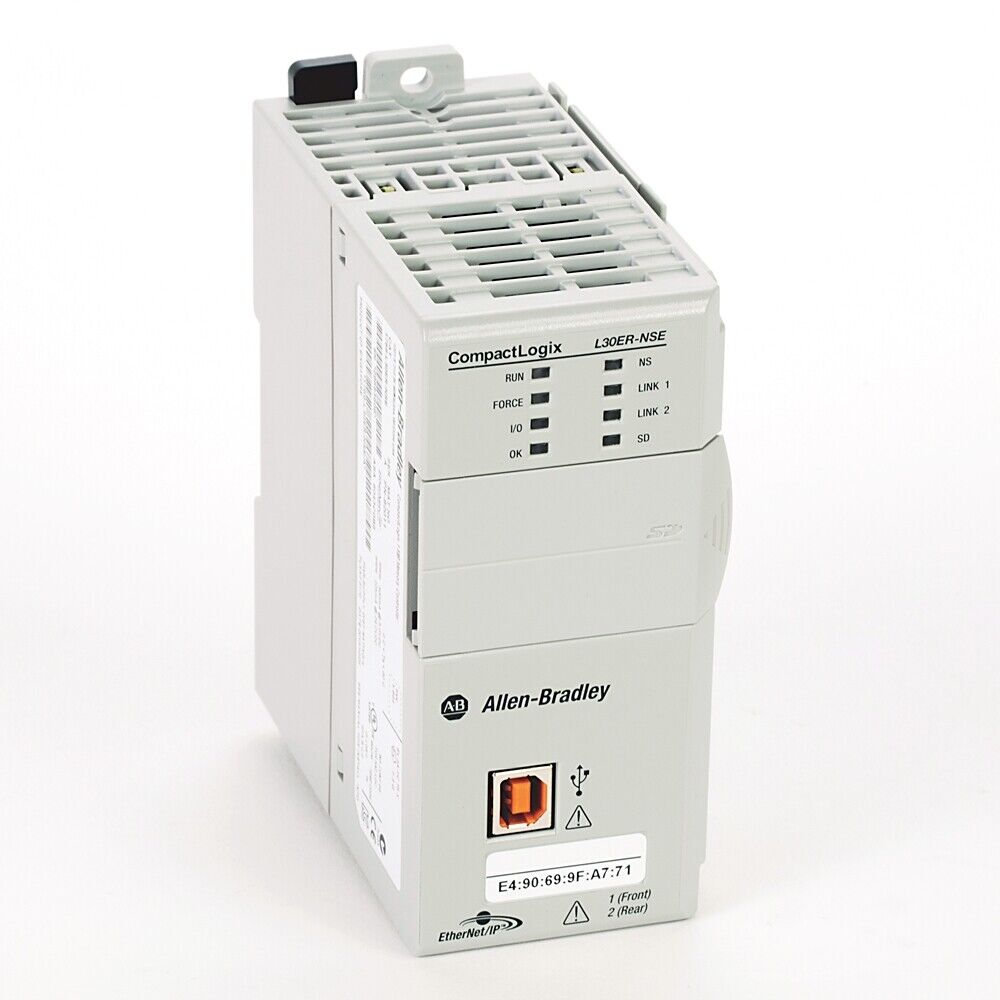

Product Description: Allen-Bradley 1769-L30ER

The Allen-Bradley 1769-L30ER is a CompactLogix 5370 L3 controller designed for small to mid-size control applications requiring high-speed processing and integrated Ethernet communication. With dual embedded EtherNet/IP ports, this controller supports scalable and flexible network architectures while delivering reliable control performance in compact industrial environments.

Key Features

• Dual EtherNet/IP ports supporting Device Level Ring (DLR) topology
• 1 MB of user memory for logic and data
• Embedded USB programming port
• Supports up to 16 local 1769 I/O modules
• Integrated SD card slot for backup and restore
• Compact DIN-rail mountable design
• Seamless integration with Logix and Studio 5000 environments

Technical Specifications

• User Memory: 1 MB
• Local I/O Capacity: Up to 16 modules (1769 series)
• Communication Ports: 2 x EtherNet/IP (10/100 Mbps, DLR), 1 x USB 2.0
• Motion Support: Not supported
• SD Card: 1 GB (included), expandable to 2 GB
• Power Supply: Requires external 1769 CompactLogix power supply
• Mounting: DIN rail
• Operating Temperature: 0°C to 60°C (32°F to 140°F)

Application Areas

• Compact machines and equipment
• Automated test systems
• Small-scale process automation
• Packaging and labeling systems
• HVAC and building control systems

Advantages

• High-performance control in a space-saving design
• Integrated EtherNet/IP ports support modern industrial network topologies
• Easy installation and commissioning
• Cost-effective solution for mid-tier automation
• Compatible with a wide range of Compact I/O modules for flexible expansion
