Allen-Bradley | 1769-L24ER-QBFC1B |CompactLogix 5370 L2

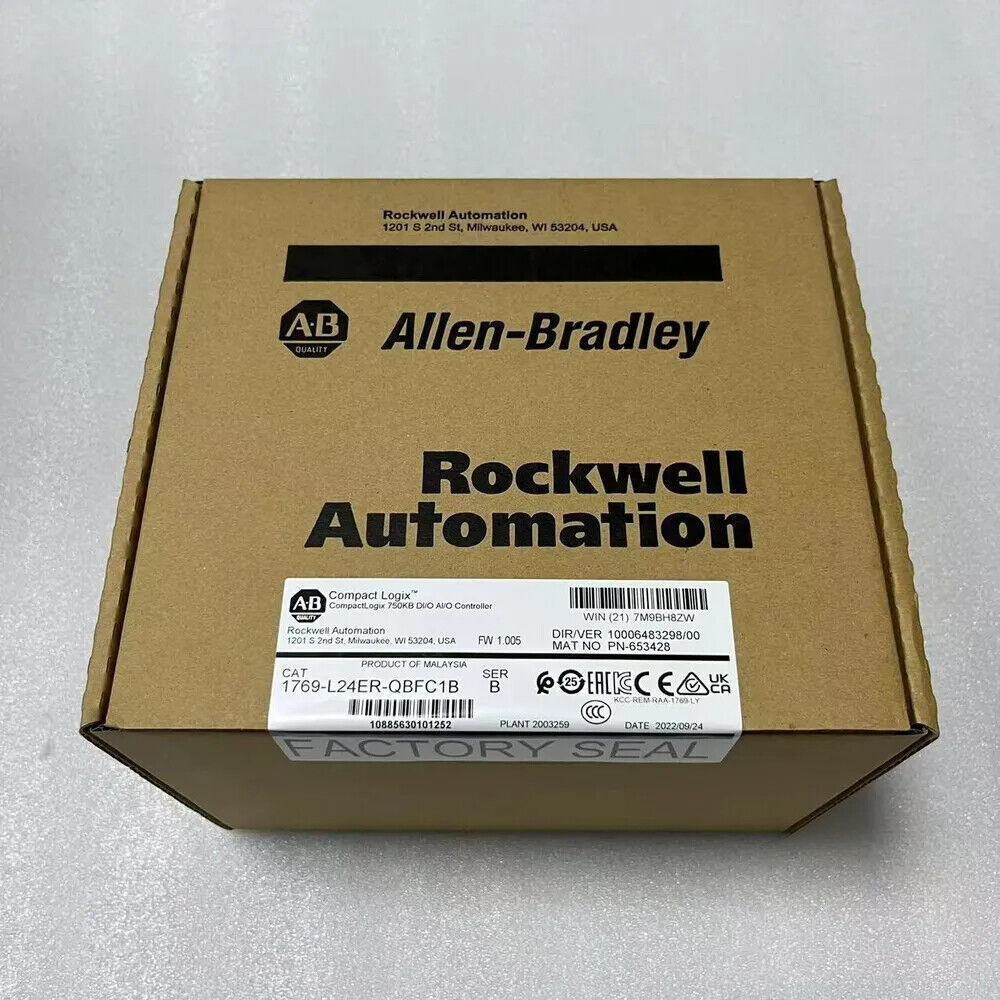

Product Description: Allen-Bradley 1769-L24ER-QBFC1B

The Allen-Bradley 1769-L24ER-QBFC1B is a CompactLogix 5370 L2 controller designed for compact, high-performance control applications. It features integrated digital and analog I/O, dual Ethernet/IP ports with DLR support, and enhanced motion and communication capabilities. With embedded I/O and built-in communication ports, this controller offers a space-saving and cost- effective automation solution for mid-range applications.

Key Features

• Embedded I/O: 14 digital inputs, 10 digital outputs, 4 analog inputs, 2 analog outputs
• 2 Ethernet/IP ports with Device Level Ring (DLR) capability
• Integrated USB programming/configuration port
• Supports up to 4 axes of motion control over Ethernet/IP
• 1 MB user memory and 0.5 MB I/O memory
• Battery-less design with energy storage module
• Compact form factor with DIN rail or panel mounting

Technical Specifications

• User Memory: 1 MB
• I/O Memory: 0.5 MB
• Embedded Digital I/O:
  • 14 digital inputs (24V DC sink/source)
• Embedded Analog I/O:
  • 4 analog inputs (voltage or current selectable)
• Communication Ports:
  • 2 × Ethernet/IP ports (RJ-45)
• Motion Support: Up to 4 axes via Ethernet/IP
• Power Supply Input: 24V DC
• Operating Temperature: 0°C to 60°C
• Dimensions: 90 x 87 x 105 mm (H x W x D)

Application Areas

• Small to mid-sized machinery
• Packaging systems
• Process control applications
• Material handling equipment
• Industrial automation with space constraints

Advantages

• All-in-one design reduces panel space and simplifies wiring
• Ideal for OEMs seeking cost- effective control solutions
• Fast Ethernet/IP communication and real-time motion control
• Flexible installation with multiple mounting options
• Robust and maintenance-free with non-volatile memory design
