Product Description: Schneider Electric LXM32MU60N4

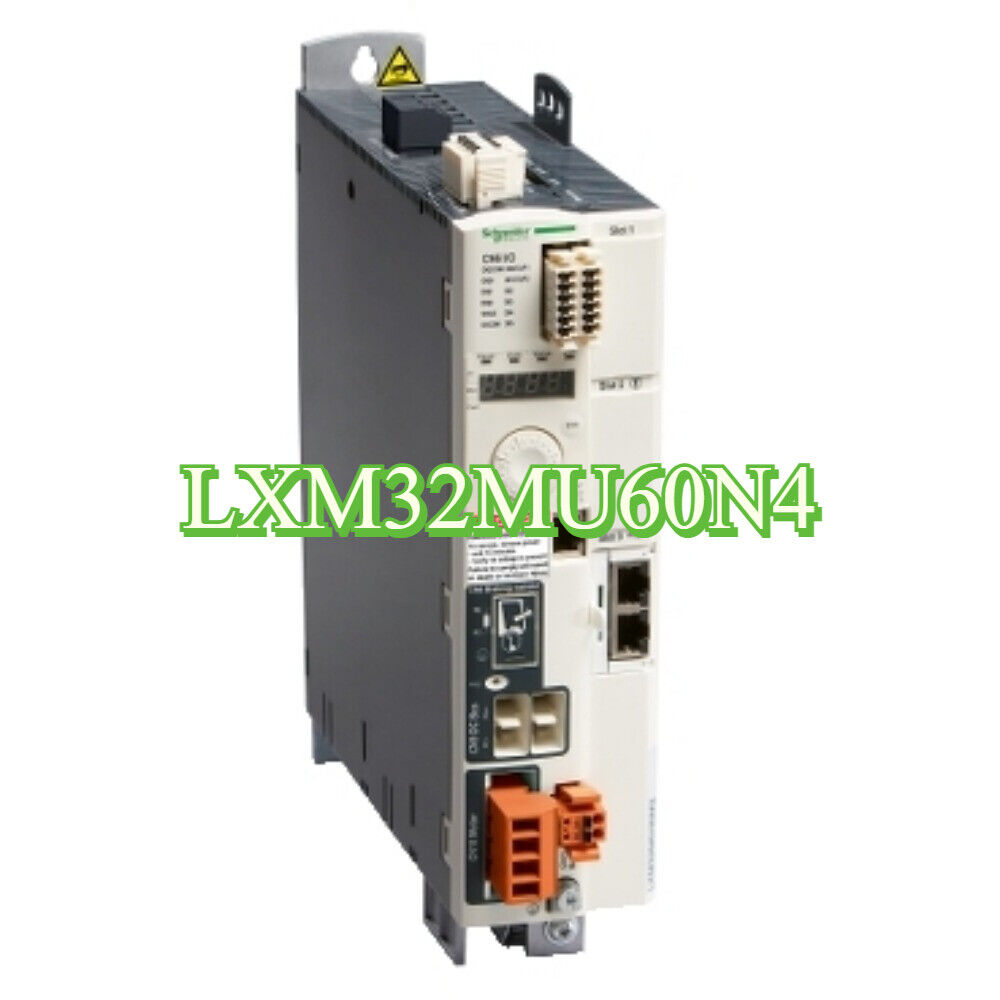

The Schneider Electric LXM32MU60N4 is a high- performance servo drive from the Lexium 32 series. Designed for demanding motion control applications, it supports three-phase 380–480 V AC input and provides continuous output current up to 6 A. It features a compact book-style format for space-saving installation in control cabinets and is suitable for dynamic positioning, speed, and torque control of brushless servo motors.

Key Features

• Rated supply voltage: 3-phase 380–480 V AC
• Output current: 6 A (continuous)
• Peak output current: 18 A
• Book-style compact housing
• Integrated communication ports: CANopen, Modbus
• Position, speed, and torque control modes
• Integrated brake resistor
• Conforms to IEC 61800-5-1 and EN/IEC 61800-3
• LED indicators for drive status and diagnostics

Technical Specifications

• Input voltage range: 323 to 528 V AC, 3-phase
• Frequency: 50/60 Hz ±5%
• Power rating: Approx. 2.4 kW nominal
• Switching frequency: Up to 16 kHz
• Communication: CANopen and Modbus via RJ45
• Control interface: Analog, digital I/Os, pulse train input
• Operating temperature: 0°C to +40°C (without derating)
• Storage temperature: -25°C to +55°C
• Protection class: IP20
• Cooling method: Integrated fan cooling
• Mounting: DIN rail or panel mount (vertical only)
• Dimensions (W x H x D): Approx. 60 mm x 290 mm x 232 mm
• Weight: Approx. 2.6 kg

Application Areas

• Packaging machines
• Material handling systems
• Pick-and-place and robotic applications
• Textile and printing machinery
• General industrial automation requiring precise motion control

Advantages

• High-performance motion control in compact form
• Easy integration with Lexium servo motors
• Flexible control options and multiple feedback support
• Scalable architecture for various machine sizes
• Supports rapid commissioning and diagnostics
