Product Description: Schneider Electric ATV320U22N4C

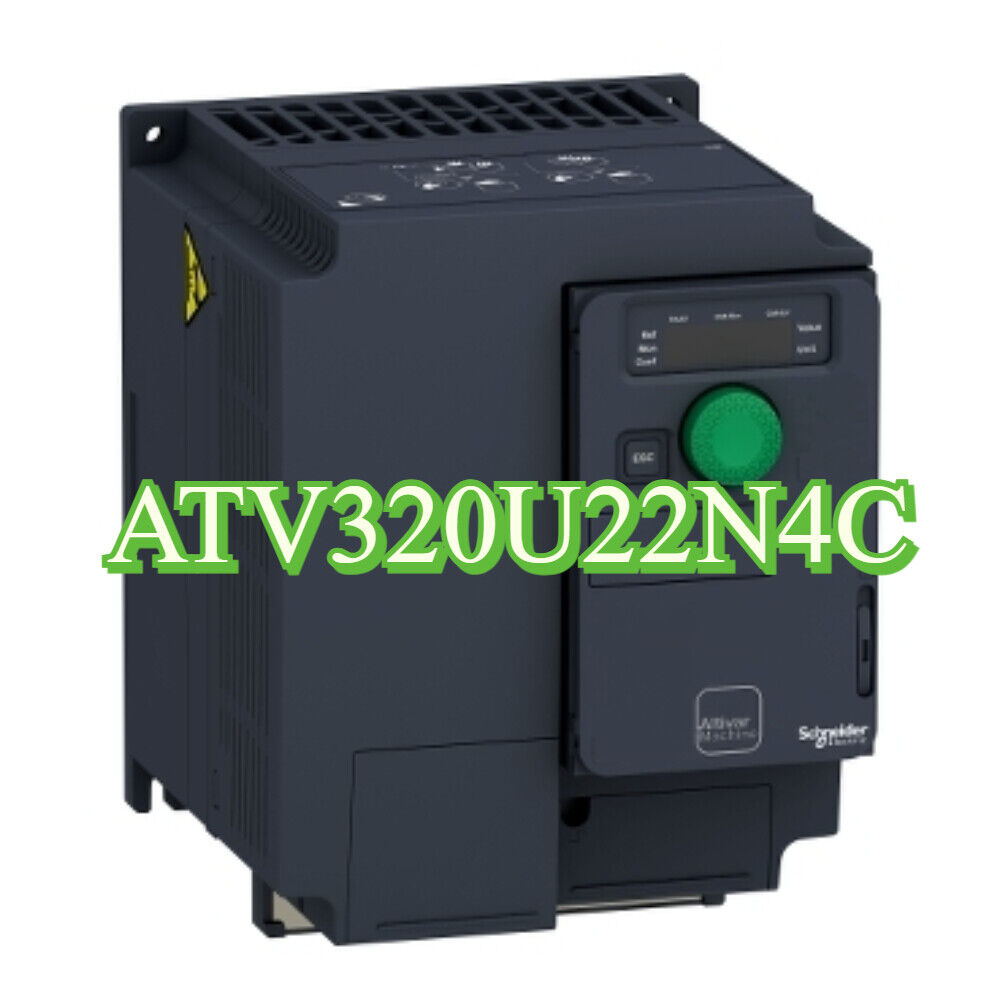

The Schneider Electric ATV320U22N4C is a compact, high-performance variable frequency drive designed for 3-phase asynchronous and synchronous motors. Rated at 2.2 kW (3 HP), it provides precise motor control for demanding machine applications in OEM and industrial environments. Its flexible mounting and integrated communication capabilities make it ideal for a wide range of automated systems.

Key Features

• Rated motor power: 2.2 kW (3 HP)
• Voltage input: 380–500 V AC, 3-phase
• Sensorless flux vector control for high torque at low speeds
• Compact size for easy integration into control panels
• Built-in EMC filter (Category C2)
• Integrated Modbus RTU and CANopen communication
• Optional support for Ethernet/IP, Profinet, EtherCAT, and PROFIBUS via communication cards
• Embedded safety functions (STO, SS1, SLS, SMS, SMD)
• Easy configuration via SoMove software

Technical Specifications

• Power Supply: 3-phase, 380–500 V AC
• Motor Power Rating: 2.2 kW (3 HP)
• Maximum Output Current: Approx. 6.6 A at 500 V
• Control Modes: V/f, Sensorless Vector Control
• Frequency Range: 0.1 to 599 Hz
• EMC Compliance: Integrated Class C2 filter
• Cooling Method: Heatsink with integrated fan
• Protection Degree: IP20
• Mounting: Book-style or side-by-side vertical stacking
• Operating Temperature: -10°C to +50°C without derating, up to +60°C with derating
• Dimensions (H x W x D): Approx. 140 mm x 105 mm x 138 mm
• Weight: Approx. 1.4 kg

Application Areas

• Conveyor systems
• Packaging machinery
• Pumps and fans
• Textile and woodworking machines
• Hoisting and lifting equipment
• Industrial automation panels

Advantages

• Space-saving design suitable for compact control cabinets
• Reliable motor control for a variety of load conditions
• Integrated safety functions reduce the need for external safety relays
• Flexible communication options for easy integration into networked systems
• Energy-efficient and compliant with international standards
