Product Description: Schneider Electric ATV930D30N4

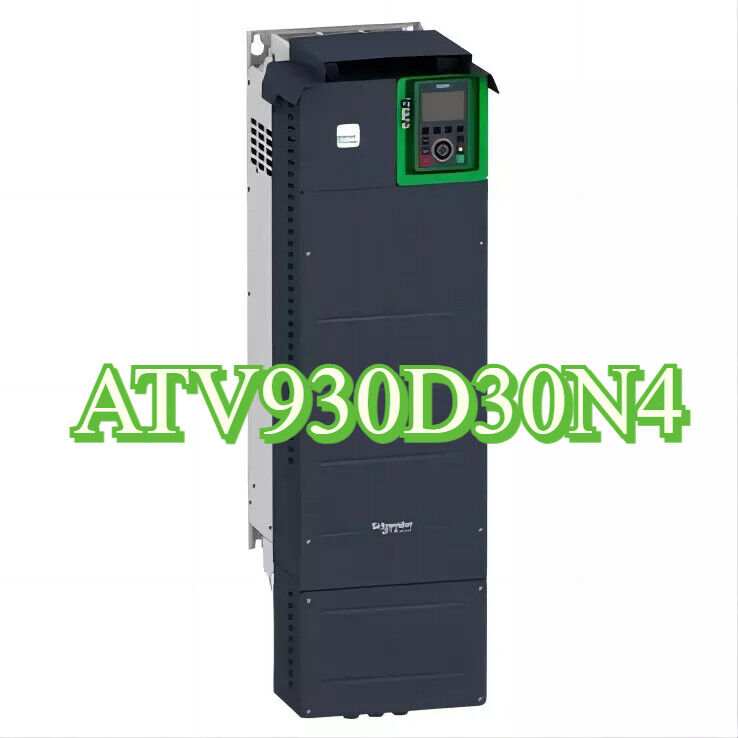

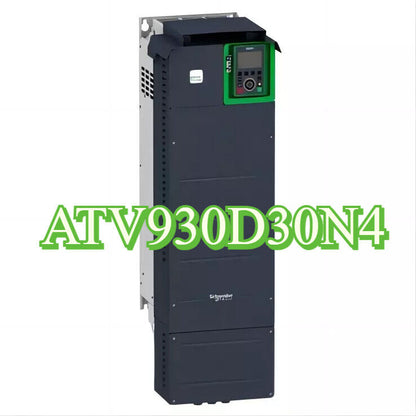

The Schneider Electric ATV930D30N4 is a high-performance variable speed drive designed for controlling three-phase asynchronous and synchronous motors in complex, high-power industrial applications. Part of the Altivar Process ATV900 series, this drive offers advanced motor control capabilities, integrated safety features, and flexible communication options, making it suitable for demanding environments.

Key Features

• Motor Power: 30 kW (40 HP) for normal duty, 22 kW (30 HP) for heavy duty
• Supply Voltage: 380–480 V AC, three-phase
• Integrated EMC Filter: Ensures compliance with electromagnetic compatibility standards
• Control Profiles: Supports various motor control methods including vector control with or without sensor
• Communication Protocols: Built-in Modbus serial, Ethernet/IP, and Modbus TCP for seamless integration
• Safety Function: Safe Torque Off (STO) for enhanced operational safety
• Design: Compact with forced convection cooling; includes integrated braking unit

Technical Specifications

• Input Voltage Range: 380–480 V AC, 3-phase
• Line Frequency: 50/60 Hz
• Output Frequency: 0.1 to 599 Hz
• Nominal Output Current: 61.5 A at 4 kHz for normal duty, 46.3 A at 4 kHz for heavy duty
• Maximum Transient Current: 73.8 A during 60 s (normal duty), 69.5 A during 60 s (heavy duty)
• Switching Frequency: 2 to 16 kHz (adjustable), with derating above 4 kHz
• Mounting: Wall or panel mounting with vertical orientation
• Protection Rating: IP21
• Operating Temperature: -15°C to +50°C without derating
• Dimensions (W x H x D): Approx. 226 mm x 700 mm x 274 mm
• Weight: Approx. 28.7 kg

Application Areas

• Material handling systems
• Packaging machinery
• Textile industry equipment
• Process control applications
• Industrial automation requiring precise motor control

Advantages

• High-performance motor control for complex applications
• Integrated safety features enhance operational safety
• Flexible communication options for easy integration
• Compact design saves panel space
• Compliance with international standards for electromagnetic compatibility
