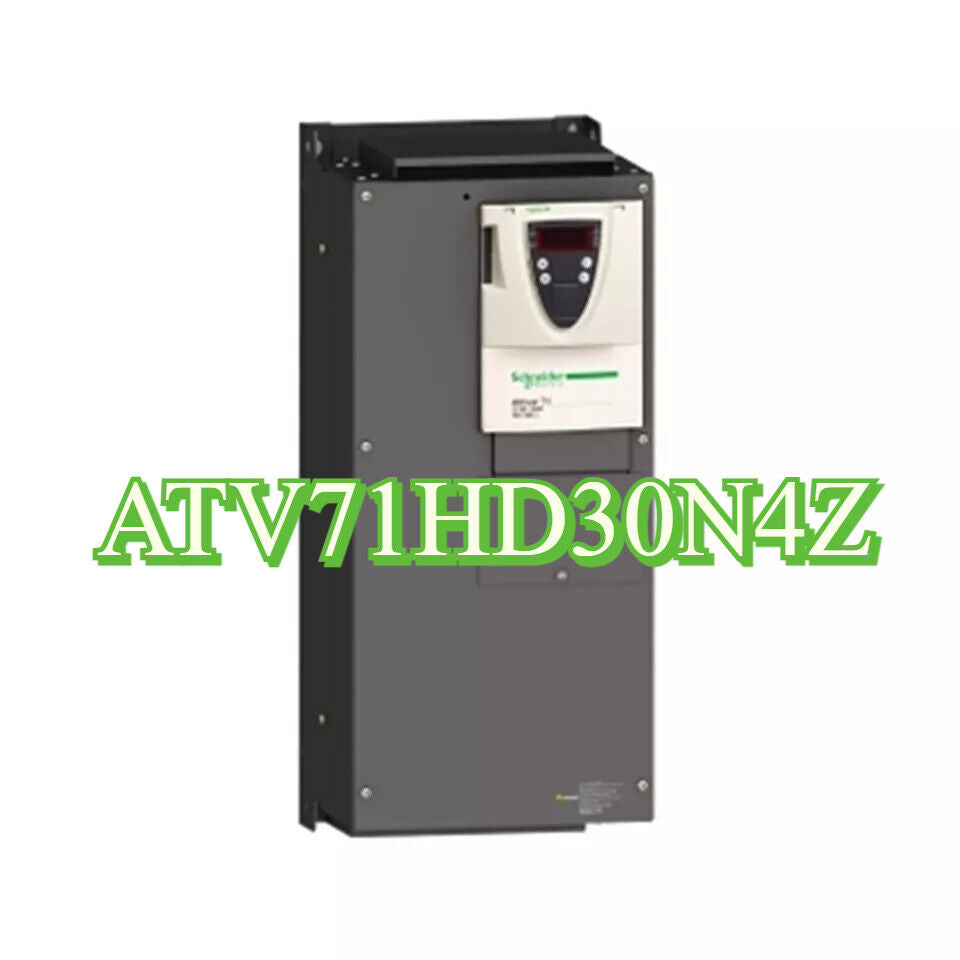

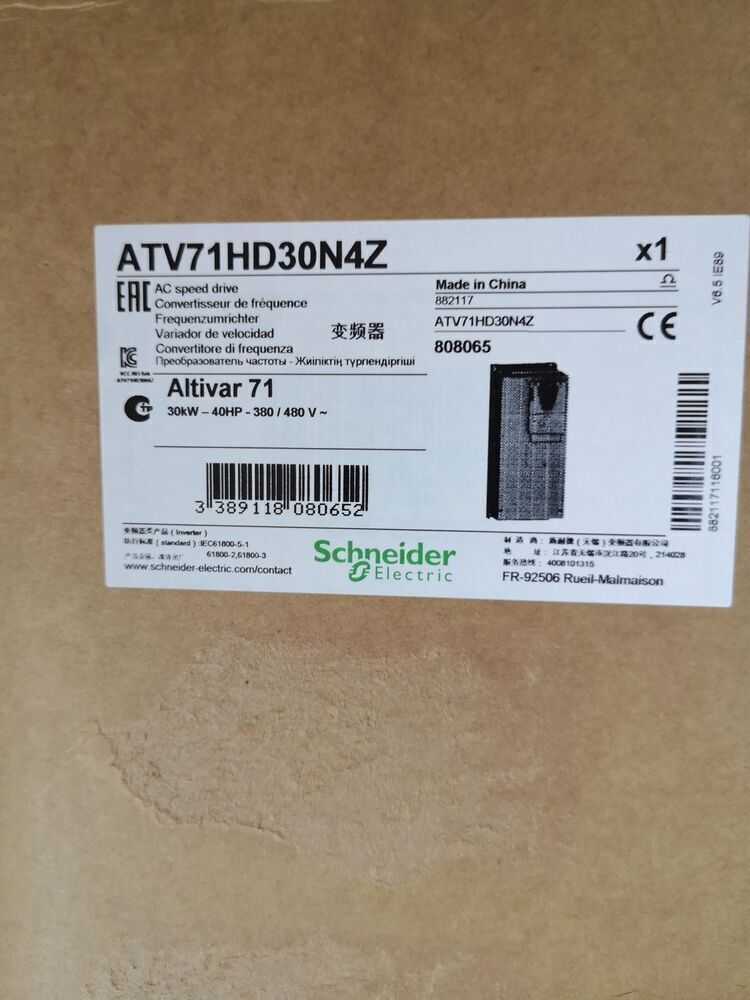

Product Description: Schneider Electric ATV71HD30N4Z

The Schneider Electric ATV71HD30N4Z is a high- performance variable speed drive designed for controlling three-phase asynchronous and synchronous motors in complex, high-power industrial applications. Part of the Altivar 71 series, this drive offers advanced motor control capabilities, integrated safety features, and flexible communication options, making it suitable for demanding environments.

Key Features

• Motor Power: 30 kW (40 HP)
• Supply Voltage: 380–480 V AC, three- phase
• Integrated EMC Filter: Ensures compliance with electromagnetic compatibility standards
• Control Profiles: Supports various motor control methods including vector control with or without sensor
• Communication Protocols: Built-in Modbus and CANopen for seamless integration
• Safety Function: Safe Torque Off (STO) for enhanced operational safety

Technical Specifications

• Input Voltage Range: 380–480 V AC, 3-phase
• Line Frequency: 50/60 Hz
• Output Frequency: 0.1 to 599 Hz
• Nominal Output Current: 52 A at 4 kHz switching frequency
• Maximum Transient Current: 109 A for 2 s, 99 A for 60 s
• Switching Frequency: 1 to 16 kHz (adjustable), with derating above 4 kHz
• Mounting: Wall or panel mounting with heat sink
• Protection Rating: IP20
• Operating Temperature: -10°C to +50°C without derating
• Dimensions (W x H x D): Approx. 220 mm x 500 mm x 232 mm

Application Areas

• Material handling systems
• Packaging machinery
• Textile industry equipment
• Process control applications

Advantages

• High-performance motor control for complex applications
• Integrated safety features enhance operational safety
• Flexible communication options for easy integration
• Compact design saves panel space
• Compliance with international standards for electromagnetic compatibility
