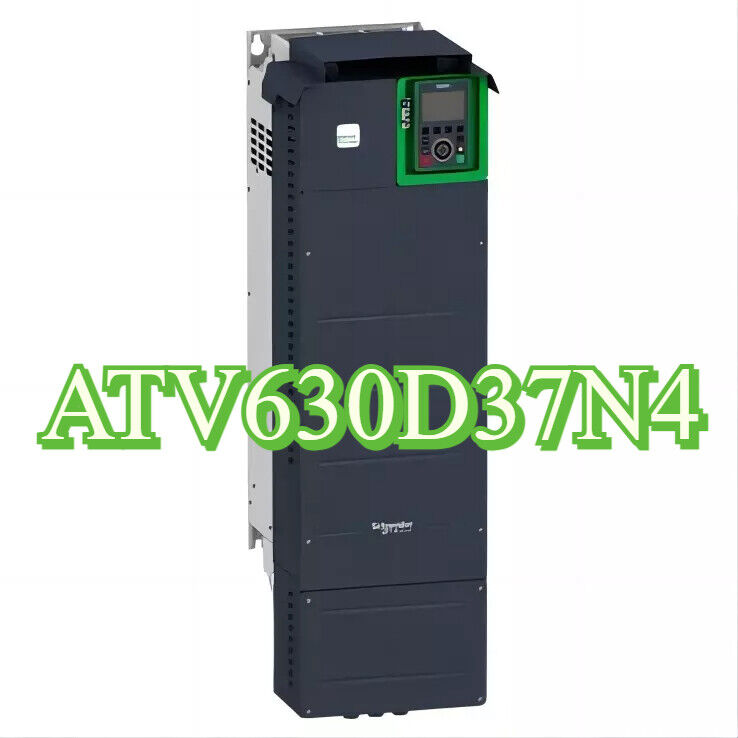

Product Description: Schneider Electric ATV630D37N4

The Schneider Electric ATV630D37N4 is a high- performance variable speed drive designed for controlling three-phase asynchronous and synchronous motors in complex industrial applications. Part of the Altivar Process ATV600 series, this drive offers advanced motor control capabilities, integrated safety features, and flexible communication options, making it suitable for demanding environments.

Key Features

• Motor Power : 37 kW (50 HP) for normal duty (up to 120% overload); 30 kW (40 HP) for heavy duty (up to 150% overload)
• Supply Voltage : 380–480 V AC, three-phase
• Integrated EMC Filter : Ensures compliance with electromagnetic compatibility standards (EN/IEC 61800-3 Category C2/C3)
• Control Profiles : Supports various motor control methods including vector control with or without sensor
• Communication Protocols : Built-in Modbus TCP, Ethernet/IP, and Modbus serial for seamless integration
• Safety Function : Safe Torque Off (STO) for enhanced operational safety (SIL 3)
• Design : Compact with forced convection cooling; IP21 protection rating

Technical Specifications

• Input Voltage Range : 380–480 V AC, 3-phase
• Line Frequency : 50/60 Hz
• Output Frequency : 0.1 to 599 Hz
• Nominal Output Current : 74.5 A at 4 kHz for normal duty; 61.5 A at 4 kHz for heavy duty
• Maximum Transient Current : 82 A for 60 s (normal duty); 92.3 A for 60 s (heavy duty)
• Switching Frequency : 2 to 12 kHz (adjustable), with derating above 4 kHz
• Mounting : Wall-mounted with vertical orientation
• Protection Rating : IP21
• Operating Temperature : -15°C to +50°C without derating
• Dimensions (W x H x D) : Approx. 226 mm x 673 mm x 271 mm
• Weight : Approx. 28.2 kg

Application Areas

• Water and wastewater treatment
• HVAC systems
• Pumping and irrigation systems
• Oil and gas sector
• Mining and quarrying
• Food and beverage processing

Advantages

• High-performance motor control for complex applications
• Integrated safety features enhance operational safety
• Flexible communication options for easy integration
• Compact design saves panel space
• Compliance with international standards for electromagnetic compatibility
