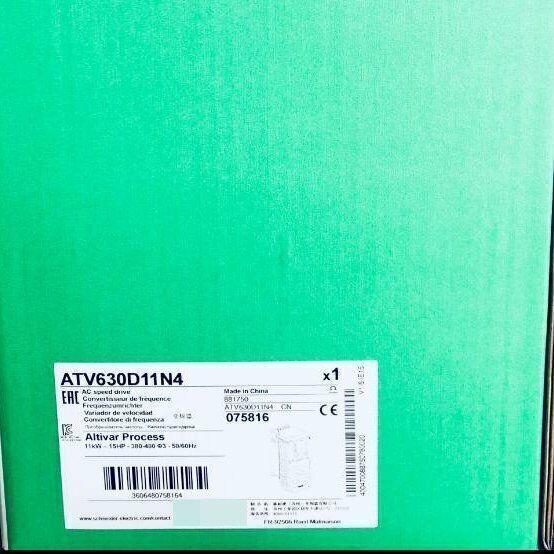

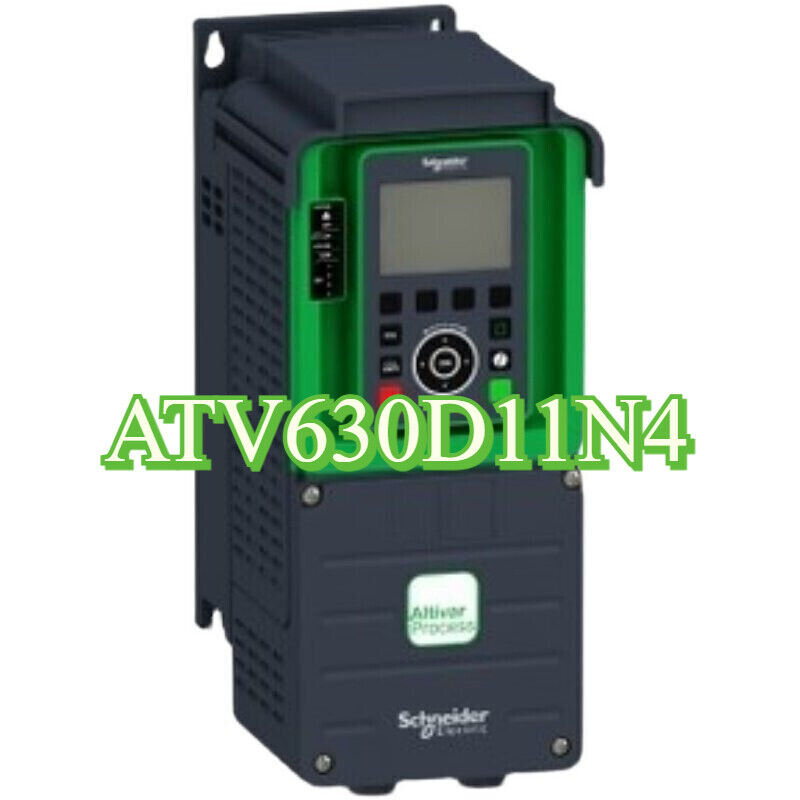

Product Description: Schneider Electric ATV630D11N4

The Schneider Electric ATV630D11N4 is an advanced variable speed drive engineered for controlling three-phase asynchronous and synchronous motors. As a member of the Altivar Process ATV600 series, it is designed to improve energy efficiency, performance, and process control across a wide range of industrial and infrastructure applications. It features embedded communication protocols, energy monitoring, and integrated safety.

Key Features

• Motor power: 11 kW (15 HP) for normal duty / 7.5 kW (10 HP) for heavy duty
• Three-phase supply voltage: 380–480 V AC
• Built-in EMC filter for electromagnetic compatibility
• Integrated energy monitoring and diagnostics
• Supports Modbus TCP, Ethernet/IP, and serial Modbus communication
• Safe Torque Off (STO) function (SIL3 / PL e)
• IP21 enclosure for standard protection
• User-friendly interface with optional graphic terminal

Technical Specifications

• Input voltage: 380–480 V AC, 3-phase
• Input frequency: 50/60 Hz
• Output frequency: 0.1 to 500 Hz
• Rated output current: 23.5 A (normal duty), 16.5 A (heavy duty)
• Switching frequency: 2 to 16 kHz (with derating above 4 kHz)
• Apparent power: 14.1 kVA (normal duty), 10.4 kVA (heavy duty)
• Cooling method: Forced air ventilation
• Protection rating: IP21
• Ambient temperature: -15°C to +50°C without derating
• Dimensions (W x H x D): Approx. 171 x 409 x 233 mm
• Weight: Approx. 7.7 kg

Application Areas

• Water and wastewater treatment
• HVAC systems
• Pumping and irrigation systems
• Oil and gas sector
• Mining and quarrying
• Food and beverage production

Advantages

• Energy-efficient motor control
• Integrated process and energy monitoring
• Robust safety features and diagnostics
• Easy integration into automation networks
• Reduced total cost of ownership and downtime
