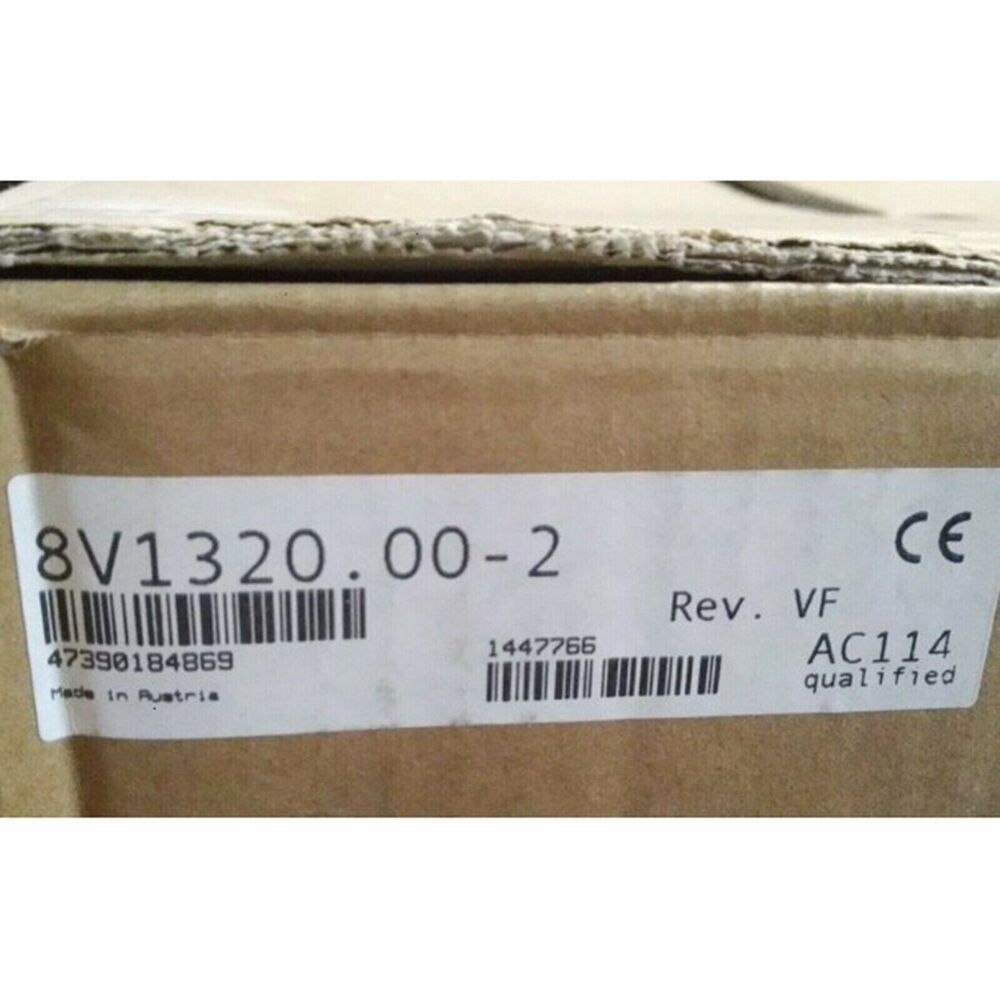

Model: 8V1320.00-2
Product Type: AC Servo Drive
Series: B&R ACOPOS 1320

Description:

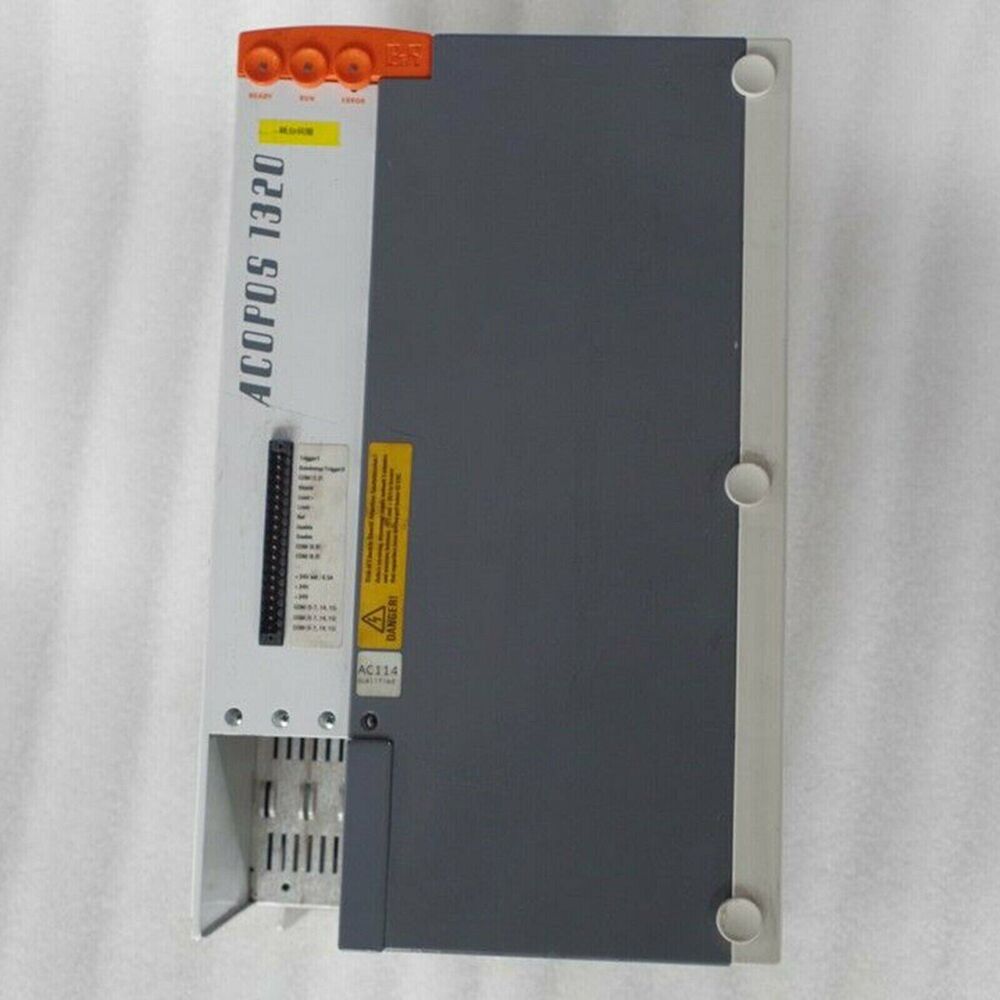

The 8V1320.00-2 is a high-performance AC servo drive from B&R's ACOPOS 1320 series, engineered for demanding industrial automation applications requiring high power and torque. It operates on a 3-phase 400–480 VAC supply and delivers a continuous output current of 34 A, with a power rating of 16 kW. This model features an integrated line filter, braking resistor, DC bus power supply unit, and electronic safe restart inhibit, ensuring stable performance, enhanced safety, and compliance with EMC standards in challenging environments.

Key Features:

• Rated Current: 34 A continuous
• Power Rating: 16.0 kW
• Input Voltage: 3 × 400–480 VAC ±10%
• Input Frequency: 50/60 Hz ±4%
• Maximum Input Power: 17 kVA
• Cooling Method: Natural convection
• Integrated Components: Line filter (EN 61800-3 C3), braking resistor, DC bus power supply unit, electronic safe restart inhibit
• Mounting: Modular design for cabinet integration
• Protection Class: IP20 (indoor use)
• Operating Temperature: 5°C to 40°C
• Certifications: CE

Applications:

• Industrial Automation: Precise control of complex machinery and production lines
• Robotics & Handling: Accurate motion control for high-torque robotic systems
• Material Handling: Reliable operation in conveyors, sorters, and storage equipment
• Packaging Machinery: Synchronized motion control in automated packaging processes
• OEM Machinery: Flexible integration into high-power, modular machine designs

Technical Specifications:

• Rated Current: 34 A
• Power Rating: 16.0 kW
• Input Voltage: 3 × 400–480 VAC ±10%
• Input Frequency: 50/60 Hz ±4%
• Maximum Input Power: 17 kVA
• Cooling Method: Natural convection
• Integrated Components: Line filter (EN 61800-3 C3), braking resistor, DC bus power supply unit, electronic safe restart inhibit
• Mounting: Modular design for cabinet integration
• Protection Class: IP20 (indoor use)
• Operating Temperature: 5°C to 40°C
• Certifications: CE
