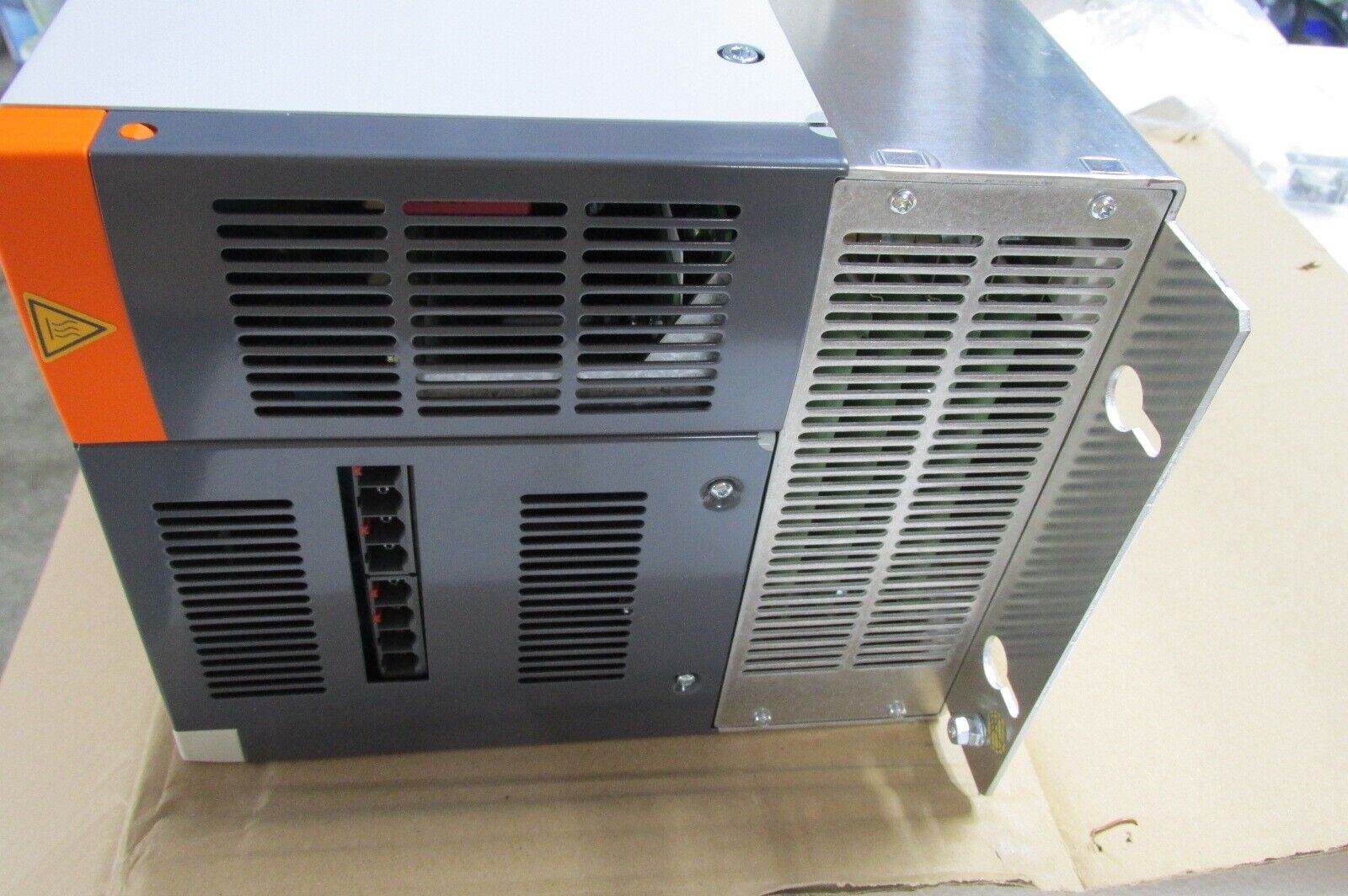

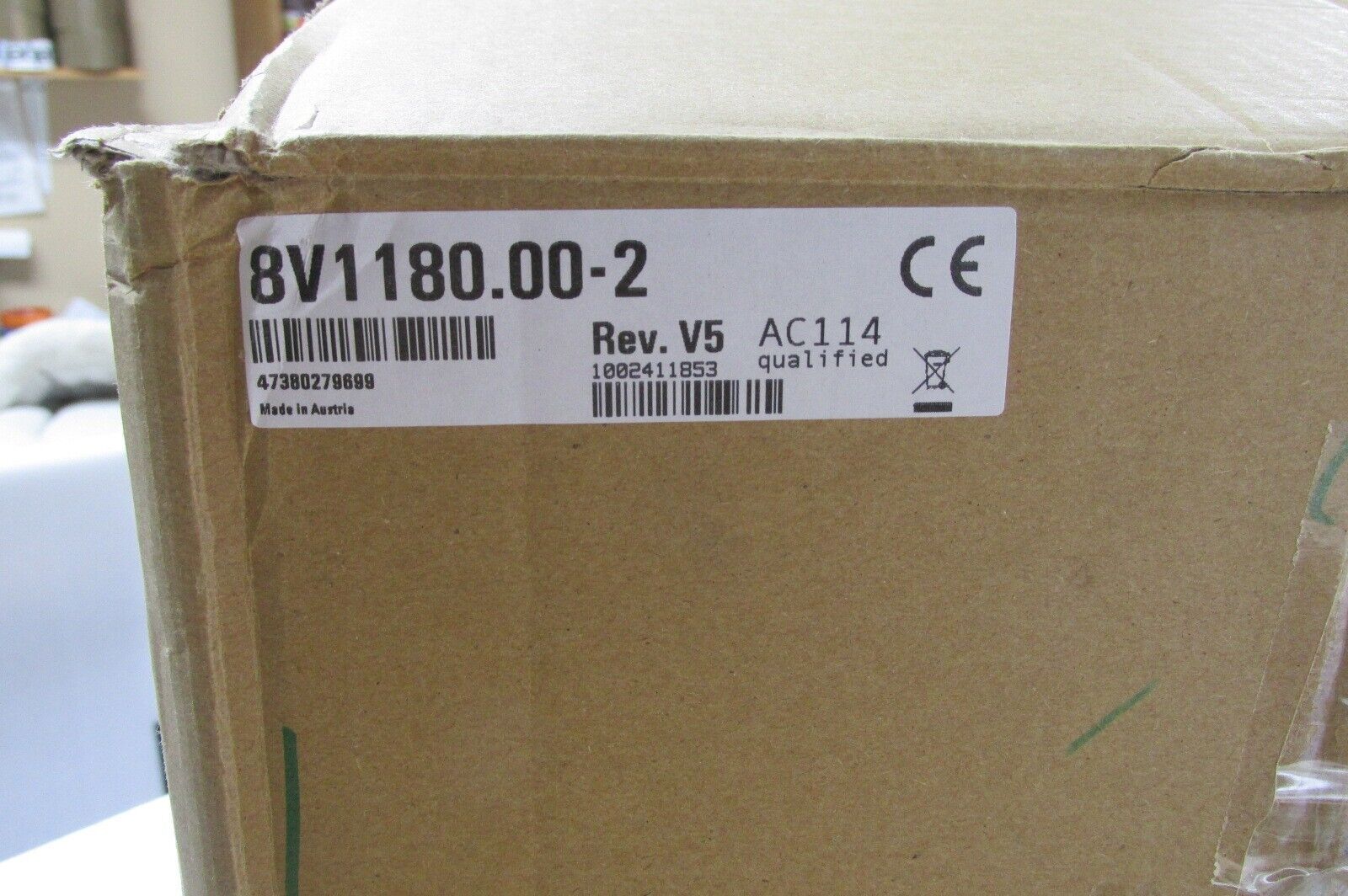

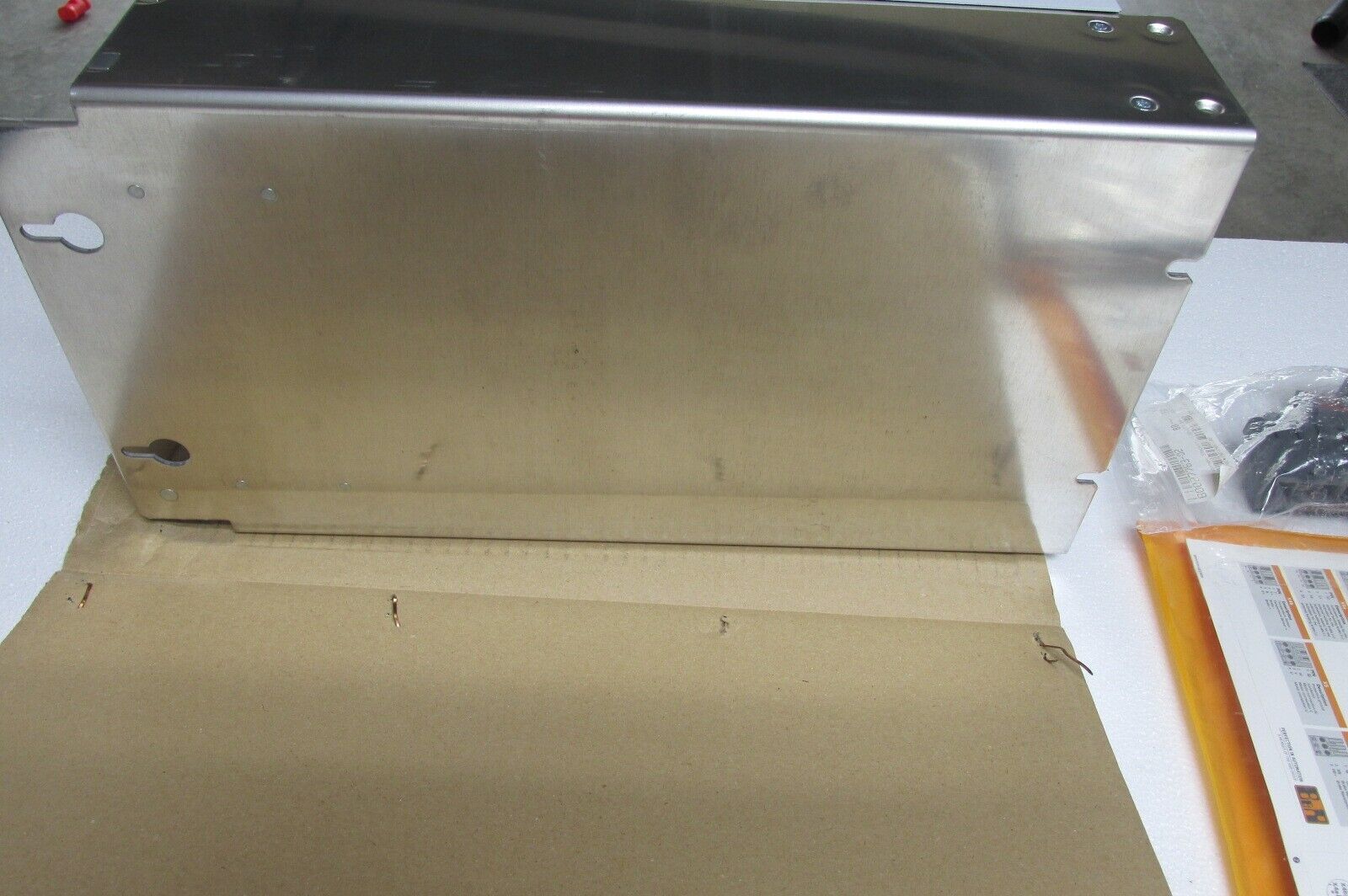

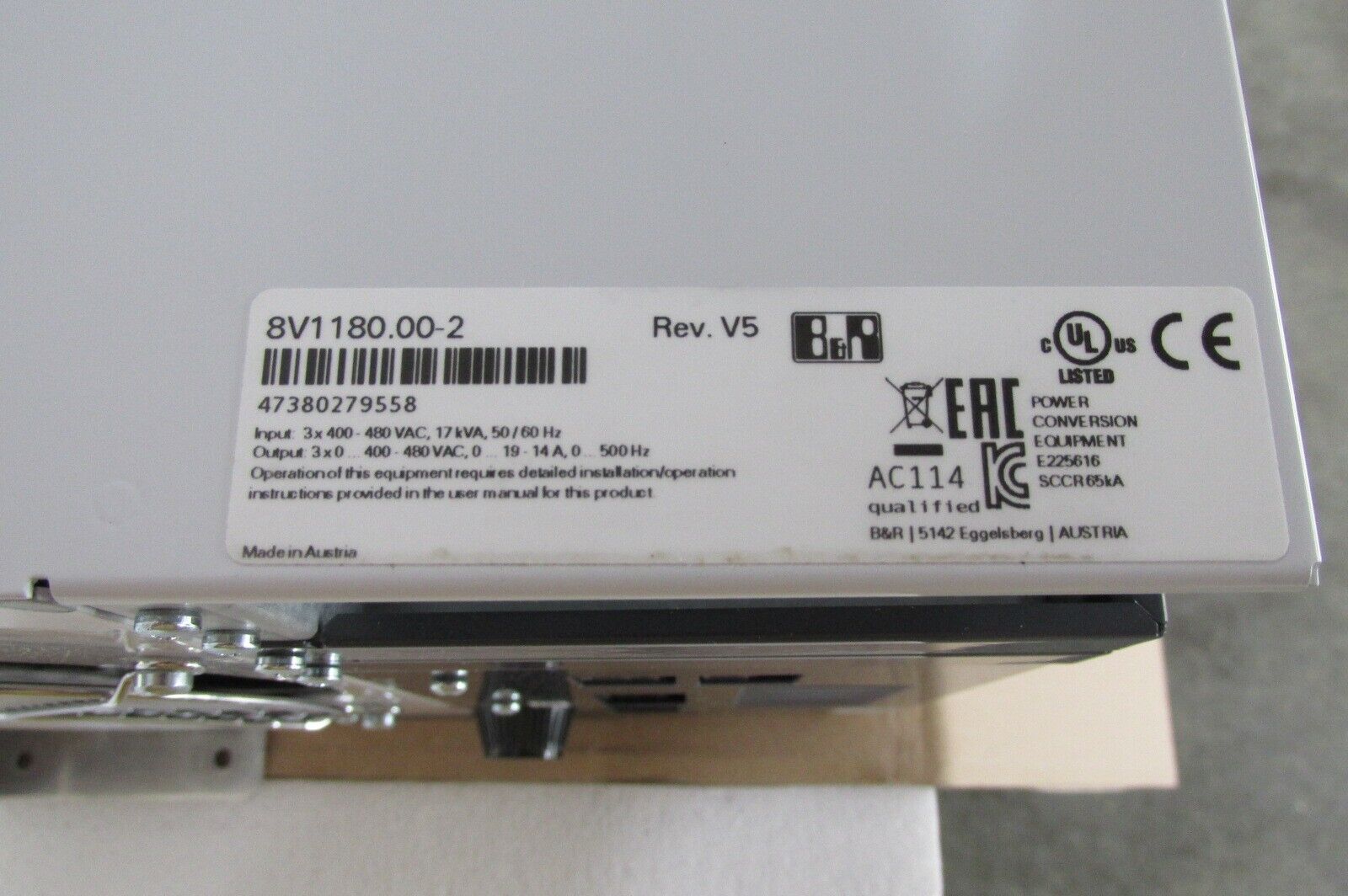

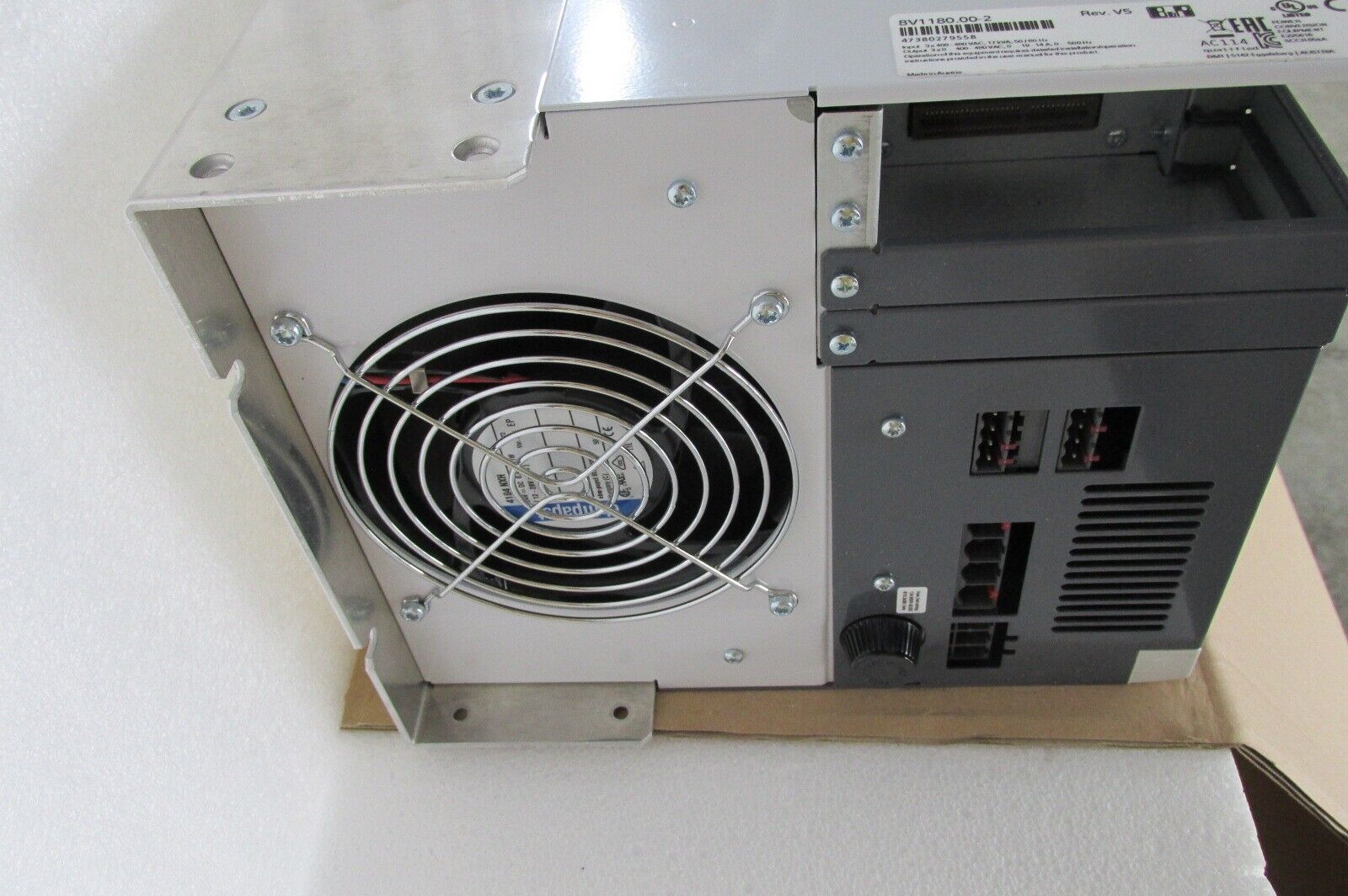

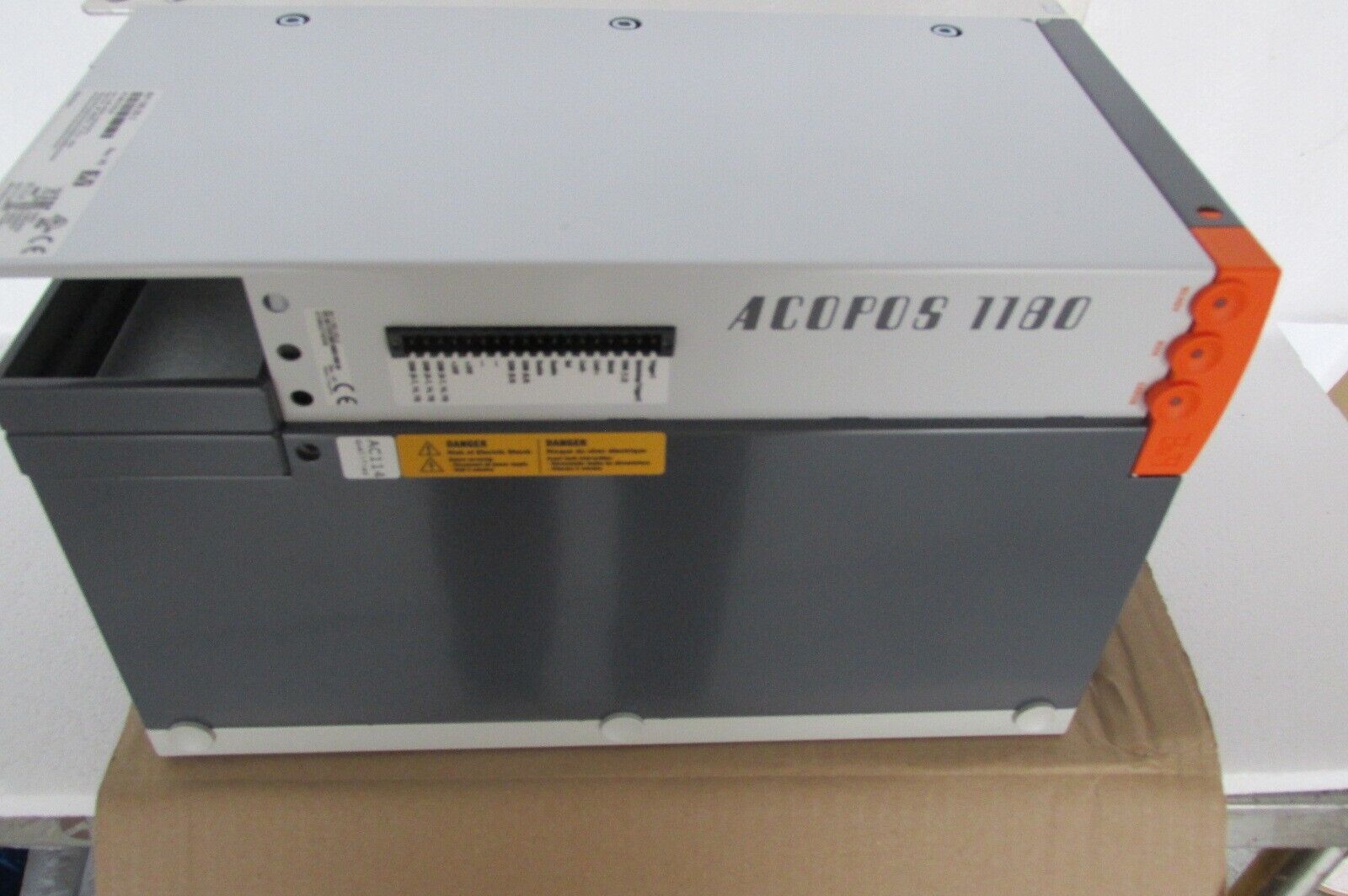

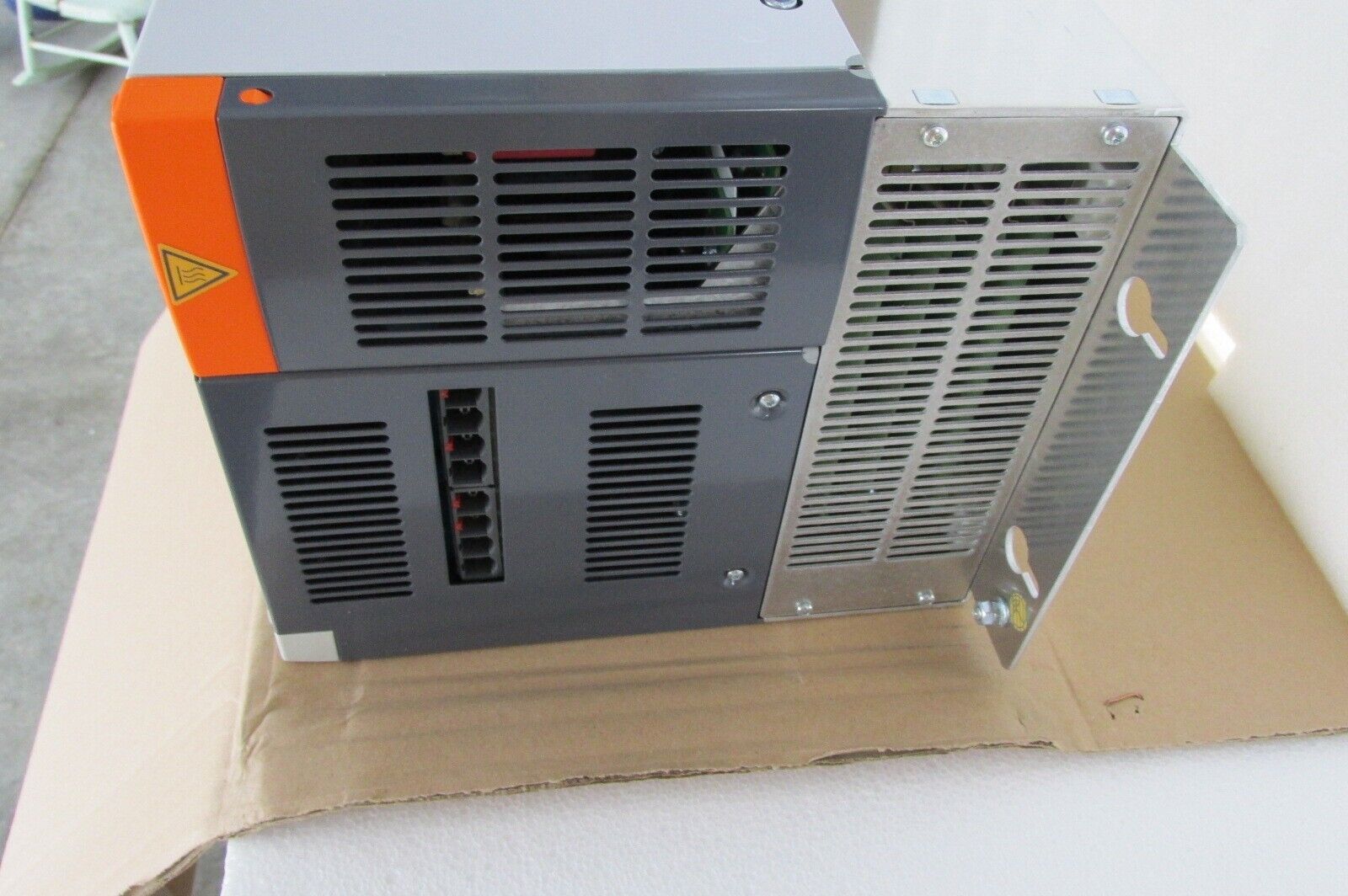

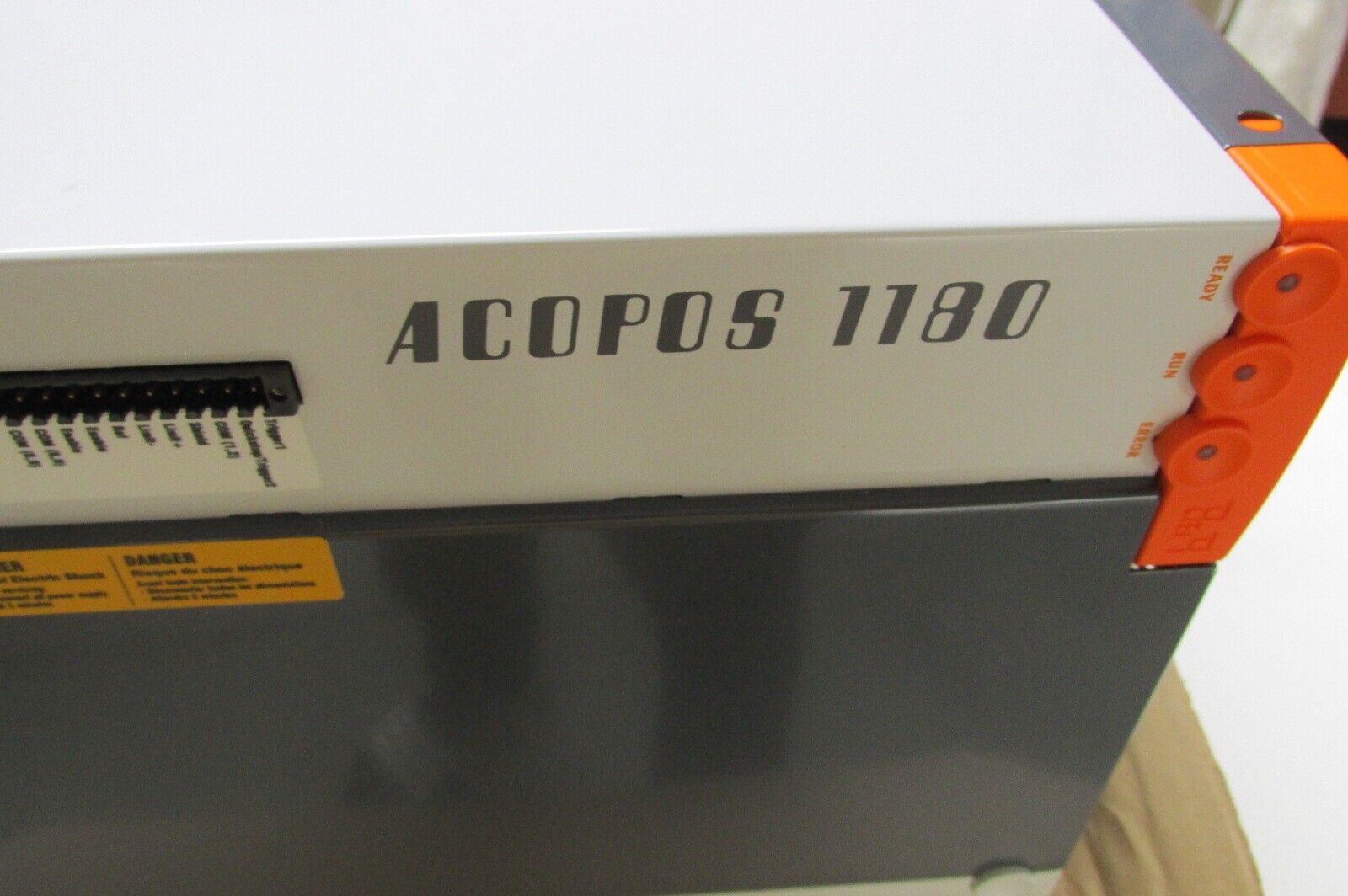

Model: 8V1180.00-2
Product Type: AC Servo Drive
Series: B&R ACOPOS 1180

Description:
The 8V1180.00-2 is a high-performance AC servo drive from B&R's ACOPOS 1180 series, engineered for demanding industrial automation applications requiring high power and torque. It operates on a 3-phase 400–480 VAC supply and delivers a continuous output current of 19 A, with a power rating of 9 kW. This model features an integrated line filter, braking resistor, and electronic safe restart inhibit, ensuring stable performance, enhanced safety, and compliance with EMC standards in challenging environments.

Key Features:

• Rated Current: 19 A continuous
• Power Rating: 9.0 kW
• Input Voltage: 3 × 400–480 VAC ±10%
• Input Frequency: 50/60 Hz ±4%
• Maximum Input Power: 17 kVA
• Cooling Method: Natural convection
• Integrated Components: Line filter (EN 61800-3 C3), braking resistor, electronic safe restart inhibit
• Mounting: Modular design for cabinet integration
• Protection Class: IP20 (indoor use)
• Operating Temperature: 5°C to 40°C
• Certifications: CE

Applications:

• Industrial Automation: Precise control of complex machinery and production lines
• Robotics & Handling: Accurate motion control for high-torque robotic systems
• Material Handling: Reliable operation in conveyors, sorters, and storage equipment
• Packaging Machinery: Synchronized motion control in automated packaging processes
• OEM Machinery: Flexible integration into high-power, modular machine designs

Technical Specifications:

• Rated Current: 19 A
• Power Rating: 9.0 kW
• Input Voltage: 3 × 400–480 VAC ±10%
• Input Frequency: 50/60 Hz ±4%
• Maximum Input Power: 17 kVA
• Cooling Method: Natural convection
• Integrated Components: Line filter (EN 61800-3 C3), braking resistor, electronic safe restart inhibit
• Mounting: Modular design for cabinet integration
• Protection Class: IP20 (indoor use)
• Operating Temperature: 5°C to 40°C
• Certifications: CE
