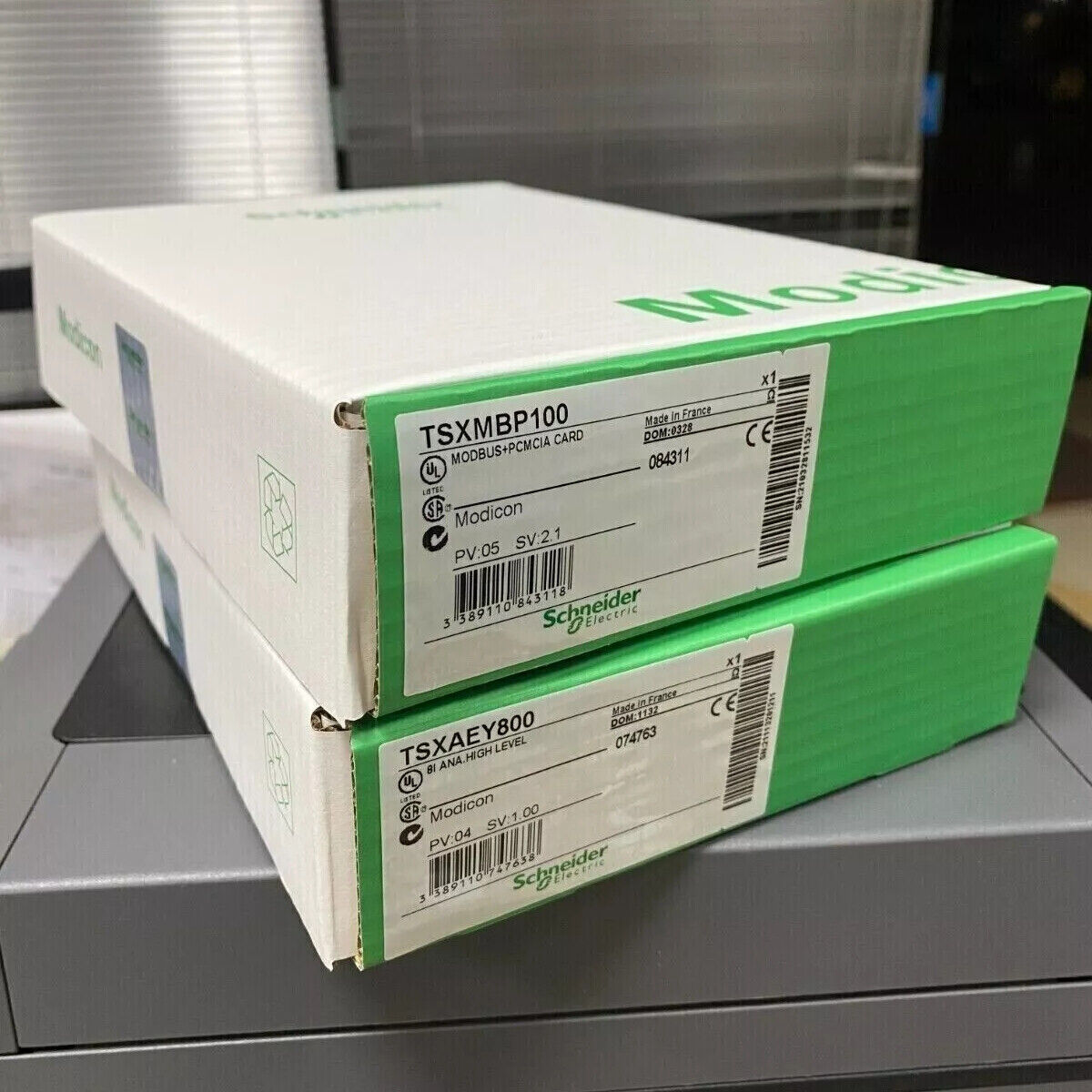

Modicon | Schneider | TSXMBP100 Programmable Logic Controller with Box

Product Description: Schneider Electric TSXMBP100

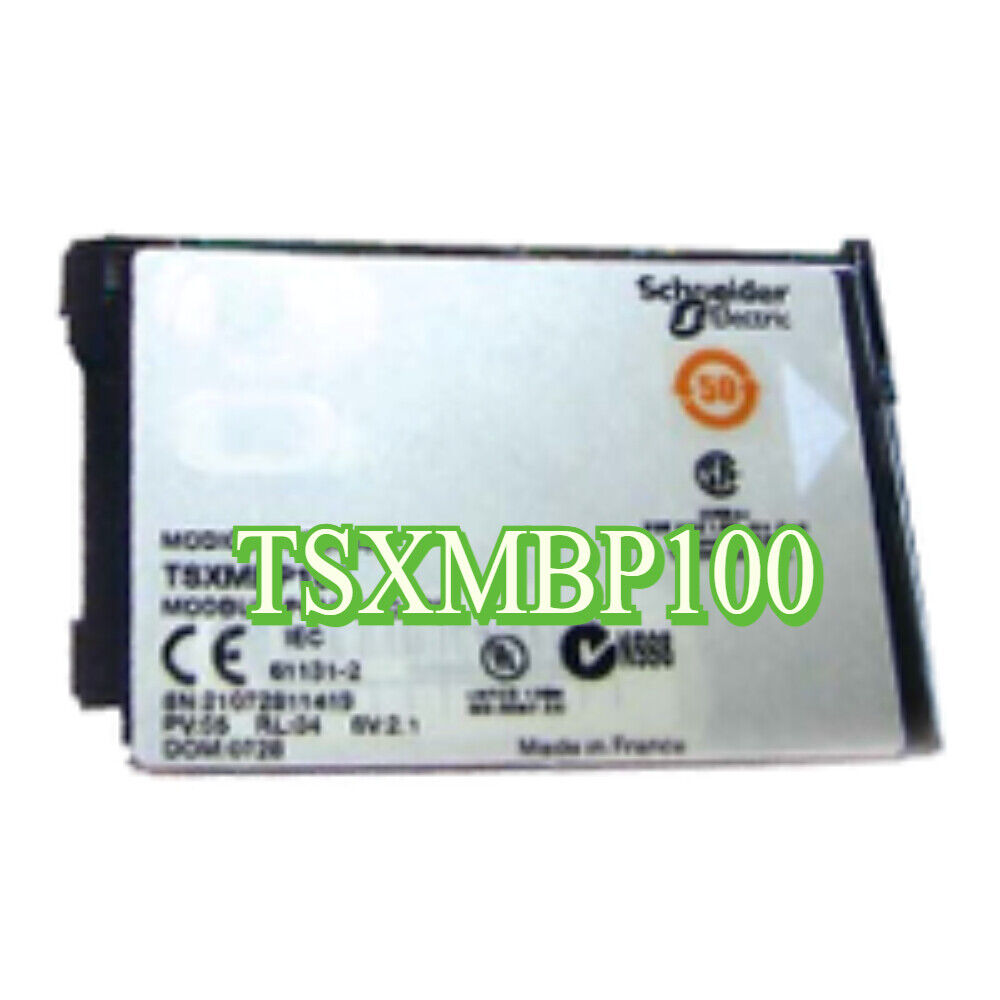

The Schneider Electric TSXMBP100 is a Modbus Plus communication adapter designed for use with personal computers or industrial computing devices that support PCMCIA interfaces. It provides a physical and logical connection to the Modbus Plus network, allowing a PC or compatible device to exchange data with Modicon PLCs and other Modbus Plus nodes.

Key Features

• Interface: PCMCIA Type II card
• Protocol: Modbus Plus
• Transmission speed: 1 Mbps
• Connection: 9-pin D-sub connector for network cabling
• Allows a PC to act as a Modbus Plus node
• Supports peer-to-peer communication
• Software driver support for Windows environments
• Integrates with Schneider Electric programming and diagnostic tools

Technical Specifications

• Network type: Modbus Plus (token-passing network)
• Maximum cable length: 450 m with appropriate cabling
• Number of network nodes: Up to 64 devices per network
• Power supply: Drawn from the PCMCIA interface
• Operating temperature: 0°C to +60°C
• Storage temperature: -20°C to +85°C
• Relative humidity: 10% to 95%, non-condensing
• Weight: Approximately 0.2 kg
• Compatibility: Windows-based PCs with PCMCIA slot

Application Areas

• Programming and maintenance of Modicon PLCs
• SCADA system integration
• Factory data acquisition
• Industrial diagnostics and network monitoring
• Peer-to-peer control in distributed systems

Advantages

• Enables PC-based access to Modbus Plus networks
• Compact and portable solution for field engineering
• Supports high-speed, reliable industrial communication
• Ideal for use in commissioning, diagnostics, and programming tasks
• Compatible with standard Schneider Electric software tools
