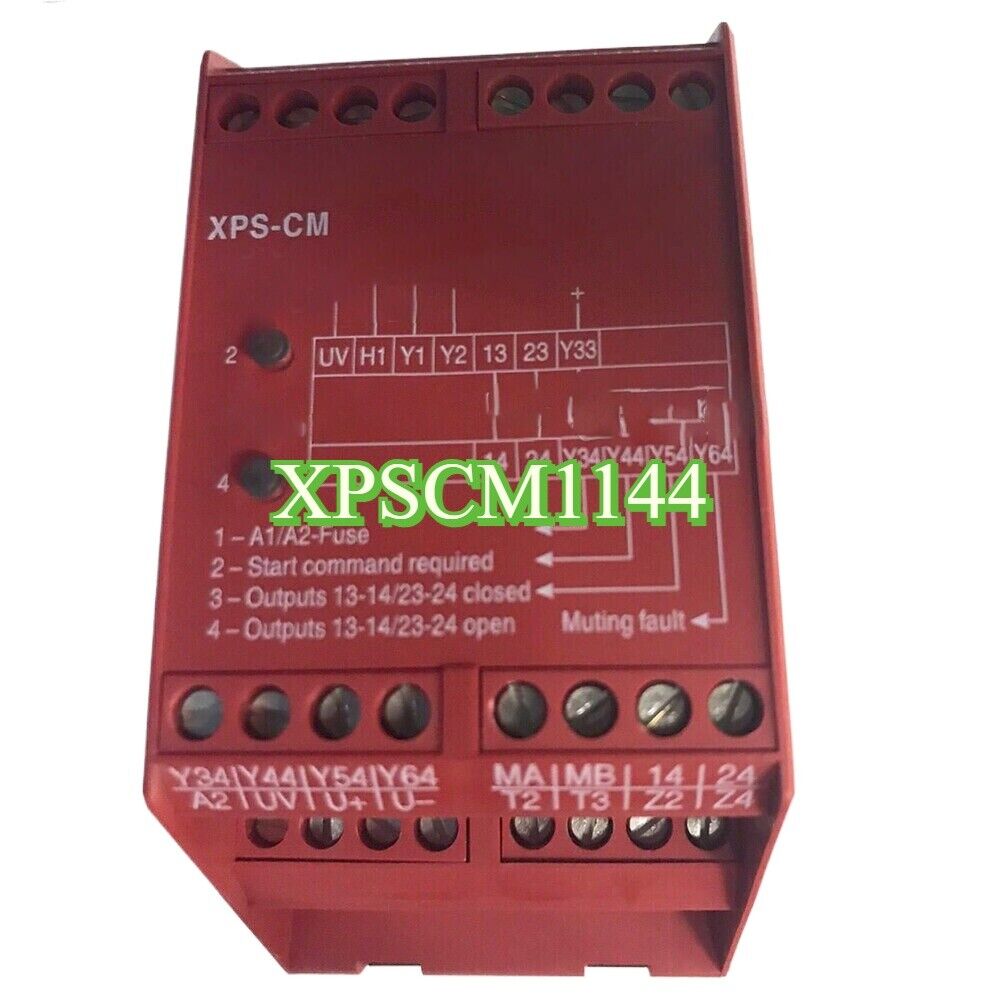

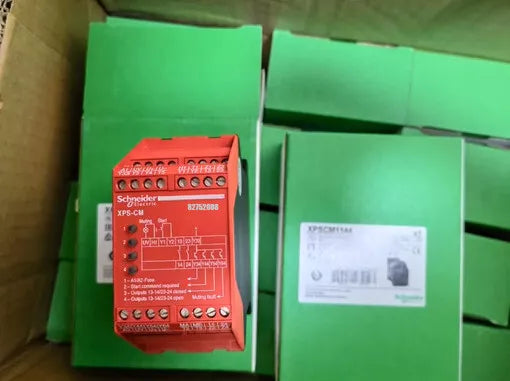

Product Description: Schneider Electric XPSCM1144

The Schneider Electric XPSCM1144 is a compact safety controller from the Preventa XPS range. It is designed for monitoring safety functions such as emergency stop buttons, safety switches, light curtains, and two-hand control stations. Operating with a 24 V DC power supply, it offers 8 safe digital inputs and 4 safe relay outputs, providing Category 4 / PLe safety in accordance with ISO 13849-1.

Key Features

• 8 safety inputs (24 V DC)
• 4 safety outputs (relay type, 2 NO each)
• Logic configuration via predefined function blocks
• 2 test pulse outputs for sensor diagnostics
• 2 status outputs for system monitoring
• Power supply: 24 V DC
• Removable spring terminal blocks
• LED indicators for input/output and power status
• EN ISO 13849-1 (Category 4 / PLe) and IEC 61508 (SIL 3) compliant

Technical Specifications

• Input current: ≤ 3.5 mA per input
• Output contact rating: 6 A at 230 V AC or 24 V DC
• Maximum switching frequency: 1 Hz
• Power consumption: ≤ 4.5 W
• Response time: ≤ 12 ms
• Insulation voltage: 250 V
• Operating temperature: -10°C to +55°C
• Storage temperature: -40°C to +85°C
• Protection rating: IP20
• Mounting: 35 mm DIN rail
• Dimensions (W x H x D): 67.5 mm x 100 mm x 114.5 mm
• Weight: Approximately 0.5 kg

Application Areas

• Machine safety systems
• Presses and cutting equipment
• Packaging machines
• Material handling and conveyors
• Robotics and automated work cells

Advantages

• Provides high-level safety in a compact format
• Supports a wide range of safety devices
• Fast integration with minimal wiring
• Status LEDs improve diagnostics and troubleshooting
• Conforms to international safety standards
