Phaseo ABL8RPS | Schneider | ABL8RPS24050 24V 5A Power Supply

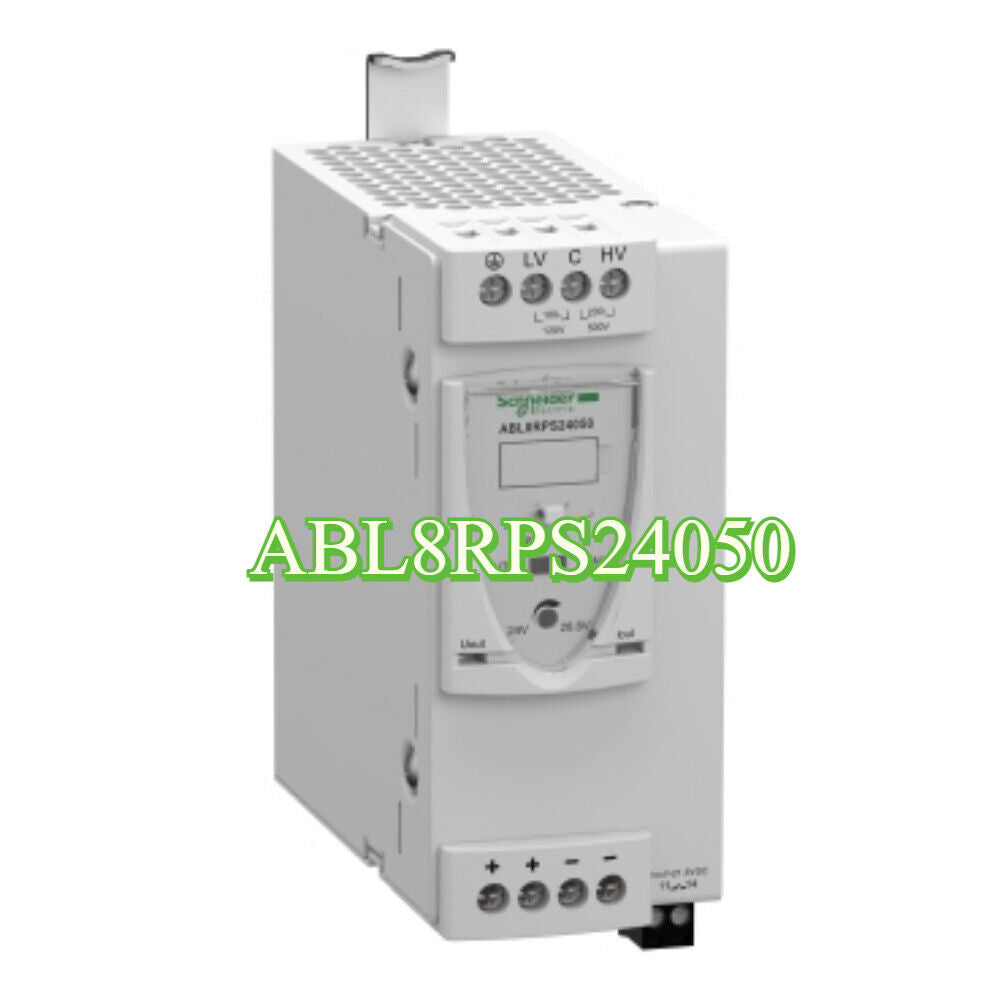

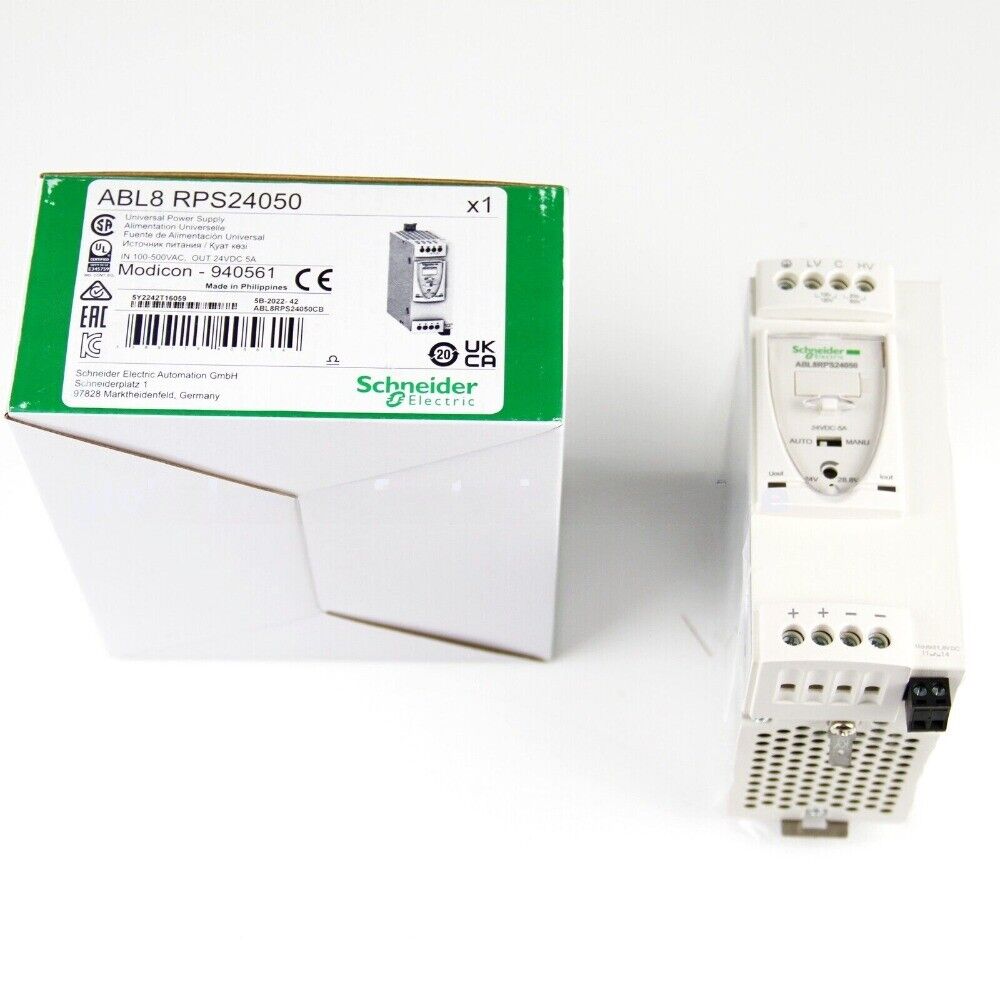

Product Description: Schneider Electric ABL8RPS24050

The Schneider Electric ABL8RPS24050 is a Phaseo regulated switch mode power supply unit designed to deliver stable 24 VDC output for industrial control and automation equipment. With a maximum output current of 5 A, it provides up to 120 W of power. The unit is designed for DIN rail mounting and is ideal for use in control panels and industrial machinery requiring consistent and efficient DC power.

Key Features

• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltage: 24 V DC (adjustable from 24 to 28 V DC)
• Output current: 5 A
• Output power: 120 W
• Switch mode technology for high efficiency and compact size
• DIN rail mounting (35 mm)
• Short-circuit, overload, and overvoltage protection
• LED indicator for DC output status

Technical Specifications

• Input voltage tolerance: 85 to 264 V AC
• Inrush current: ≤ 30 A
• Efficiency: ≥ 85%
• Ripple and noise: ≤ 100 mV
• Dielectric strength: 3000 V AC (input to output)
• MTBF (Mean Time Between Failures): > 300,000 hours
• Operating temperature: -10°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95%, non-condensing
• Dimensions (W x H x D): 70 mm x 125 mm x 115 mm
• Weight: Approximately 0.6 kg

Application Areas

• Industrial automation and control panels
• PLC and sensor power supply
• Conveyors and packaging machines
• Building management systems
• Electrical distribution and monitoring

Advantages

• Compact design with high output power density
• Stable voltage output protects sensitive electronics
• High efficiency reduces heat and energy losses
• Easy installation and maintenance via DIN rail
• Integrated protections for reliable operation
