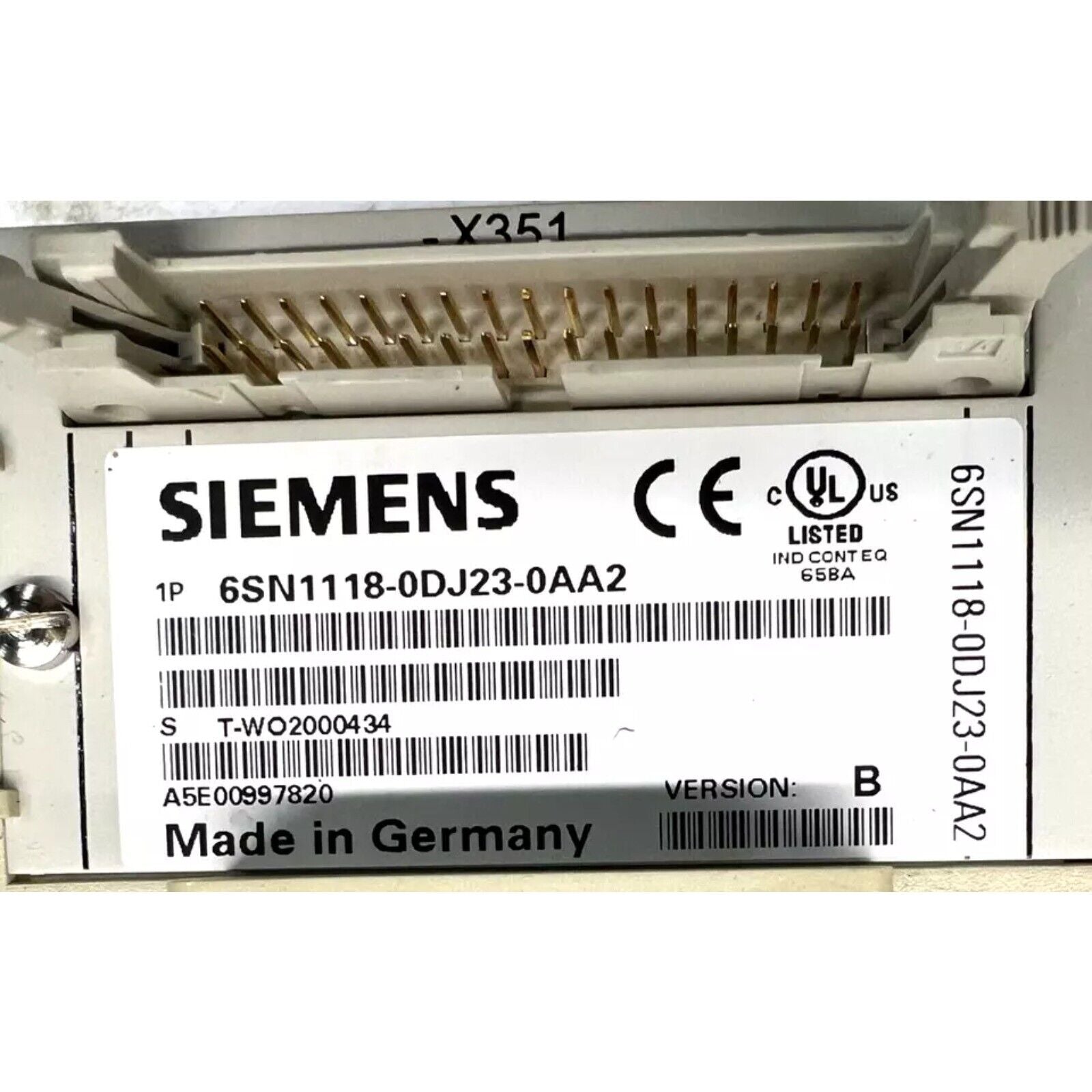

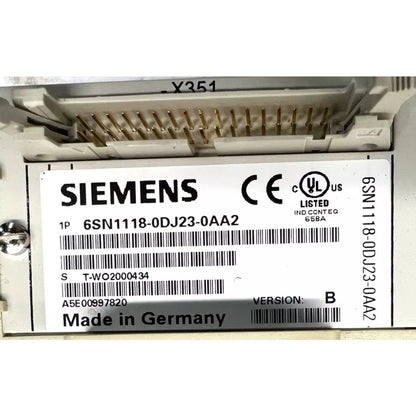

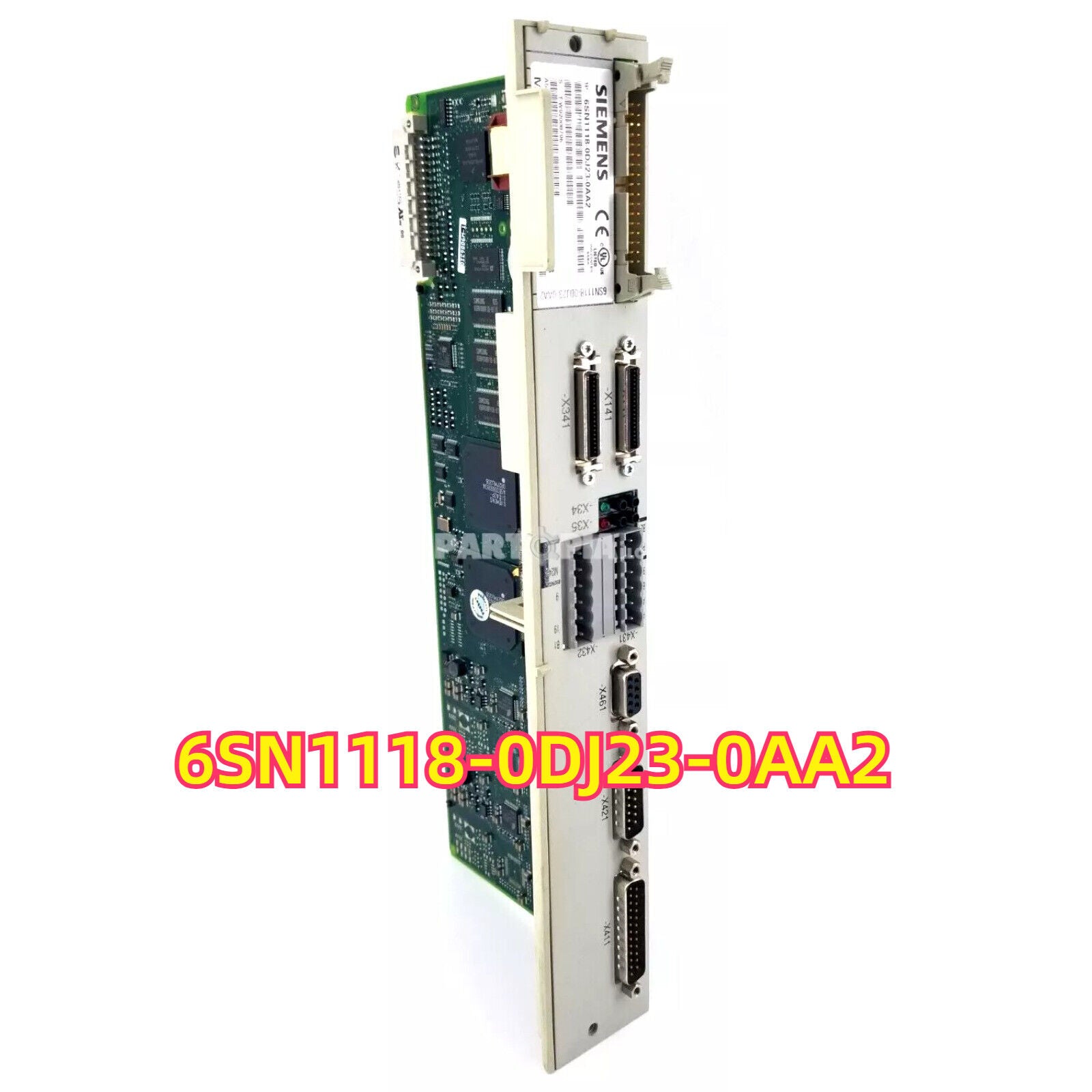

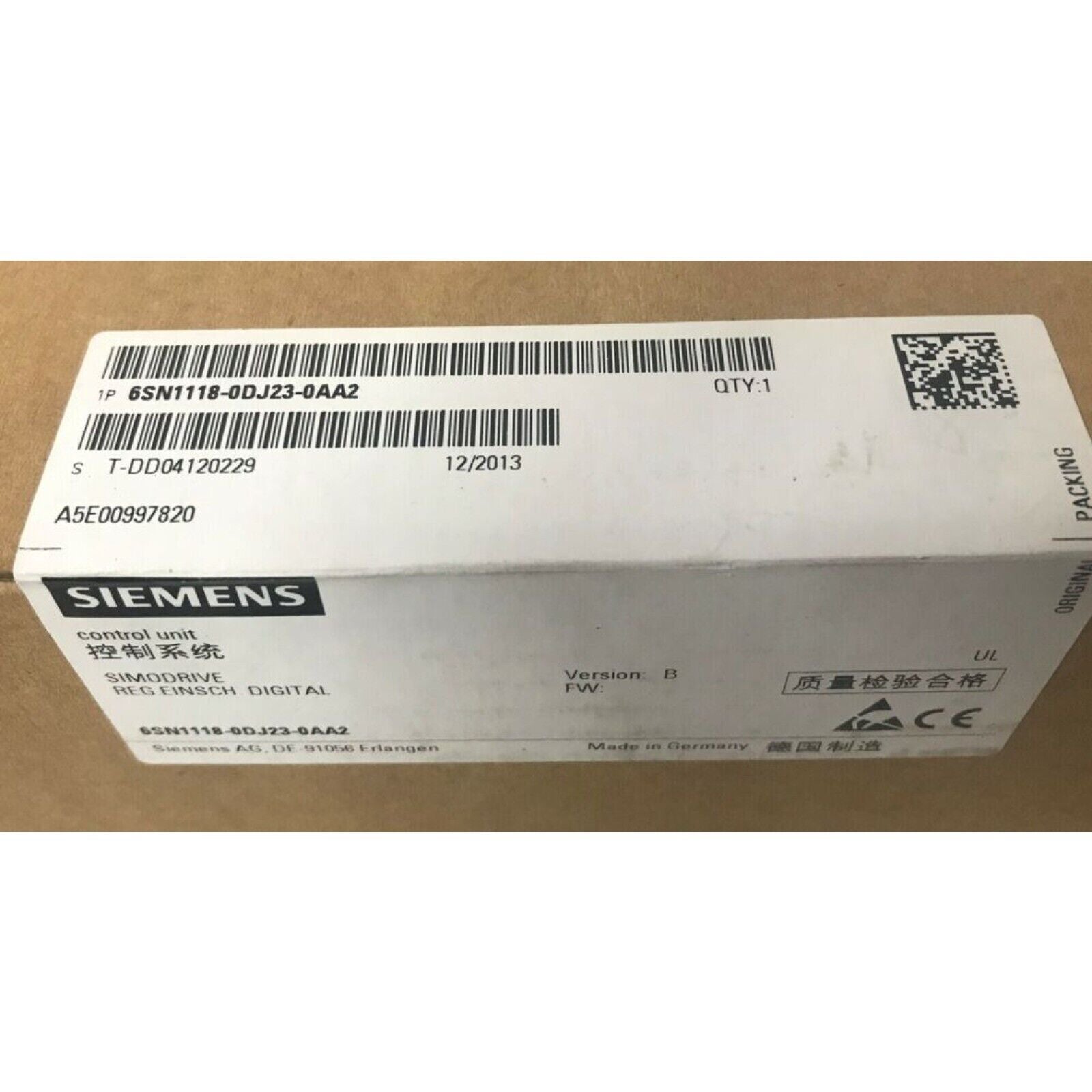

Product Description: Siemens 6SN1118-0DJ23-0AA2

The Siemens 6SN1118-0DJ23-0AA2 is a high-current 1-axis power module for the modular SIMODRIVE 611D drive family. Fed from a 600 V DC link, it delivers three-phase 400 V AC to a single servo or induction motor with a continuous output current of 23 A. Integrated pulse-width modulation, sensor-less vector control support, and a built-in brake chopper enable precise speed and position control in demanding applications. Direct DRIVE-CLiQ interface to the SIMODRIVE control unit ensures seamless commissioning, diagnostics, and parameterization.

Key Features

• Continuous Output Current: 23 A (base-load)
• Peak Current: 46 A for up to 3 s (200 % overload)
• Input / Output: 600 V DC link input, 3AC 0 … 400 V motor output
• Integrated Functions: Dynamic brake chopper and motor temperature monitoring
• Cooling: Internal forced-air cooling with front-replaceable fan
• Diagnostics: Real-time fault, warning, and status reporting via DRIVE-CLiQ
• Protection Class: IP20 for control-cabinet installation
• Mounting: Book-size housing with quick-lock DIN-rail adapter

Technical Specifications

• DC Link Voltage: 600 V DC (540 … 650 V DC)
• Rated Output Voltage: 3AC 0 … 400 V
• Continuous Output Current: 23 A
• Peak Current (≤ 3 s): 46 A
• Rated Power (typical): up to 11 kW (motor dependent)
• Switching Frequency (factory): 4 kHz (adjustable 2 … 8 kHz)
• Overload Capability: 200 % for 3 s, 150 % for 60 s
• Cooling Method: Internal forced air
• Dimensions (W × H × D): 50 mm × 270 mm × 380 mm
• Weight: ≈ 6.8 kg
• Ambient Operating Temperature: 0 °C … +40 °C (derating above +50 °C)
• Communication Interface: DRIVE-CLiQ to control unit
• Safety Function (with CU option): Safe Torque Off (STO)
• Protection Class: IP20 (cabinet)

Application Areas

• High-precision positioning axes in machine tools and robotics
• Single-axis motion in packaging, printing, and textile machinery
• Dynamic braking applications requiring integrated chopper
• Retrofit and new-build SIMODRIVE 611D control cabinets

Advantages

• High Current Density: 23 A continuous in a compact book-size module maximizes cabinet utilization.
• Integrated Braking: Built-in brake chopper simplifies dynamic braking hardware.
• Seamless Integration: DRIVE-CLiQ autoconfiguration streamlines commissioning with control units.
• Comprehensive Diagnostics: Real-time monitoring of faults, temperature, and load ensures maximum uptime.
• Easy Service: Front-replaceable fan and quick-lock mounting reduce maintenance time.
