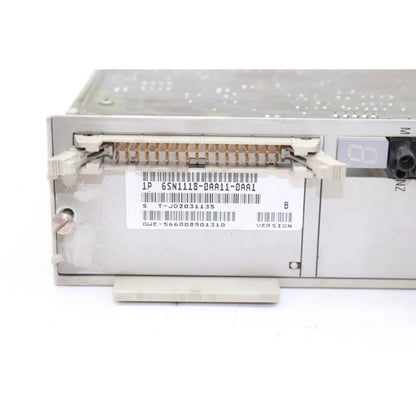

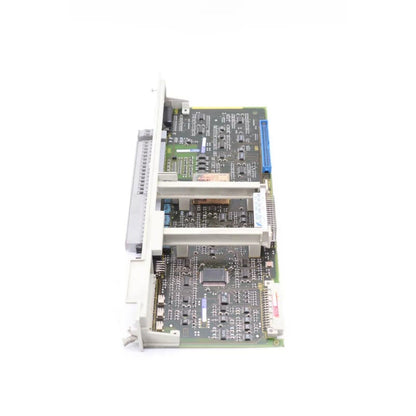

HMI Device | Siemens | 6SN1118-0AA11-0AA1 6SN1 118-0AA11-0AA1 SIMODRIVE 611-A CLOSED-LOOP PLUG-IN CONTROL UNIT

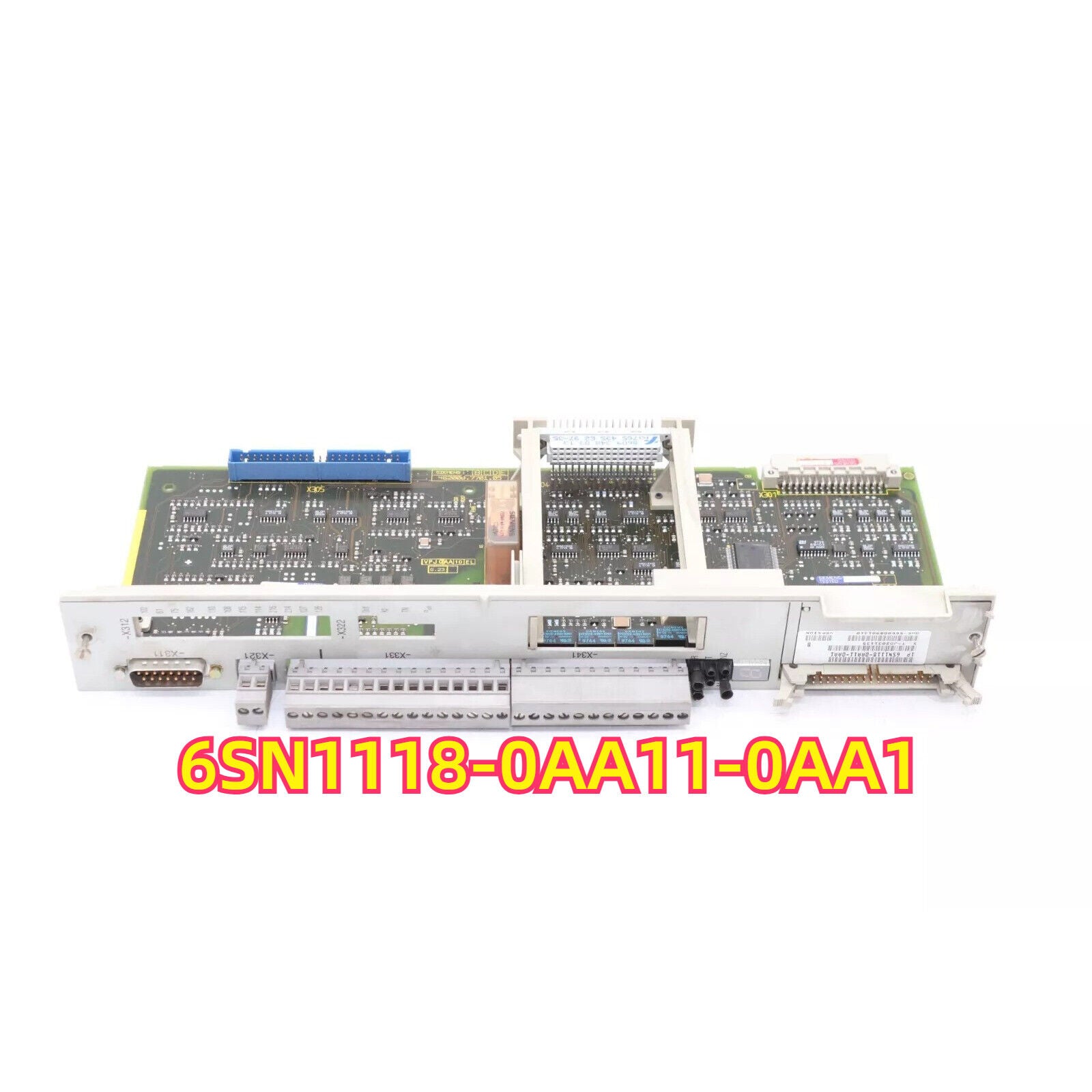

Product Description: Siemens 6SN1118-0AA11-0AA1

The Siemens 6SN1118-0AA11-0AA1 is a control unit from the SINAMICS S120 series, specifically designed for controlling motors in industrial automation applications. It integrates advanced motor control capabilities, offering precise control over speed, torque, and position. The SINAMICS S120 control unit provides a highly flexible and scalable solution for variable-speed drives, making it suitable for a variety of applications such as material handling, pumps, conveyors, and process automation. This unit supports energy-efficient operation and includes built-in safety and diagnostic functions to ensure reliable and optimal performance.

Key Features

• Control Mode: Vector control for precise motor speed, torque, and position control.
• Power Supply: Designed to work with three-phase power supply (200-480 V AC).
• Communication Protocols: Supports multiple industrial communication protocols, including PROFINET, Modbus RTU, and EtherCAT for seamless network integration.
• Energy Efficiency: Incorporates features that optimize motor efficiency, reducing energy consumption during operation.
• Safety Functions: Built-in safety features, including Safe Torque Off (STO), enhancing the safety of the motor drive system.
• Diagnostic Features: Includes advanced diagnostic capabilities for system monitoring, fault detection, and performance optimization.
• Modular Integration: Allows integration with other SINAMICS S120 components for scalable and flexible motor control solutions.

Technical Specifications

• Product Type: Control Unit for Frequency Inverter
• Part Number: 6SN1118-0AA11-0AA1
• Control Mode: Vector control
• Communication Protocols: PROFINET, Modbus RTU, EtherCAT
• Power Supply: 200-480 V AC, three-phase
• Safety Features: Safe Torque Off (STO)
• Diagnostics: Yes (built-in diagnostics and system status monitoring)
• Operating Temperature Range: 0°C to +50°C
• Dimensions (W x H x D): Compact design for easy integration
• Weight: Approx. 2.5 kg

Application Areas

• Motor Control: Suitable for controlling motors in industrial systems, including conveyors, fans, pumps, and compressors.
• Industrial Automation: Used in complex automation systems that require precise control over motor speed and performance.
• Process Control: Ideal for industries such as chemicals, pharmaceuticals, and food processing, where accurate control is critical.
• Energy Management: Optimizes motor operation to reduce energy consumption and enhance system efficiency.

Advantages

• High Precision: Vector control ensures that motor speed, torque, and position are controlled with high precision for optimal system performance.
• Energy Savings: Energy-efficient operation helps reduce operational costs by optimizing the motor's energy usage.
• Flexible Integration: The control unit supports multiple communication protocols, allowing for easy integration with existing industrial networks.
• Built-in Safety: Features such as Safe Torque Off (STO) ensure the safety of operators and protect the equipment from damage.
• Reliable Diagnostics: Advanced diagnostics allow for easy monitoring of the system's status, making it simpler to detect faults and optimize performance.
