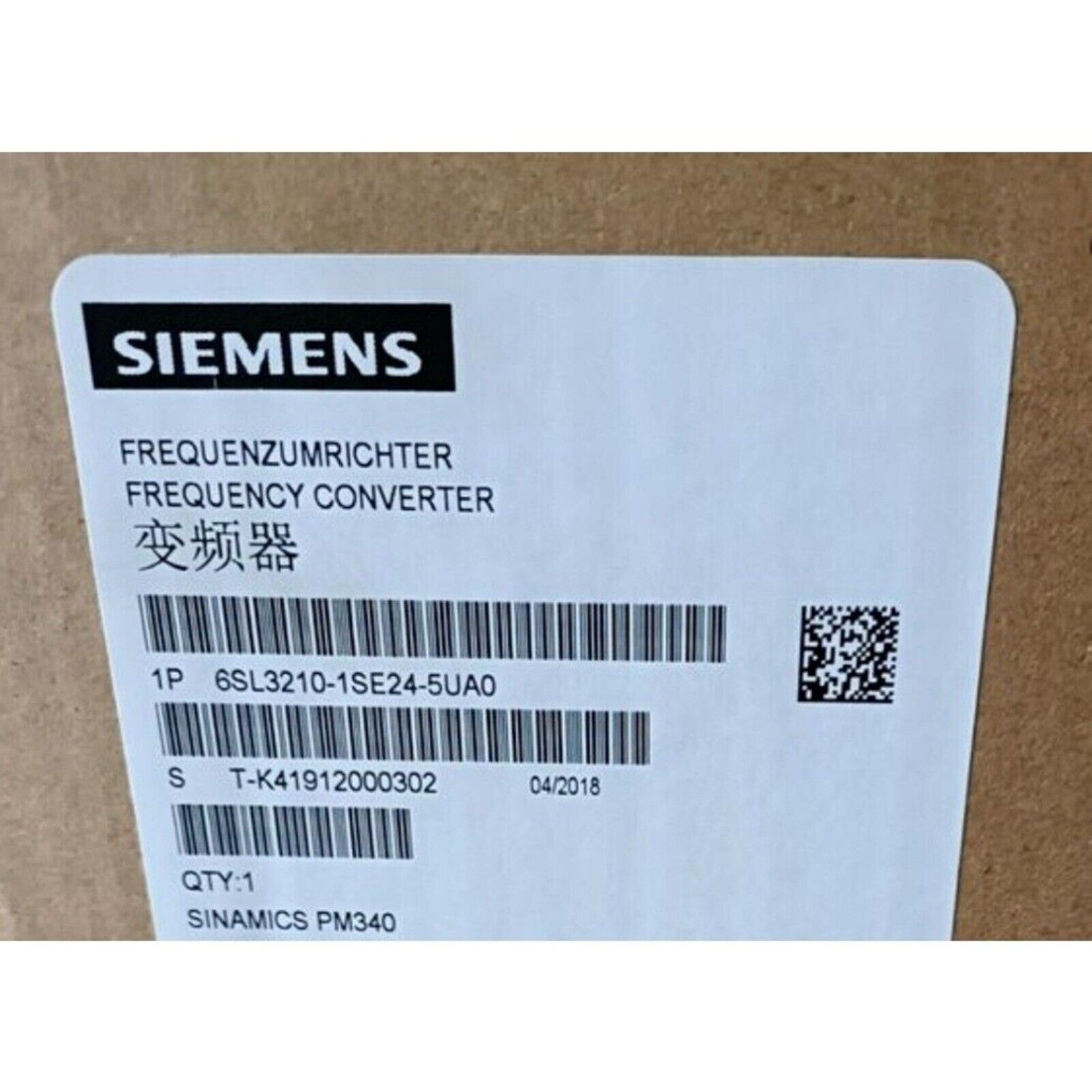

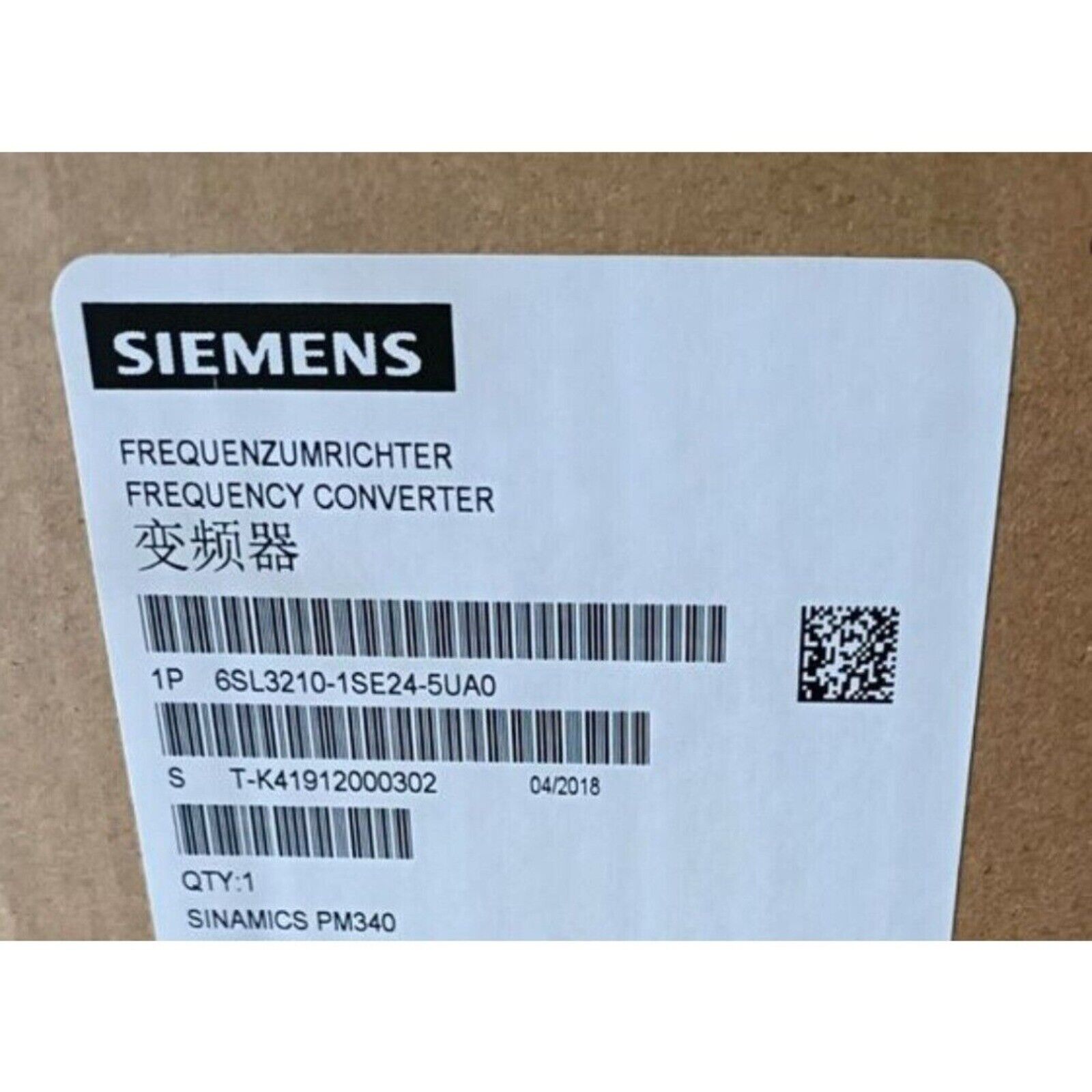

SINAMICS S120 | Siemens | 6SL3210-1SE24-5UA0 6SL3 210-1SE24-5UA0 converter Power Module PM340

Product Description:

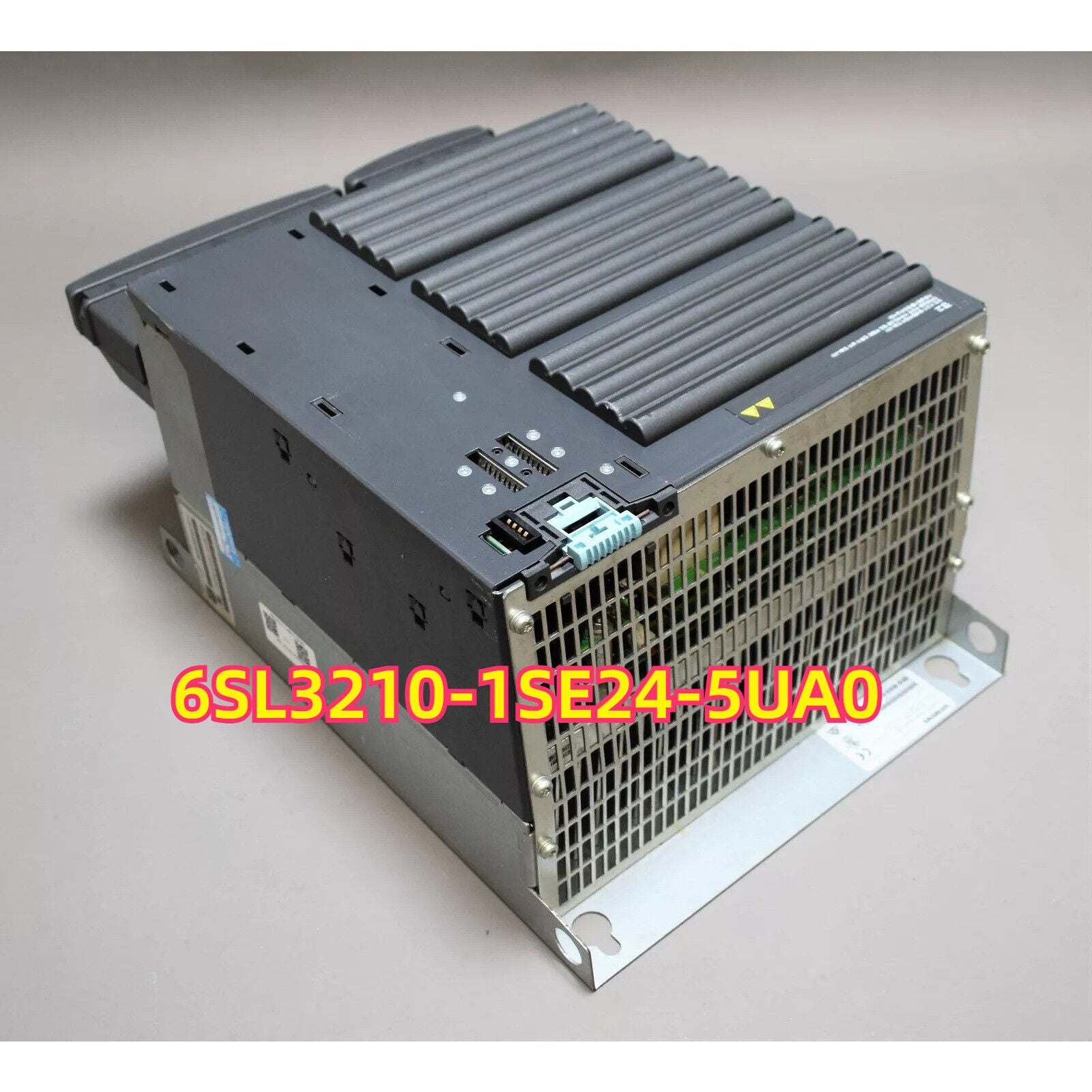

The Siemens 6SL3210-1SE24-5UA0 is a PM340 Power Module from the SINAMICS S120 drive

system family. Engineered for dynamic and high-performance applications, this module provides a rated output power of 22 kW and a continuous output current of 45 A. It is built in a compact blocksize construction with frame size FSD, utilizing internal air cooling. Unlike some variants, this version does not include an integrated line filter, offering more flexibility for customized EMC solutions. It is suitable for 3-phase input voltages of 380–480 V ±10% at 50/60 Hz, and is ideal for industrial environments demanding reliable motor control and efficient space utilization.

Technical Specifications:

Part Number: 6SL3210-1SE24-5UA0

Output Power: 22 kW

Output Current: 45 A

Input Voltage: 3AC 380–480 V ±10%, 50/60 Hz

Frame Size: FSD

Cooling Method: Internal air cooling

Integrated Line Filter: No

Compliance: RoHS compliant

Product Lifecycle Status: Active (check latest status if needed)

Net Weight: Approx. 17 kg

Country of Origin: Germany

EAN: 4025515078487

UPC: 887621271642

Applications:

High-performance motion control systems

Machine tools, packaging, printing, and textile machinery

Custom systems where external EMC filter configurations are preferred

Advantages:

Delivers reliable power output for industrial drive applications

Compact blocksize housing optimizes panel space

Internal cooling design minimizes external hardware needs

Absence of integrated line filter allows use of specialized external EMC filters
