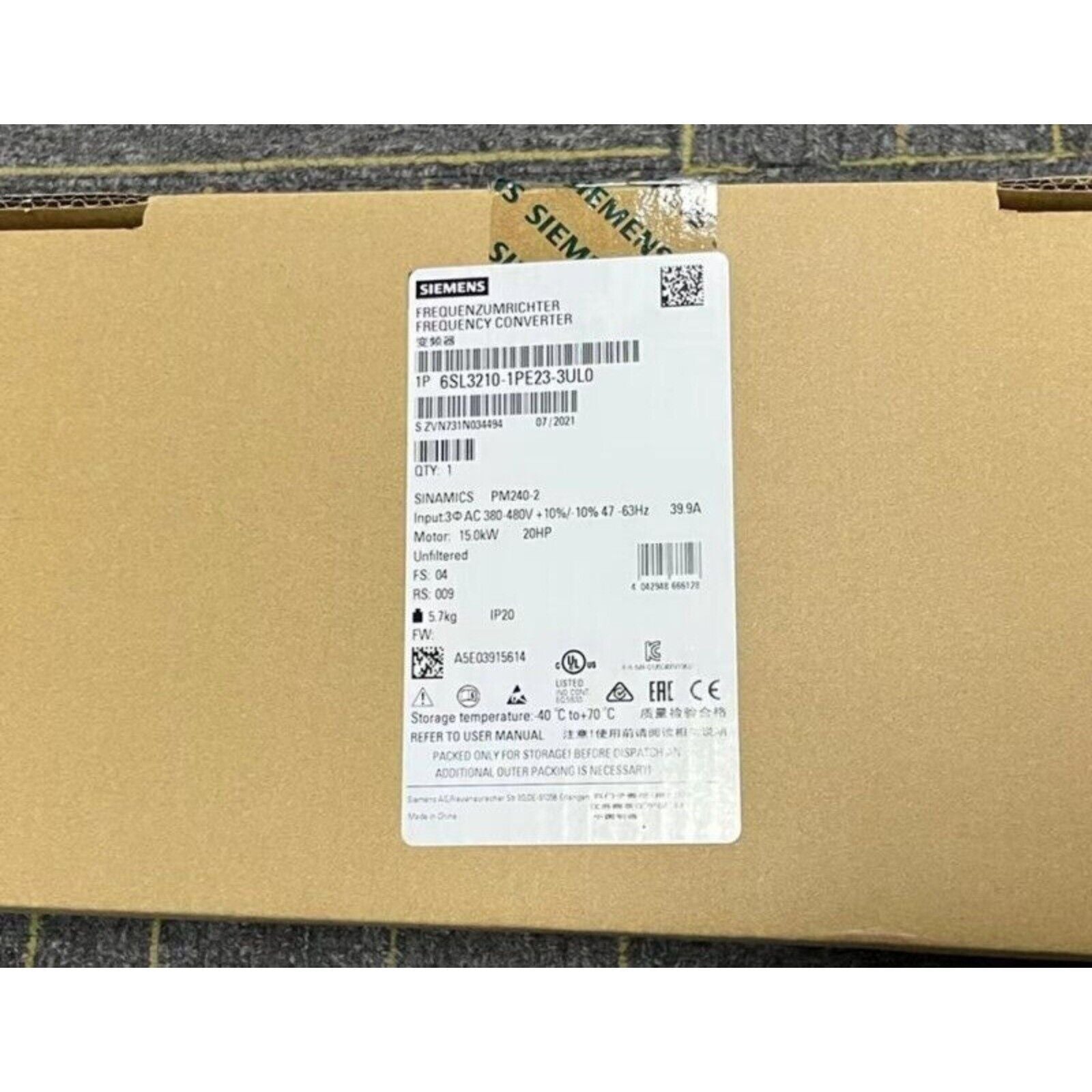

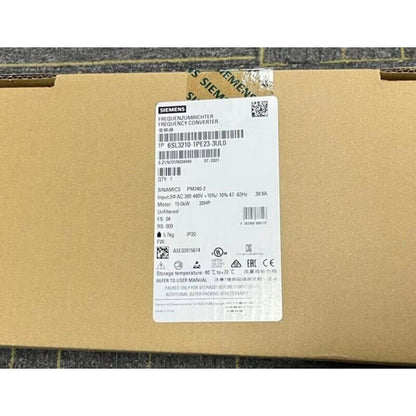

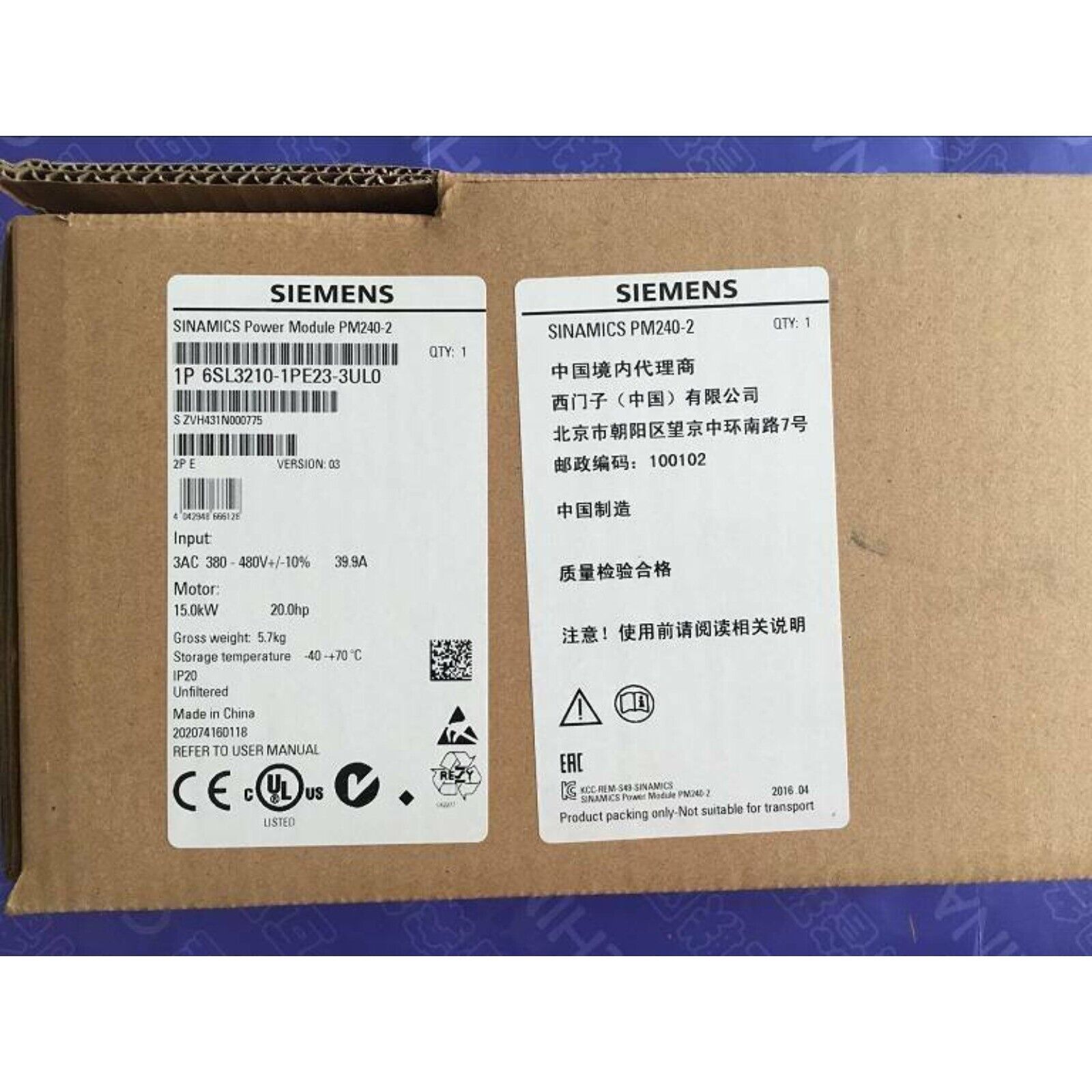

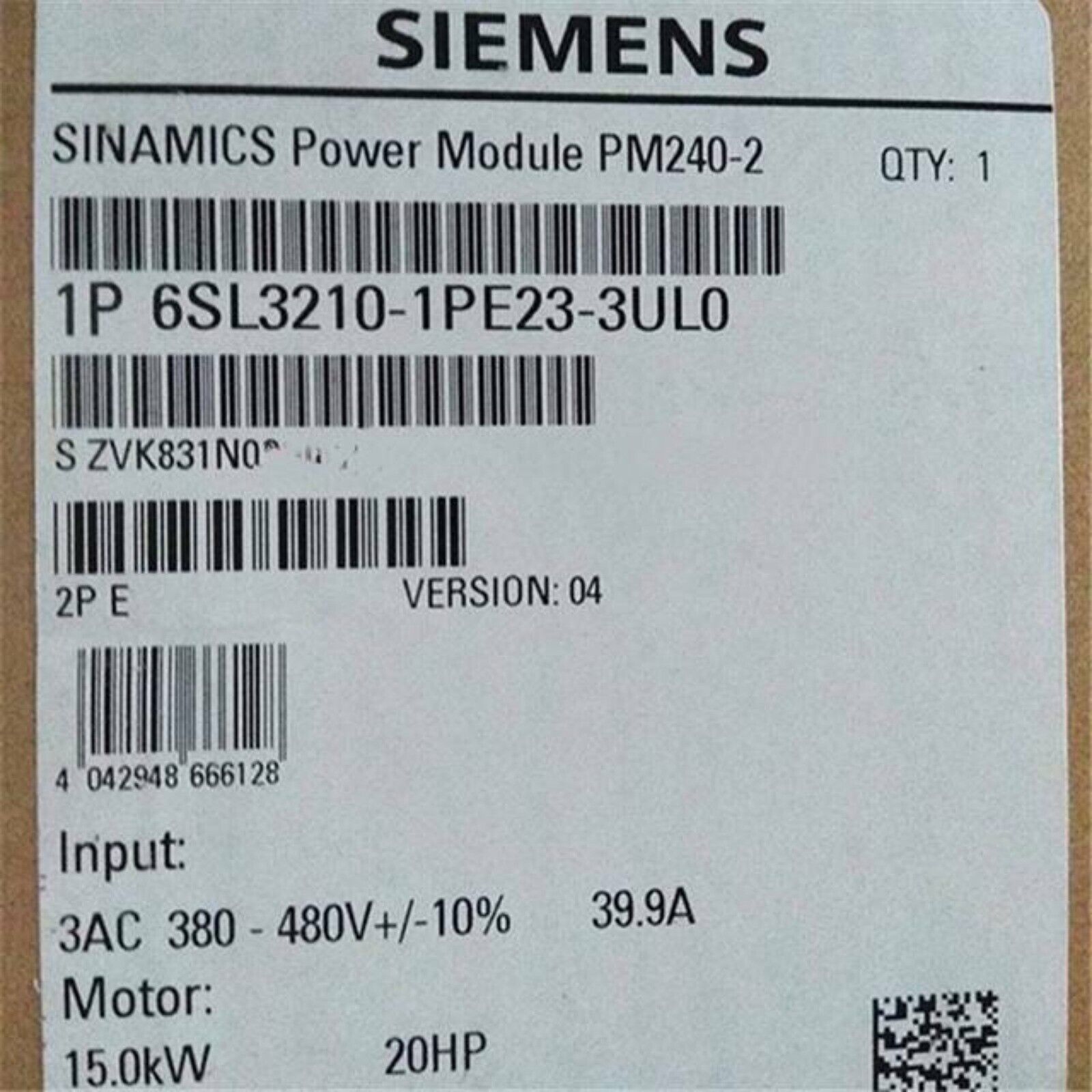

SINAMICS G120P | Siemens | 6SL3210-1PE23-3UL0 6SL3 210-1PE23-3UL0 SINAMICS POWER MODULE PM240-2

Product Description: Siemens 6SL3210-1PE23-3UL0

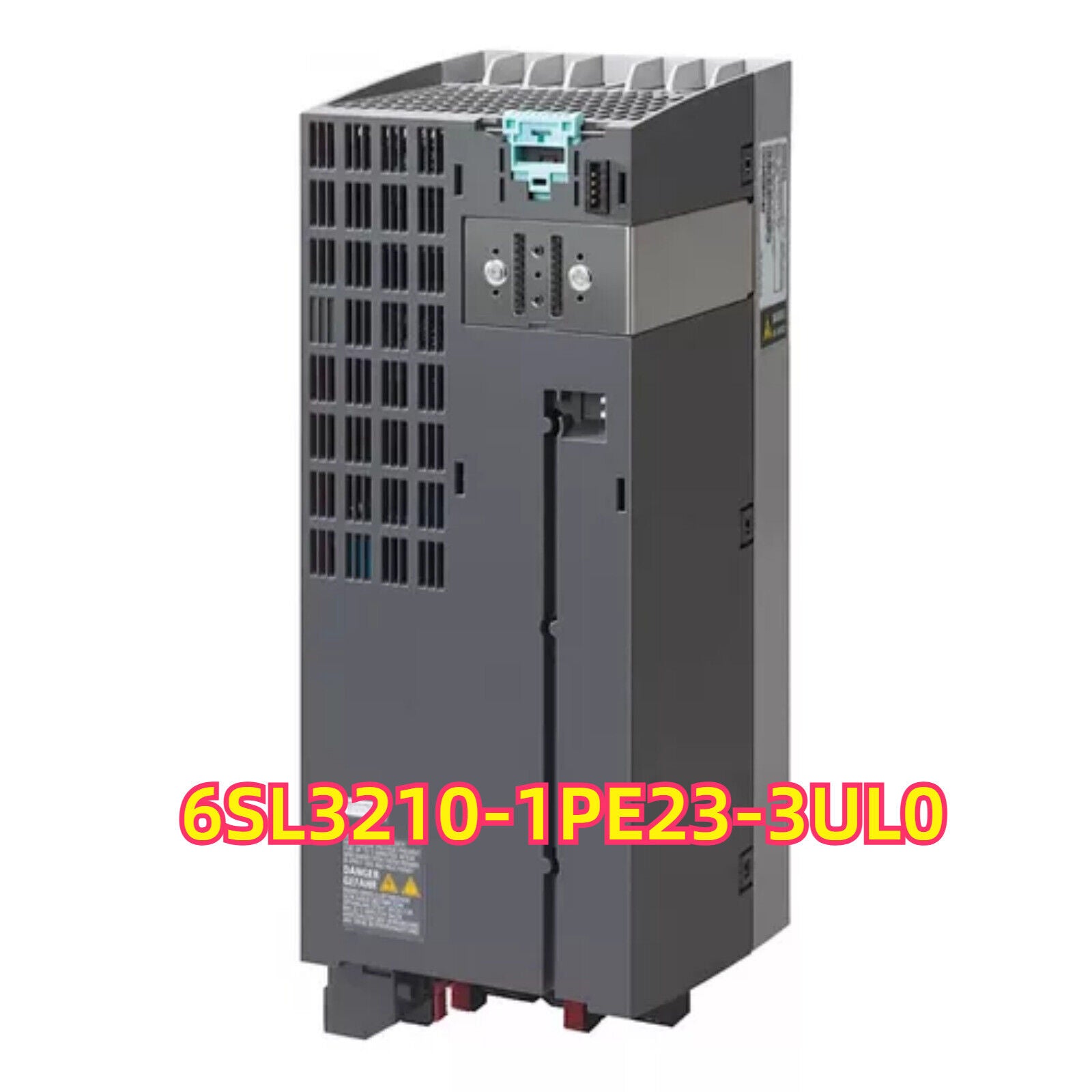

The Siemens 6SL3210-1PE23-3UL0 is a SINAMICS G120P frequency inverter, specially optimized for applications involving pumps, fans, and compressors. Operating on a 3-phase 380–480 V AC supply, this unit delivers a rated power output of 15 kW with 33 A output current. It features integrated energy-saving functions, low harmonics, and a modular structure for flexible installation. The inverter supports various communication protocols and is configured via SINAMICS Startdrive within the TIA Portal, making it ideal for energy- efficient HVAC and process automation systems.

Key Features

• Power Rating: 15 kW (20 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 33 A
• Control Modes: V/f, V²/f, sensorless vector control (ECO mode optimized)
• Integrated Features: Safe Torque Off (STO), motor parameter identification, energy monitoring
• Communication Options: PROFINET, Modbus RTU, USS, BACnet (via optional modules)
• Cooling: Internal fan cooling, with IP20 enclosure
• Configuration: SINAMICS Startdrive in TIA Portal or IOP-2 (Intelligent Operator Panel)

Technical Specifications

• System Series: SINAMICS G120P
• Module Type: Frequency Inverter
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 15 kW
• Output Current: 33 A
• Control Methods: V/f, V²/f, ECO vector control
• Safety Functions: STO (Safe Torque Off)
• Communication Interfaces: RS485, PROFINET (via module)
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 195 mm × 305 mm × 195 mm
• Operating Temperature Range: -10 °C to +50 °C (derating up to 60 °C)
• Certifications: CE, UL, cULus, RoHS, EAC

Application Areas

• HVAC systems: variable-speed control of pumps and fans
• Building automation and energy-efficient water treatment
• Compressor regulation in industrial and commercial systems
• Infrastructure and utility sector automation

Advantages

• Energy-efficient operation optimized for fluid handling systems
• Integrated safety and diagnostic functions enhance system reliability
• Modular design allows easy adaptation to specific applications
• Seamless engineering and commissioning via TIA Portal
