SINAMICS G120C | Siemens | 6SL3210-1PE11-8AL1 6SL3 210-1PE11-8AL1 SINAMICS Power Module PM240-2

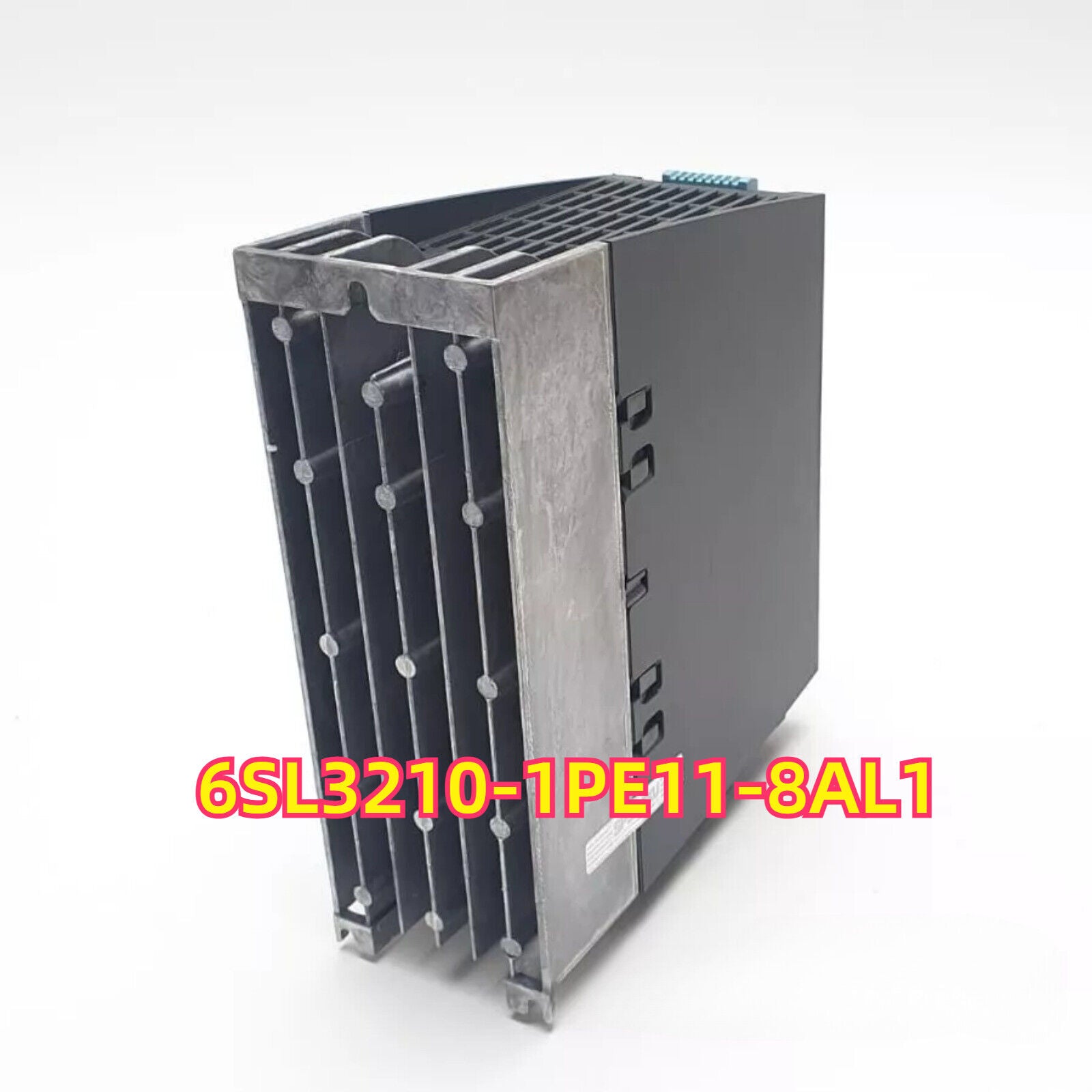

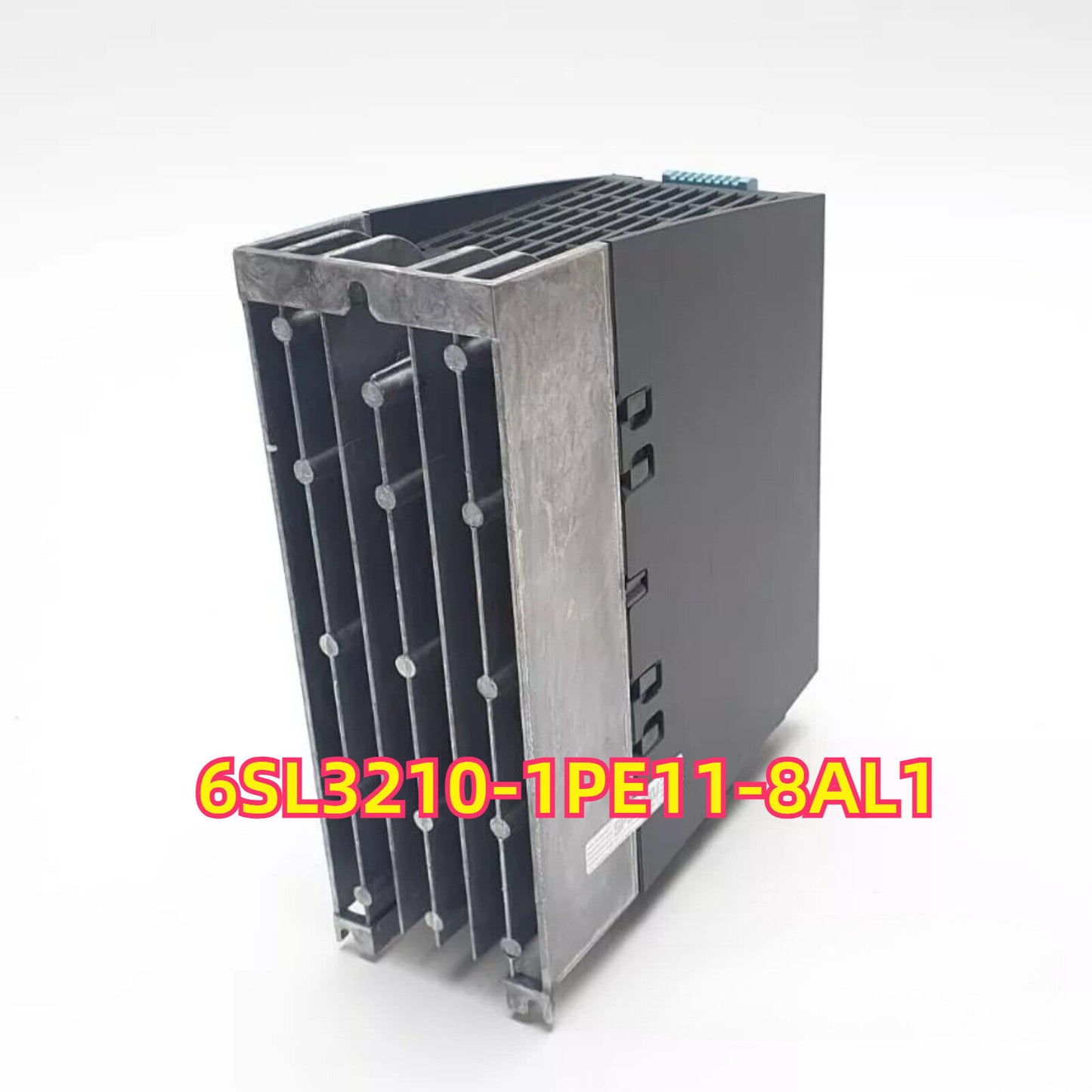

Product Description: Siemens 6SL3210-1PE11-8AL1 SINAMICS G120C Frequency Inverter

The Siemens 6SL3210-1PE11-8AL1 is a frequency inverter from the SINAMICS G120C series, designed for controlling 3-phase induction motors in general industrial applications. It provides a rated output power of 7.5 kW and output current of 15 A at 3-phase 400 V AC input. This inverter is ideal for controlling pumps, fans, conveyors, and other machinery, offering energy-efficient operation and easy integration with Siemens automation systems. The G120C is compact, reliable, and features integrated safety functions.

Key Features

• Power Rating: 7.5 kW (approx. 10 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 15 A
• Control Modes: V/f, Sensorless Vector Control (SVC), Flux Current Control (FCC)
• Integrated Features: Safe Torque Off (STO), braking chopper, energy-saving functions
• Interfaces: RS485 (USS/Modbus RTU), digital and analog I/O
• Cooling: Internal fan cooling with compact IP20 housing
• Configuration: Via SINAMICS Startdrive in TIA Portal or IOP/IOP-2 panel

Technical Specifications

• System Series: SINAMICS G120C
• Module Type: Frequency Inverter
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 7.5 kW
• Output Current: 15 A
• Control Methods: V/f, SVC, FCC
• Communication Interface: RS485 (USS/Modbus RTU), I/O
• Braking Unit: Integrated
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 149 mm × 184 mm × 150 mm
• Operating Temperature Range: -10 °C to +50 °C (derating above +40 °C)
• Certifications: CE, UL, cULus, RoHS

Application Areas

• Speed-controlled drives for fans, pumps, and compressors
• Conveyor systems and material handling applications
• Industrial automation and OEM applications
• High-performance, cost-effective motor control solutions

Advantages

• Compact design for space-saving installations
• Energy-efficient control with integrated safety functions
• Reliable motor control for a wide range of industrial applications
• Easy configuration and commissioning via TIA Portal and IOP/IOP-2 panel
