Servo Drive | Siemens | 6SL3130-7TE23-6AA3 INVERTER 6SL31307TE236AA3 S120 ACTIVE LINE MODULE

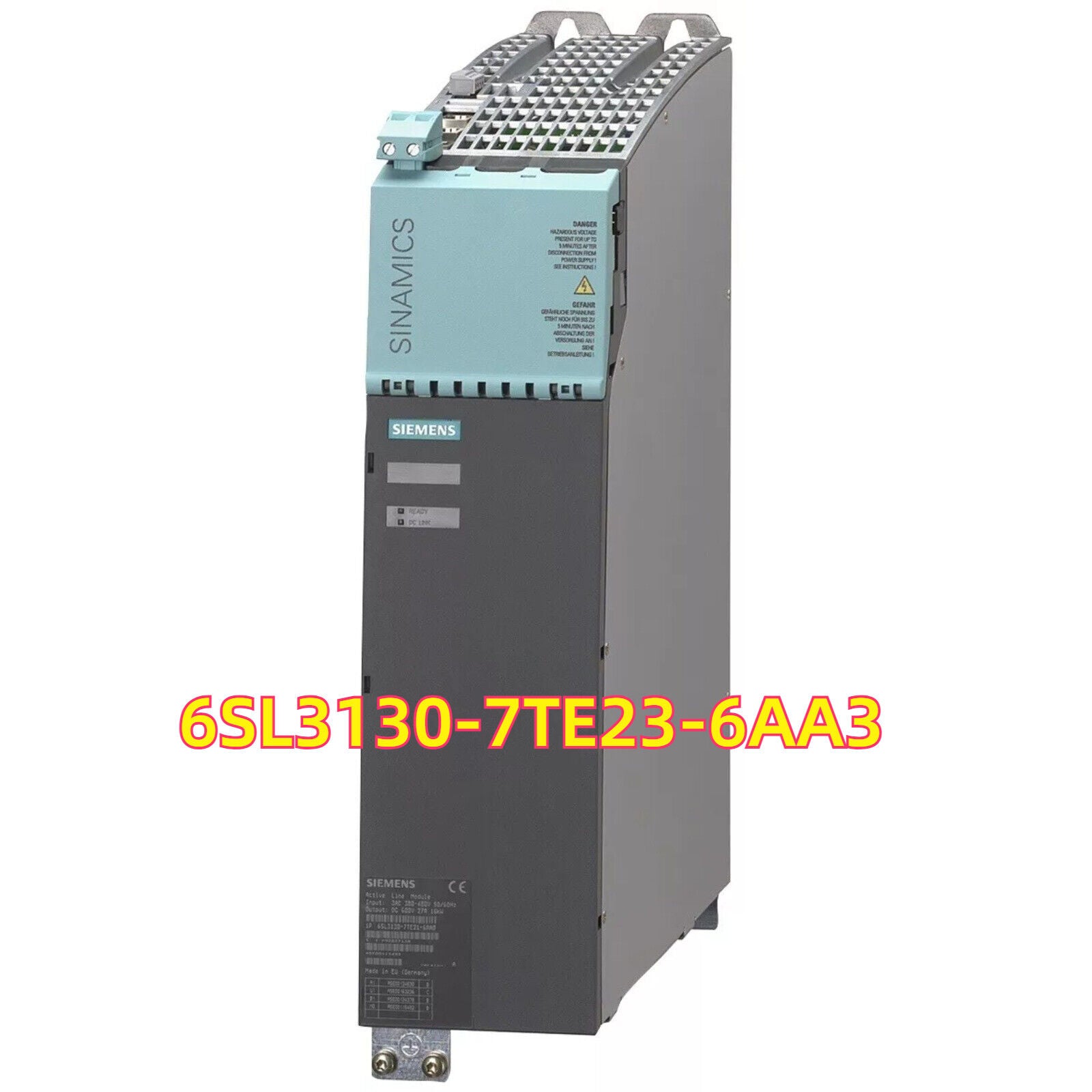

Product Description: Siemens 6SL3130-7TE23-6AA3 Active Line Module

The Siemens 6SL3130-7TE23-6AA3 is an Active Line Module from the SINAMICS S120 drive series, rated at 36 kW. This module is designed to supply energy to the DC link of S120 drive systems and allows energy regeneration back to the power supply network with low harmonic distortion, in compliance with IEEE 519 and EN 61000-3-12 standards. It operates on a 3-phase 400 V AC power supply and is internally air-cooled for control cabinet integration. The Active Line Module provides a stable DC voltage and supports highly dynamic and energy-efficient drive applications such as packaging machines, printing systems, and industrial automation lines.

Key Features

• Active Infeed Technology: Enables bidirectional energy flow (infeed + regeneration).
• High Efficiency: Regenerates braking energy and improves energy utilization.
• Low Harmonics: Integrated line-commutated converter with power factor correction.
• Compact Design: Space-saving format with internal air cooling.
• Modular Integration: Works seamlessly with SINAMICS S120 motor and control modules.
• Diagnostics and Protection: Built-in monitoring for voltage, current, and temperature.

Technical Specifications

• Product Type: Active Line Module
• Part Number: 6SL3130-7TE23-6AA3
• Series: SINAMICS S120
• Rated Power: 36 kW
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• DC Link Voltage: Approx. 600 V DC
• Infeed Type: Active (bidirectional, regenerative)
• Cooling Method: Internal air cooling
• Protection Class: IP20 (control cabinet mounting)
• Mounting: Vertical, inside cabinet
• Communication: Via DRIVE-CLiQ and SINAMICS S120 CU modules
• Operating Temperature: 0°C to +40°C (up to +55°C with derating)
• Dimensions (W x H x D): Approx. 100 × 380 × 250 mm (frame size C)
• Weight: Approx. 10–12 kg

Application Areas

• Regenerative Drive Systems: Ideal for applications with frequent braking, such as elevators or centrifuges.
• Packaging and Converting: Powers fast and dynamic servo axes.
• Industrial Production Lines: Used in machine tools and continuous motion systems.
• Energy-Efficient Solutions: Helps reduce power consumption through energy feedback.

Advantages

• Energy Recovery: Converts kinetic energy into electrical power and returns it to the grid.
• High Power Quality: Reduces harmonic content and improves system power factor.
• Compact and Scalable: Designed for modular SINAMICS S120 architecture.
• Integrated Protection: Includes fault monitoring for voltage, temperature, and overload.
• Environmentally Friendly: Enhances energy efficiency and supports green factory initiatives.
