Servo Drive | Siemens | 6SL3130-6TE23-6AA3 6SL3 130-6TE23-6AA3 S120 SMART LINE MODULE

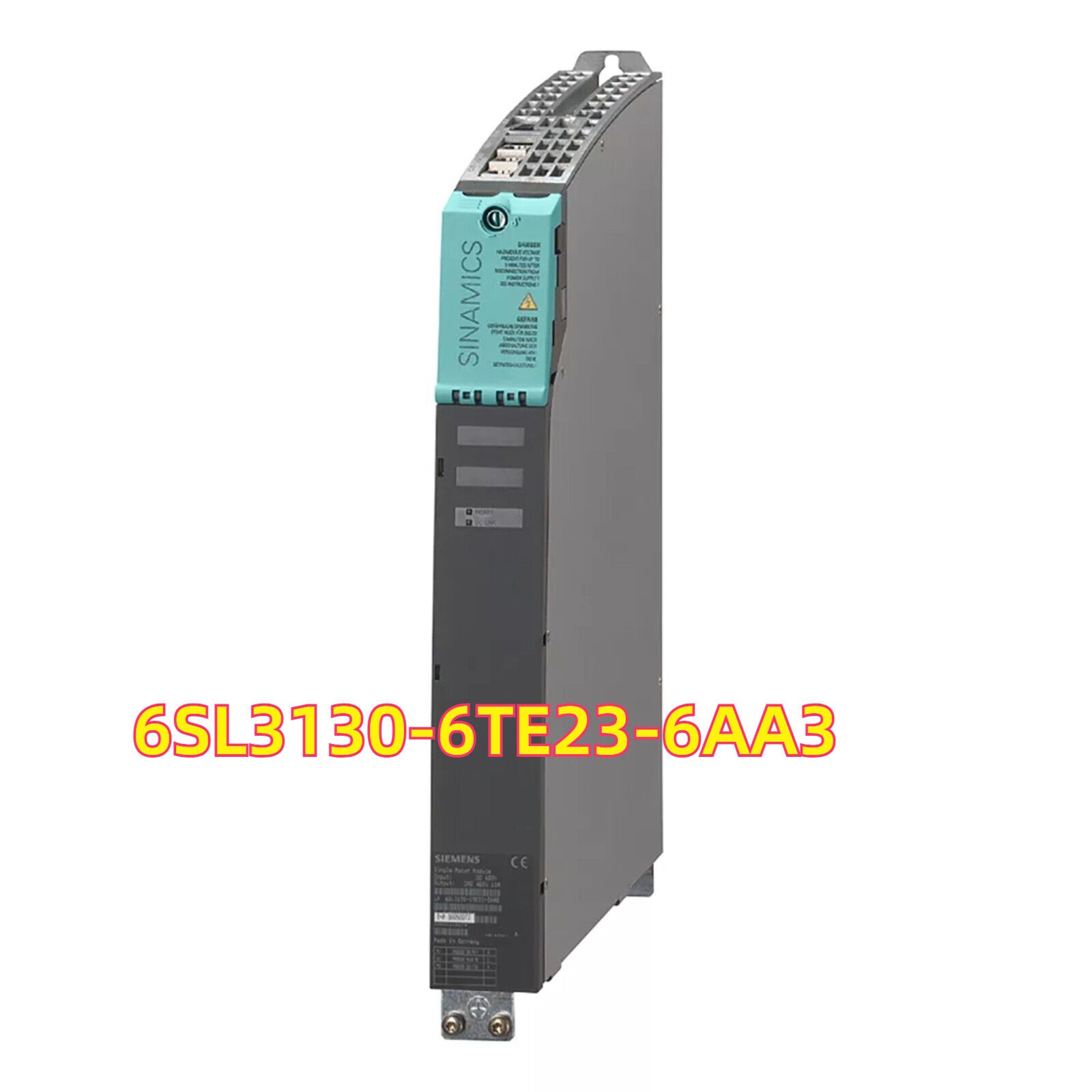

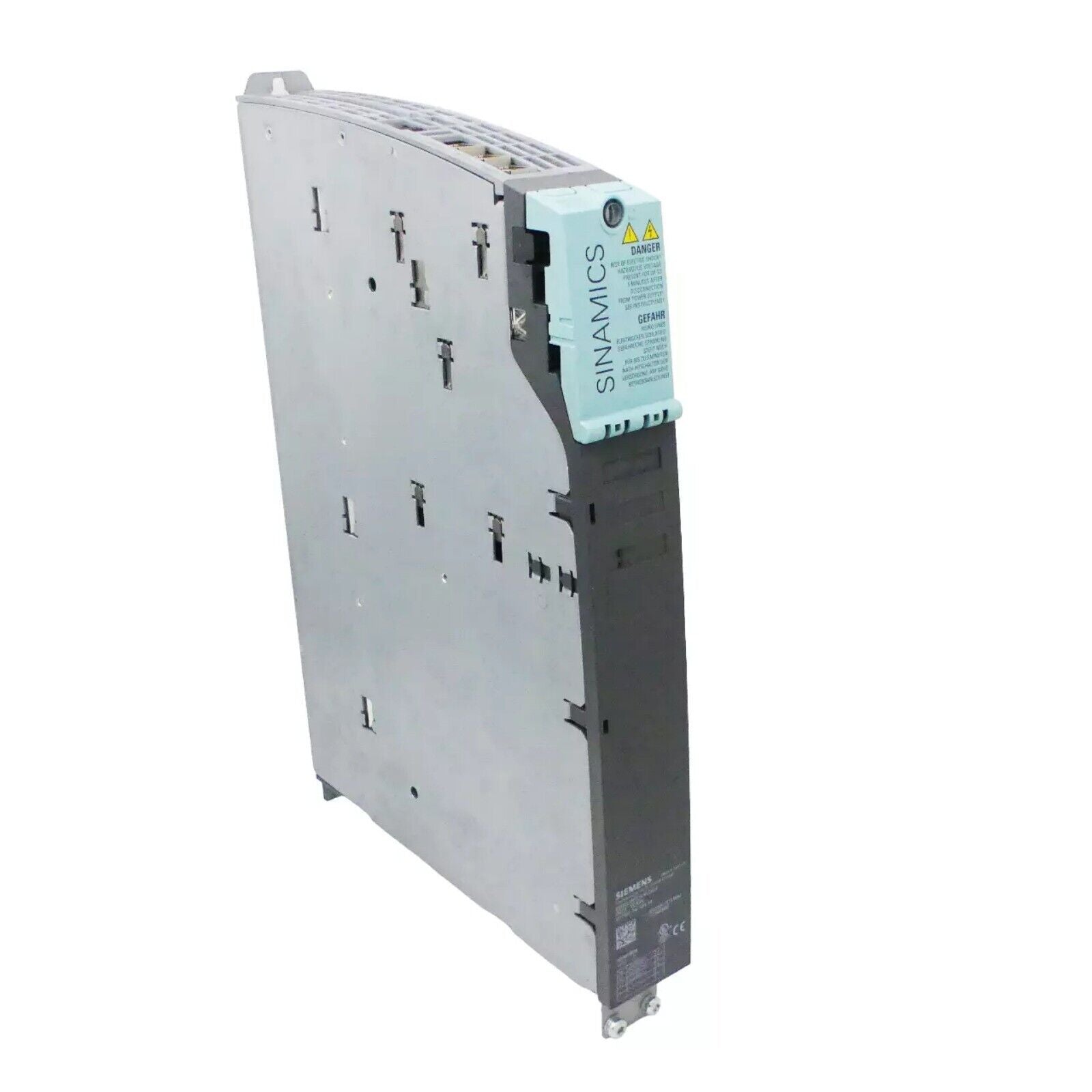

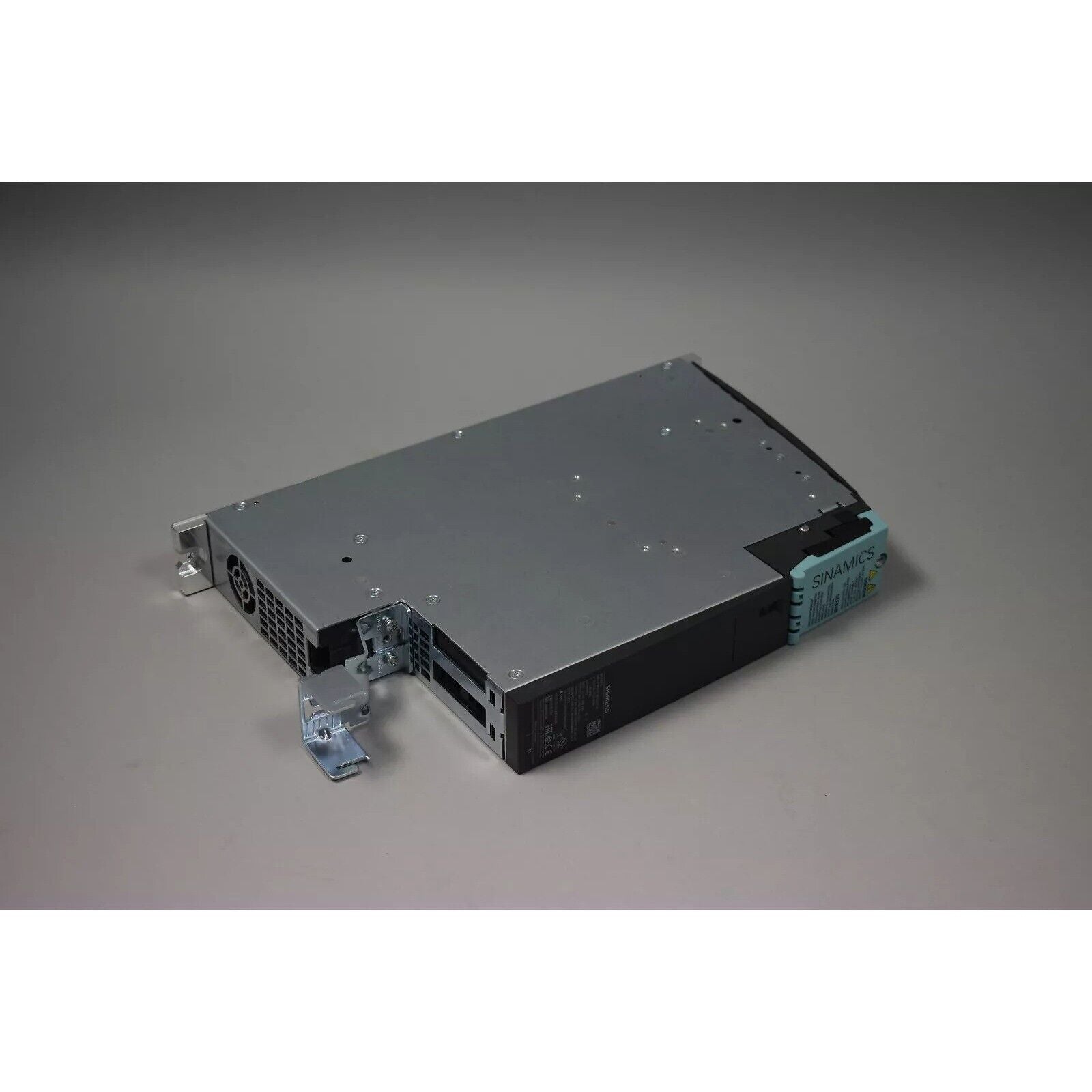

Product Description: Siemens 6SL3130-6TE23-6AA3

The Siemens 6SL3130-6TE23-6AA3 is a power module from the SINAMICS S120 series, designed to provide reliable and efficient power conversion for modular drive systems. With an output current rating of 23 A and a power rating of 7.5 kW, the PM240-2 power module operates with a 3-phase 380–480 V AC input. This module is ideal for multi-axis drive systems in industrial automation, offering high-performance energy management, regenerative braking, and flexible system integration. It also features integrated safety functions such as Safe Torque Off (STO).

Key Features

• Power Rating: 7.5 kW (approx. 10 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 23 A
• Control: Supports vector control and standard V/f control
• Regenerative Braking: Integrated braking functions for energy recovery
• Safety Functions: Safe Torque Off (STO) and other integrated safety features
• Mounting: DIN rail mounting within the SINAMICS S120 system
• Cooling: Internal fan for efficient cooling

Technical Specifications

• System Series: SINAMICS S120
• Module Type: Power Module (PM240-2)
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 7.5 kW
• Output Current: 23 A
• Control Methods: Vector Control, V/f Control
• Safety Functions: Safe Torque Off (STO)
• Braking Unit: Integrated braking functionality
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 200 mm × 350 mm × 200 mm
• Operating Temperature Range: -10 °C to +40 °C (derating above +40 °C)
• Certifications: CE, UL, cULus

Application Areas

• Multi-axis motion control systems in robotics and material handling
• Regenerative braking applications for energy-efficient automation systems
• Drive solutions for conveyors, pumps, fans, and other industrial machinery
• Industrial automation requiring high-performance, modular drive solutions

Advantages

• High-performance power module with regenerative braking for energy efficiency
• Seamless integration into SINAMICS S120 modular drive systems
• Compact design with integrated safety functions for reliable operation
• Easy configuration and diagnostics via TIA Portal and SINAMICS Startdrive
