Product Description: Siemens 6SL3120-2TE21-0AA4

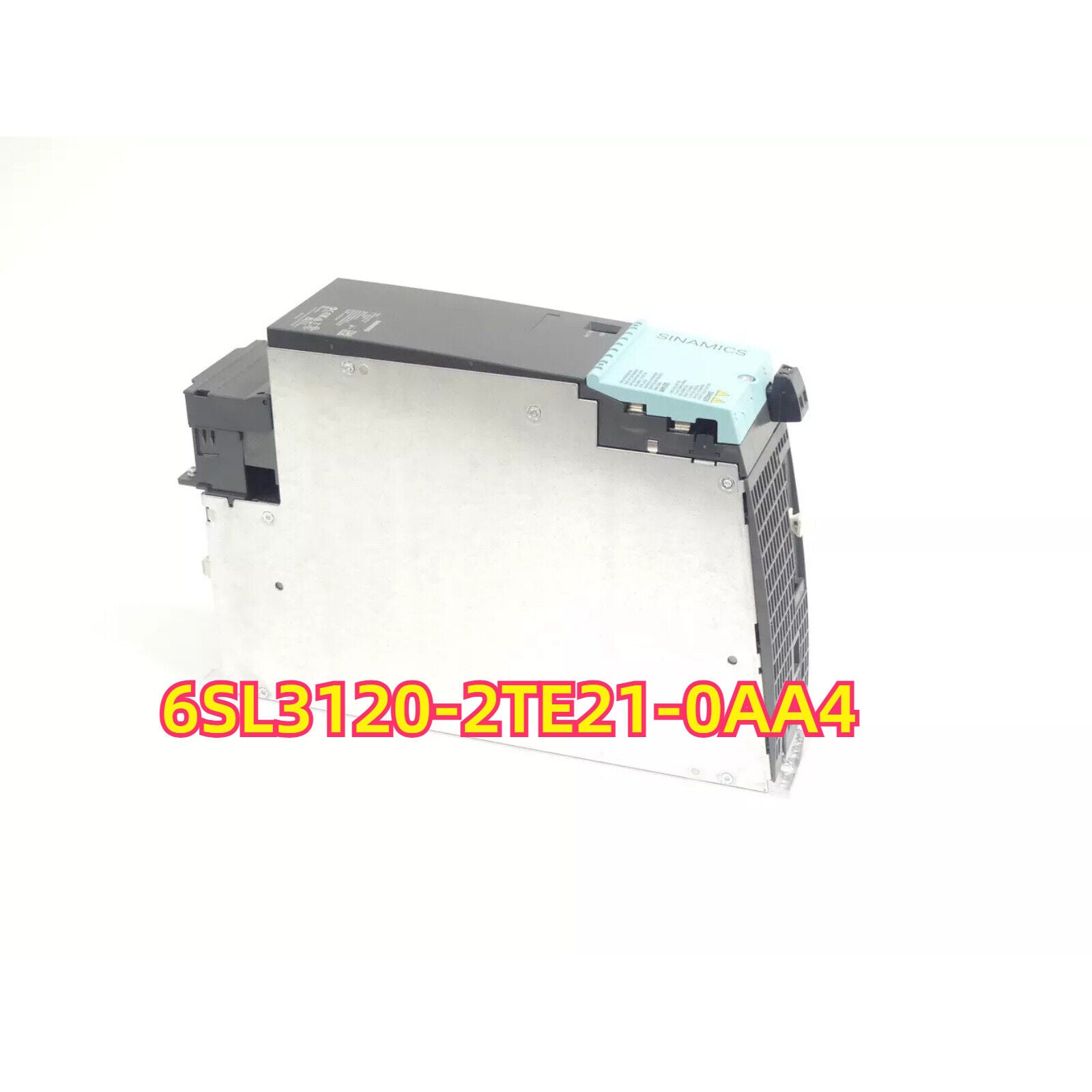

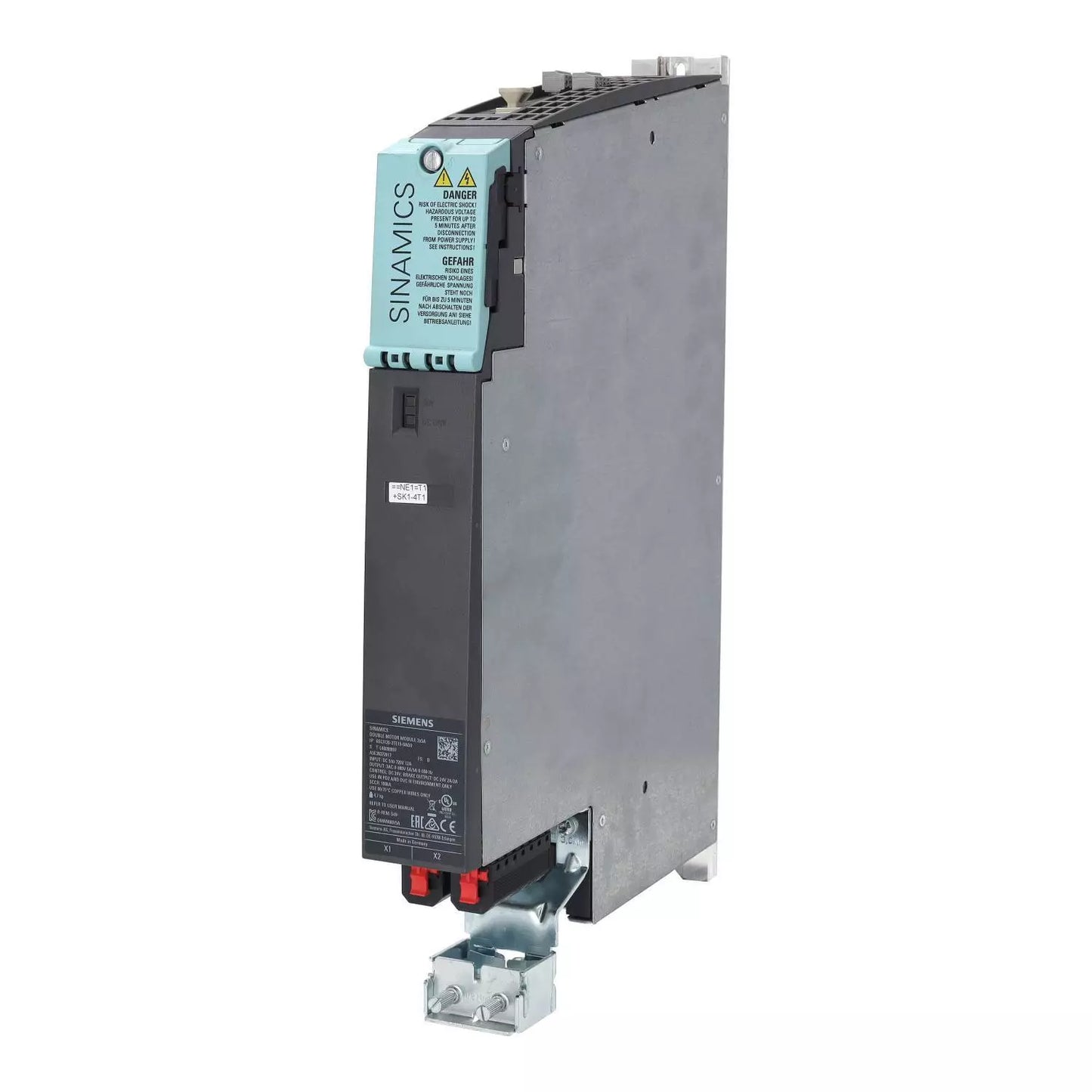

The Siemens 6SL3120-2TE21-0AA4 is a double motor module from the SINAMICS S120 series, designed to control two independent servo or induction motors in compact multi-axis drive applications. Each output channel supports up to 3 A continuous current from a 600 V DC link, and the module belongs to the Booksize Frame Size B class with internal air cooling. This motor module is used in conjunction with a SINAMICS S120 line module and control unit (CU) via DRIVE-CLiQ interface, making it ideal for dynamic and space-efficient solutions in machine tools, packaging systems, and handling applications.

Key Features

• Dual-Axis Motor Control: Operates two motors independently (3 A each).
• High-Speed Servo Performance: Supports precise torque, speed, and position control.
• Compact Design: Booksize format enables dense panel mounting with minimal footprint.
• DRIVE-CLiQ Interface: Ensures fast, synchronized communication with the control unit.
• Internal Cooling: Equipped with a fan for integrated air cooling.
• Full Integration: Works seamlessly within the SINAMICS S120 modular architecture.

Technical Specifications

• Product Type: Double Motor Module
• Part Number: 6SL3120-2TE21-0AA4
• Series: SINAMICS S120
• Rated Output Current: 2 × 3 A
• DC Link Voltage: 600 V DC
• Overload Capability: Up to 150% for short duration
• Cooling Type: Internal air cooling
• Frame Size: Booksize B
• Mounting Orientation: Vertical, side-by-side mounting supported
• Communication Interface: DRIVE-CLiQ
• Protection Class: IP20 (for control cabinet use)
• Operating Temperature: 0°C to +40°C (up to +55°C with derating)
• Dimensions (W × H × D): Approx. 100 × 380 × 250 mm
• Weight: Approx. 6.5 kg

Application Areas

• Multi-Axis Machine Tools: For controlling servo axes in precision milling, drilling, or lathing.
• Packaging Systems: Supports synchronized operation of feeding, sealing, and cutting axes.
• Material Handling: Used in automated transport systems requiring accurate motion control.
• Textile and Printing: Provides dynamic motion for tension and feed control.

Advantages

• Dual-Axis Efficiency: Controls two motors in one compact unit, reducing space and cost.
• Precise Motion Control: Supports torque, speed, and position control modes.
• Energy-Efficient Design: Internal cooling and compact size minimize energy loss and heat buildup.
• Modular and Scalable: Integrates easily with other S120 components in complex drive setups.
• Fast Commissioning: Plug-and-play with DRIVE-CLiQ simplifies wiring and configuration.
