Servo Controller | 6SL3120-2TE15-0AD0 6SL3 120-2TE15-0AD0 S120 DOUBLE MOTOR MODULE

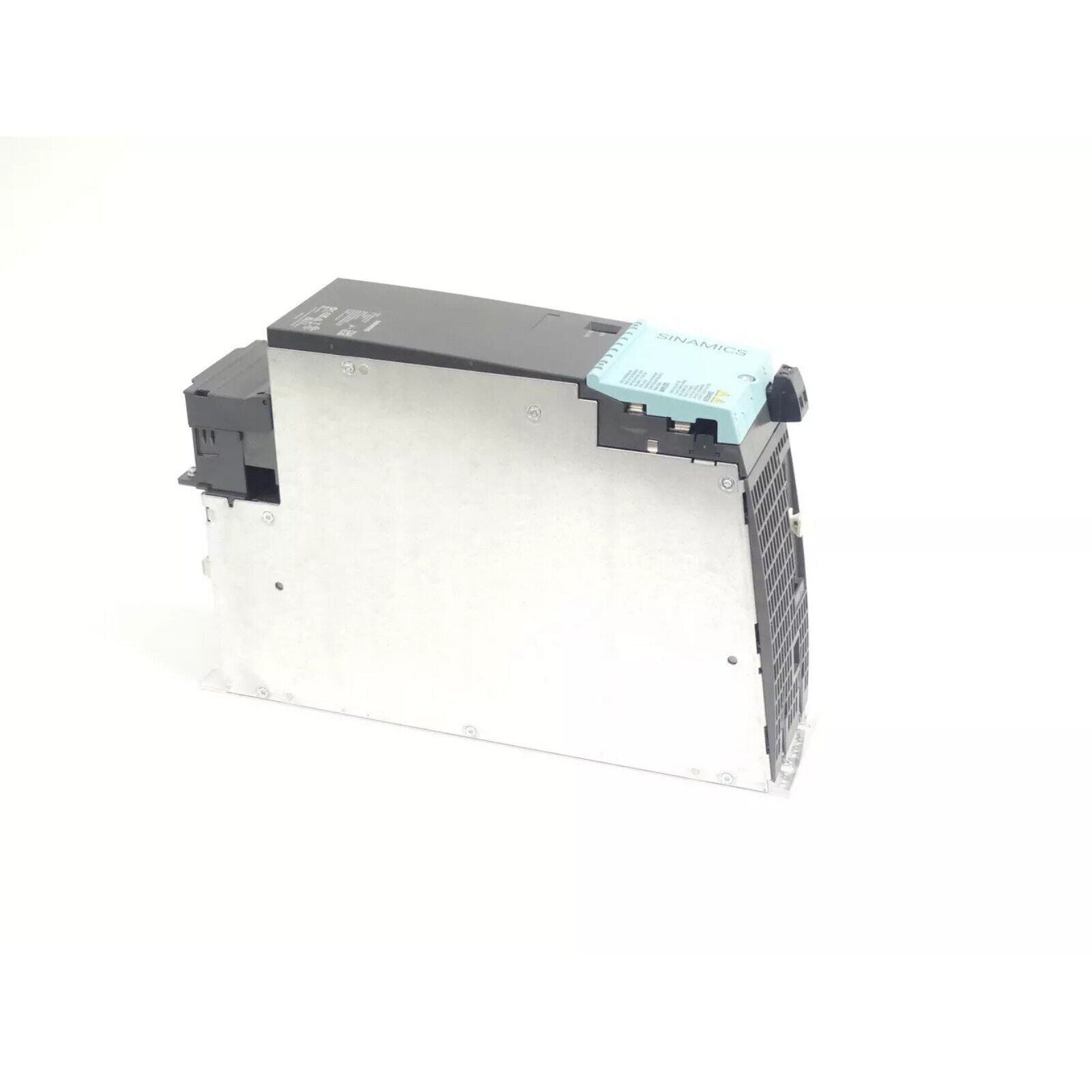

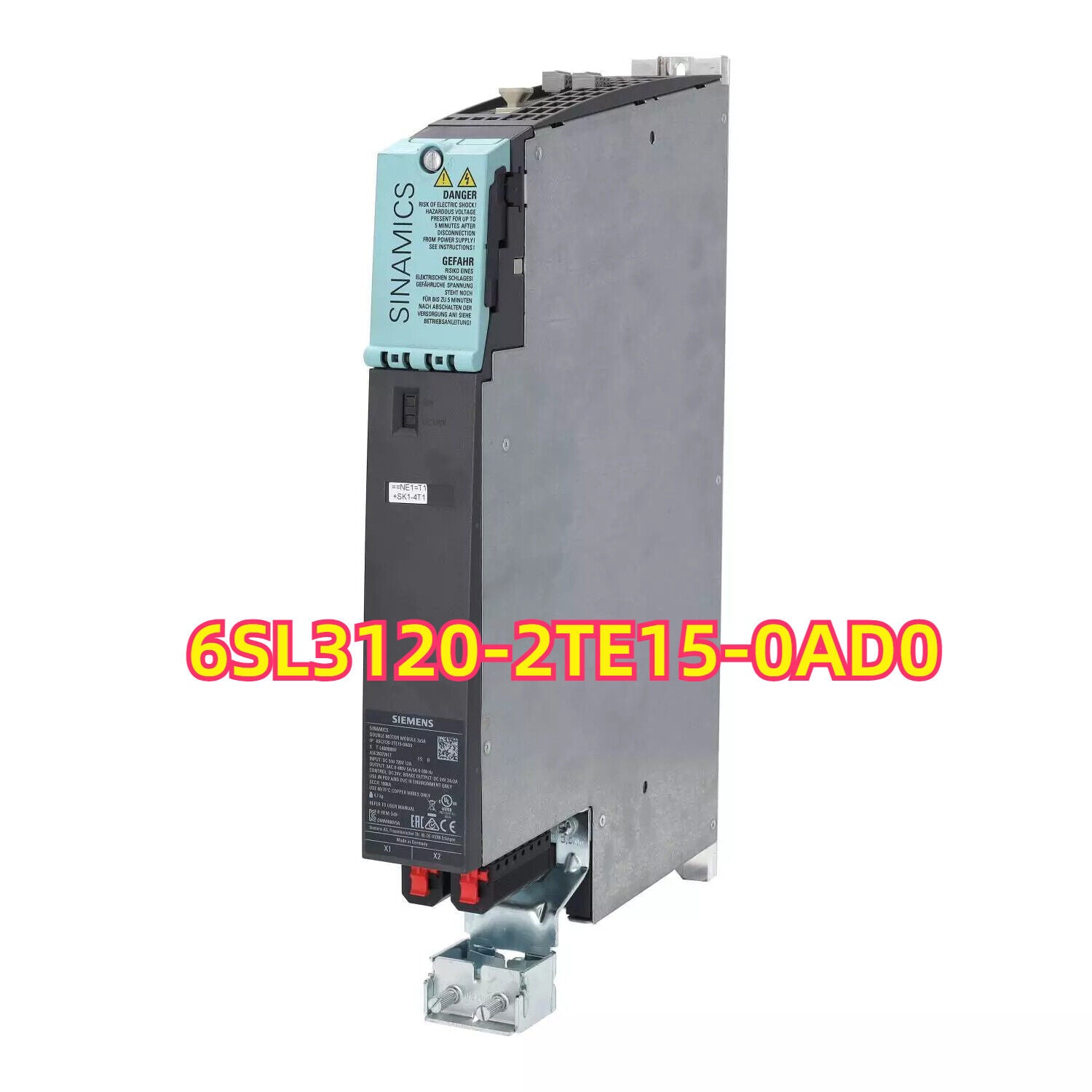

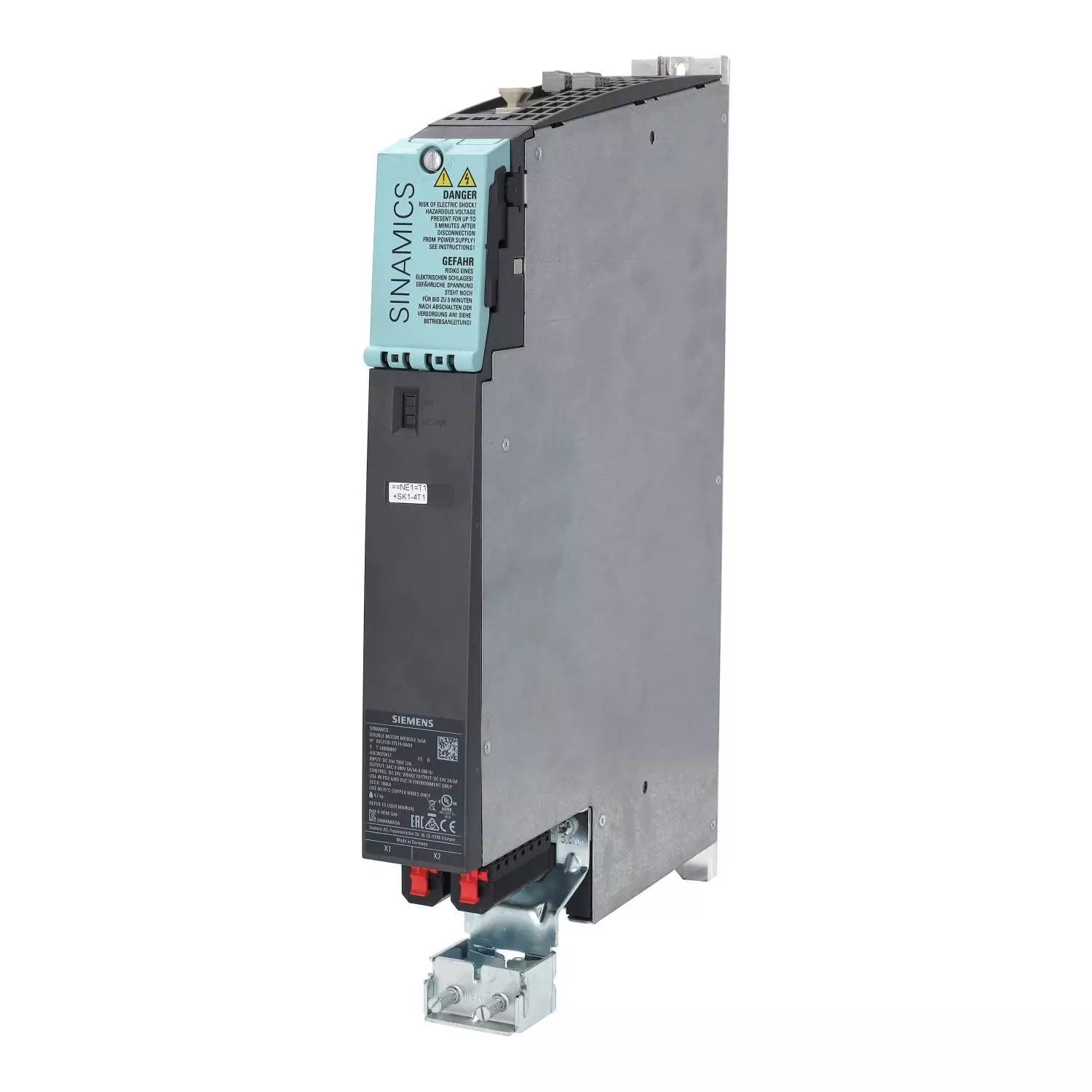

Product Description: Siemens 6SL3120-2TE15-0AD0

The Siemens 6SL3120-2TE15-0AD0 is a frequency inverter from the SINAMICS G120 series, designed for controlling 3-phase induction motors in industrial applications. It provides a rated output power of 7.5 kW and an output current of 15 A with a 3-phase 380–480 V AC input. The G120 inverter features versatile control modes, including V/f and Sensorless Vector Control (SVC), making it ideal for use in applications such as pumps, fans, conveyors, and compressors. It is designed for efficient operation with integrated energy- saving functions and braking chopper capabilities.

Key Features

• Power Rating: 7.5 kW (approx. 10 HP)
• Input Voltage: 3-phase 380–480 V ±10%, 47–63 Hz
• Output Current: 15 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Integrated Features: Energy-saving functions, braking chopper, motor parameter identification
• Interfaces: RS485 (USS/Modbus RTU), digital and analog I/O, optional fieldbus modules
• Cooling: Internal fan cooling with compact IP20 housing
• Configuration: Via SINAMICS Startdrive in TIA Portal or IOP/IOP-2 panel

Technical Specifications

• System Series: SINAMICS G120
• Module Type: Frequency Inverter
• Input Voltage: 3-phase 380–480 V ±10%
• Output Power: 7.5 kW
• Output Current: 15 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Communication Interface: RS485 (USS/Modbus RTU), I/O
• Braking Unit: Integrated
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 149 mm × 184 mm × 150 mm
• Operating Temperature Range: -10 °C to +50 °C (derating above +40 °C)
• Certifications: CE, UL, cULus, RoHS

Application Areas

• Speed-controlled drives for pumps, fans, and compressors
• Conveyor systems and material handling equipment
• General-purpose motor control in manufacturing and processing systems
• OEM machine control for varied industrial applications

Advantages

• Compact and space-efficient design for easy installation
• High-efficiency motor control with energy-saving features
• Integrated braking functionality for dynamic load control
• Easy configuration and integration using TIA Portal or optional operator panel
